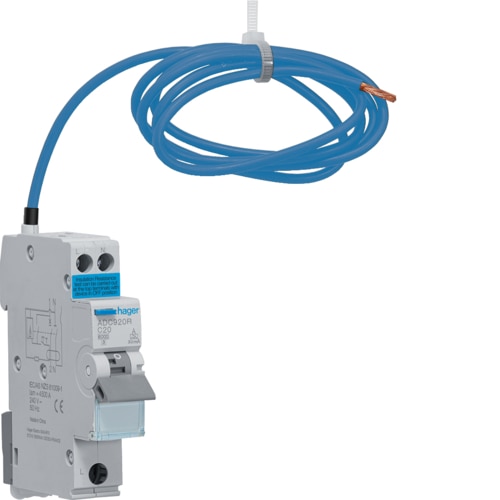

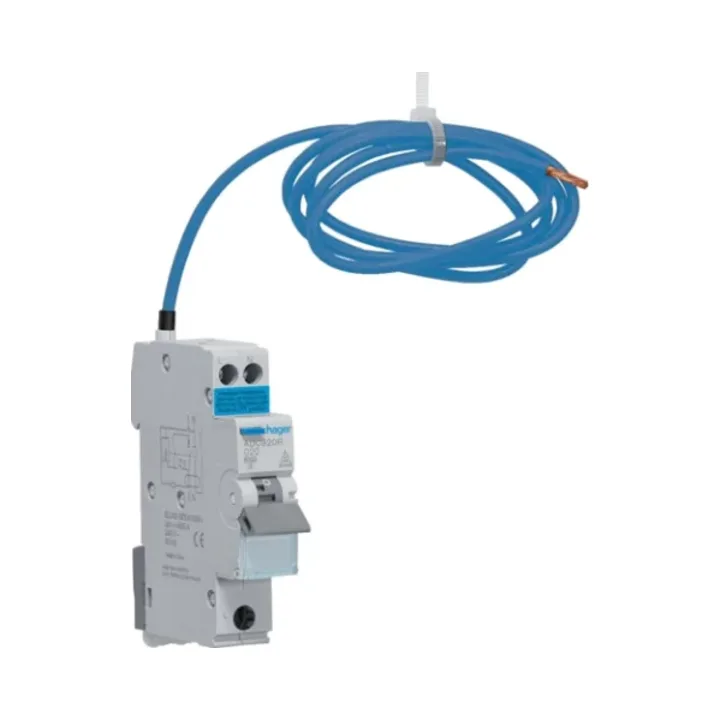

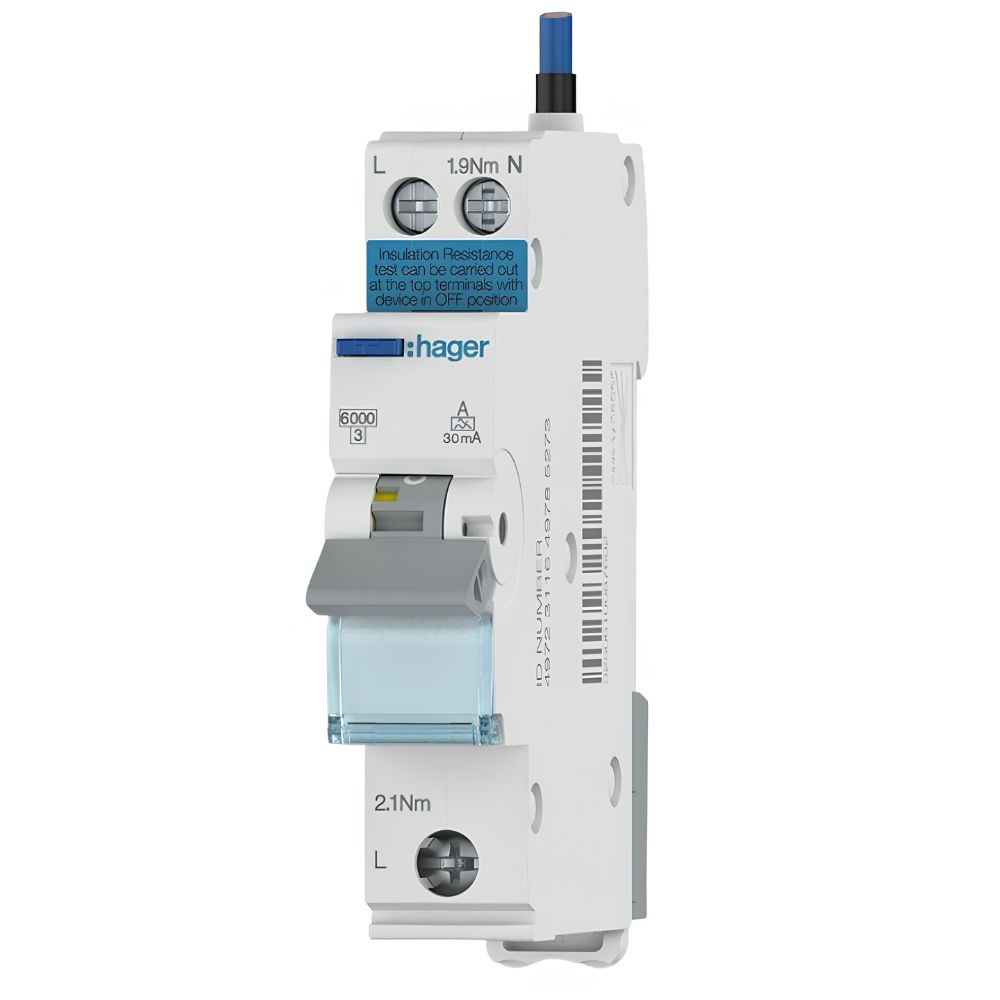

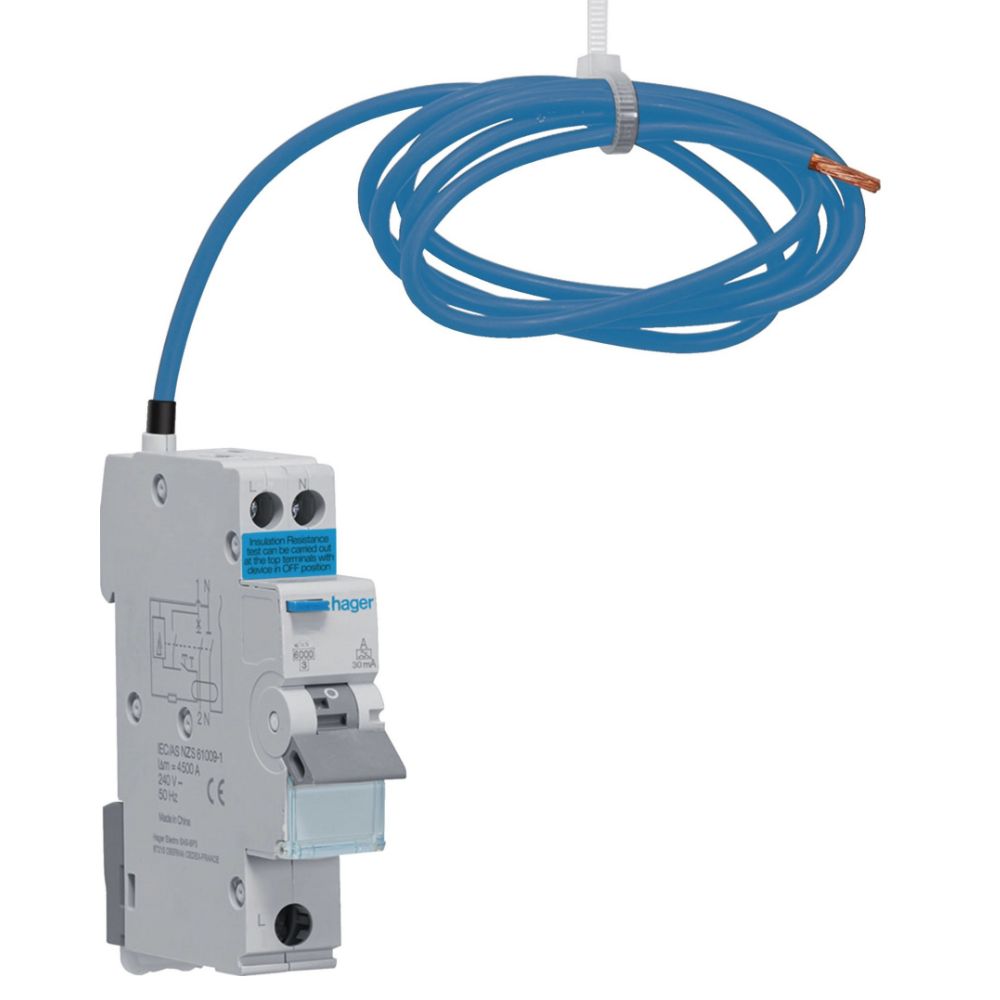

Hager ADC920R 30mA Type A 20A 6kA C Curve 1M 1P+N Bi-Directional RCBO

Description

30mA Type A 20A 6kA C Curve 1M 1P+N Bi-Directional RCBO

Hager ADC920R

The Hager ADC920R 30mA Type A 20A 6kA C Curve RCBO is designed to ensure the safety and efficiency of your electrical installations. This durable and reliable RCBO protects against overload, short-circuits, and residual currents, offering superior performance. With its bi-directional capability, it works seamlessly regardless of the direction of power flow, making it an excellent choice for both residential and commercial applications.

Product Features:

• Nominal Current: 20A
• Rated Residual Current: 30mA
• Poles: 1P+N
• Curve Type: C Curve
• Type: Type A
• Bi-Directional Operation

Specifications of Hager ADC920R Bi-Directional RCBO

• Neutral Position: Right
• Number of Poles: 2P (1P+N)
• Fixing Mode: DIN rail type O (symmetrical)
• Rated Operational Voltage: 230V AC
• Frequency: 50 Hz
• Rated Insulation Voltage: 440V
• Max Operating Voltage: 264V
• Impulse Withstand Voltage: 4 kV
• Rated Residual Operating Current: 30 mA
• Rated Current (30°C): 20A
• Total Power Loss under IN: 11.68W

Dimensions:

• Depth: 70 mm
• Height: 85 mm
• Width: 17.7 mm

Safety and Standards:

• Protection Index: IP20
• Residual Current Type: A
• Standards: IEC 61009-2-2, BS 61009-2-2
• WEEE Directive: Compliant

Operating Conditions:

• Operating Temperature: -25°C to 70°C

This RCBO provides exceptional protection for electrical circuits, ensuring safe and efficient operation in residential and commercial environments.
