Description

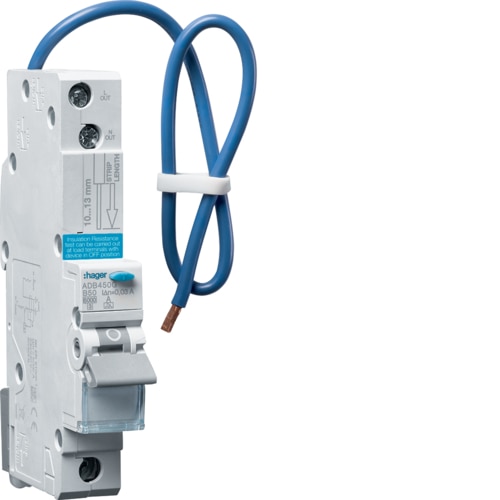

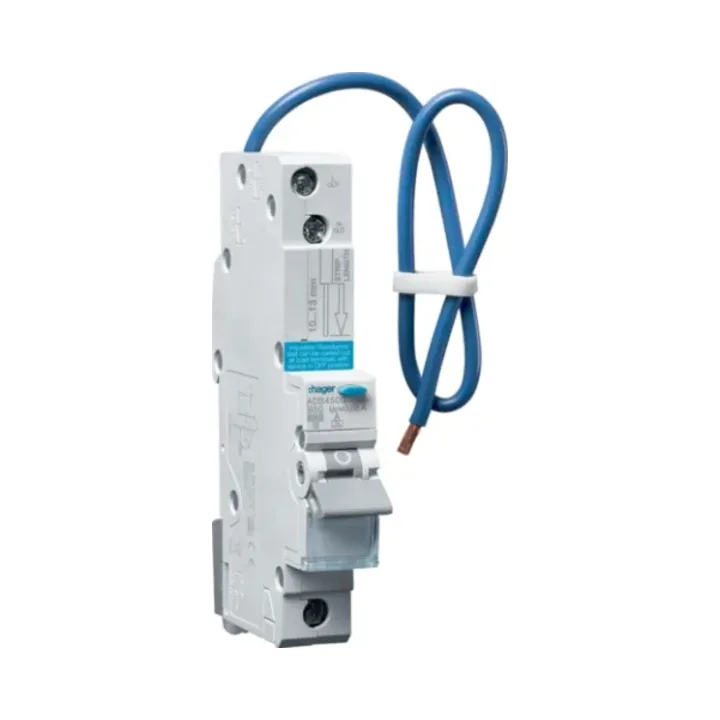

Hager ADB450G 30mA Curve B 6kA 50A Type A 1M 1P RCBO
Overview
The Hager 30mA Curve B 6kA 50A Type A 1M 1P RCBO is designed for superior protection and performance in electrical circuits. With a right neutral position and a single pole (1P) configuration, it ensures reliable operation. The DIN rail type O (symmetrical) fixing mode allows for easy and secure installation.
Electrical Features
This RCBO operates at a rated voltage of 230/240 V with a frequency of 50/60 Hz, suitable for AC supply voltage. It has a rated insulation voltage of 250 V and can withstand impulse voltages up to 4000 V. Designed with a rated residual operating current of 30 mA, it supports a current rating of 45 A at 30°C.
Dimensions and Efficiency
Compact dimensions of 70 mm depth, 115 mm height, and 17.8 mm width make this RCBO ideal for various setups. It exhibits a total power loss of 12.9 W under normal conditions, highlighting its efficiency.
Durability and Standards
Built to endure, it can handle up to 2000 electric cycles and 10000 mechanical operations. Although it does not support quick connect features or accessories, it meets high standards of safety and performance, complying with BS 61009-1 and EN 61009-1 standards. The device is IP20 rated for protection and adheres to the European WEEE directive.
Usage Conditions
The Hager ADB450G RCBO operates efficiently within a temperature range of -25 to 40°C, making it suitable for diverse environments. It is a reliable choice for both residential and commercial applications.
Key Features
- Reliable single pole (1P) configuration
- Easy DIN rail installation
- High safety and performance standards
- Compact and efficient design
- Suitable for a wide temperature range
Specifications:
| Architecture | |
|---|---|
| Neutral position | Right |
| Number of poles | 1P |
| Fixing mode | DIN rail type O (symmetrical) |
| Curve | B |
| Main electrical features | |
| Rated operational voltage Ue | 230 / 240 V |
| Frequency | 50/60 Hz |
| Type of supply voltage | AC |
| Voltage | |
| Rated insulation voltage | 250 V |
| Rated impulse withstand voltage | 4000 V |
| Electric current | |
| Rated residual operating current | 30 mA |
| Electric current / temperature | |
| Rating current 30°C | 50 A |
| Dimensions | |
| Depth of installed product | 70 mm |
| Height of installed product | 115 mm |
| Width of installed product | 17.8 mm |
| Power | |
| Total power loss under IN | 10.8 W |
| Endurance | |
| Electric endurance in number of cycles | 2000 |
| Number of mechanical operations | 10000 |
| Equipment | |
| Quick connect | No |
| Can be accessorized | No |
| Standards | |
| Standard text | BS 61009-1 ; EN 61009-1 |
| European directive WEEE | Concerned |
| Safety | |
| Protection index IP | IP20 |
| Residual current type | A |
| Use conditions | |
| Operating temperature | -25…40 °C |
