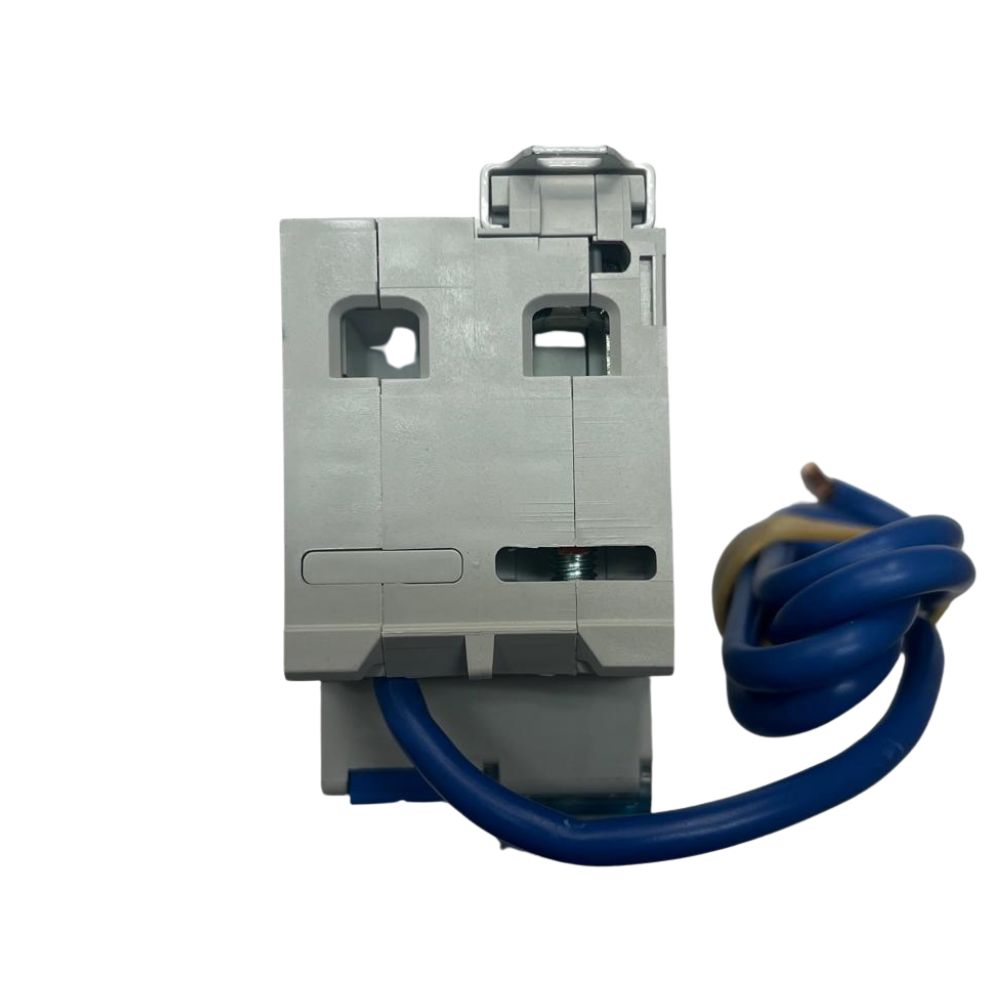

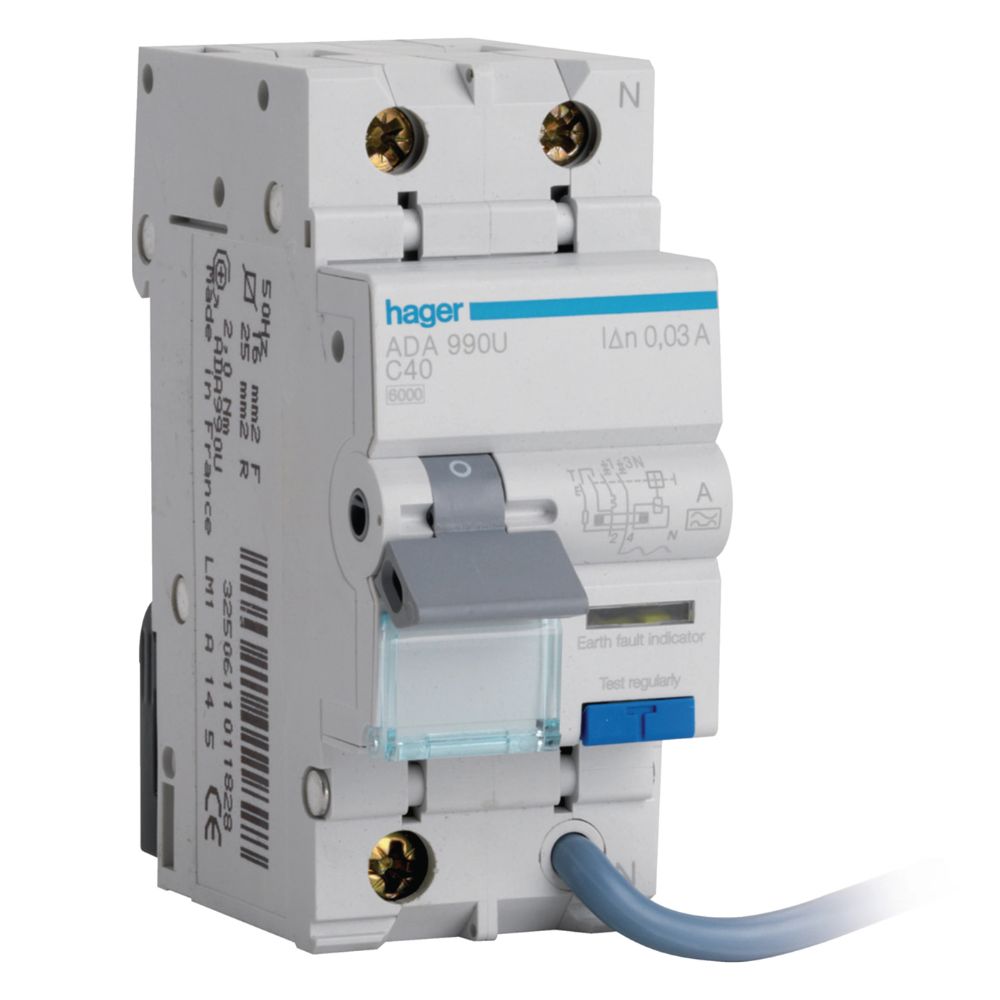

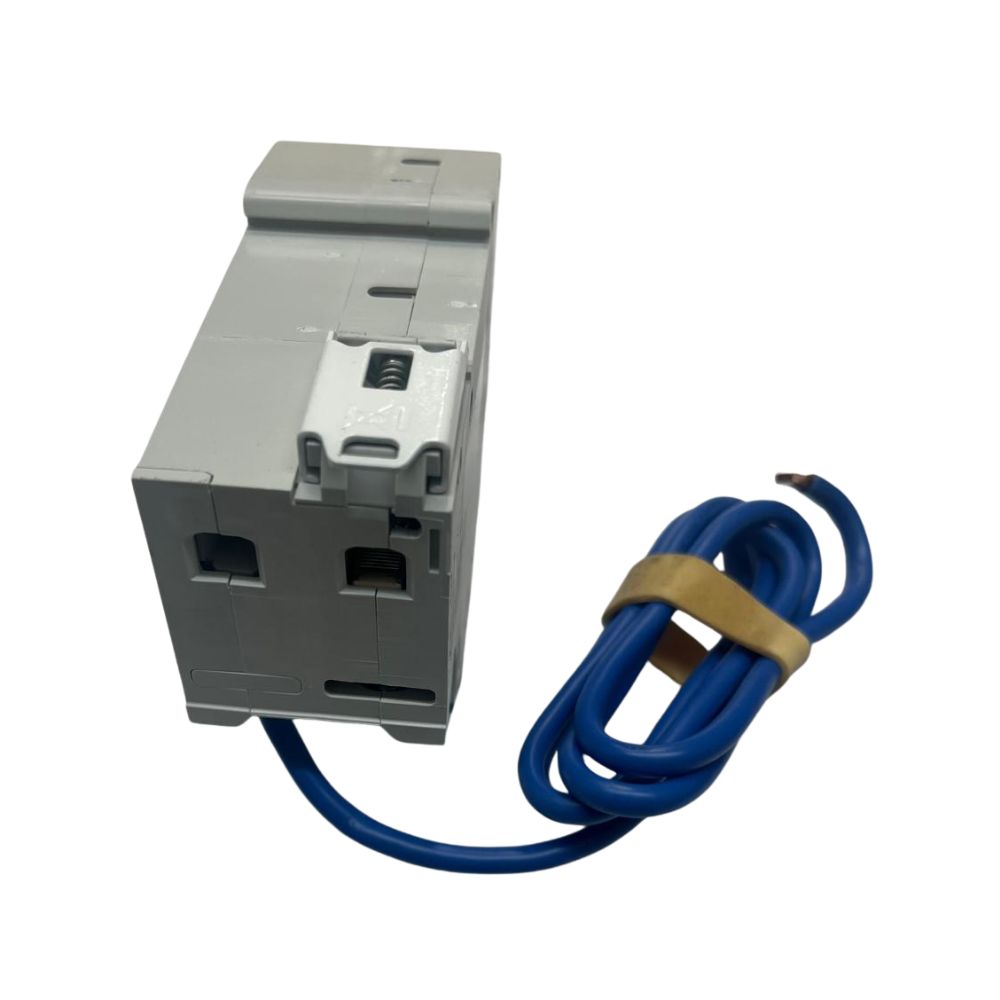

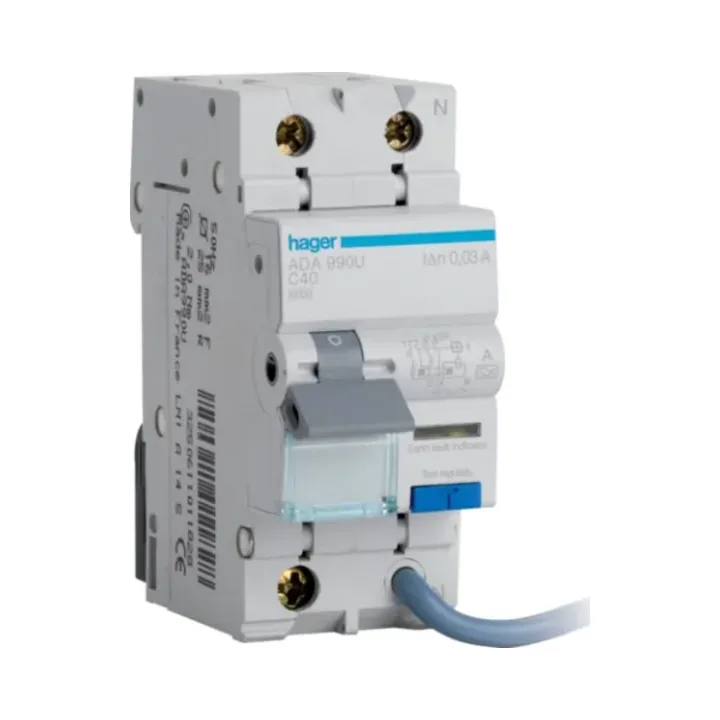

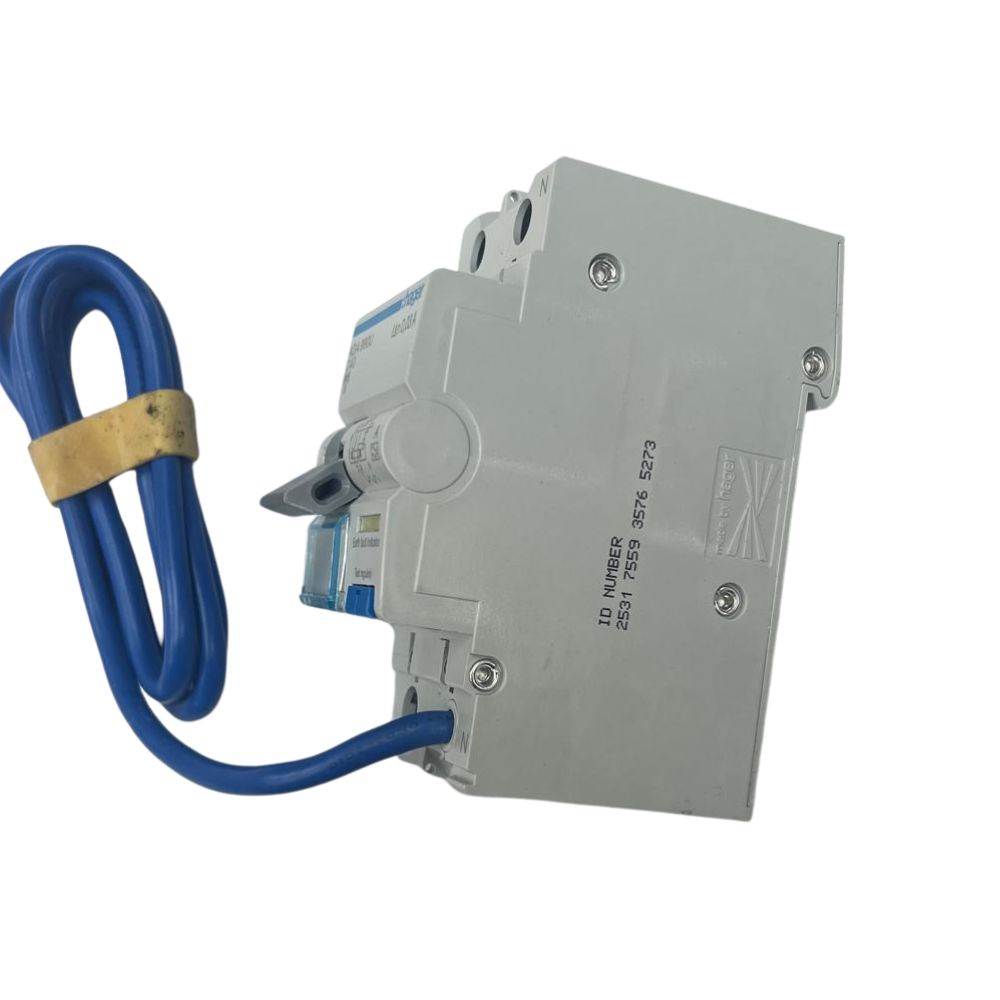

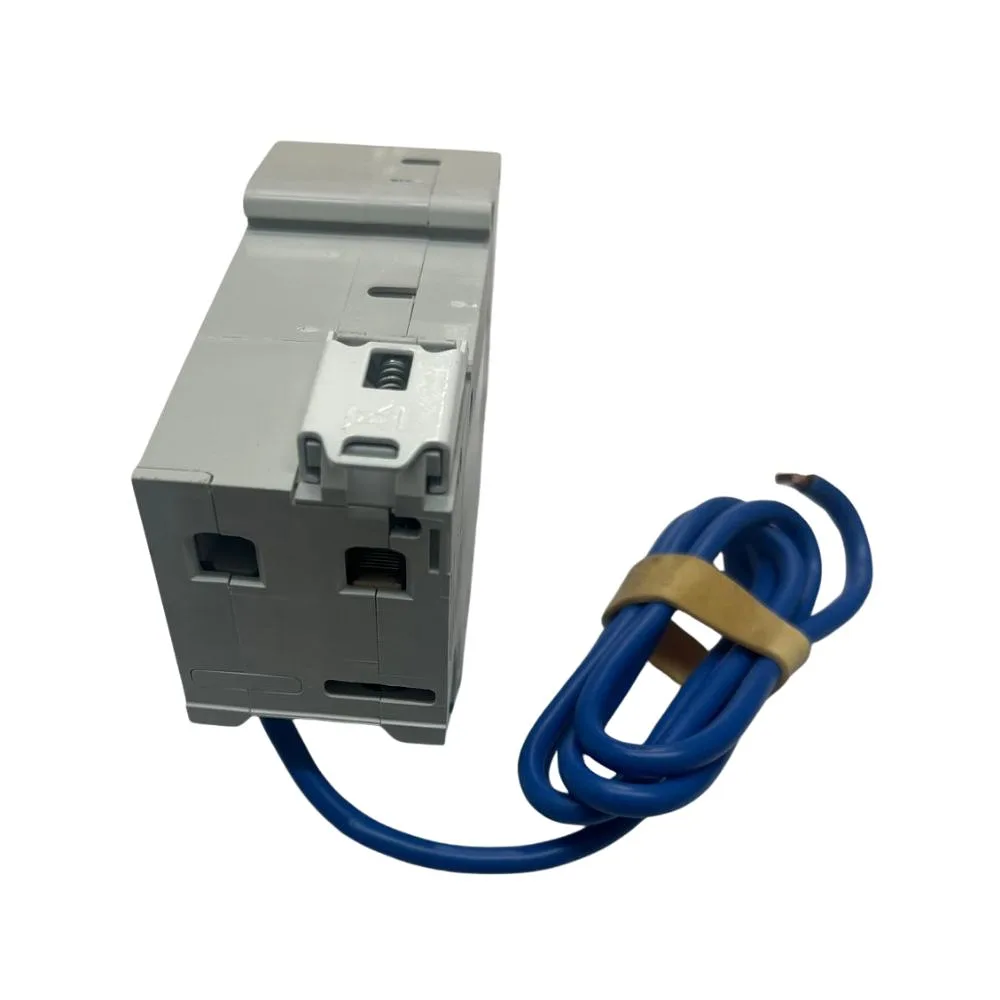

Hager ADA990U
Single Pole + Switched Neutral 6kA C-40A 30mA Type A 2 Modules RCBO
The Hager ADA990U 1P+N RCBO is a dependable residual current circuit breaker with overload protection, tailored for electric vehicle (EV) charging setups. Specifically built for continuous 7.5kW charging, it features a Curve C characteristic, ideal for installations with higher inrush currents such as EV chargers. This RCBO enhances safety and reliability in both residential and light commercial EV charging systems.
Key Features of Hager ADA990U RCBO
- Rated Current: 40A with Curve C, ideal for handling high inrush currents in EV charging.
- Residual Current Protection: 30mA Type A, providing effective shock protection and fault current handling.
- Short Circuit Capacity: 6kA, suitable for high-current environments.
- Compact Design: 35mm width for efficient integration into standard consumer units.
- Endurance: Electric endurance of 2000 cycles; mechanical endurance of 1000 cycles for lasting performance.
Technical Specifications
- Voltage: Operates at 240V, with an insulation voltage of 500V.
- Dimensions: Compact 68mm depth, 83mm height, and 35mm width.
- Connection Capacity: Supports flexible (1–16mm²) and rigid cables (1–25mm²).
- Temperature Range: Reliable operation from -25°C to +40°C.
Why Choose the Hager ADA990U 1P+N RCBO for EV Charging?
With a Curve C rating, this RCBO is optimized for EV chargers that produce high inrush currents. Meeting IEC 61009-1 standards, it offers robust overcurrent and residual current protection for demanding EV installations.
