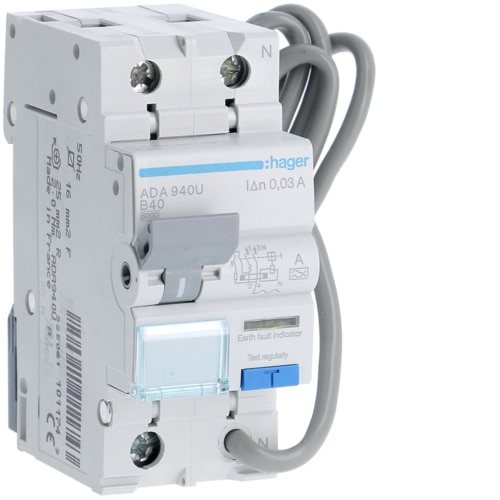

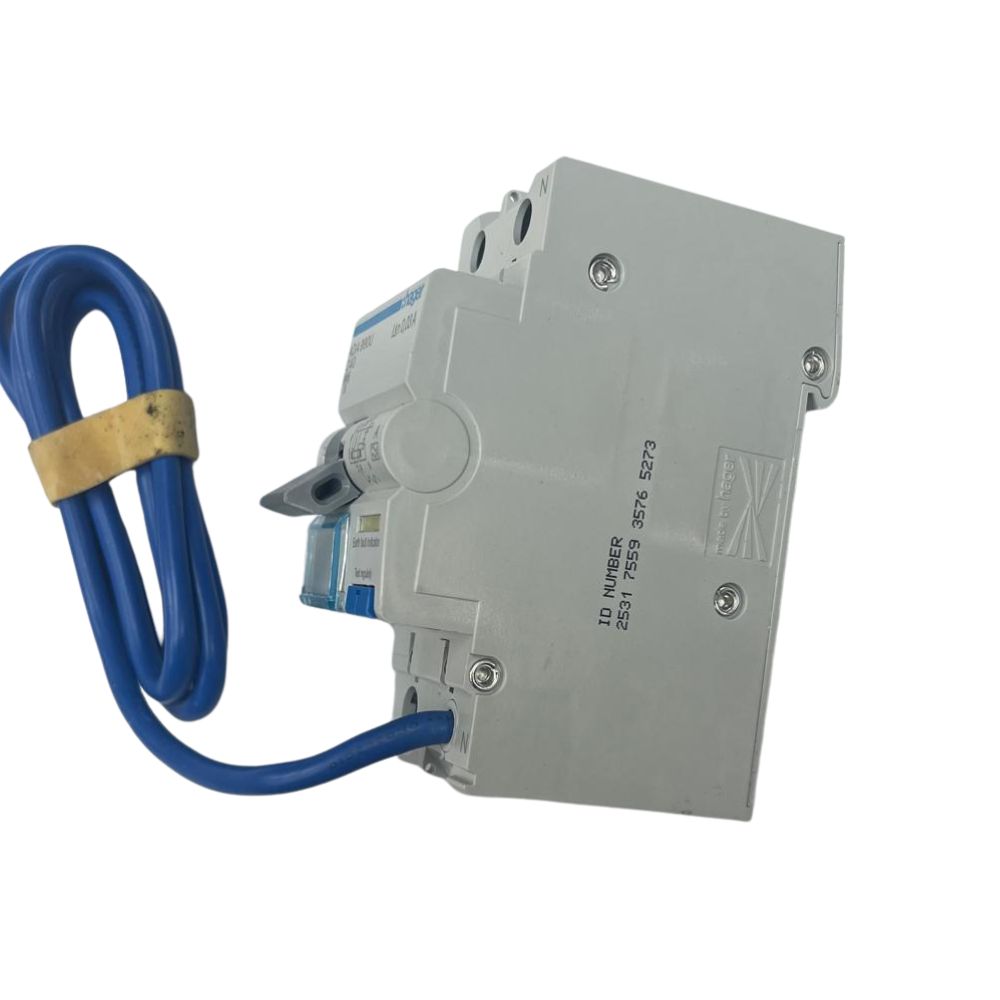

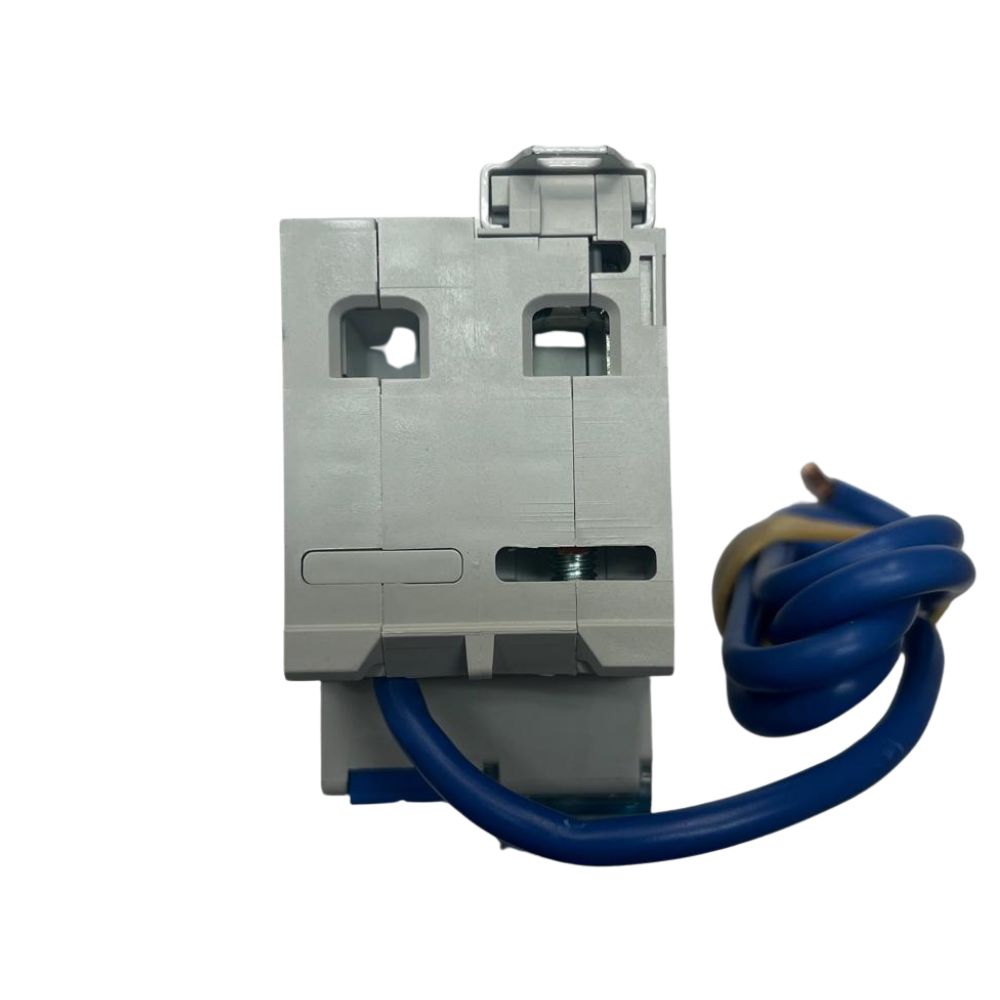

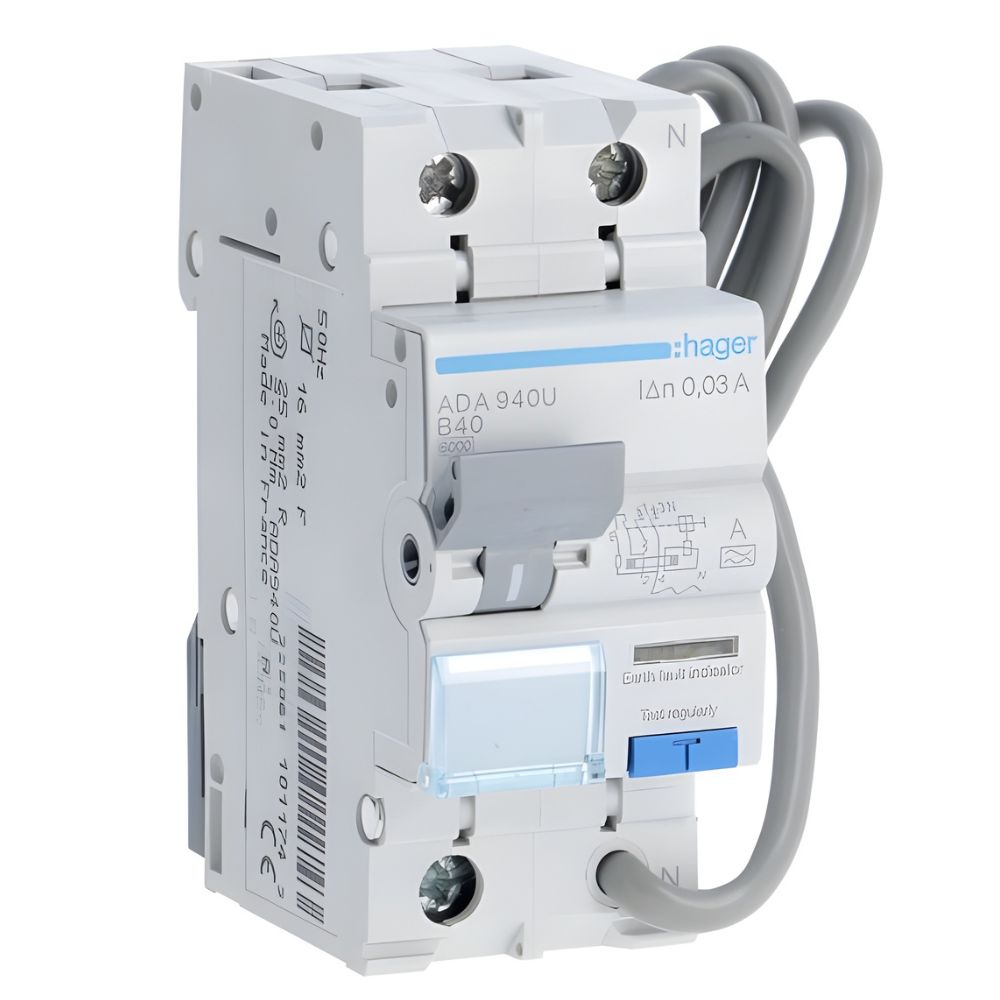

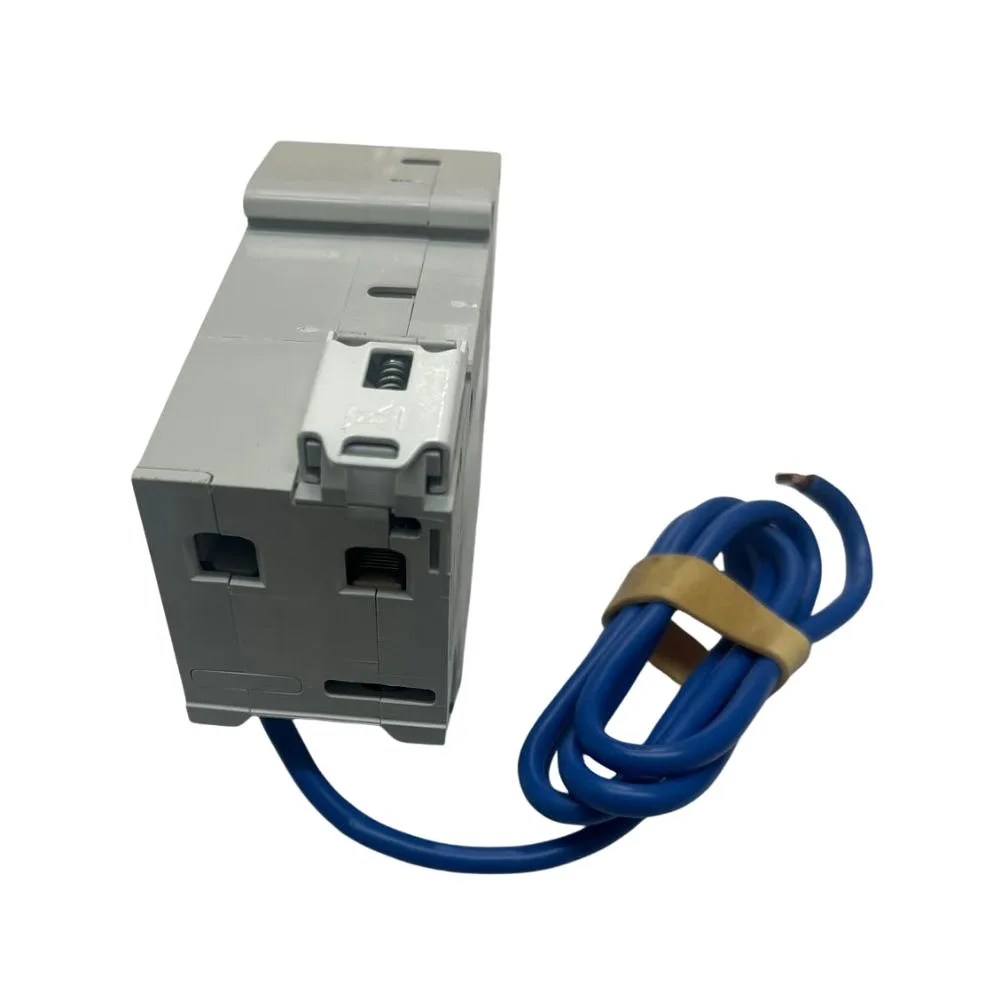

Hager ADA940U
Single Pole + Switched Neutral 6kA B-40A 30mA Type A 2 Modules RCBO
The Hager ADA940U 1P+N RCBO is a high-performance residual current circuit breaker with overload protection, ideal for use in EV (electric vehicle) charging installations. Specifically designed for continuous 7.5kW charging, it provides essential overcurrent and residual current protection, ensuring enhanced safety and reliability for EV charging circuits. With its robust design and reliable operation, this RCBO supports both residential and light commercial applications, delivering precise, stable performance in all conditions.
Key Features of Hager ADA940U RCBO
- Rated Current: 40A with a B curve, perfectly suited for continuous 7.5kW EV charging applications.
- Residual Current Protection: 30mA Type A sensitivity, offering reliable protection against electric shock and fault currents.
- Short Circuit Capacity: 6kA, ensuring dependable protection in high-current scenarios.
- Compact Design: Slim 35mm width for easy integration into standard consumer units.
- Endurance: Electric endurance of 2000 cycles and mechanical endurance of 1000 operations for extended service life.
Technical Specifications
- Voltage: Operates at 240V with rated insulation up to 500V.
- Dimensions: Compact 68mm depth, 83mm height, and 35mm width.
- Connection Capacity: Supports flexible conductors (1–16mm²) and rigid cables (1–25mm²).
- Operating Temperature: Ensures reliable operation between -25°C and +40°C.
Why Choose the Hager ADA940U 1P+N RCBO for EV Charging?
This RCBO meets IEC 61009-1 standards, making it ideal for EV infrastructure, where consistent, safe charging is critical. It’s a trusted choice for electrical professionals looking to ensure the highest safety standards in EV charging applications.
