Hafele 833.89.393 Double Door Sensor Switch Set
The Hafele 833.89.393 Double Door Sensor Switch Set is a modular Loox control package for double-door furniture lighting. Its touchless sensors can be configured for door-switch operation or dimmer-sensor control, with soft on/off switching and a built-in memory function.
Double Door Sensor Control
When configured as a door sensor, the lighting switches on when a door is opened and switches off when the door is closed. Two adjustable sensor switches are supplied, making the set suitable for double-door cabinets, wardrobes and similar furniture applications.
Selectable Sensor or Dimmer Mode
A black microswitch selector on the side of each control allows the operating mode to be changed between dimmer/sensor mode and door-sensor mode. This gives the set greater flexibility than a fixed-function door switch.
Touchless Soft Switching
The sensors operate without physical contact and provide soft on/off switching. In the appropriate mode, dimming is also supported. The memory function retains its setting even when the system is without current.
Key Features
- Loox modular double-door sensor switch set
- Touchless switching
- Soft on/off operation
- Dimming function
- Door open = light on
- Door closed = light off
- Selectable dimmer/sensor or door-sensor mode
- Integrated microswitch mode selector
- Memory function retained without current
- 0–75mm sensor range
- 12mm drill hole diameter
- Switch dimensions: 11.8mm diameter x 44.5mm length
- 0.30W power consumption
- IP20 degree of protection
- Plastic construction
- Suitable for recessed or surface installation with appropriate housing

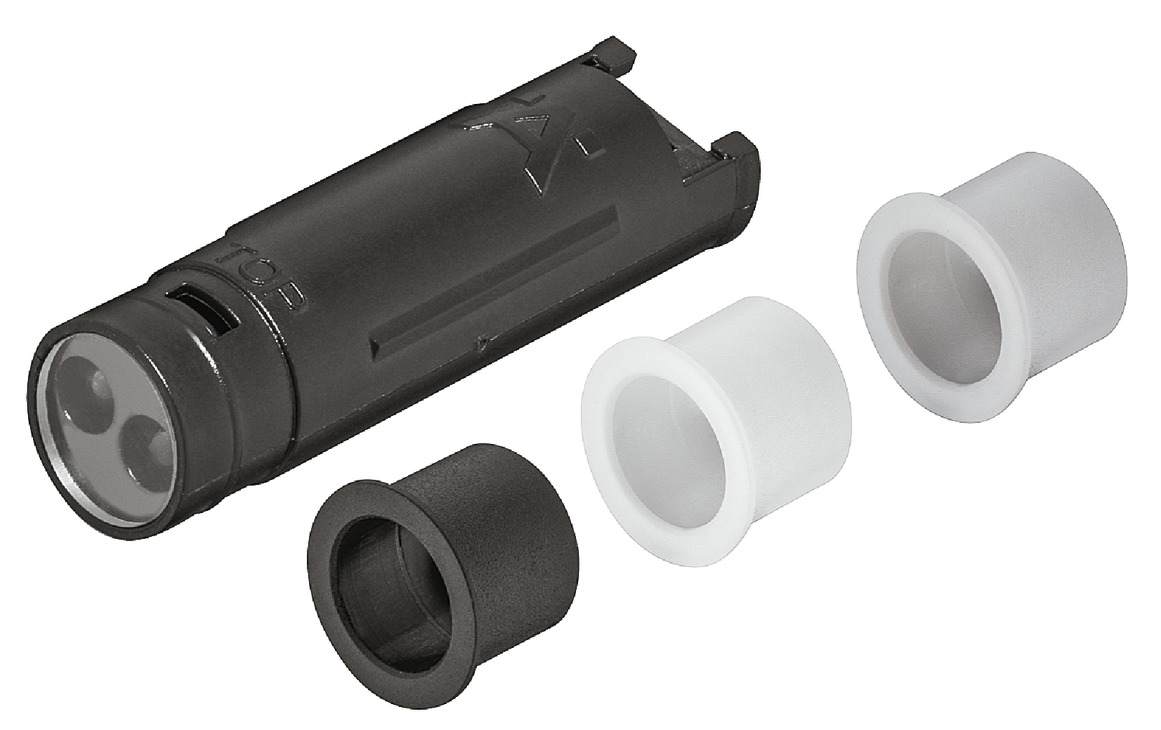

- White, grey and black colour options via supplied cover sleeves
- 7-year Hafele Lifetime Guarantee
Supplied as a Complete Double Door Switch Set
- 2 x adjustable modular sensor switches

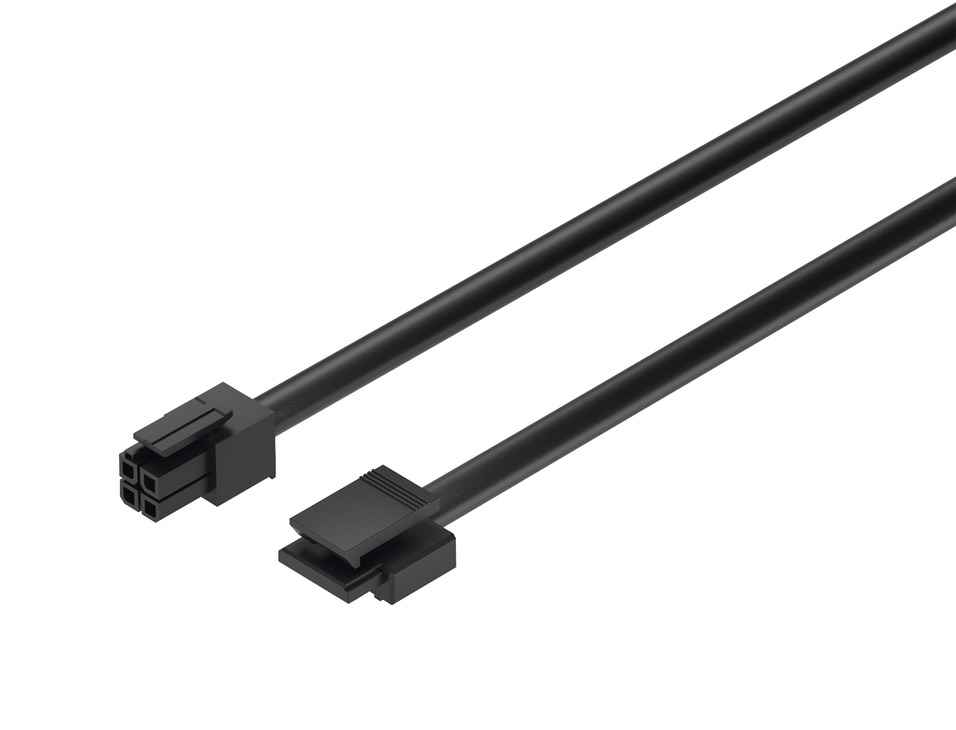

- 2 x switch leads with snap-in connectors, 2000mm

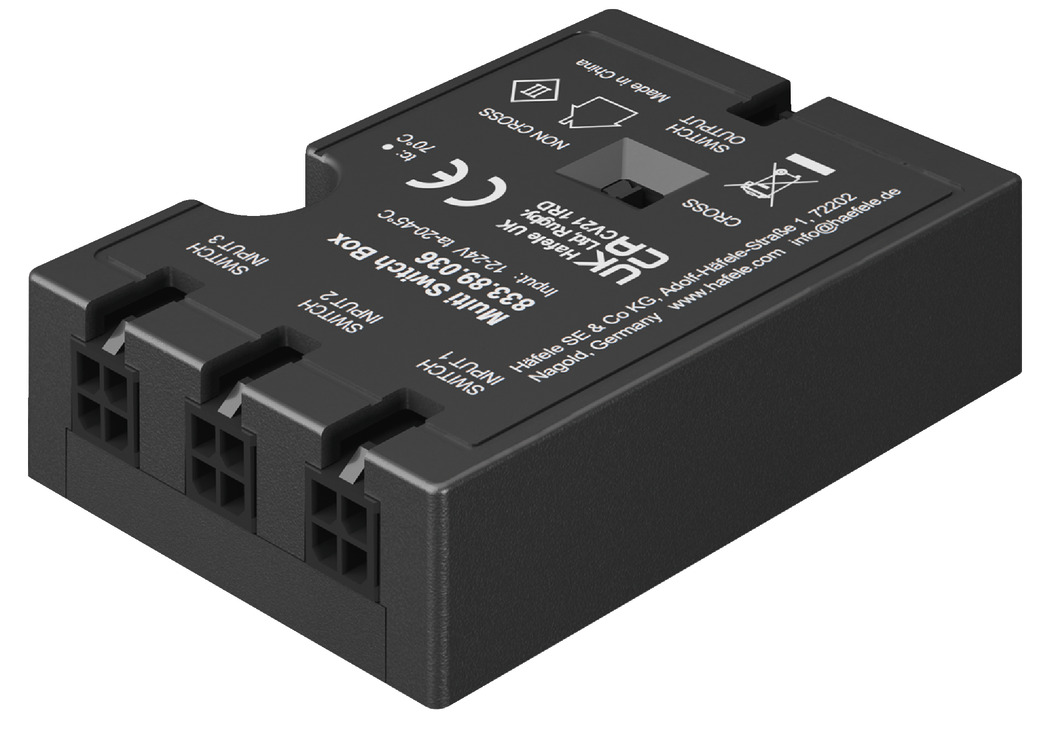

- 1 x multi-switch box

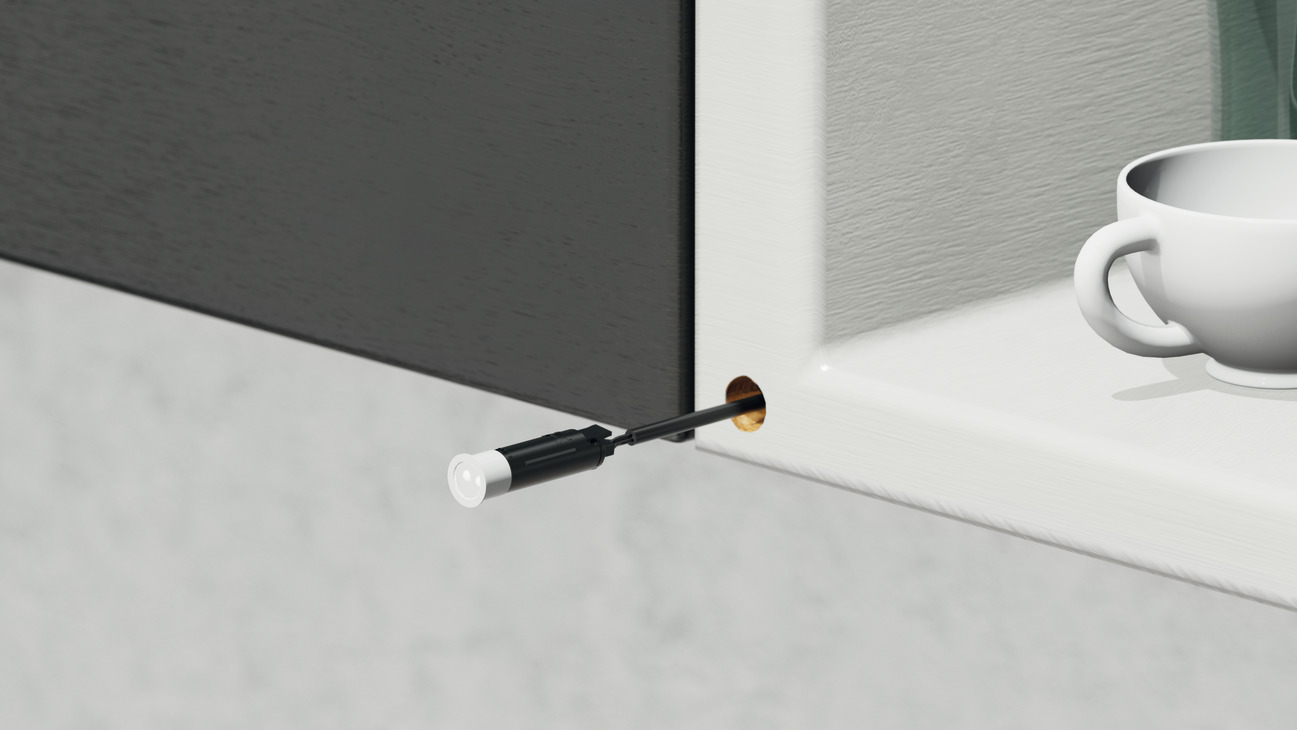

Installation
The switches can be fitted into a 12mm drilled hole or plug-mounted into a suitable housing. The supplied colour sleeves allow the visible switch finish to be coordinated with the furniture installation.
