Hafele 833.76.002 24V Sensor LED Plinth Light

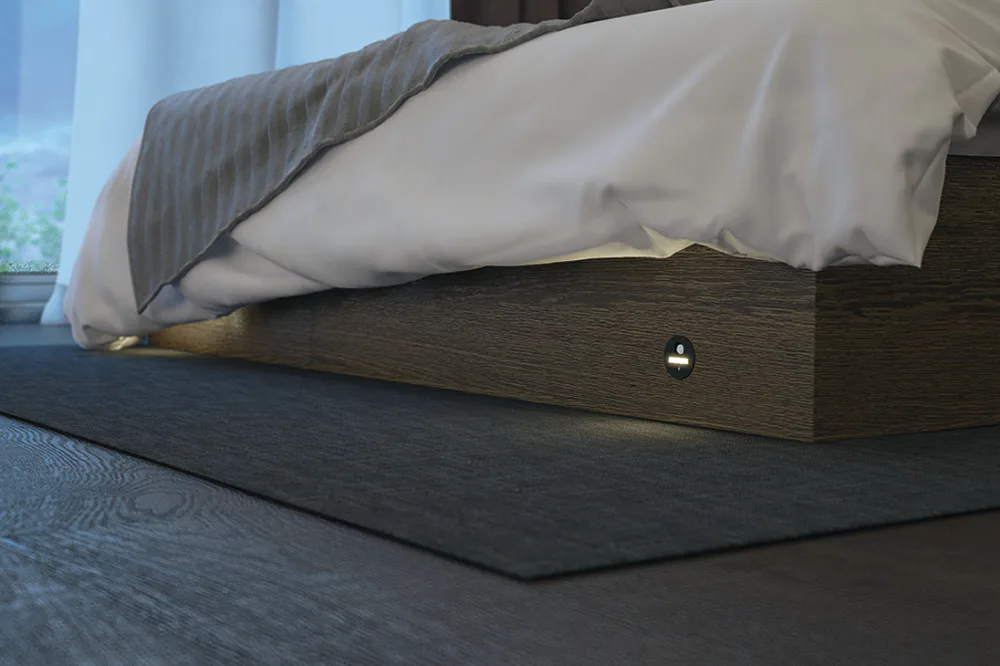

The Hafele 833.76.002 24V Sensor LED Plinth Light is a Loox5 LED 3079 orientation light designed for plinths in bathroom and bedroom furniture. An integrated motion detector and ambient light sensor allow the light to operate automatically, providing subtle low-level illumination when movement is detected in darker conditions.
Automatic 2400K Orientation Lighting
The 2400K warm-white output is intentionally soft for night-time guidance and low-level safety lighting. With a luminous flux of 4 lumens and power consumption of just 0.30W, the fitting is designed for orientation rather than general room illumination.
Integrated Motion and Ambient Light Sensors
The built-in sensor system detects movement up to approximately 3 metres and uses ambient light sensing to control operation. The light has a 30-second delay time, making it suitable for automatic guidance around bedroom and bathroom furniture without requiring a separate wall switch.
Recess or Surface Mounting

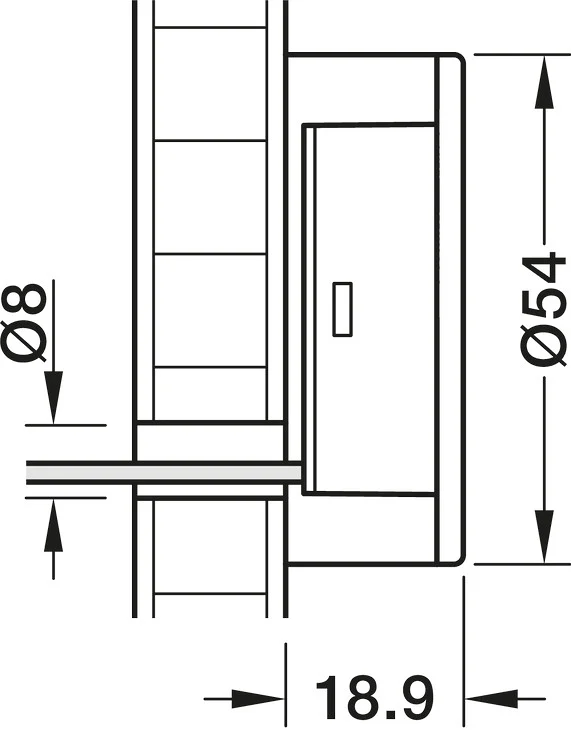

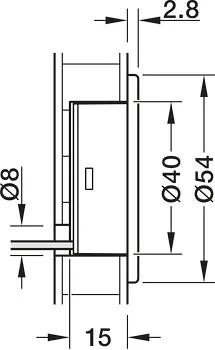

The 54mm diameter light can be recess mounted using a 40mm drill hole or installed on the surface with the supplied housing and fixing material. Two replaceable bezels are included, allowing a choice between brushed stainless steel and black finishes.
Key Features
- Loox5 LED 3079 sensor-controlled plinth light
- 24V nominal voltage
- 2400K warm white light
- 4lm luminous flux
- 0.30W power consumption
- Integrated motion detector
- Integrated ambient light sensor
- Sensor range: 0–3000mm
- 30-second delay time
- 54mm diameter x 17.8mm height
- 40mm drill hole for recessed installation
- Suitable for recess or surface mounting

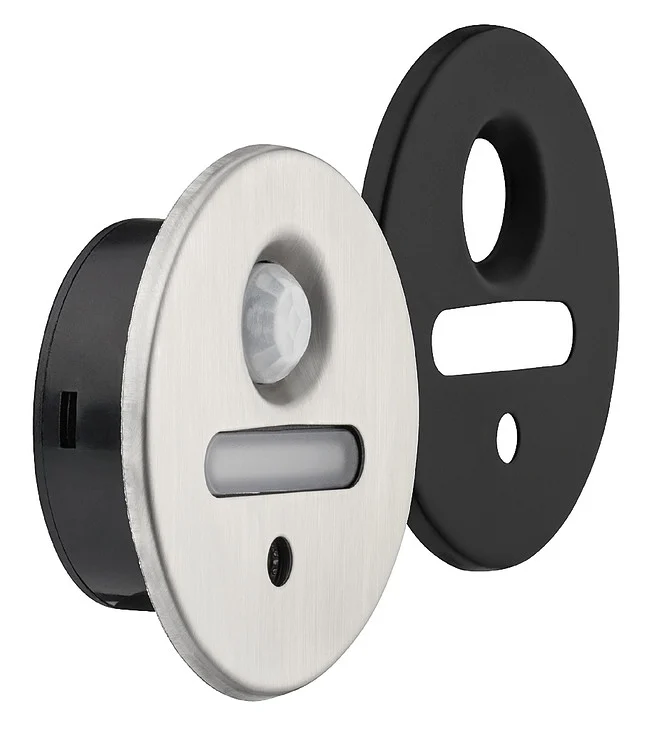

- Brushed stainless-steel and black replaceable bezels supplied
- Stainless steel housing with opal white plastic diffuser
- 2000mm connection cable
- Not dimmable
- IP20 rated for enclosed, dry indoor areas
- 7-year Hafele Lifetime Guarantee
Supplied With
- 1 x Loox5 LED 3079 light with 2m lead
- 2 x replaceable bezels

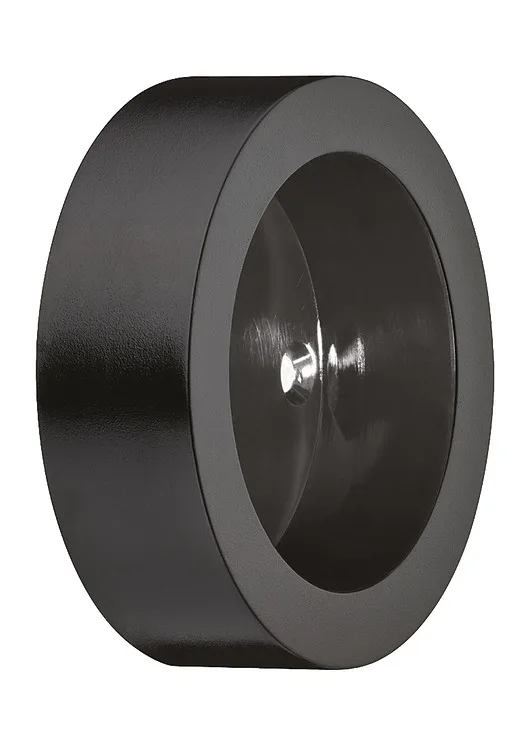

- 1 x surface-mounted housing with fixing material
Driver and Switching Requirements
A compatible Loox5 24V driver and mains lead must be ordered separately. This sensor-controlled light must not be used with other switches, including Hafele Connect MESH, as the integrated motion and ambient light sensors control the fitting directly.
