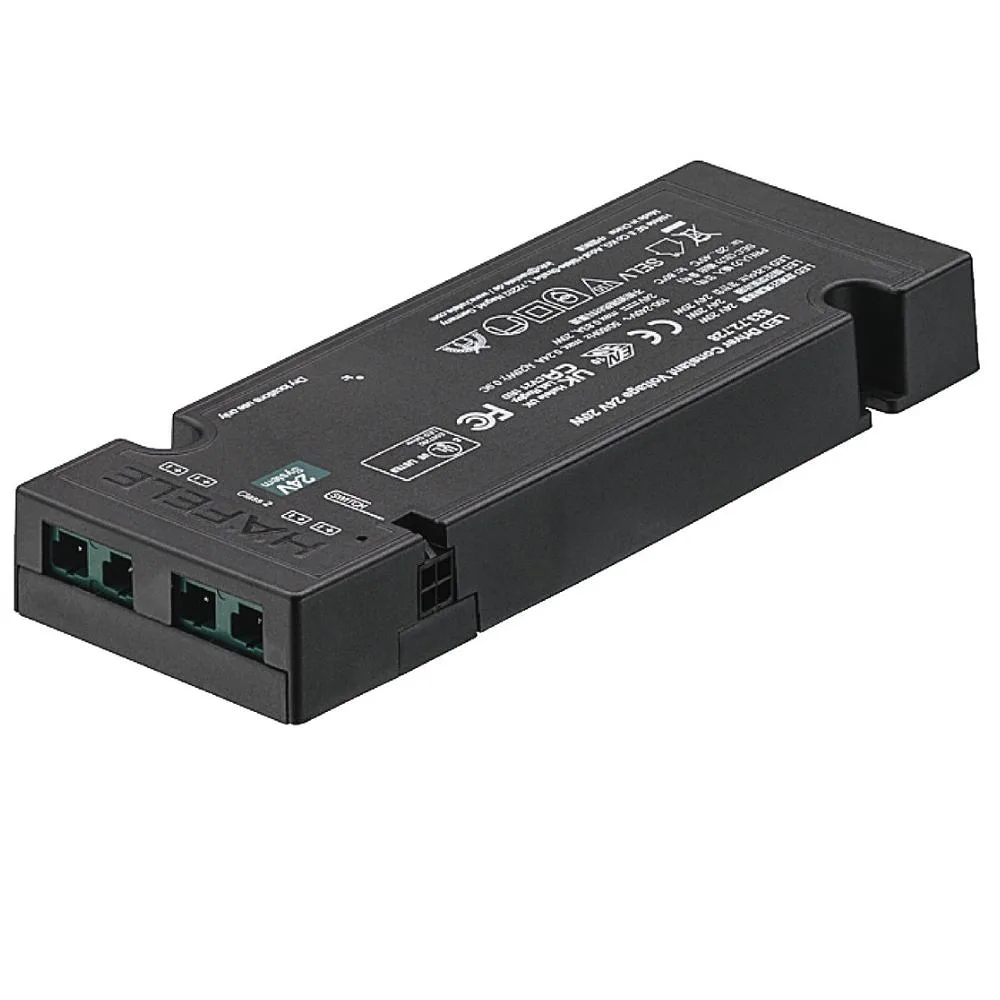

Hafele 833.72.728 Loox5 Eco 24V LED Driver 20W
The Hafele 833.72.728 Loox5 Eco 24V LED Driver 20W is an extremely slim constant-voltage driver for compatible 24V Häfele Loox5 LED lighting systems. It delivers a 20W output at 0.83A and features universal 100–240V mains input, four Loox5 2-pin output sockets and one Loox switch input. The black plastic IP20 housing measures 138 x 50 x 16mm and supports screw or adhesive fixing. Supplied with mounting accessories and covered by the 7-year Häfele Lifetime Guarantee, this driver requires a separately ordered mains lead.
The integrated switching function allows compatible Loox switches and controls to be connected directly to the driver. Built-in overload protection helps protect the driver and connected LED lighting, while standby power consumption of no more than 0.5W supports efficient operation when the lights are switched off.
Key Features – Hafele 833.72.728 Loox5 Eco 24V LED Driver 20W
- 24V DC constant-voltage LED driver
- 20W maximum output power
- 0.83A output current
- Universal 100–240V mains input
- 50–60Hz mains frequency
- Four Loox5 2-pin 24V output sockets
- One Loox switch control input
- Integrated switching function
- Built-in overload protection
- Standby power consumption of no more than 0.5W
- Extremely slim 16mm housing
- IP20 rated for enclosed, dry indoor locations
- Suitable for screw or adhesive fixing
- Black plastic construction
- Mounting accessories included
- 7-year Häfele Lifetime Guarantee
Dimensions and Connections
- Length: 138mm
- Width: 50mm
- Height: 16mm
- Output connections: 4 x Loox5 2-pin 24V sockets
- Control connection: 1 x Loox switch input
- Output voltage: 24V DC
- Maximum output current: 0.83A
Installation Information
This Loox5 Eco driver is designed exclusively for compatible LED lights and must not be used to power other electrical devices. It is suitable only for enclosed, dry indoor locations.
Provide sufficient air supply and circulation around the driver and do not install materials or components that could restrict heat dissipation. An accessible inspection opening must also be provided.
The maximum recommended lead length between the Loox5 driver and the connected light is 10 metres. Long cable runs combined with high loads may cause voltage loss and a visible reduction in light output.
Operating Conditions
- Ambient operating temperature: -20°C to +45°C
- Protection rating: IP20
- Protection class: Class II
- Safety extra-low voltage output: SELV
- Independent LED driver
- Suitable for compatible furniture lighting installations
Supplied With
- 1 x Hafele 833.72.728 Loox5 Eco 24V LED Driver
- Mounting accessories
Please note: The mains lead is not included and must be ordered separately.
