Description
Smart Tethered Charging for Everyday Use
Garo – GEV7.4L

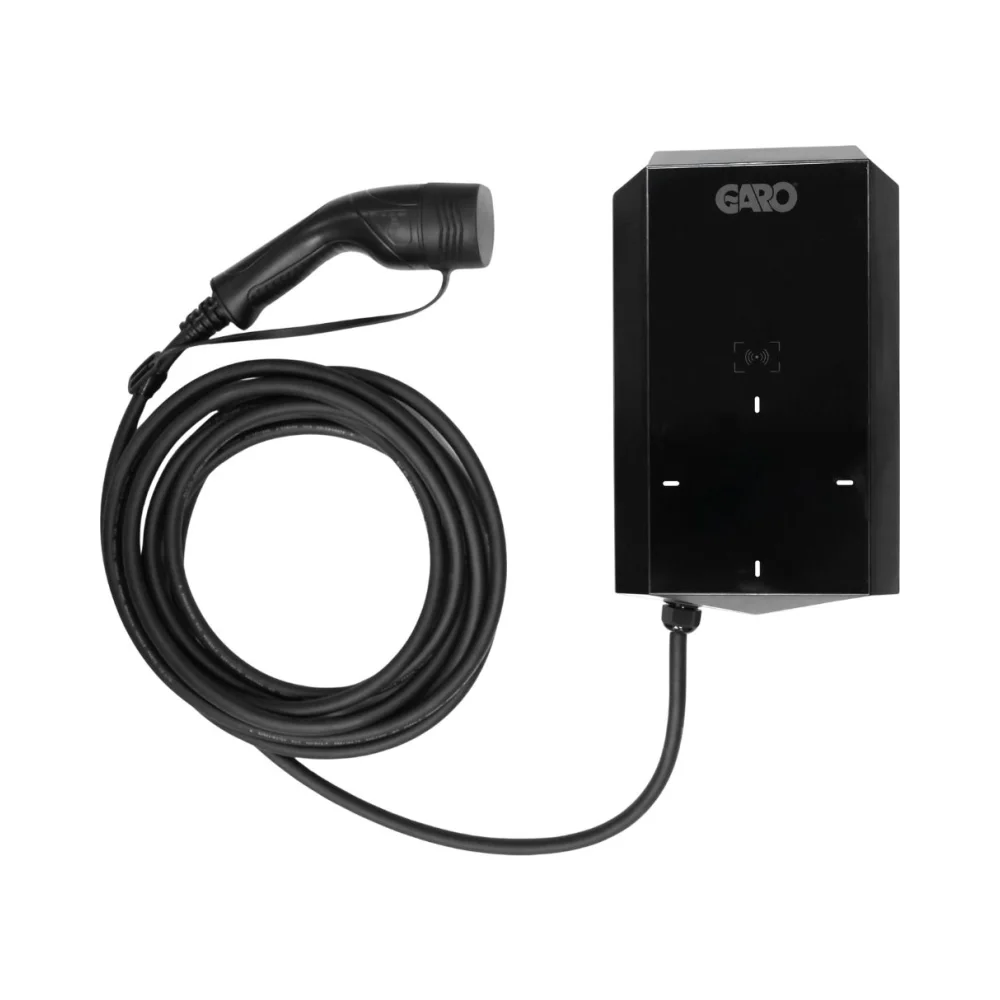

The Garo GEV7.4L EV Charger is a 7.4kW single-phase tethered unit with a fixed 7.5m Type 2 lead, providing convenient daily charging without the need to attach or remove cables. Built-in PEN fault protection means there’s no requirement for an earth rod or additional PEN-loss consumer unit—only a standard EV consumer unit is needed, making installation simpler, faster, and more cost-effective.
✨ Key Features – Garo GEV7.4L EV Charger
- 7.4kW single-phase tethered charger with 7.5m Type 2 lead
- Smart app: scheduling, usage history, alerts, multi-user access
- Dynamic load balancing (CT included) to protect the main fuse
- Solar-ready charging to maximise your PV generation
- Full safety suite: AC/DC leakage, PEN fault, voltage & current protection
- Wi-Fi & Ethernet connectivity; remote engineer access for diagnostics
- Compact, installer-friendly design for domestic wall mounting
Technical Overview – Garo GEV7.4L EV Charger
- Charging mode: Mode 3 | Connection: Tethered Type 2 plug (7.5m)
- Output power: 3.7kW / 7.4kW | Current: up to 32A
- Rated voltage: 230V AC | Frequency: 50Hz
- Operating temperature: −25°C to +50°C
- Ingress protection: IP54 | Weight: 4.2kg
- Installation: Wall mounted
- Communications: LAN & Wi-Fi | RFID: Standard
- Load & solar management: Standard (with CT)
- Metering: Built-in | OCPP: 1.6
- Standards & compliance: EN 61851-1, IEC 62955, EMC/RED/LVD/RoHS
Included
- Garo GEV7.4L tethered EV charger with 7.5m Type 2 lead
- Complete wall-mount installation kit
- CT clamp for dynamic load balancing
- Quick start guide & documentation
✅ Why Choose This Product?
Choose the Garo GEV7.4L EV Charger for plug-and-charge simplicity plus smart control. Schedule sessions, leverage solar PV, and protect your supply with load balancing—supported by comprehensive safety features and remote diagnostics for a hassle-free ownership experience.
About Garo
Garo is a trusted European manufacturer of intelligent EV charging and electrical solutions. Designed for installers and homeowners, Garo chargers blend reliability, safety, and smart features to support the transition to cleaner transport.
️ Guarantee & Compliance
The GEV7.4L meets UK/EU requirements for safety, EMC, radio equipment, and hazardous substances, and complies with EN 61851-1 and IEC 62955. Declaration of Conformity and compliance documentation are available on request.
