Description
Dependable Protection with Garo RCBO

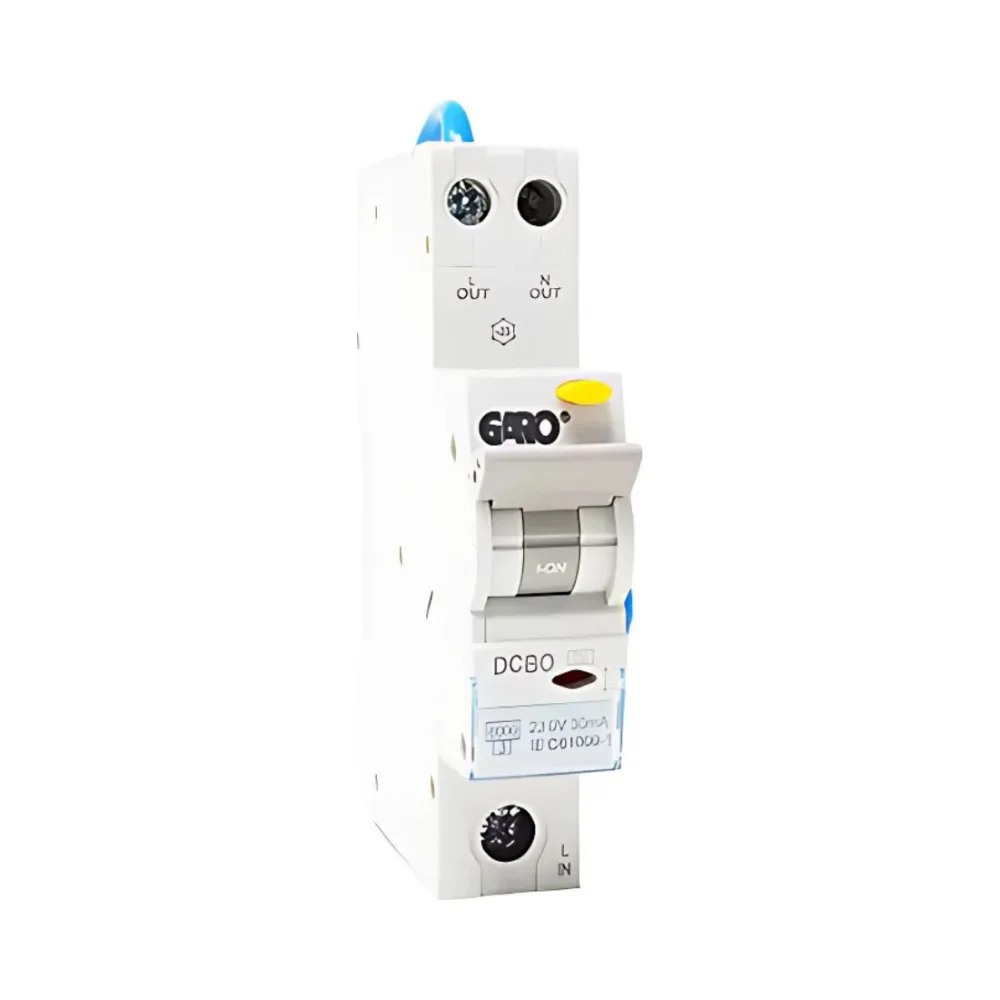

Garo DCBOGSB10
The Garo 10kA RCBO 10A Curve B Type A 30mA combines overload, short circuit, and residual current protection in a single compact device. Rated at 10A with a B Curve tripping characteristic, it ensures reliable performance for circuits with moderate inrush currents. With 10kA breaking capacity and Type A 30mA residual current sensitivity, this RCBO is ideal for both residential and commercial applications, safeguarding people and equipment against electrical faults.
Key Features – DCBOGSB10
- Combined protection against overload, short circuit, and earth leakage
- Rated current: 10A | Tripping curve: B
- Breaking capacity: 10kA for high-level fault protection
- Type A sensitivity: detects AC and pulsating DC residual currents
- Residual current rating: 30mA for enhanced safety
- Compact single-module design saves space in consumer units
Technical Overview – Garo DCBOGSB10 10kA RCBO 10A Curve B Type A 30mA
- Rated current: 10A
- Breaking capacity: 10kA
- Tripping characteristic: Curve B
- Residual current sensitivity: 30mA
- Type: A (AC + pulsating DC protection)
- Poles: Single module RCBO
✅ Why Choose This Product?
Choose the DCBOGSB10 when you need a space-saving RCBO that delivers both circuit and residual current protection. Its robust 10kA rating, Type A sensitivity, and reliable 10A Curve B performance make it a trusted option for modern electrical installations.
️ Guarantee & Compliance
All Garo RCBOs comply with the latest UK and EU safety standards, ensuring reliable and safe performance. Certification and compliance details are available on the Garo website.
