Description
40A RCBO 2 Pole 2 Mod 30mA C Curve

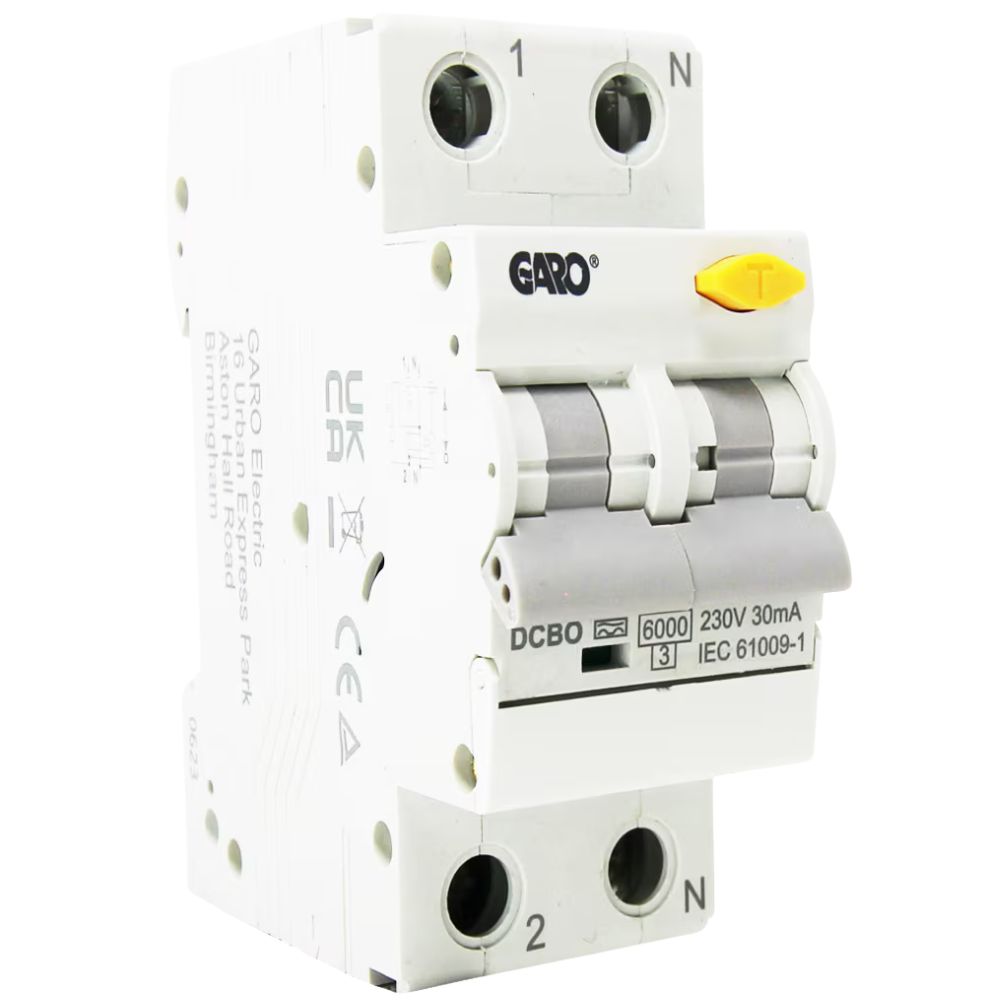

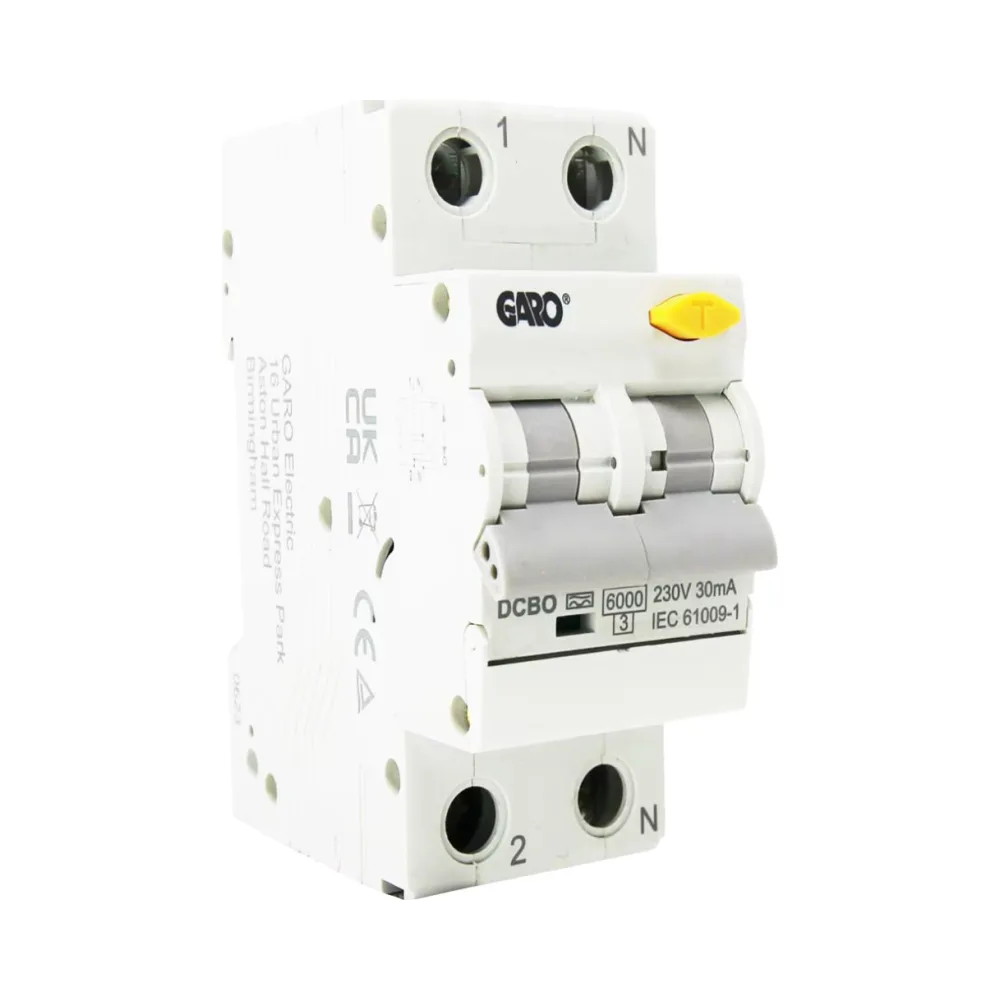

30mA C Curve 40A Double Pole RCBO – Garo DCBO2MC40
This C Curve Residual current breaker with overload 40A is ideal for 40A EV charger installations combining overload, short-circuit, and earth fault protection in a compact two-module design. It’s ideal for use with 40A EV chargers, offering reliable 30mA sensitivity and C-curve tripping for smooth operation under load.
This compact RCBO installs easily on a DIN rail and supports direct connection for 230V systems. It protects both line and neutral, making it suitable for modern domestic setups while saving space in your distribution board.
Key Features – DCBO2MC40 Garo C Curve 40A 2 Pole RCBO
- Current Rating: 40A
- Tripping Curve: Type C
- Number of Poles: 2
- Sensitivity: 30mA (Type A)
- Voltage: 230V AC
- Frequency: 50 Hz
- Rated Breaking Capacity: 6kA
- Terminal Size: 1–10mm²
- Tightening Torque: Max. 1.5Nm
- Operating Temp: -20°C to +40°C
- Standards: IEC 61009
- Manufacturer: Garo
Technical Highlights
The Garo C Curve RCBO is a DIN rail-mounted breaker designed for safe disconnection and fault detection. It supports 6kA fault current and Type A residual protection to detect both AC and pulsating DC leakage.
Its compact 2-module body fits comfortably in tight boards, while the wide terminal range makes wiring easy. This RCBO supports TN-C-S, TN-S, and TT earthing systems and is a trusted option for powering 40A EV chargers reliably and safely.
What’s in the Box
- 1 × 40A RCBO C curve circuit breaker
- Manufacturer documentation
Best For
- Domestic power distribution
- Lighting and ring circuits
- Outbuildings and garages
- TT, TN-C-S, and TN-S systems
- 40A electric vehicle chargers
✅ Optional Add-On
Pair with Garo consumer units for a matched, compliant distribution setup.
Summary – C Curve 40A 2 Pole RCBO
The Garo DCBO2MC40 40A RCBO is a C curve, 2-pole Residual current breaker with overload 40A that delivers full protection in a single compact unit. It’s ideal for domestic circuits and 40A EV charger installations, with 30mA Type A RCD protection for AC and DC faults. Its 6kA short-circuit rating and space-saving design make it a smart, safe, and reliable choice for today’s electrical installs.
