Reliable 20A 1 Module 2 Pole Bi-Directional RCBO from Garo

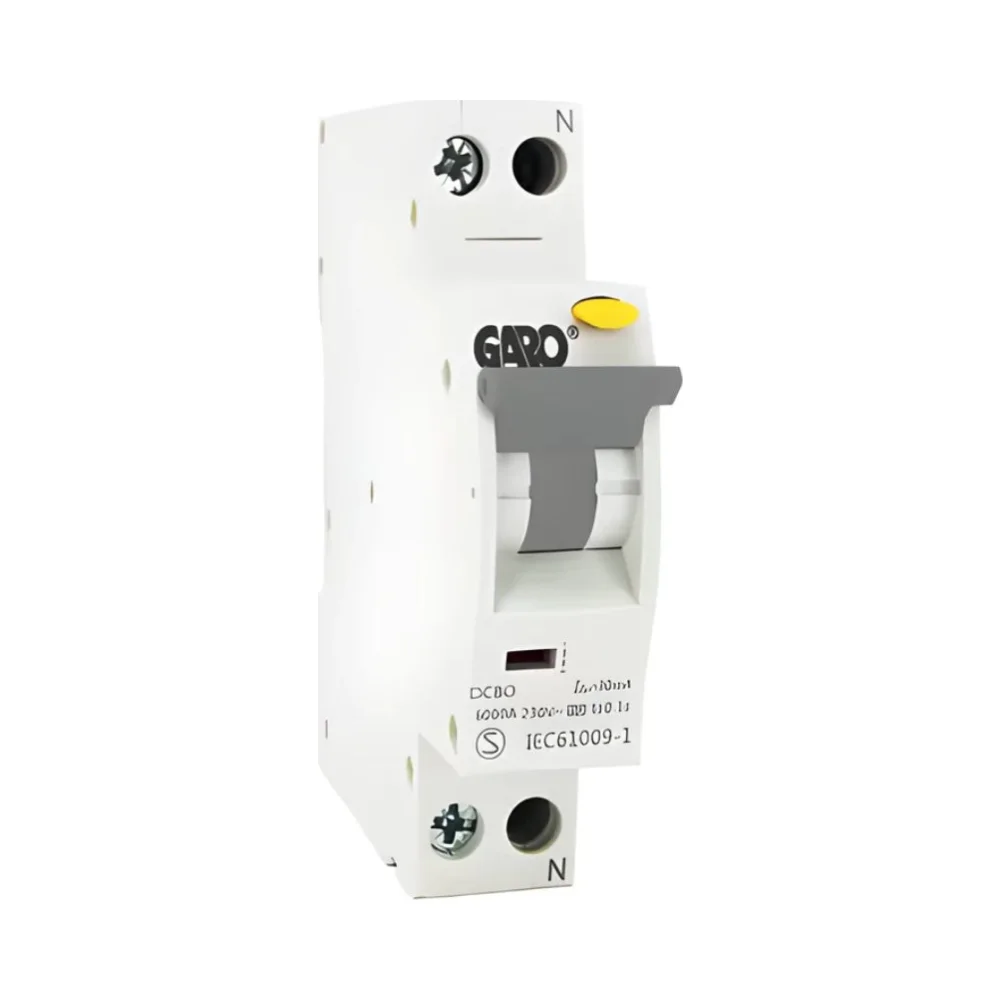

Garo DCBO1MB20
The Garo DCBO1MB20 1 Module 2 Pole RCBO is bi-directional, providing precise protection for circuits rated 20A. Type A residual current protection and 6kA short-circuit capacity ensure safe, efficient operation in residential, commercial, and industrial installations.
Key Features
- Compact 1 module 2 pole design
- Bi-directional Type A residual current protection
- High 6kA breaking capacity
- Compatible with Busbars for 1 Module 2 Pole RCBOs
- Easy DIN rail installation
Technical Specifications
- Rated voltage Un: 230V AC
- Rated current: 20A
- Minimum supply voltage: 90V
- Rated frequency fn: 50 Hz
- Rated short-circuit capacity: 6 kA
- Back-up fuse: 100A gG
- Tripping characteristic: B
- Residual current IΔn: 10, 30, 100 mA
- Residual making & breaking capacity IΔn: 1500A
- Terminals: 1–10mm², max. 1.5Nm
- Width: 18 mm
- Temperature range: -20°C … +40°C
- RCBO 6kA, 1 module, 2 pole, Curve B
Why Choose Garo DCBO1MB20?
This 1 Module 2 Pole bi-directional RCBO combines earth leakage and overcurrent protection for safe, reliable operation. Compatible with 1 Module 2 Pole RCBO busbars, ideal for industrial and commercial panels.
