Description

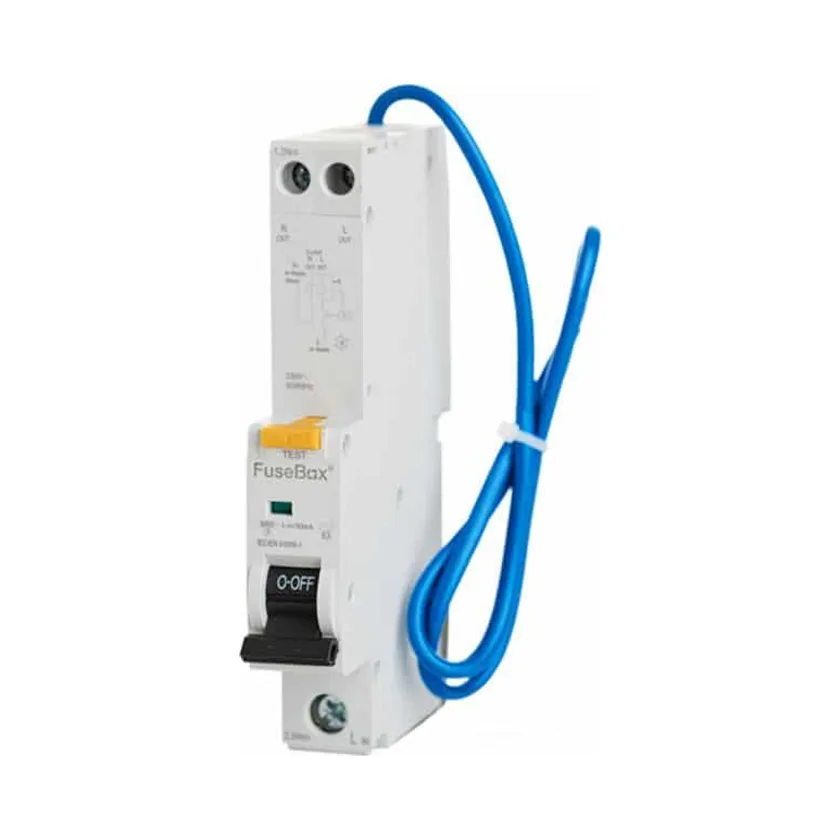

FuseBox RTA062530B 30mA Curve B 25A Type A RCBO
FuseBox RTA062530B 30mA Curve B 25A Type A RCBO is designed for selected domestic final circuits where combined overcurrent and earth fault protection is required. It can be used for suitable radial circuits, dedicated appliance supplies and other 25A-rated circuits when specified by the circuit design.
This FuseBox RTA062530B 30mA Curve B 25A Type A RCBO combines overload protection, short-circuit protection and 30mA residual current protection in one compact unit. The Curve B tripping characteristic is suitable for standard domestic loads, while Type A protection detects AC and pulsating DC residual fault currents.
Typical Uses
- Suitable radial socket circuits
- Selected dedicated appliance circuits
- Fixed equipment supplies where 25A protection is required
- Domestic final circuits designed for a 25A protective device
Key Features
- 25A current rating for selected domestic circuits
- 30mA residual current protection
- Type A protection for AC and pulsating DC fault detection
- Curve B tripping characteristic for standard domestic applications
- 6kA breaking capacity
- Designed for compatible FuseBox consumer units
- Combines overload, short-circuit and earth fault protection
- Single-module width
- IP20 rated for protected consumer unit installation
- Manufactured to BS EN 61009-1
FuseBox Compatibility
This device is intended for use with compatible FuseBox consumer units. Choosing the correct FuseBox protective device helps ensure proper fit, terminal alignment and board compatibility.
Browse the full range of FuseBox RCBOs, view FuseBox consumer units, or shop all FuseBox electrical products.
Need a Different Rating?
For a lower-rated circuit, see the FuseBox 20A Type A RCBO. For a higher-rated circuit, see the FuseBox 32A Type A RCBO. For help choosing the correct rating, read our RCBO sizing guide.
