FuseBox P65EV32BDZ IP65 ABS EV Charger Supply Unit

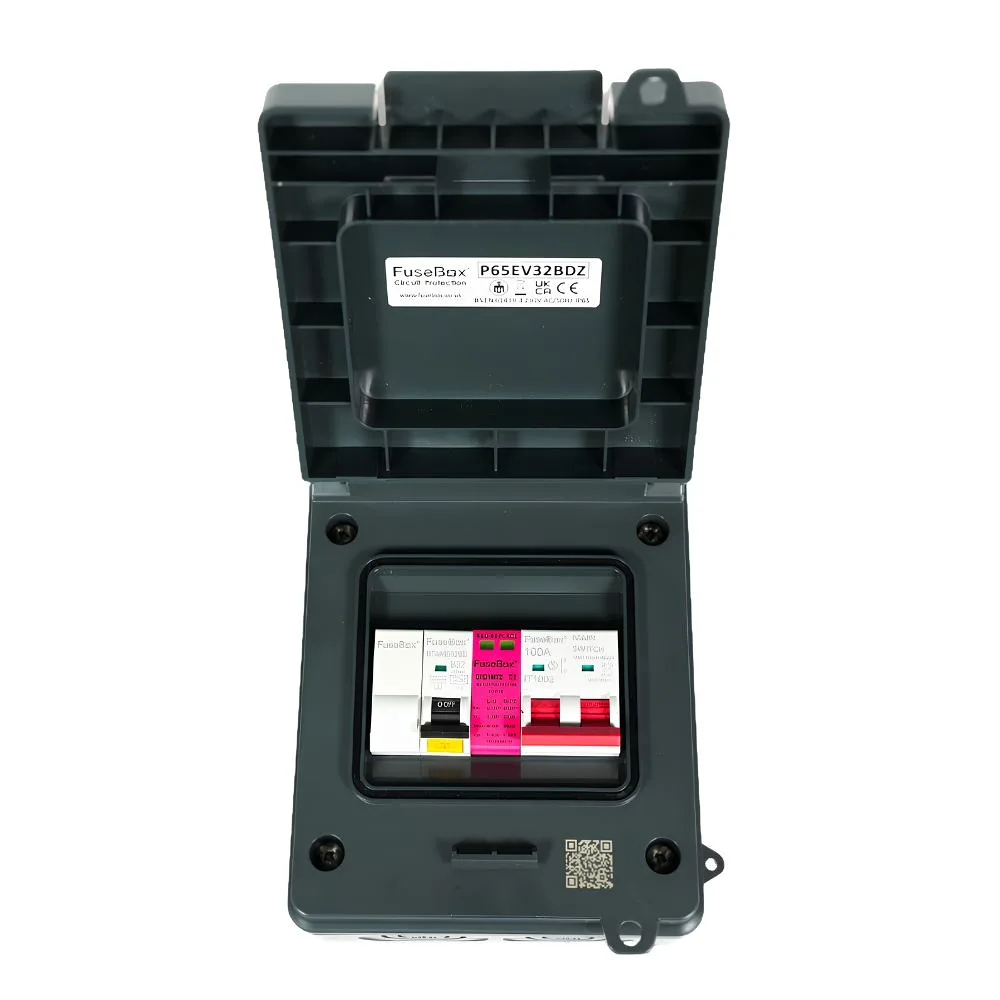

FuseBox P65EV32BDZ IP65 ABS EV Charger Supply Unit is a durable EV charger supply unit designed for reliable electric vehicle charging installations. It is supplied with a 100A main switch, 32A 30mA 1P+N bi-directional RCBO and Type 2 surge protection device.

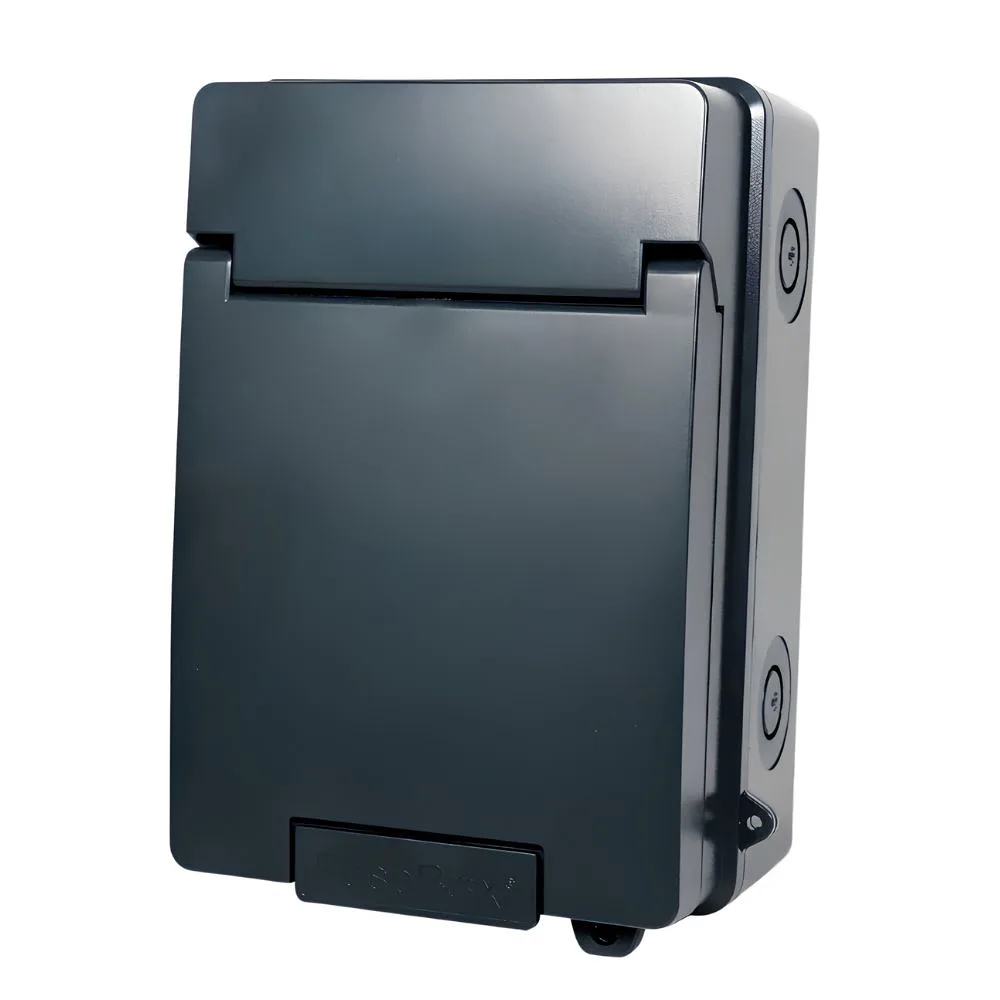

The FuseBox P65EV32BDZ IP65 ABS EV Charger Supply Unit is housed in a robust IP65 ABS enclosure with IK07 impact rating, making it suitable for outdoor and more demanding installation environments. The included Type 2 SPD provides surge protection, while the bi-directional RCBO provides fault protection where current flow may be in either direction, subject to the EV charging system design.
Key Features
- FuseBox IP65 ABS EV charger supply unit
- SKU: P65EV32BDZ
- 100A main switch for circuit isolation
- 32A 30mA 1P+N bi-directional RCBO
- B Curve tripping characteristic
- Type 2 direct-to-busbar SPD included
- IP65 rated ABS plastic enclosure
- IK07 impact rating
- Pad-lockable front cover
- Shrouded earth and neutral terminals
- 20mm drill-outs on top, bottom, sides and rear, expandable to 32mm

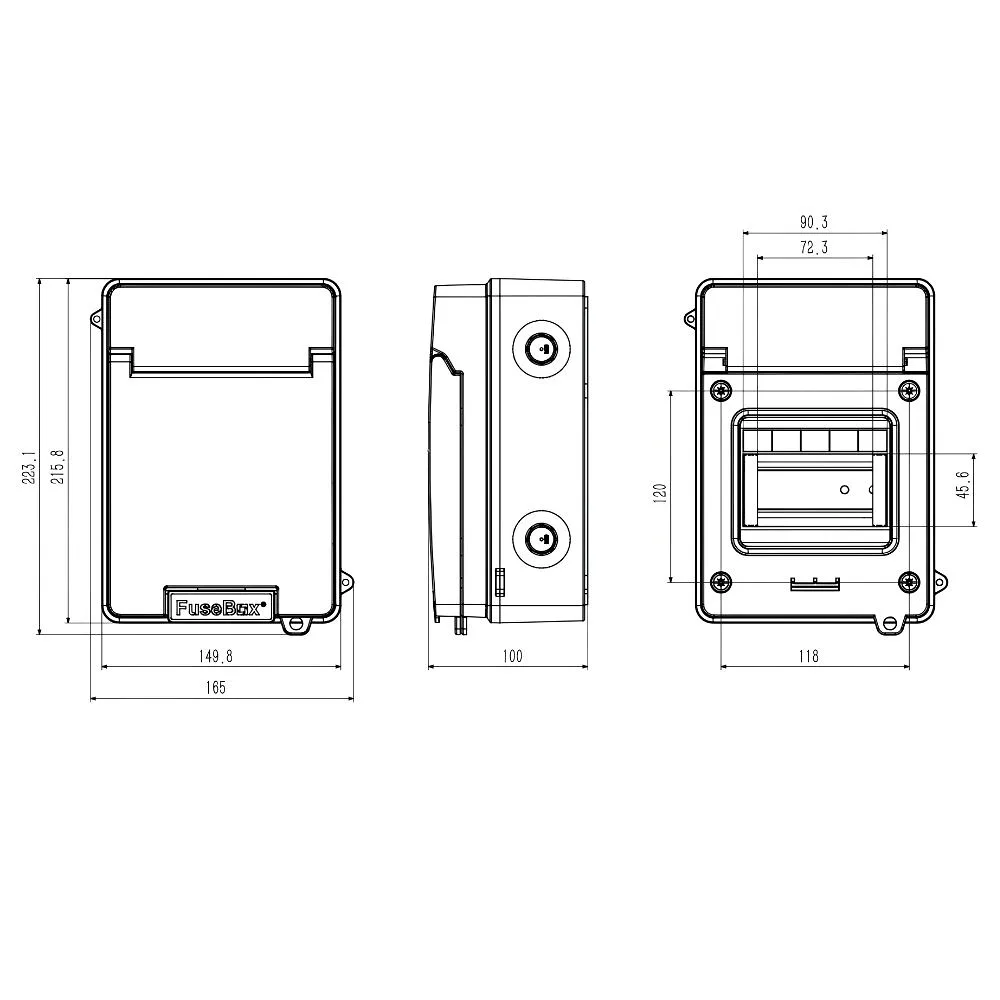

- Approximate dimensions: 223mm x 165mm x 100mm
Typical Applications
- Domestic EV charger supplies
- Outdoor EV charging installations
- Installations requiring Type 2 surge protection
- EV charger circuits requiring bi-directional RCBO protection
What is ABS?
ABS stands for Acrylonitrile Butadiene Styrene, a tough thermoplastic commonly used for electrical enclosures. It provides a lightweight, corrosion-resistant alternative to metal housings, with good impact resistance for practical site use. Correct glands, fixings and installation methods should be used to maintain the stated IP rating.
Related EV Charging Products
This FuseBox EV charger supply unit can be used as part of a wider EV charging installation. If you are also choosing the charger itself, view our Ohme charger range, including Ohme Home Pro and Ohme ePod smart EV chargers. You may also need suitable EV cables, EV cable clips and EV circuit protection, depending on the installation design.
