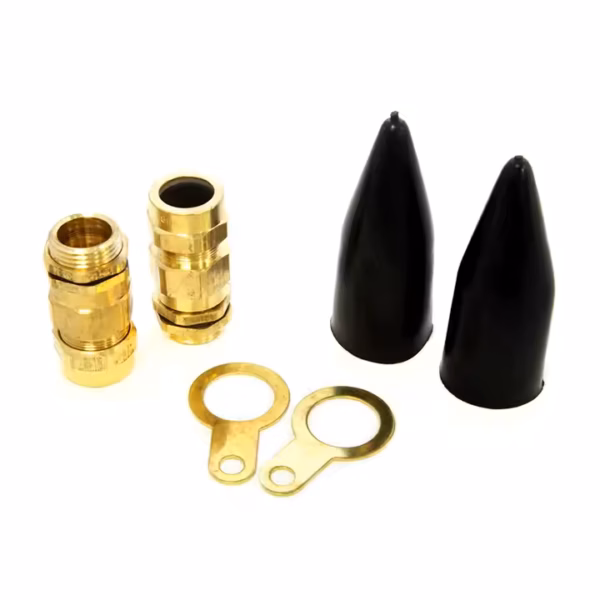

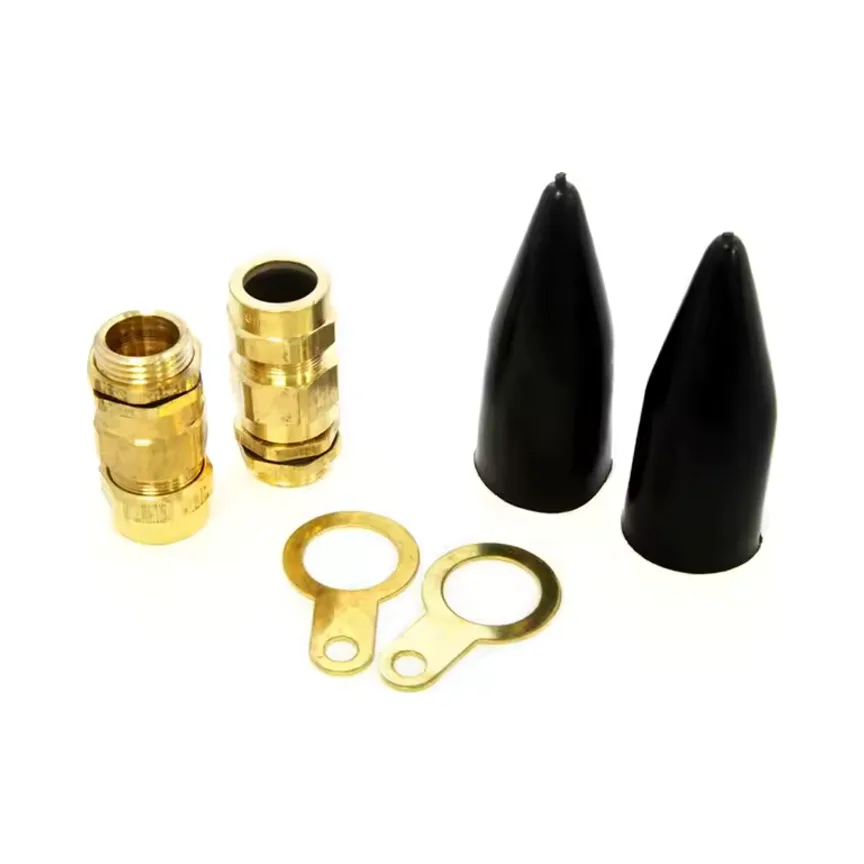

CW20S-PK External SWA Cable Gland 20S Pack of 2
The CW20S-PK External SWA Gland 20S Pack of 2 is designed for reliable and durable termination of Steel Wire Armoured (SWA) cables. Made from high-quality brass, this gland ensures secure clamping of armour wires, providing both electrical continuity and mechanical retention. Ideal for outdoor applications, it features a waterproof seal, making it suitable for various environments.
Recommended Applications
This gland is suitable for the following cable configurations:
- 2 Core SWA: 1.5 – 4mm²
- 3 Core SWA: 1.5 – 4mm²
- 4 Core SWA: 1.5 – 2.5mm²
- 5 Core SWA: 1.5mm²
Key Features of CW20S-PK External SWA Cable Gland
- Material: Premium brass construction for enhanced durability and corrosion resistance.
- Clamping Functionality: Provides secure clamping of armour wires to ensure electrical continuity and mechanical retention.
- Waterproof Design: Ideal for outdoor installations where a moisture-resistant seal is critical.
- Versatile Use: Compatible with Steel Wire Armoured cables (H694-XL).
Guidance Chart for Cable Gland Selection
| Conductor Size (sq.mm) | 2 Cores | 3 Cores | 4 Cores | 5 Cores |
|---|---|---|---|---|
| 1.5 | 20s/16 | 20s/16 | 20s | 20s |
| 2.5 | 20s | 20s | 20s | 20s |
| 4 | 20s | 20 | 20 | 20 |
| 6 | 20 | 20 | 20 | 20 |
| 10 | 20 | 20 | 20 | 25 |
| 16 | 20 | 20 | 25 | 25 |
| 25 | 20 | 25 | 32 | 32 |
| 35 | 25 | 32 | 32 | 32 |
| 50 | 32 | 32 | 40 | 40 |
| 70 | 32 | 40 | 40 | 40 |
| 95 | 40 | 40 | 50 | 50 |
Important Note
This chart and data are for guidance purposes only. Always consider the actual dimensions of the cables and glands before making a final selection. Manufacturing tolerances as per BS6121: Part 1: 1989 should be taken into account to ensure the correct fit and functionality.
Conclusion
The CW20S-PK External SWA Gland 20S Pack of 2 ensures reliable and secure termination of SWA cables in outdoor environments. Its durable brass construction, waterproof seal, and compliance with industry standards make it an essential choice for professional electrical installations. Perfect for use in industrial, commercial, and residential projects, this gland provides excellent performance and safety.
