Galvanized flexible conduit is a type of electrical conduit used in electrical installations to protect and route electrical wires and cables. It is designed to provide mechanical protection and shielding for the conductors inside, making it suitable for a variety of applications. Here’s how galvanized flexible conduit is used in electrical installations according to the 18th edition of the BS 7671 wiring regulations:
- Mechanical Protection: One of the primary purposes of using galvanized flexible conduit is to provide mechanical protection to electrical cables and wires. This is especially important in locations where the wiring might be exposed to physical damage, such as in industrial environments or areas with heavy machinery.
- Flexibility: Galvanized flexible conduit is flexible, which means it can be bent and routed to follow the contours of a building or specific installation requirements. This flexibility is particularly useful when navigating around obstacles or tight spaces.
- Corrosion Resistance: The galvanized coating on the conduit provides excellent corrosion resistance. This makes it suitable for use in outdoor and damp environments where exposure to moisture and corrosive elements is a concern.
- EMI/RFI Shielding: The metal construction of galvanized flexible conduit can provide some level of electromagnetic interference (EMI) and radio-frequency interference (RFI) shielding. This is beneficial in applications where it’s important to reduce electrical interference.
- Versatility: Galvanized flexible conduit is available in various sizes and can be used for both surface-mounted and concealed installations. It can also be used in hazardous areas where the wiring needs to be protected from flammable gases or dust.

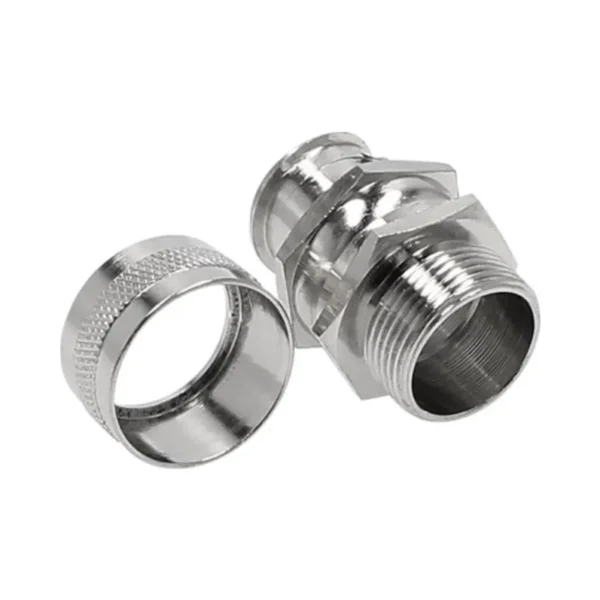

- Connection Methods: Conduit fittings, such as connectors and couplings, are used to join sections of galvanized flexible conduit together and to connect the conduit to electrical boxes, equipment, or other conduits. Proper fittings and connections are crucial for maintaining the integrity of the conduit system.
- Earthing: In electrical installations, it’s important to ensure that metal conduit systems are properly earthed to provide a safe path for fault currents. Bonding and grounding of galvanized flexible conduit are essential to meet safety standards.
- Compliance with Regulations: When using galvanized flexible conduit in electrical installations, it’s essential to adhere to the regulations outlined in the 18th edition of the BS 7671 wiring regulations. This includes following the recommended installation methods, sizing requirements, and ensuring proper bonding and earthing.
- Inspection and Maintenance: Regular inspection and maintenance of the conduit system are necessary to ensure its continued effectiveness and compliance with safety standards. Damaged or corroded sections should be replaced promptly.
Remember that the specific requirements and installation methods for galvanized flexible conduit may vary depending on the project’s location, type, and local electrical codes. Always consult the latest edition of the BS 7671 wiring regulations and any applicable local codes and standards when planning and installing electrical conduit systems.
