Description
Baffled Fire Rated LED Downlight with Colour and Wattage Switching

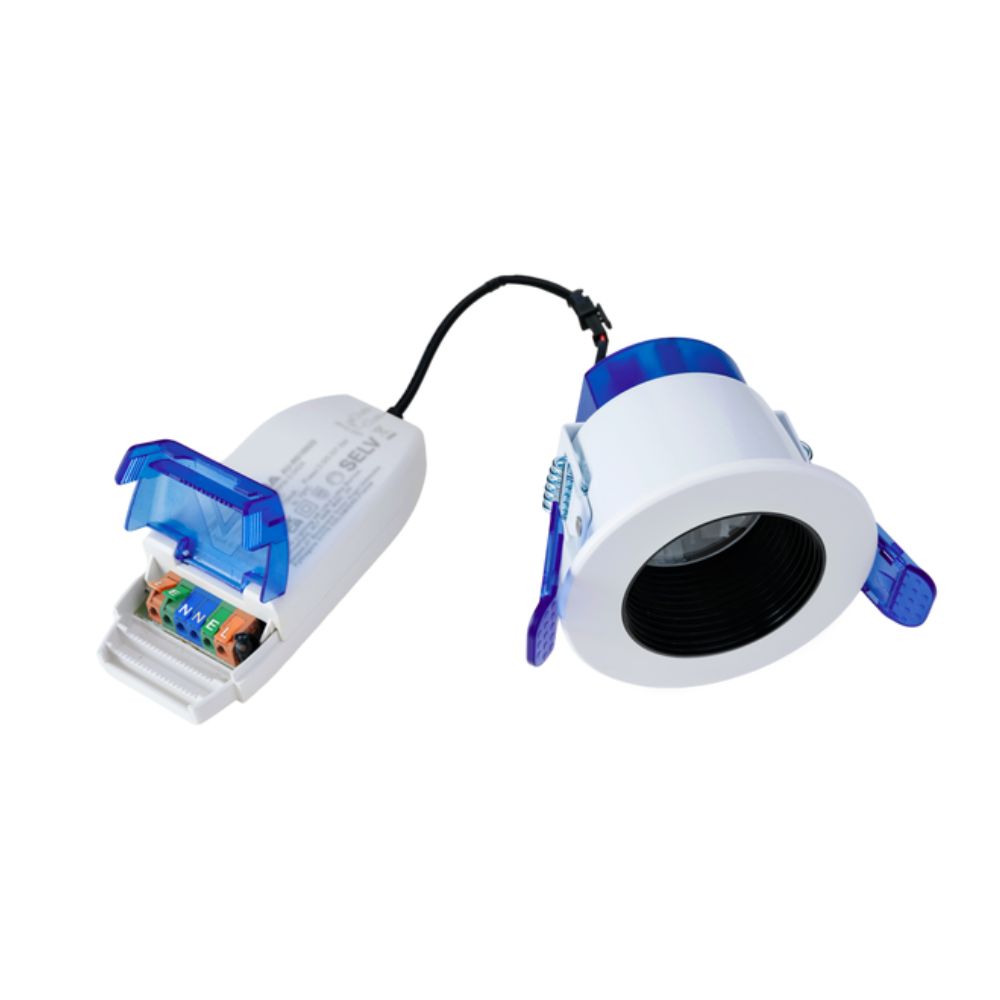

Aurora AU-R63BW/CWS Baffled CCT LED Downlight
The Aurora AU-R63BW/CWS Baffled CCT LED Downlight is designed to deliver visual comfort and flexibility in modern lighting schemes. The integrated black baffle helps reduce glare while enhancing contrast, making this downlight ideal for residential, hospitality, and commercial interiors.
Certified for installation in solid timber, I-joist, and metal web joist ceilings, the AU-R63BW/CWS is suitable for fire-rated ceiling constructions where safety and compliance are essential. Its low-profile design supports installation in shallow ceiling voids, while the FastRFix connector with LENNEL terminals allows quick and secure wiring.
This downlight offers selectable colour temperatures of 2700K, 3000K, 4000K, and 5700K, along with switchable wattage options of 3.5W, 5.5W, or 7.5W, providing flexibility across a wide range of applications. Supplied with a white IP65-rated polycarbonate bezel, it is suitable for bathroom zones and other moisture-prone environments. With an L80B50 rated lifetime of 50,000 hours and a 5-year warranty, it delivers dependable long-term performance.
Key Features – Aurora AU-R63BW/CWS Baffled CCT LED Downlight
- Fixed black baffle fire rated LED downlight
- Colour and wattage switchable design
- Selectable colour temperatures: 2700K / 3000K / 4000K / 5700K
- Switchable wattage: 3.5W / 5.5W / 7.5W
- Fire rated and certified for solid timber, I-joist and metal web joist ceilings
- FastRFix connector with LENNEL terminals for fast installation
- Easy glide soft springs suitable for double plasterboard ceilings
- Low profile design for shallow ceiling voids
- Supplied with white IP65 polycarbonate bezel
- CRI90 for optimised colour rendering
- Energy Rating C
- L80B50 50,000 hours
- 5 Year Warranty
Technical Overview – Aurora AU-R63BW/CWS Baffled CCT LED Downlight
- Wattage: 3.5W / 5.5W / 7.5W (switchable)
- Light output: 280–660 lumens
- Colour temperature: 2700K / 3000K / 4000K / 5700K
- Beam angle: 60°
- CRI: >90
- Protection rating: IP65
- Lifetime: L80B50 50,000 hours
- Dimmable: Triac
- Input voltage: 220–240V AC
- Power factor: 0.9
- Protection class: Class II
- Frequency: 50–60Hz
- Cut-out diameter: 75mm
- Overall diameter: 88mm
- Depth: 75mm
- Material: Polycarbonate and pressed steel
- Finish: White with black baffle
- Warranty: 5 Years
Why Choose This Product?
The Aurora AU-R63BW/CWS Baffled CCT LED Downlight is ideal for projects requiring reduced glare and flexible light output. The black baffle design enhances visual comfort, while colour and wattage switching allow one fitting to suit multiple applications, reducing stock complexity.
Guarantee & Compliance
This downlight meets relevant UK fire safety and ingress protection standards and is supplied with a 5-year manufacturer’s warranty.
