Versatile LED Downlight with CCT Switching and IP65 Protection

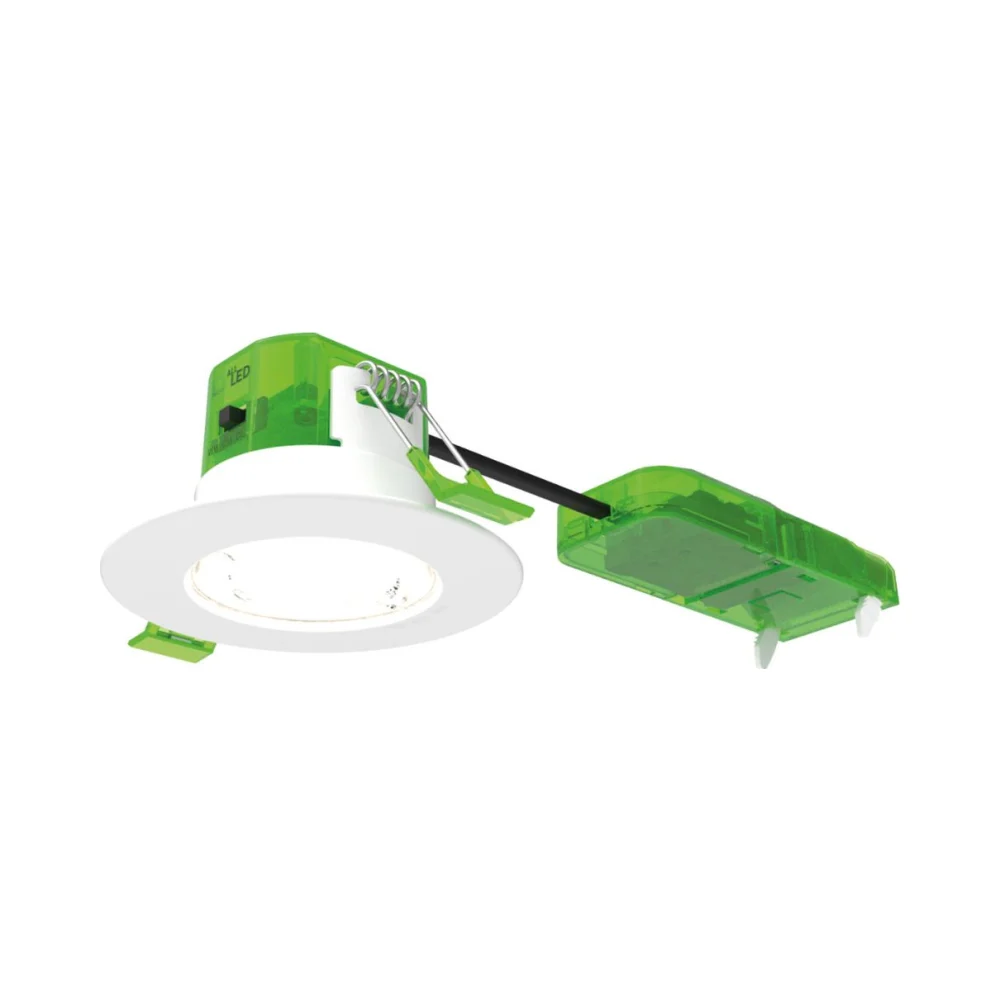

AFD600D/CCT – Spartan 6W CCT Fire Rated LED Downlight
The Spartan 6W CCT Fire Rated LED Downlight is a modern, energy-efficient lighting solution designed to meet the latest safety and building regulations. With a selectable colour temperature (CCT) of 3000K, 4000K, or 6500K, it lets you adapt the lighting to suit each space. This downlight is also IP65 rated, so it’s safe to use in bathrooms and other damp environments.
Designed for fast installation, it features a two-part connector with push terminals and a loop-in loop-out system. The ultra-slim polar white bezel fits neatly into ceilings and can be upgraded with optional bezels in satin nickel, polished chrome, or carbon black.
Key Features – Spartan CCT Fire Rated LED Downlight
- CCT selectable: 3000K / 4000K / 6500K
- Fire rated: 30/60/90 mins (timber), 30/90 mins (I-joist), 30 mins (metal web)
- Complies with Part B (Fire), Part C (Moisture), Part E (Acoustic), Part L (Air Leakage)
- Ultra-slim polar white bezel included
- Optional clip-on bezels: Satin Nickel, Polished Chrome, Carbon Black
- Fully insulation coverable
- IP65 front rating – ideal for bathrooms
- Dimmable (Trailing edge)
- High output: up to 660 lumens, 110lm/W
- Beam angle: 60°
- Long lifespan: ≥30,000 hours
- Tool-free 2-part push terminal connector
Technical Overview – Spartan CCT Fire Rated LED Downlight
- Wattage: 6W
- Colour Temperatures: 3000K, 4000K, 6500K
- Luminous Flux: Up to 660 lumens
- Useful Luminous Flux: Up to 510 lumens
- Beam Angle: 60°
- Colour Rendering Index (CRI): ≥80
- Voltage: 220–240V AC
- Input Frequency: 50/60Hz
- Operating Current: Max 0.0385A
- Power Factor: >0.8
- Class: Class II
- Frame Colour: Polar White
- Construction: Polycarbonate & pressed steel
- Cut-Out Size: 55–75mm
- Ambient Temperature Range: -20°C to +45°C
- Switching Cycles: ≥60,000
- Dimming Mode: Trailing edge
- IP Rating: IP65 (front only)
- Flicker Metric (PstLM): <1
- Stroboscopic Effect Metric (SVM): <0.4
- Displacement Factor: >0.8
- Lifetime (L70 B50): ≥30,000 hours
- Guarantee: 3 years
What’s Included
- 1x Spartan AFD600D/CCT 6W LED Downlight
- 1x Ultra-slim polar white bezel (pre-installed)
- 1x 2-part quick connector with push terminals
- Note: Decorative bezels (black, satin nickel, chrome) sold separately.
✅ Why Choose This Downlight?
The Spartan LED downlight makes compliance easy—it meets fire, moisture, acoustic, and air leakage requirements in one compact unit. With IP65 protection and selectable colour temperatures, it’s a great choice for bathrooms, kitchens, and general living areas. Its clip-on bezel system and push-fit terminals simplify installation, saving electricians valuable time.
Looking for a Decorative Bezel?
Personalise your Spartan downlight with a range of clip-on bezels, available in three elegant finishes to suit any interior:
- Polished Chrome – SKU: AFD600DBZ/PC
- Satin Nickel – SKU: AFD600DBZ/SN
- Carbon Black – SKU: AFD600DBZ/BLK
These low-profile snap-on bezels are easy to fit and ideal for matching downlights to your room’s style or hardware finishes.
Guarantee & Compliance
This product is covered by a 3-year guarantee and complies with relevant parts of UK Building Regulations: Part B, C, E, and L.
