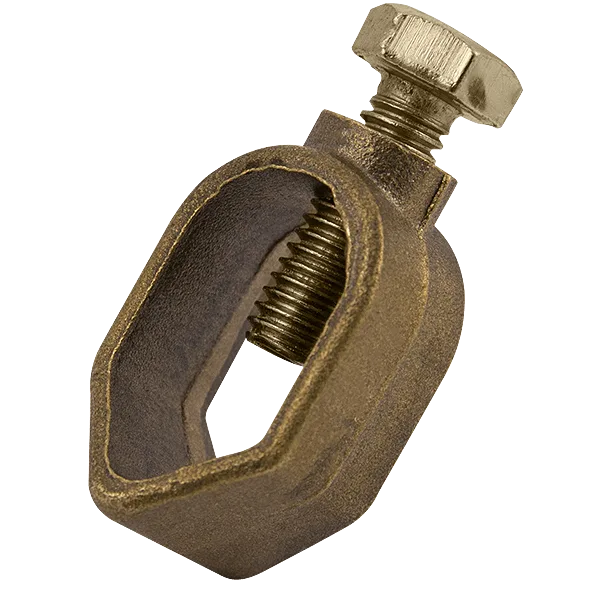

5/8 Earth Rod Cable Clamp
5/8 Earth Rod Cable Clamp QEP58CC from Unicrimp Q-Crimp is a G Type clamp designed to create a secure connection between a 5/8″ earth rod and an earthing conductor. It is suitable for electrical earthing installations where a reliable mechanical and electrical connection to the earth electrode is required.
The clamp is designed for 14.2mm diameter earth rods and accepts conductor sizes from 16-70mm2. Its high-strength copper alloy body provides a robust connection point, while the stainless steel bolt securely clamps the conductor in position.
For 5/8″ Earth Rod Installations
The QEP58CC is designed to fit standard 5/8″ earth rods. For a compatible rod, see the Unicrimp 5/8″ Threaded Earth Rod.
This combination provides a practical solution for connecting an earthing conductor directly to the installed earth rod while keeping the connection secure and accessible for inspection.
Key Features
- G Type earth rod to cable clamp
- Designed for electrical earthing installations
- Suitable for 5/8″ earth rods
- Compatible rod diameter: 14.2mm
- Conductor size range: 16-70mm2
- Tightening torque: 2.5Nm
- High-strength copper alloy body
- Stainless steel bolt
Related Earth Rod Accessories
Where a split connector style connection is required instead, see the Unicrimp Earth Rod Connector Clamp.
Standards
- BS EN IEC 62561-2:2018
- BS 7430
