20A Type B HP Heat Pump RCBO

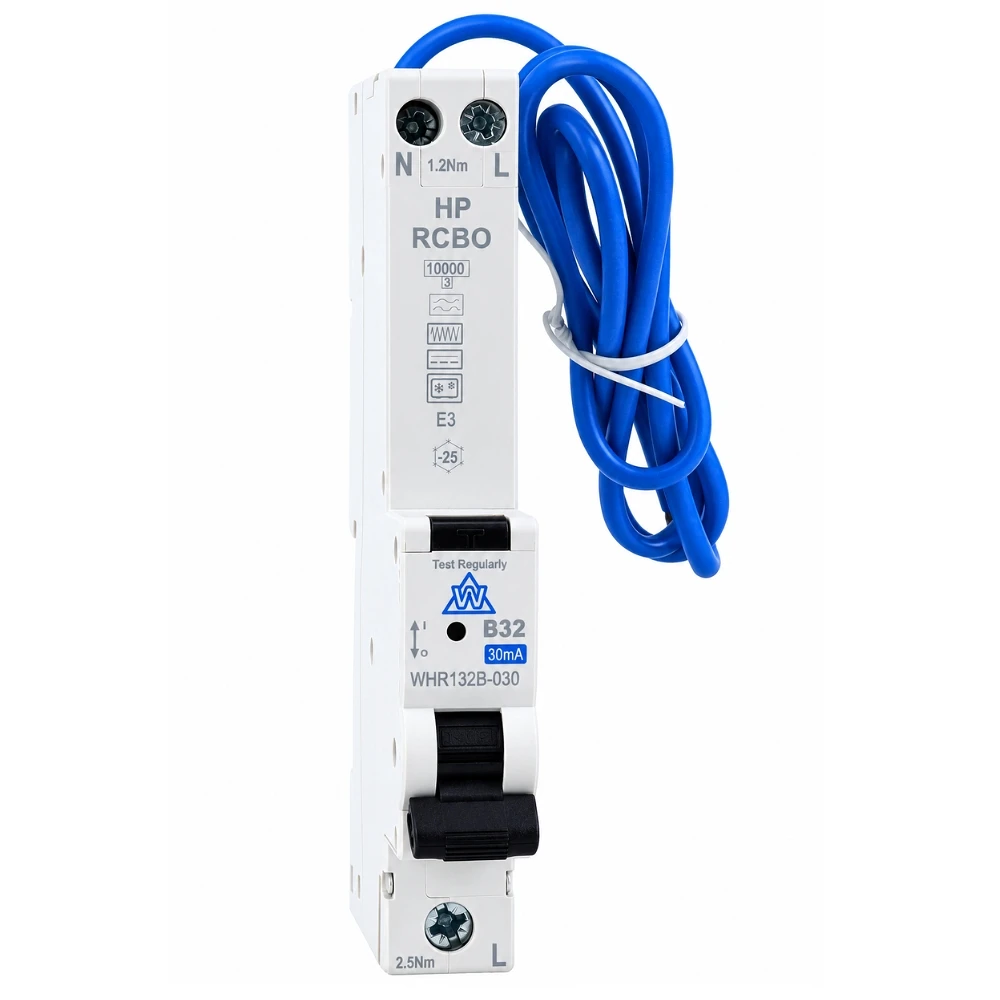

The 20A Type B HP Heat Pump RCBO from WCED provides dedicated protection for heat pump circuits using inverter and variable-speed technology. The WHR120B-030 combines a 20A B Curve circuit breaker with Type B HP residual-current protection, all within a space-saving single-module device.
Heat pump electronics can introduce smooth DC and high-frequency residual currents that require suitable protective equipment. WCED developed the WHR series to operate in these demanding conditions, with high-frequency performance above 20kHz.
Designed for Modern Inverter Heat Pumps
The WHR120B-030 detects smooth DC residual currents while also providing 30mA protection at conventional operating frequencies. Its Type B HP characteristics make it particularly suited to heat pump systems where conventional residual-current devices may not provide the same high-frequency performance.
Technical Specifications – 20A Type B HP Heat Pump RCBO
- Part number: WHR120B-030
- Current rating: 20A
- Curve: B
- Device type: Type B HP RCBO
- Residual-current rating: 30mA
- Breaking capacity: 10kA
- Poles: 1P+N
- Switched live and neutral
- Single-module construction
- Rated voltage: 230V
- Smooth DC residual-current detection
- Designed for frequencies above 20kHz
- Bi-directional operation
- 35mm DIN rail mounting
- IP20 rated
Flexible Option for Consumer Unit Upgrades
Because the WHR120B-030 occupies only a single module and is designed for use with standard busbar arrangements, it can offer a practical route to adding specialist heat pump protection within a suitable existing consumer unit.
Where the board has sufficient space, capacity and compatible equipment, this can avoid automatically installing a completely separate heat pump distribution board simply to accommodate the protective device.
Standards
- BS EN 62423
- IEC 62423
- BS EN 61009-1
- IEC 61009-1
- Suitable for BS 7671 compliant installation designs
Choose the Right WCED Distribution Equipment
Explore our wider selection of WCED consumer units for compatible distribution equipment. We also stock dedicated WCED heat pump consumer units where a separate heat pump board forms part of the installation design.
