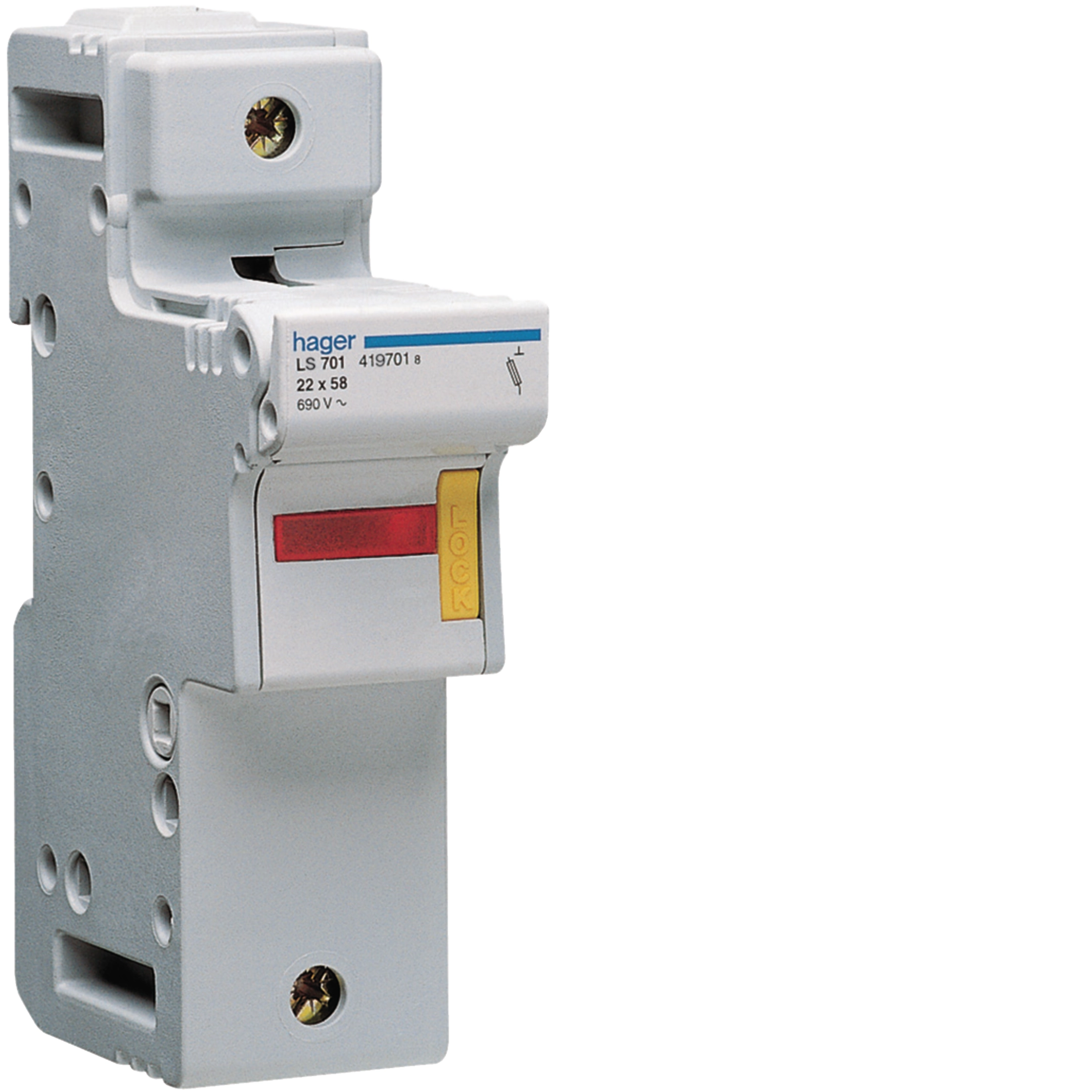

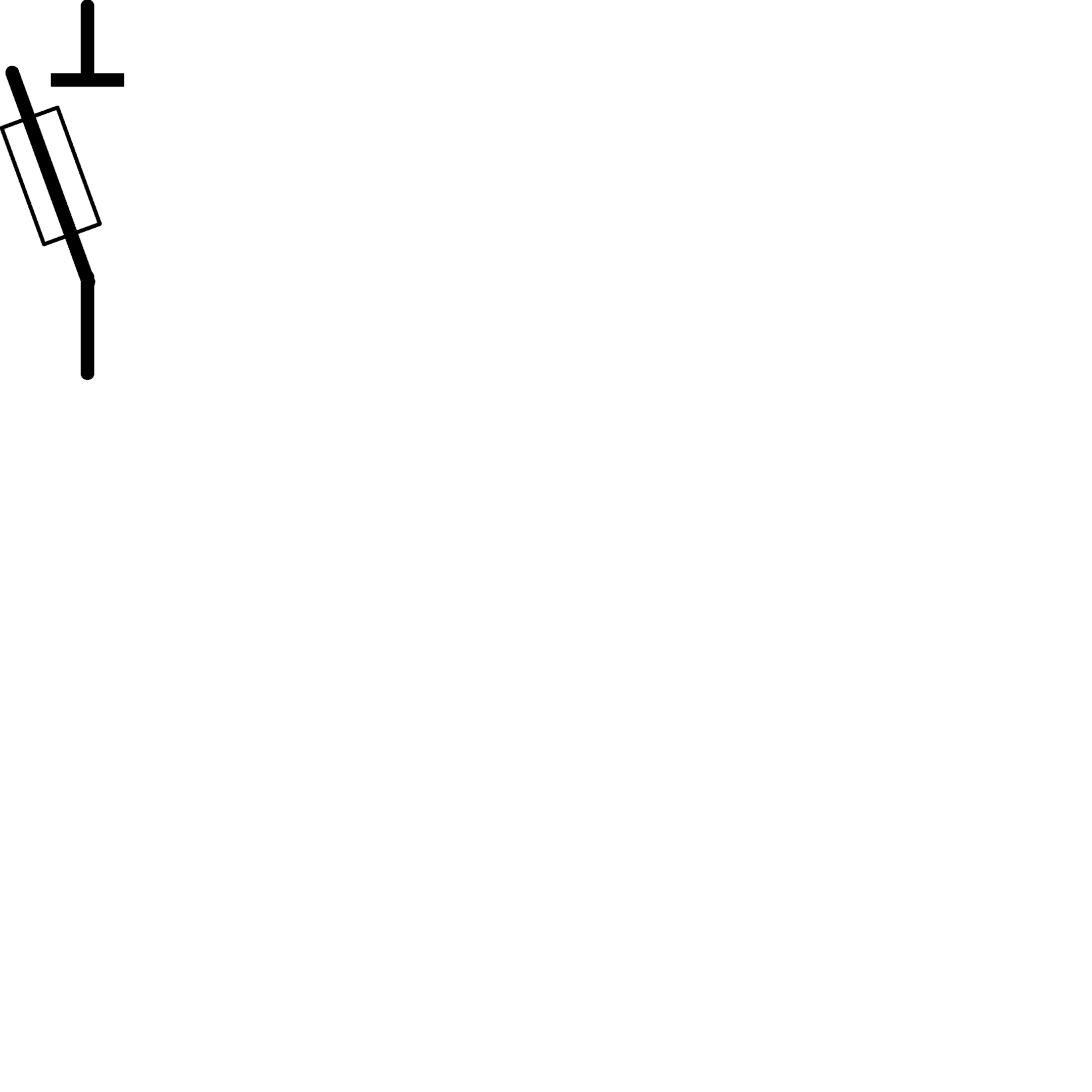

1P 125A Fuse Carrier 690V
The 1P 125A Fuse Carrier 690V from Hager is a DIN rail-mounted cylindrical fuse carrier designed for 22 x 58mm fuse cartridges. The Hager LS701 provides a compact 2-module solution for higher-current fused protection applications.
Rated at 125A, the LS701 supports compatible cylindrical fuse cartridges from 20A through to 125A and has a rated insulation voltage of 690V.
Key Features
- Brand: Hager
- Product code: LS701
- Product type: Cylindrical fuse carrier
- Pole configuration: 1P
- Number of poles: 1
- Rated current: 125A
- Rated insulation voltage: 690V
- Rated impulse withstand voltage: 8kV
- Fuse size: 22 x 58mm
- Compatible fuse ratings: 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A and 125A
- Number of modules: 2
- DIN rail mounting
- IP20 protection
- Interlockable: Yes
22 x 58mm Cylindrical Fuse Carrier
The Hager LS701 is designed for 22 x 58mm cylindrical fuse cartridges, supporting fuse ratings from 20A up to 125A. This provides flexibility when selecting the appropriate fuse rating for the protected circuit.
2 Module DIN Rail Design
The LS701 occupies 2 DIN modules and measures 35mm wide, making it suitable for compatible distribution equipment and control panels where higher-current fuse protection is required.
Technical Specifications
| Manufacturer | Hager |
| Product Code | LS701 |
| Pole Configuration | 1P |
| Number of Poles | 1 |
| Rated Current | 125A |
| Rated Insulation Voltage Ui | 690V |
| Rated Impulse Withstand Voltage Uimp | 8kV |
| Fuse Size | 22 x 58mm |
| Number of Modules | 2 |
| Width | 35mm |
| Height | 125mm |
| Depth | 96mm |
| Operating Temperature | -5°C to +40°C |
| Power Dissipation at Rated Current | 12.84W |
| Protection Rating | IP20 |
| Mounting | DIN rail |
| Nominal Tightening Torque | 3.6Nm |
| Flexible Conductor Capacity | 2.5 – 35mm² |
| Solid Conductor Capacity | 2.5 – 50mm² |
| Interlockable | Yes |
| Halogen Free | Yes |
Hager LS701 Fuse Carrier
The 1P 125A Fuse Carrier 690V provides a robust DIN rail solution for incorporating 22 x 58mm cylindrical fuse protection into higher-current electrical installations. Select the appropriate fuse cartridge rating to suit the circuit requirements.
