16A Type B HP Heat Pump RCBO

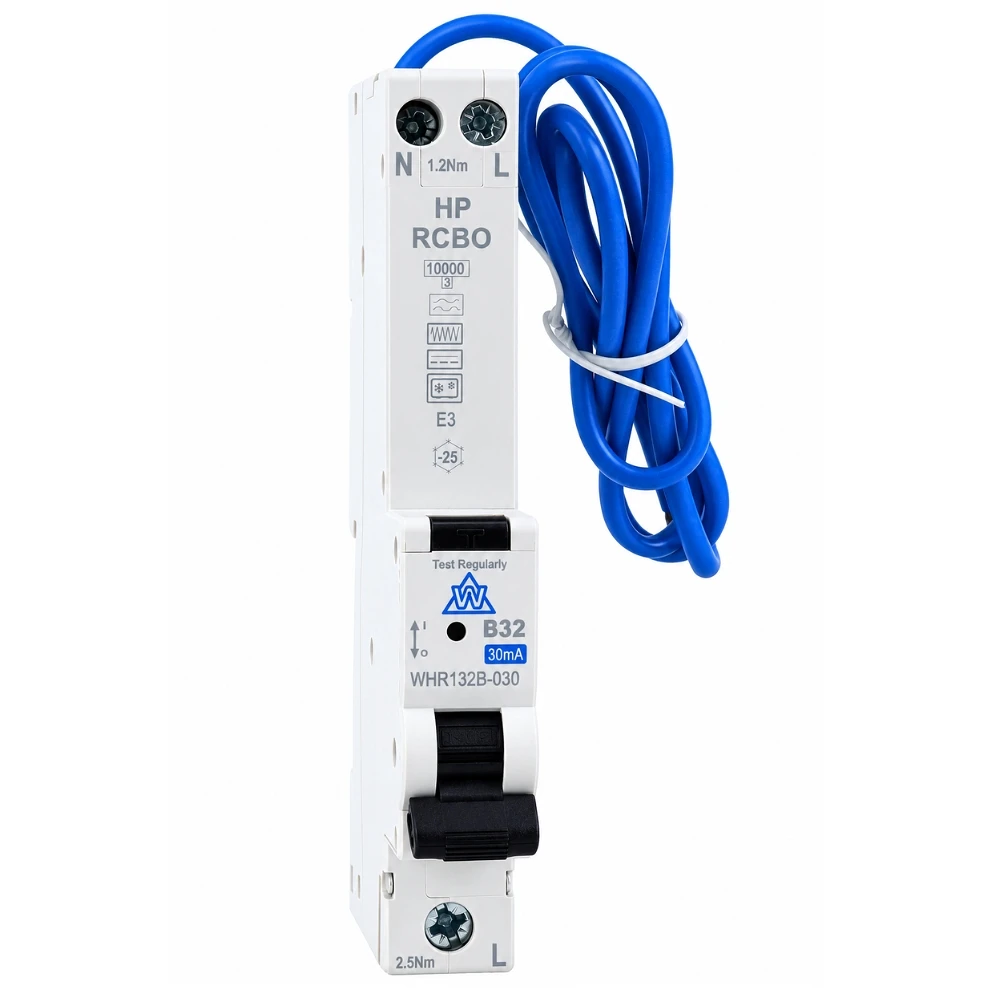

The 16A Type B HP Heat Pump RCBO from WCED is designed specifically for modern heat pump circuits where smooth DC and high-frequency residual currents may be present. The WHR116B-030 combines B Curve overcurrent protection with 30mA residual-current protection in a compact single-module 1P+N format.
Modern inverter-driven heat pumps can create electrical conditions that differ significantly from conventional loads. The WHR116B-030 is engineered to detect smooth DC residual currents and operate effectively at frequencies above 20kHz, providing specialist protection for contemporary heat pump installations.
Specialist Type B HP Protection
This 16A Type B HP Heat Pump RCBO is designed to provide reliable operation in environments where high-frequency residual currents may occur. Above 1kHz, the WHR range uses a minimum 150mA tripping threshold, helping it cope with high-frequency leakage while maintaining protection against smooth DC faults.
Key Features
- Product code: WHR116B-030
- Rated current: 16A
- Trip characteristic: B Curve
- Protection type: Type B HP
- Residual-current sensitivity: 30mA
- Breaking capacity: 10kA
- Configuration: 1P+N
- Switched live and neutral
- Single-module 18mm design
- Rated voltage: 230V
- Detects smooth DC residual currents
- High-frequency operation above 20kHz
- Minimum 150mA trip threshold above 1kHz
- Bi-directional
- DIN rail mounting
- IP20 protection rating
Heat Pump Protection Without Automatically Requiring a Separate Board
A major advantage of the WHR116B-030 is its space-saving single-module construction. Where the existing consumer unit arrangement, available capacity and installation design permit, this Type B HP RCBO can be installed alongside other compatible protective devices instead of automatically requiring a separate dedicated heat pump consumer unit.
The standard busbar-compatible design can make the WHR116B-030 particularly useful for retrofit heat pump installations where suitable space is already available within the distribution board.
Standards and Compliance
- IEC 62423
- BS EN 62423
- IEC 61009-1
- BS EN 61009-1
- Designed for installations complying with BS 7671
WCED Consumer Units and Heat Pump Protection
Complete the installation with our range of WCED consumer units. Where a separate board is preferred or required, browse our dedicated WCED heat pump consumer units.
