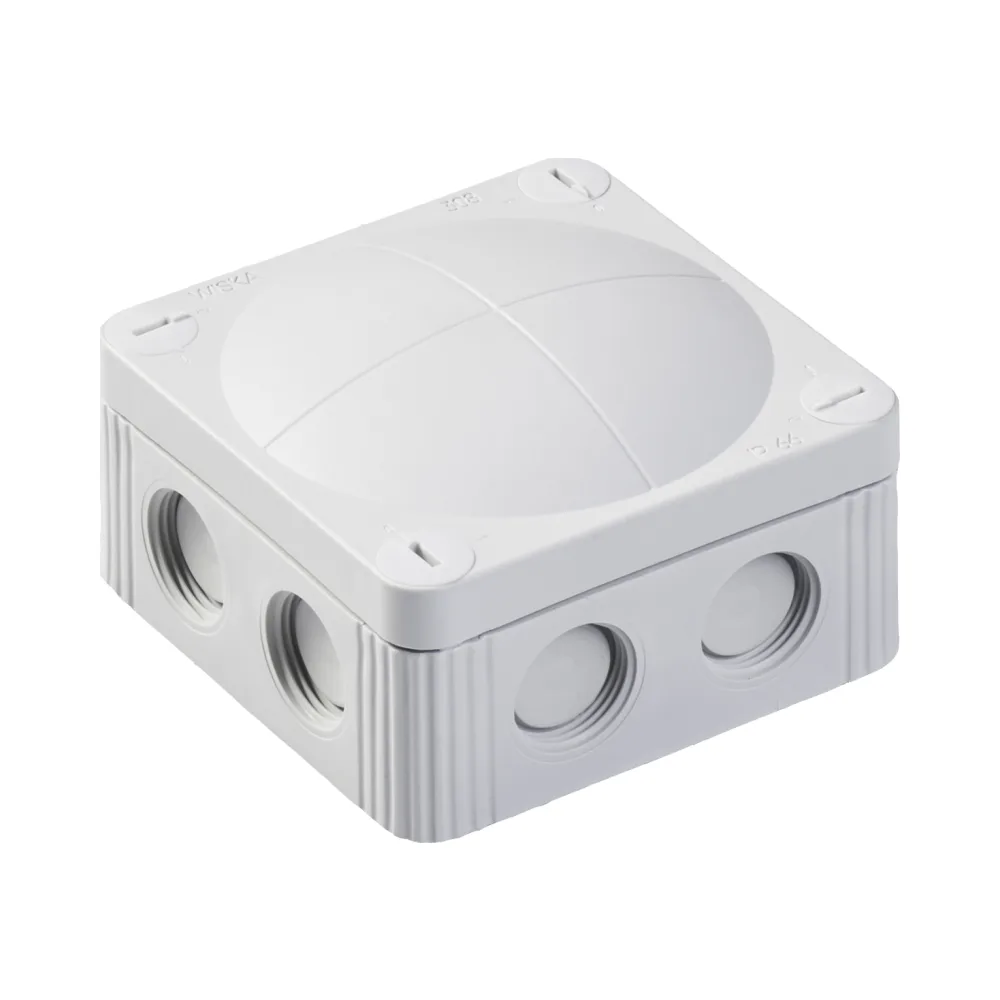

Wiska Box COMBI 308/5 LG (Light Grey)
The Wiska Box COMBI 308/5 LG (Light Grey) is a compact, weather-resistant electrical enclosure supplied with a 4mm² terminal block for convenient cable connections. Finished in light grey and measuring 85x85x51mm, it provides an effective solution for protecting electrical connections in domestic, commercial and industrial environments.
Manufactured from UV- and ozone-resistant polypropylene, this junction box offers IP66 protection as standard. Its eight M20 membrane entries and quick-access bayonet lid make it a practical choice for professional electrical installations.
Key Features – Wiska Box COMBI 308/5 LG (Light Grey)
- Wiska COMBI 308/5 LG light grey junction box
- Supplied with a 4mm² terminal block
- Compact dimensions: 85x85x51mm
- IP66 ingress protection against dust and powerful water jets
- IP67 achievable with a suitable Wiska ESKV cable gland
- UV- and ozone-resistant polypropylene enclosure
- 8 x M20 threaded membrane entries
- Flat lid with quarter-turn bayonet fastening
- Secure hook closure requiring a tool for opening once engaged
- Suitable for indoor and outdoor electrical installations

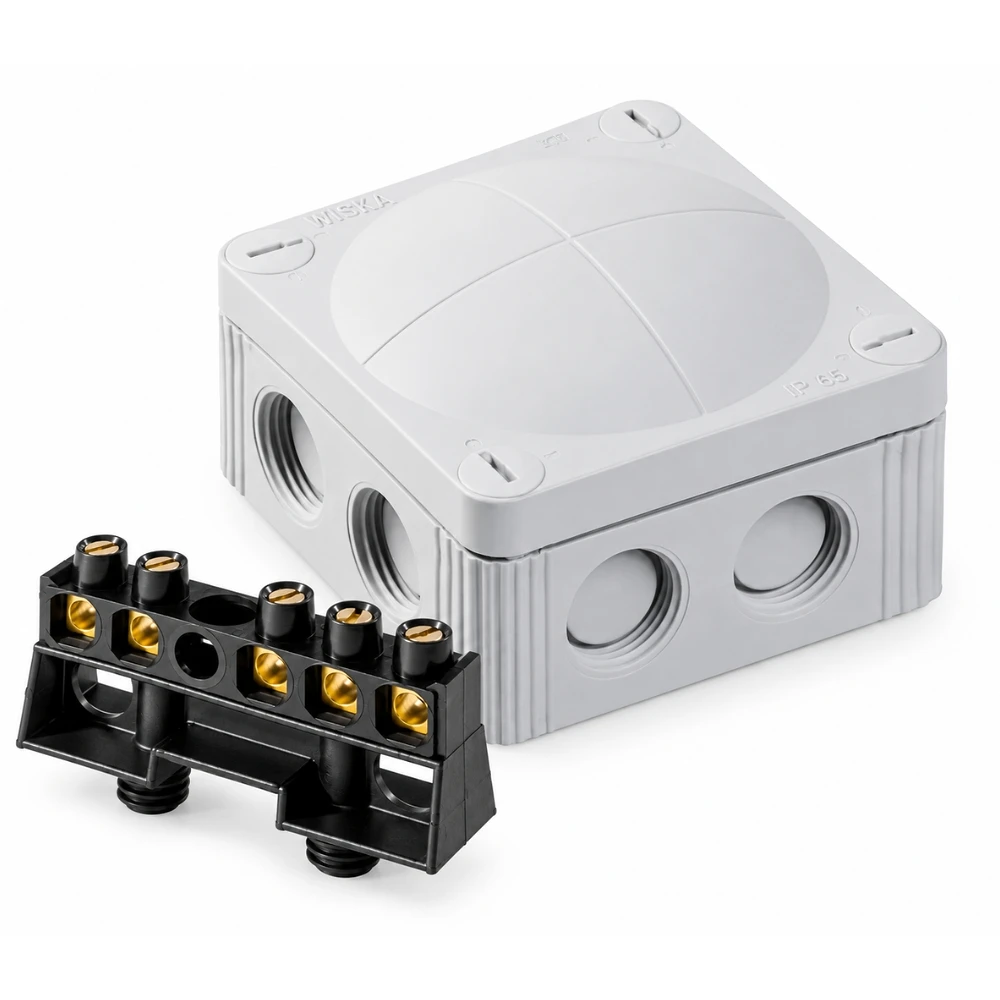

Included 4mm² Terminal Block
Unlike empty COMBI junction boxes, the Wiska COMBI 308/5 LG Junction Box comes equipped with a 4mm² terminal block, providing a convenient connection point for suitable electrical conductors.
The included terminal block reduces the need for separate connection accessories and makes this model particularly useful for lighting circuits, general wiring and electrical junction applications.
IP66 Weather Resistance and Durable Construction
The light grey polypropylene housing is designed to resist UV exposure and ozone, making it suitable for both internal and external environments.
Its IP66 rating provides protection against dust ingress and powerful water jets. When fitted with the appropriate threaded Wiska ESKV cable gland, IP67 protection can also be achieved, subject to correct installation.
Explore our Wiska Polyamide Cable Glands for compatible cable entry and sealing accessories.
Easy Installation and Flexible Cable Entry
The COMBI 308/5 LG features eight M20 threaded membrane entries, allowing cables to be routed from multiple directions.
Its quarter-turn bayonet lid enables straightforward opening and closing, while the secure hook mechanism requires a tool to open once locked.

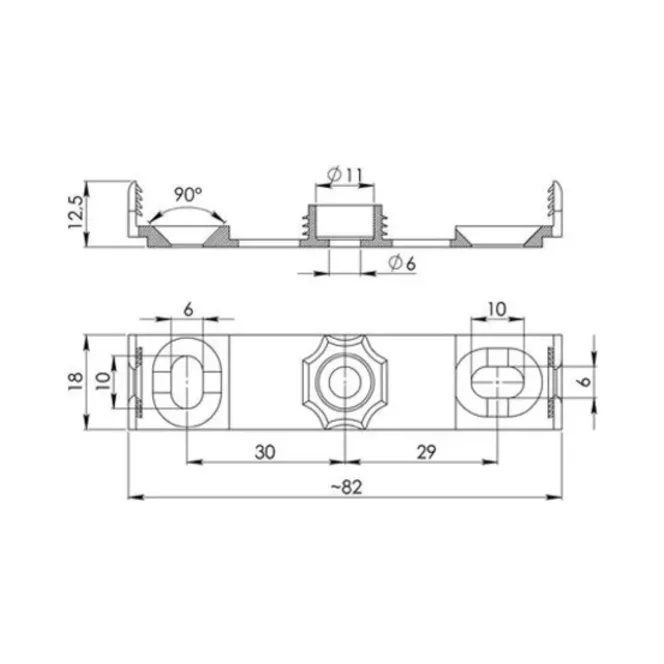

Installation is supported by four internal fixing openings positioned outside the sealing area, together with a mounting clip option.
Technical Specifications
- Brand: Wiska
- Product range: COMBI
- Model: COMBI 308/5 LG
- Product type: Junction box with terminal block
- Colour: Light Grey

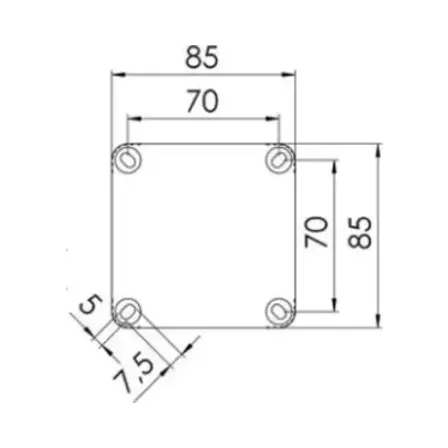

- Dimensions: 85 x 85 x 51mm
- Terminal block: 4mm²
- Ingress protection: IP66
- Optional ingress protection: IP67 with suitable ESKV gland
- Construction: UV- and ozone-resistant polypropylene

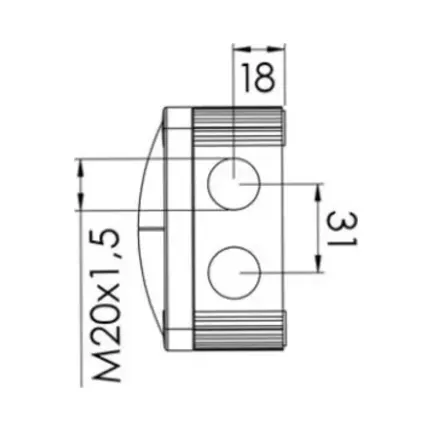

- Cable entries: 8 x M20 threaded membrane entries
- Lid fastening: Quarter-turn bayonet closure
- Mounting: Four internal mounting openings or mounting clip
Suitable Applications
- Domestic and commercial electrical wiring
- Indoor and outdoor lighting connections
- Cable junctions in workshops and utility areas
- Industrial electrical installations
- General-purpose cable termination points
Explore More Wiska Junction Boxes and Accessories
The Wiska COMBI range offers different enclosure sizes, colours and terminal configurations to suit a wide variety of electrical projects.
Browse our complete Wiska Electrical Products range for additional junction boxes and installation accessories.
For cable entry and sealing requirements, explore our Wiska Polyamide Cable Glands collection.
Why Choose Wiska Box COMBI 308/5 LG (Light Grey) ?
The Wiska COMBI 308/5 LG Junction Box combines compact dimensions, durable construction and an included 4mm² terminal block. Its IP66 protection and practical cable entry design make it a reliable choice for professional electrical installations.
