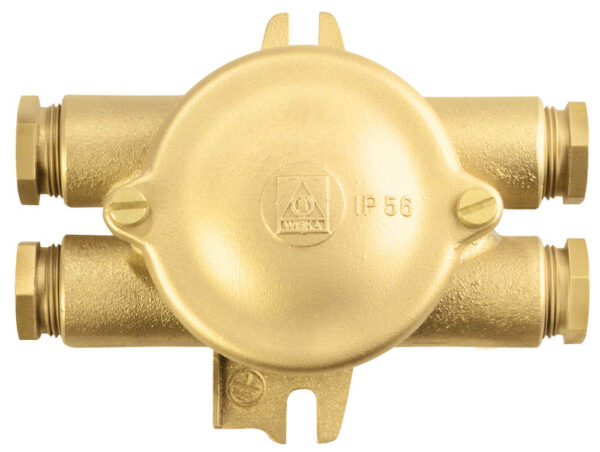

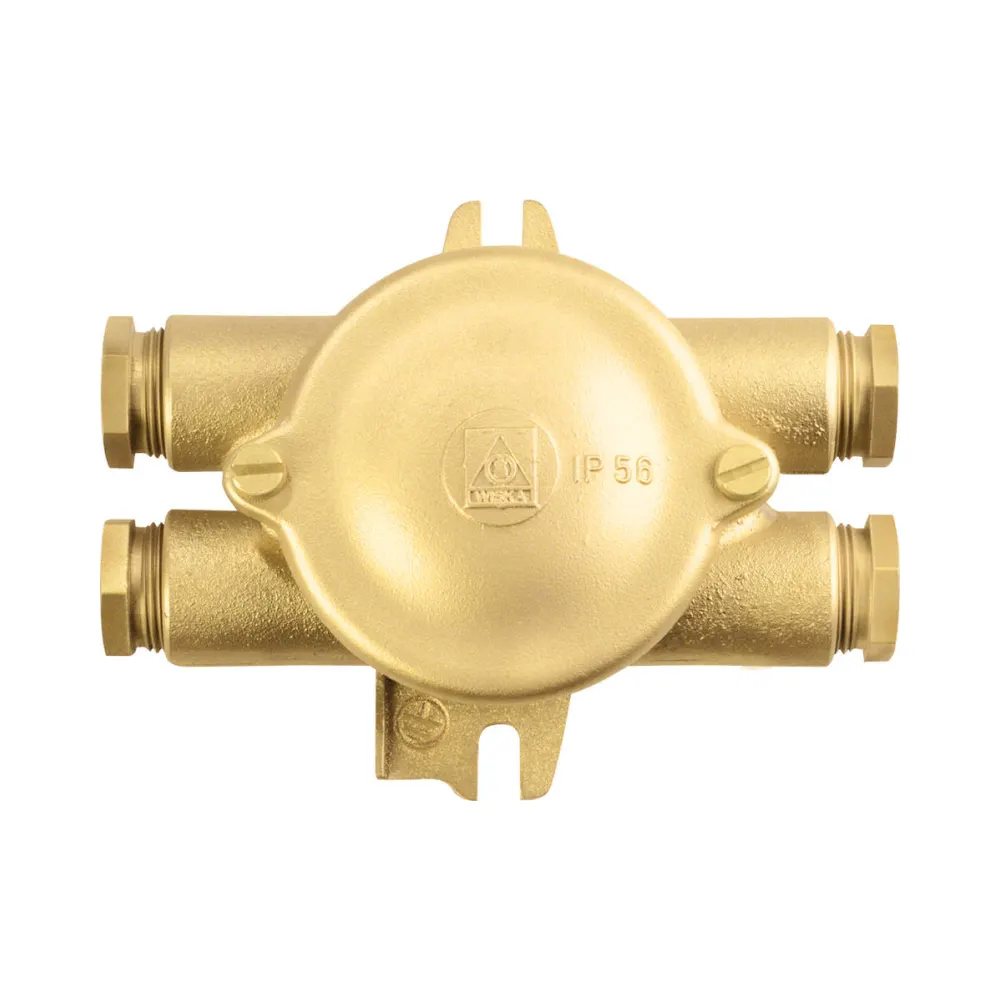

IP56 HNA Brass Junction Box – 8 – 10.5 mm
Wiska 1155-4xW10A
The Wiska 1155-4xW10A IP56 HNA Brass Junction Box is engineered to deliver secure and reliable electrical connections in challenging environments. Constructed from high-quality brass, this junction box is designed to accommodate non-armoured cables with diameters ranging from 8 mm to 10.5 mm. Its IP56 protection rating ensures excellent resistance to dust, water, and environmental stressors, making it suitable for engine rooms, outdoor installations, and indoor workspaces.
Key Features of Wiska 1155-4xW10A IP56 HNA Brass Junction Box
- Durable Construction: Made from premium brass for outstanding strength and corrosion resistance.
- IP56 Protection: Provides robust protection against dust and water ingress, ideal for demanding environments.
- Versatile Applications: Suitable for engine rooms, outdoor environments, and indoor electrical systems.
- Secure Cable Management: Designed to support non-armoured cables with diameters from 8 mm to 10.5 mm.
Technical Specifications
- Type: 1155-4xW10A
- Voltage: 500 V
- Current: 16 A
- Protection Class: IP56
- Material: Brass (Junction Box & Cable Gland)
- Cable Gland Type: M24x1.5
- Cable Diameter Range: 8 mm to 10.5 mm
- Type of Cable: Non-armoured

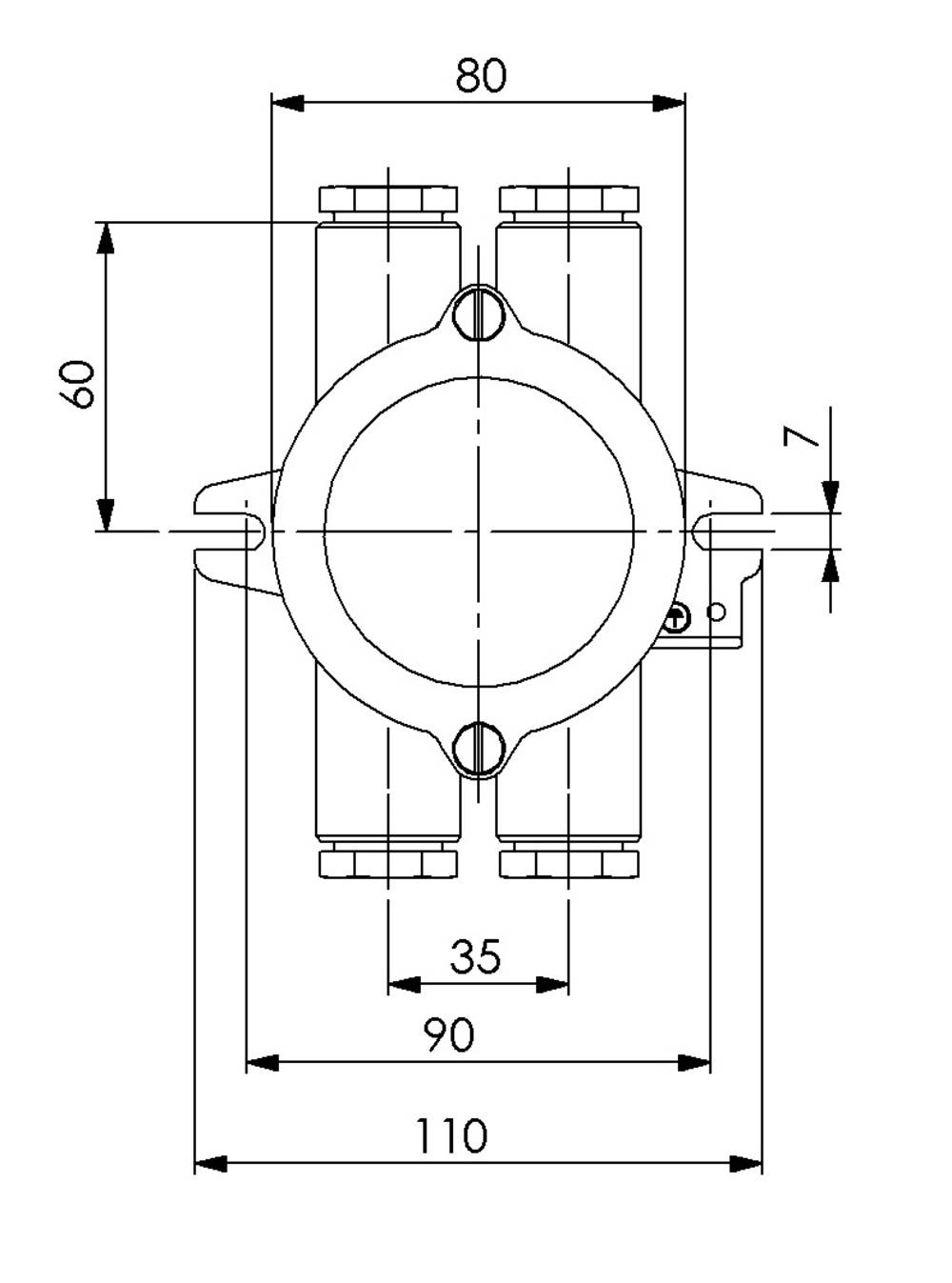

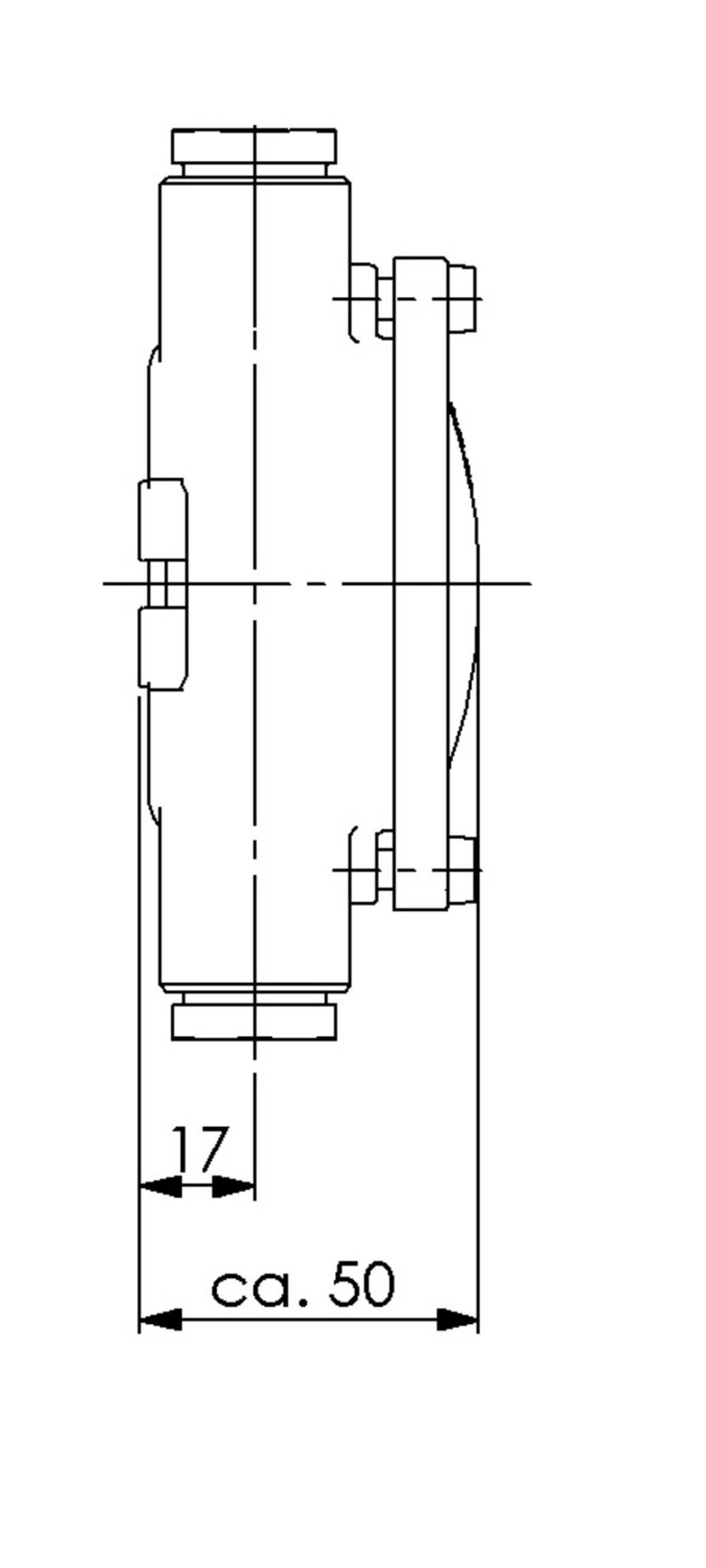

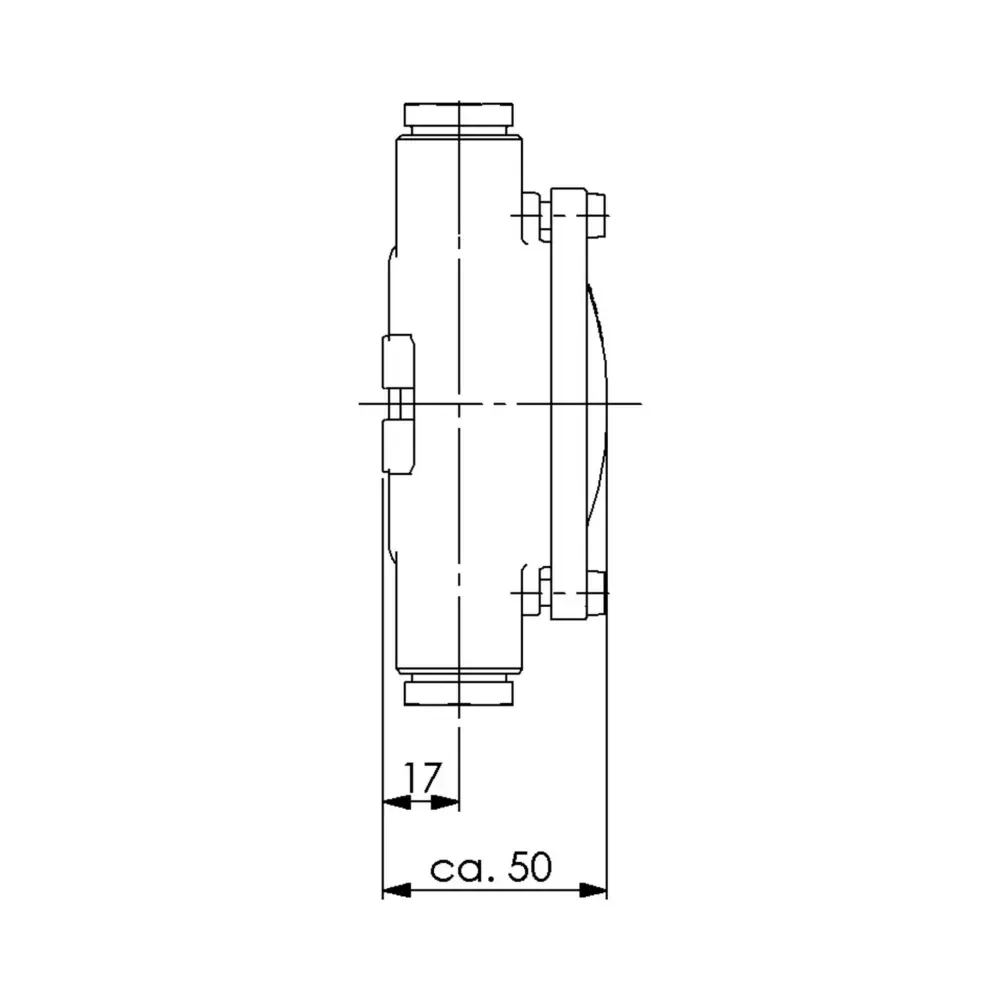

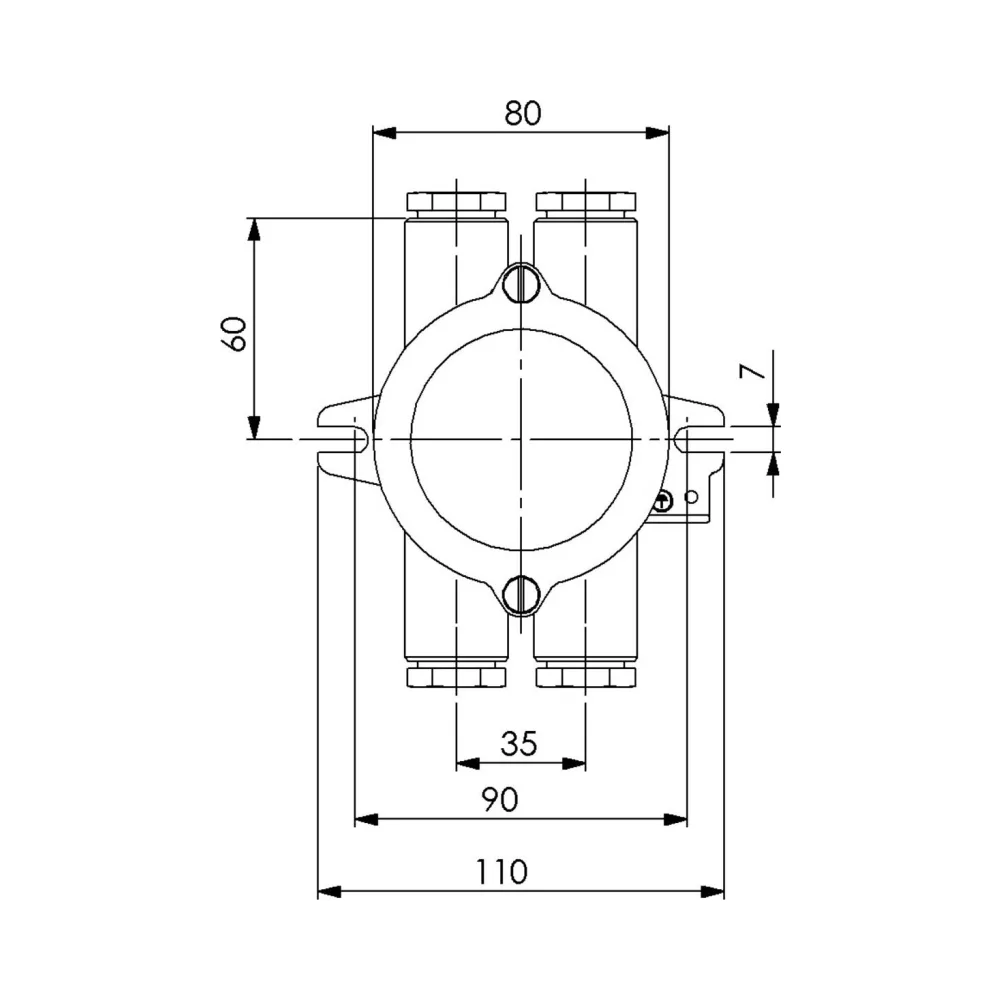

- External Dimensions (LxWxH): 120x110x50 mm
- Mounting: Surface mounting
- Temperature Range: -25°C to +45°C
- Rated Cross Section: 2.5 mm²
- Equipment: Clamp
- Terminals/Poles: 4-pole, 2.5 mm²
- Operational Areas: Engine rooms, outdoor environments, indoor workspaces
- Norm Compliance: DIN 89250
- Weight: 0.9 kg
Why Choose the Wiska 1155-4xW10A Brass Junction Box?
The Wiska 1155-4xW10A Brass Junction Box offers superior durability and secure electrical connections, making it an excellent choice for professionals working in harsh environments. Its rugged brass construction and IP56-rated protection ensure long-lasting performance, while its compatibility with non-armoured cables adds versatility across different applications.
