Description
600V DC PV Surge Protection Device

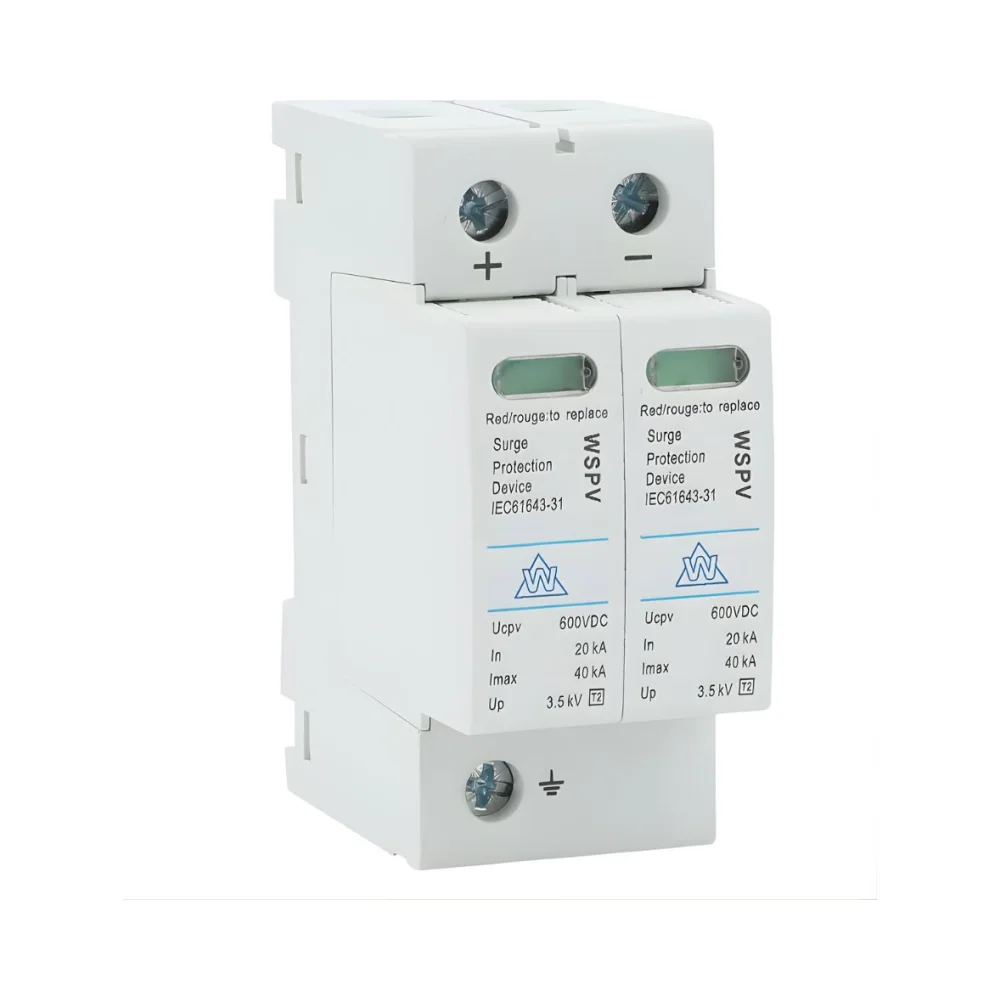

WCED WSPV600 600V DC Photovoltaic SPD
The WCED WSPV600 600V DC Photovoltaic SPD is designed to protect DC photovoltaic power systems against lightning-induced surge voltages. Installed on the DC side of solar PV systems, it helps safeguard solar panels, inverters, and connected equipment from transient overvoltage events.
This Type 2 photovoltaic surge protection device uses high-performance varistors to provide protection in common mode and differential mode. A plug-in module design with visual status indication allows quick identification of operational condition during inspection or maintenance.
Key Features – WCED WSPV600 600V DC Photovoltaic SPD
- WCED WSPV600 600V DC photovoltaic SPD
- Type 2 surge protection for PV applications
- Maximum PV operating voltage: 600V DC
- Nominal discharge current (In 8/20µs): 20kA
- Maximum discharge current (Imax 8/20µs): 40kA
- Protection level: ≤ 3.5kV
- Visual status indicator (Green = OK / Red = Replace)
- Plug-in module design
- DIN rail mounting (35mm)
Technical Data
- Network: PV network
- Poles: 2P
- Short-circuit withstand (Iscpv): 15kA
- Connection: Screw terminals 2.5–25mm²
- Protection rating: IP20
- Operating temperature: -40°C to +85°C
- Recommended tightening torque: 2.5Nm
- Standards: IEC 61643-31 / EN 50539-11
- Electrical4Less Supply
Electrical4Less supplies a wide range of WCED Whitecliffe photovoltaic surge protection devices. If you require a WCED PV SPD or accessory that is not currently listed, please contact us and we will be happy to source it for you.
