Description

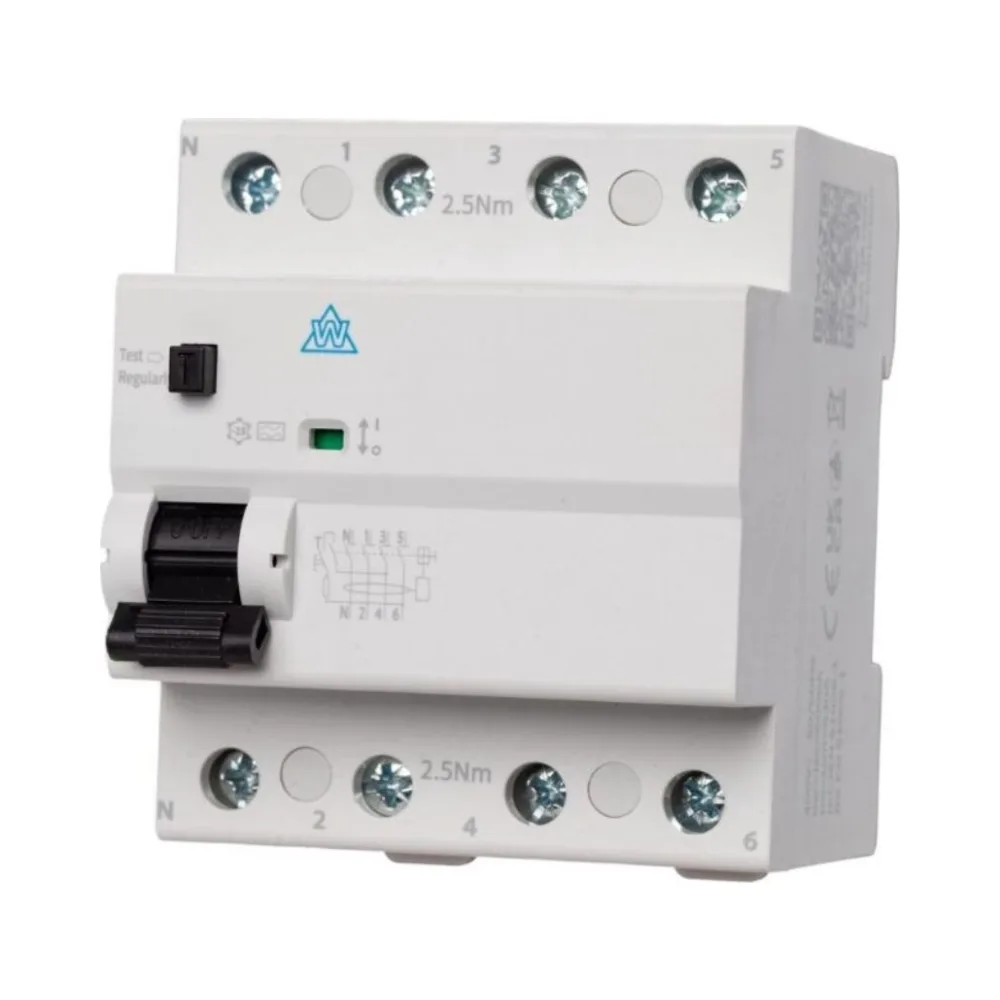

WCED WEV4100B-300 Bi-Directional B Type RCCB for Advanced Electrical Protection
The WCED WEV4100B-300 is a high-performance 4 Pole 100A B Type RCD 300mA designed for demanding commercial, industrial, EV and renewable energy installations. Engineered with advanced B Type sensing technology, this bi-directional RCCB detects AC, pulsating DC and smooth DC residual currents, making it suitable for modern electrical systems containing inverters, converters and electronic loads.
With a 300mA trip sensitivity, the WEV4100B-300 is intended primarily for fire protection and selective tripping applications rather than personal protection. Its bi-directional functionality makes it suitable for installations where power flow may occur in both directions, including solar PV and energy storage systems.
Key Features – 4 Pole 100A B Type RCD 300mA
- Bi-Directional 4 Pole 100A B Type RCCB
- 300mA residual trip sensitivity for fire protection
- Detects AC, pulsating DC and smooth DC residual currents
- Suitable for EV charging, PV and inverter applications
- Designed for selective tripping and discrimination
- 10kA short-circuit breaking capacity
- Mechanical endurance: 4000 operations
- Electrical endurance: 2000 operations
- DIN rail mounting
- IP20 protected terminals
Technical Specifications – 4 Pole 100A B Type RCD 300mA
- Brand: WCED
- Part Code: WEV4100B-300
- Device Type: B Type RCCB
- Poles: 4 Pole
- Rated Current: 100A
- Trip Sensitivity: 300mA
- Rated Voltage: 400/415V
- Impulse Withstand Voltage: 4.5kV
- Breaking Capacity: 10kA
- Terminal Protection: IP20
- Ambient Temperature: -25°C to +40°C
- Terminal Capacity: 35mm²
- Standards: IEC/EN 61008-1 & IEC/EN 62423
Applications
The WCED WEV4100B-300 Bi-Directional B Type RCCB is ideal for electrical systems where advanced DC fault detection is required. Common applications include EV charging systems, photovoltaic installations, battery storage systems, UPS equipment, frequency converters and industrial distribution boards.
Why Choose WCED?
WCED protection devices are designed for modern electrical installations where conventional Type AC or Type A devices may not provide adequate fault detection. B Type technology ensures enhanced protection against high-frequency AC and smooth DC leakage currents generated by advanced electronic equipment.
