Description

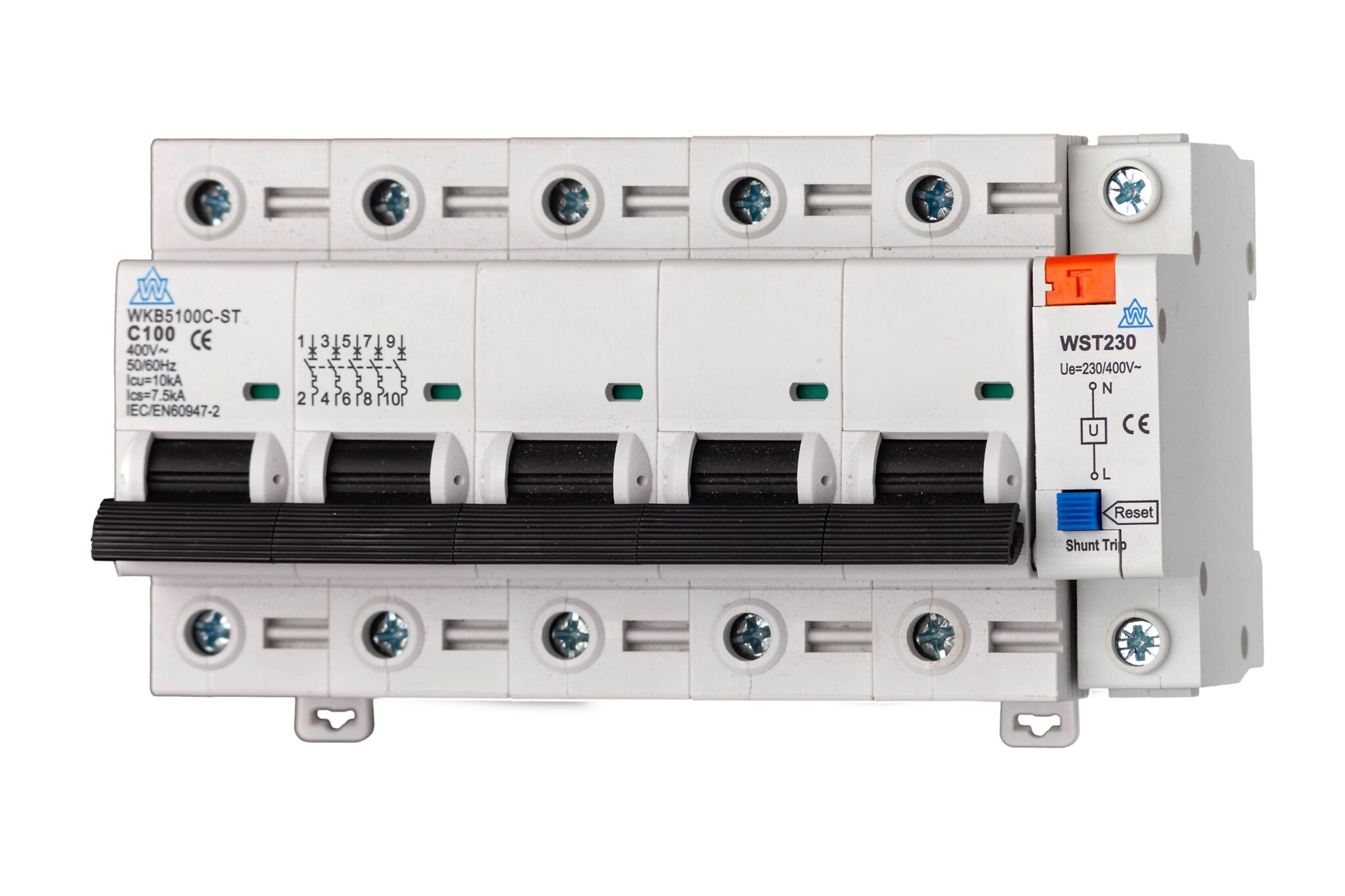

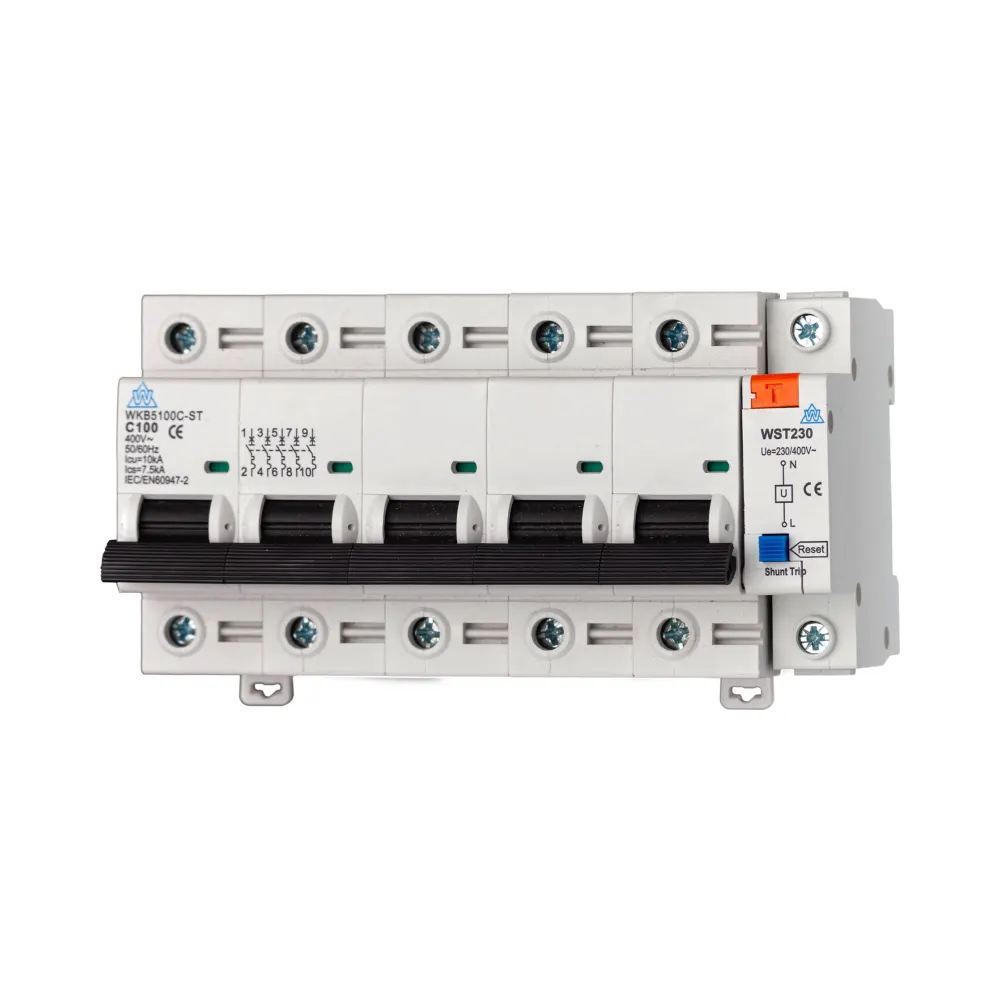

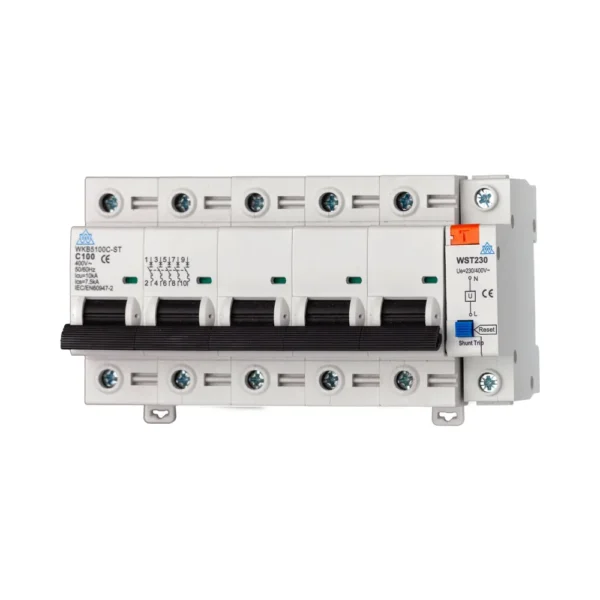

100A C Curve 5 Pole MCB 10kA + 230V Shunt Trip
The Whitecliffe WKB5100C-ST 5 Pole 100A C Curve MCB provides reliable protection against overload and short-circuit faults in commercial and industrial electrical installations. Featuring a 10kA breaking capacity and integrated 230V shunt trip functionality, this high-capacity miniature circuit breaker is suitable for distribution systems, motor circuits and applications requiring remote tripping capability.
Key Features – Whitecliffe WKB5100C-ST 5 Pole 100A C Curve MCB
- 5 Pole 100A C Curve MCB
- Integrated 230V shunt trip
- 10kA rated breaking capacity
- Suitable for overload and short-circuit protection
- Designed for commercial and industrial distribution systems
- Thermo-magnetic release characteristic: 8–12In
- DIN rail mounted installation
- 50Hz rated frequency
- IP20 protection rating
- IEC/EN 60947-2 compliant
Applications – Whitecliffe WKB5100C-ST 5 Pole 100A C Curve MCB
The Whitecliffe WKB5100C-ST is designed for high-load electrical installations requiring dependable circuit protection and remote disconnection functionality. Suitable for industrial switchboards, machinery supplies, commercial distribution systems and motor protection applications.
Technical Specifications – Whitecliffe WKB5100C-ST 5 Pole 100A C Curve MCB
- Rated Current: 100A
- Poles: 5 Pole
- Trip Curve: C Curve
- Rated Voltage: 230/400V
- Breaking Capacity: 10kA
- Insulation Voltage: 500V
- Impulse Withstand Voltage: 4000V
- Frequency: 50Hz
- Protection Rating: IP20
- Mounting: DIN Rail EN60715 (35mm)
- Electrical Life: 1500 operations
- Mechanical Life: 8500 operations
- Ambient Operating Temperature: -5°C to +40°C
Why Buy from Electrical4Less?
Electrical4Less supplies genuine Whitecliffe circuit protection products at competitive trade pricing with fast UK delivery. We stock a wide range of MCBs, RCCBs, RCBOs and distribution equipment for commercial and industrial electrical installations.
For more information about Whitecliffe circuit protection products, visit the official manufacturer website: WCED Whitecliffe.
