Description

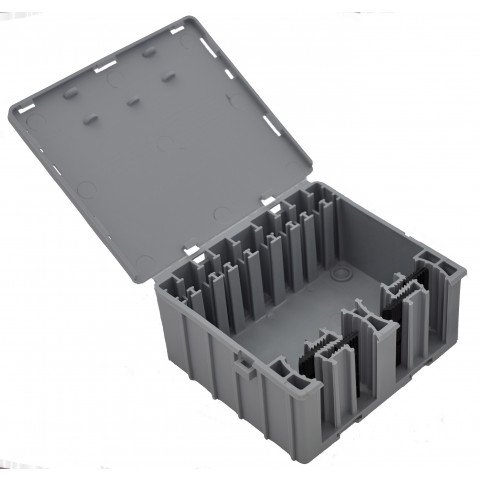

The WAGOBOX XL general purpose electrical enclosure is designed to be used with the WAGO 221 and 2273 series connectors.
The WAGOBOX XL is rated up to 450V and can support 22 conductor sizes from 0.14mm to 4mm .
The maximum permitted number of separately supplied individual circuits is 2.
The maximum number of individual conductor connections is 36, based on the installation of twelve 3-core cables of 1mm2.
The maximum number of 4mm2 connections is 24, based on installation of six 4-core cables.
The cable clamps can grip up to 12 cables with an overall diameter between 3mm and 15mm
Wagobox XL
