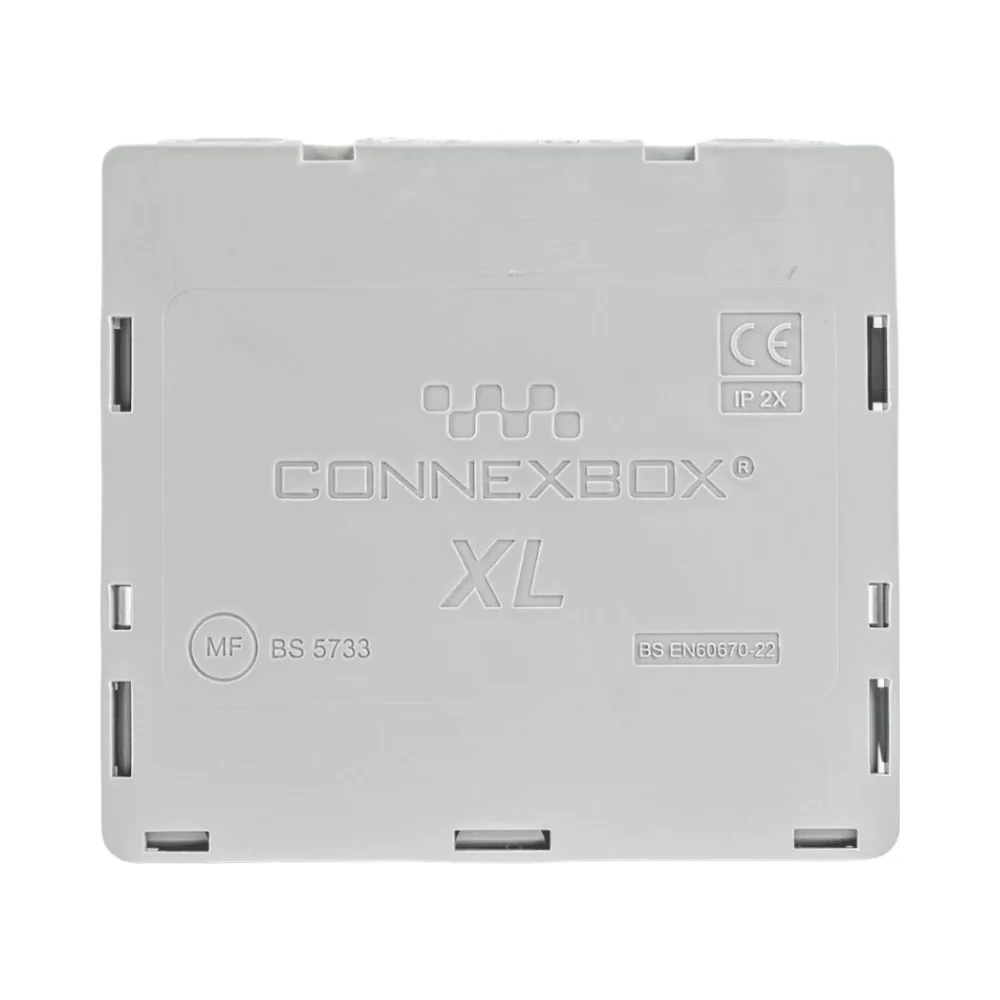

Connexbox XL Junction Box
Large Capacity Maintenance Free Junction Box
The Connexbox XL Junction Box is the largest and most capable enclosure in the Connexbox range, purpose designed for installations that require additional space, clear cable organisation and maximum connection flexibility.
Ideal for both single high-capacity circuits and installations containing two separately supplied circuits, the Connexbox XL provides a spacious internal layout that helps electricians position cables and connectors neatly without unnecessary squeezing or rearranging. This makes complex terminations easier to manage while helping produce a clean and professional installation.
The enclosure is compatible with selected WAGO 221-4, 2273 and 2773 series connectors, allowing a wide variety of conductor arrangements to be accommodated. Reinforced cable entries and strong internal grippers help keep cables securely retained once installed.
When configured as a single circuit installation in accordance with the relevant BS 5733 maintenance-free requirements, the Connexbox XL can provide a maintenance-free connection suitable for locations where future access may be difficult, including lofts and ceiling voids.
The Connexbox XL is now supplied with a mounting button as standard. The included button provides a convenient fixing point for securing the enclosure to a suitable surface, helping installers achieve a neat and secure installation without needing to purchase the mounting component separately.
Key Features – Connexbox XL Junction Box
- Largest enclosure in the Connexbox range
- Designed for complex and high-capacity installations
- Supports up to two separately supplied circuits
- Maintenance-free capability for qualifying single circuit installations
- Compatible with selected WAGO 221-4, 2273 and 2773 series connectors
- Spacious internal layout for clear cable organisation
- Reinforced cable entries with strong internal grippers
- Suitable for lofts, ceiling voids and other installation locations
- Mounting button included
- BS EN 60670-22 compliant

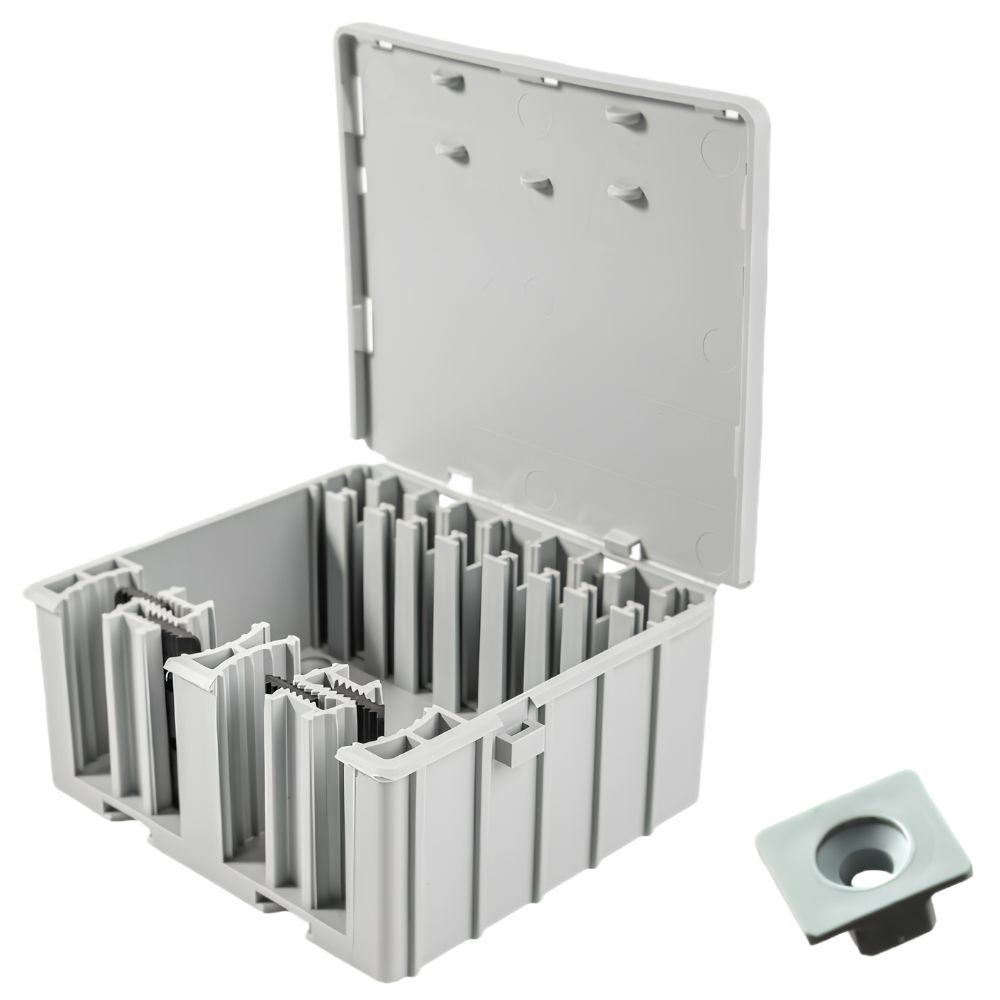

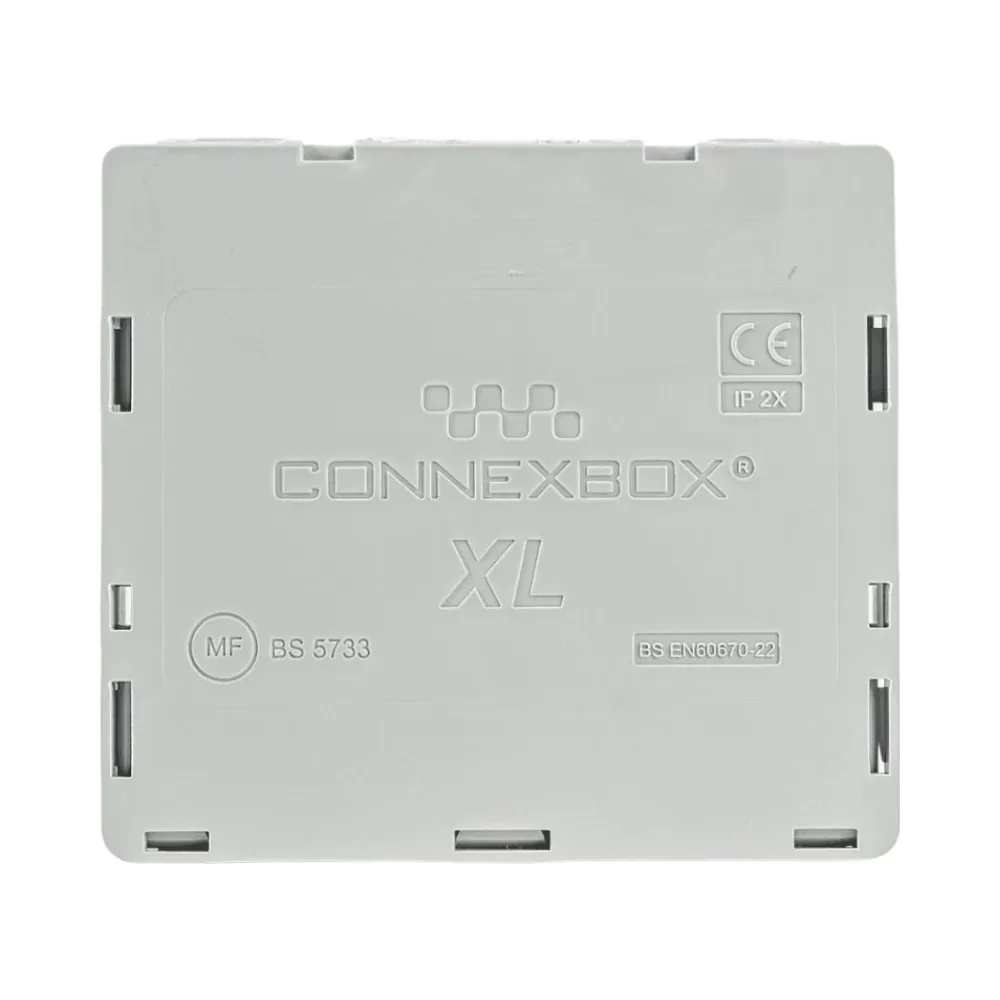

Mounting Button Included
The Connexbox XL is supplied complete with its mounting button. The button provides a practical method of securing the junction box to a suitable mounting surface and eliminates the need to purchase the mounting component separately.
This is particularly useful when positioning a large-capacity junction box inside lofts, accessible service areas and other locations where a secure and organised installation is required.
Maintenance Free Installation
The Connexbox XL can be used for maintenance-free single circuit connections when installed using the approved connector arrangements and in accordance with the relevant BS 5733 maintenance-free installation requirements.
- Maintenance-free when used with appropriate WAGO 222 and 773 connectors
- WAGO 221, 2273 and 2773 connectors can be used for maintenance-free applications with the appropriate adapters
- Required adapters are sold separately
- Installation must follow the applicable BS 5733 maintenance-free instructions
Technical Specifications
Standards and Compliance
- BS EN 60670-22 compliant
- BS 5733 maintenance-free capability when installed in the approved configuration
- Ingress protection: IP2X
Dimensions
- Width: 126mm
- Depth: 115mm
- Height: 55mm
Conductor Sizes
- Conductor capacity: 0.08mm to 6mm
Circuit and Connection Capacity
- Maximum separately supplied circuits: 2
- Maximum individual conductor connections: 36
- 36 connections based on twelve 3-core 1mm cables
- Maximum 6mm connections: 18
- 18 connections based on six 3-core 6mm cables
Compatible WAGO Connectors
- WAGO 221-4 series
- WAGO 2273 series
- WAGO 2773 series
- WAGO 222 and 773 series for applicable maintenance-free configurations
Browse our WAGO connectors range for compatible electrical connection products.
Voltage Rating
- Up to 450V
Supplied With
- Connexbox XL junction box
- Connexbox mounting button

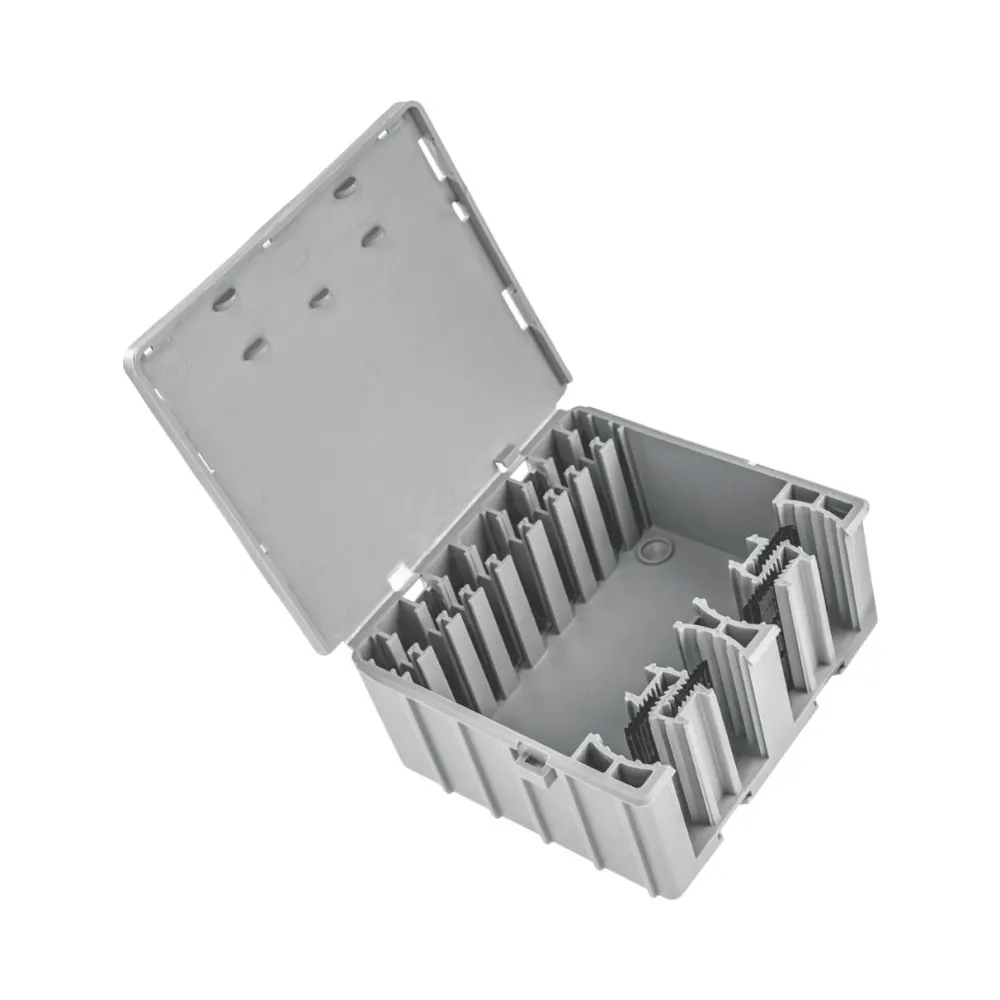

Extra Capacity for Complex Connections
The additional internal space of the Connexbox XL makes it particularly useful where multiple cables, larger conductors or more complex connection arrangements need to be housed within a single enclosure. Its layout gives installers more room to arrange conductors clearly while maintaining secure cable retention.
For larger wiring arrangements where a standard junction box can become crowded, the Connexbox XL provides the additional capacity needed for a cleaner and easier-to-manage installation.
About Connexbox
Connexbox has been designing and manufacturing trusted junction box solutions for the UK electrical trade for over 17 years. Supplying products under its own name allows Connexbox to focus on innovation, responsive technical support and long-term product development while maintaining the proven enclosure designs electricians rely on.
