Description

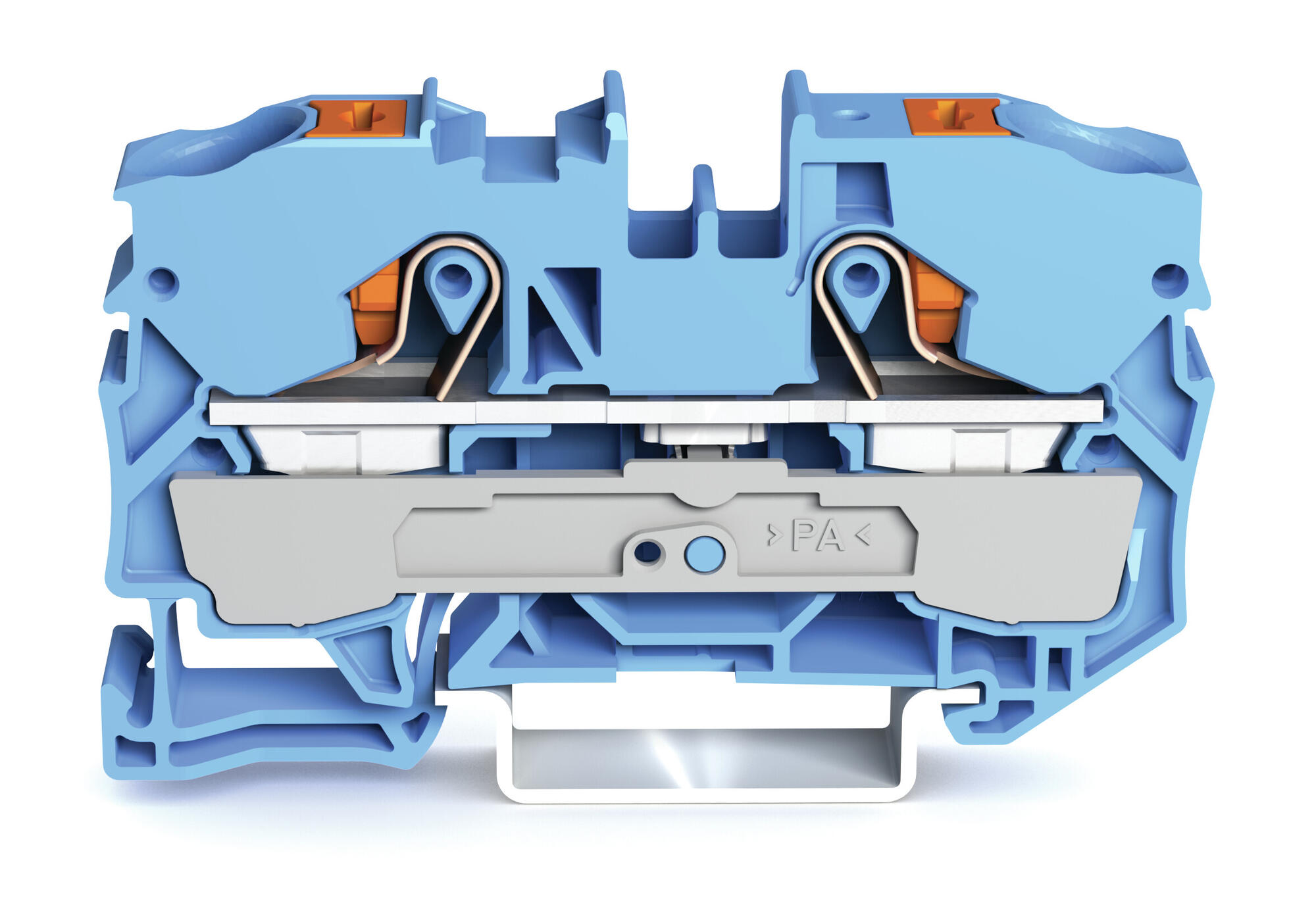

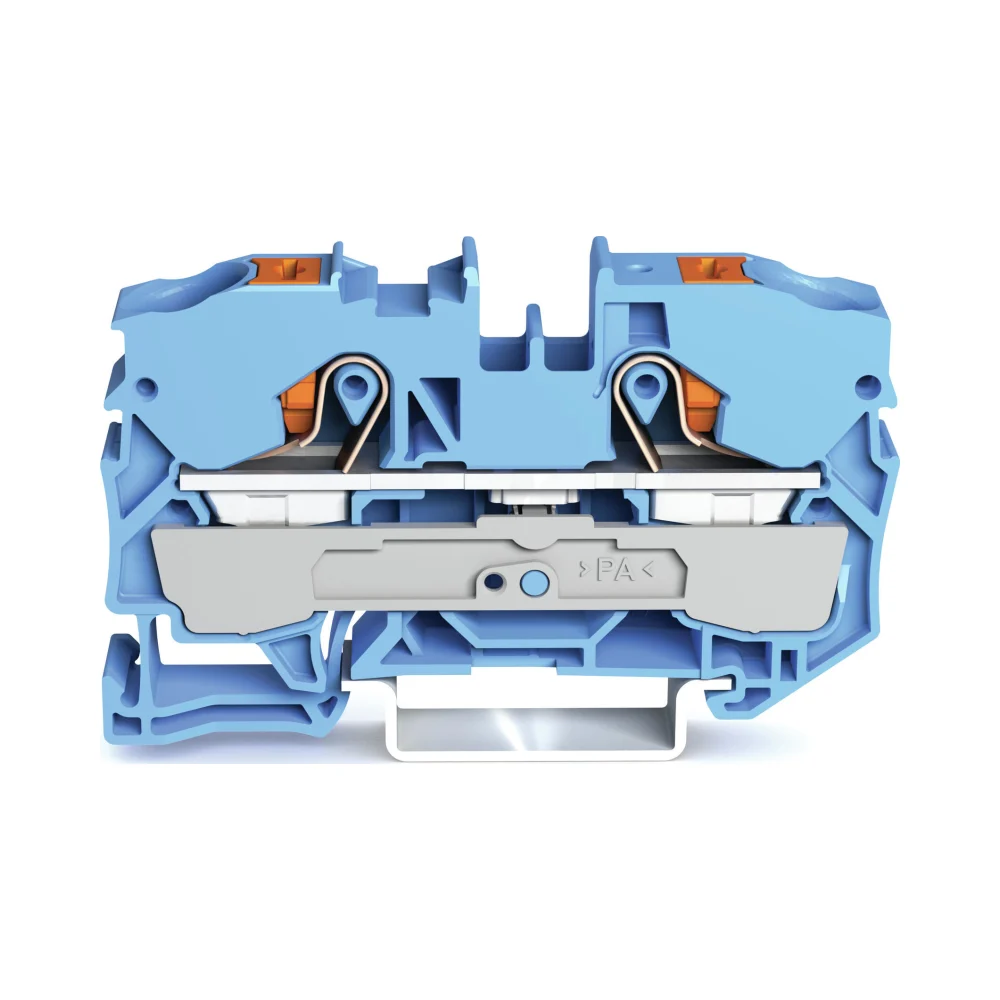

2-Conductor Through Terminal Block with Push-Button and Push-In Cage Clamp
Wago 2210-1204
The WAGO 2210-1204 2-Conductor Through Terminal Block combines secure, tool-free wiring with high-performance electrical capabilities. Featuring Push-in CAGE CLAMP® technology and a push-button actuation, this terminal block ensures easy installation, allowing you to create reliable connections quickly. Rated for 800V and 57A, it is ideal for industrial, commercial, and high-demand applications.
The terminal block supports 10 mm² copper conductors, and its compact design with DIN-35 rail mounting offers efficient use of space in control panels and electrical distribution systems.
Key Features
- Push-Button Actuation: Simplifies wiring and disconnection without tools, ensuring quick and easy installation and maintenance.
- Push-in CAGE CLAMP® Technology: Enables fast, tool-free wiring for both solid and fine-stranded copper conductors, ensuring reliable connections.
- High Voltage and Current Capacity: Rated for 800V and 57A, it is perfect for demanding electrical systems.
- DIN-Rail Mounting: Easily attaches to DIN-35 rails, making it compatible with standard control panel setups.
- Front-Entry Wiring: Allows for convenient access in tight installation spaces, improving wiring efficiency.
Electrical Specifications
- Nominal Voltage: 800 V
- Rated Impulse Voltage: 8 kV
- Rated Current: 57 A
- Max Current at Conductor Cross-Section: 76 A
Connection Data
- Connection Points: 2
- Total Number of Potentials: 1
- Number of Levels: 1
- Number of Jumper Slots: 2
- Nominal Cross-Section: 10 mm²
- Connectable Conductor Materials: Copper
- Solid Conductor: 0.5 to 16 mm² (20 to 6 AWG)
- Fine-Stranded Conductor: 0.5 to 16 mm² (20 to 6 AWG)
- Strip Length: 17 to 19 mm

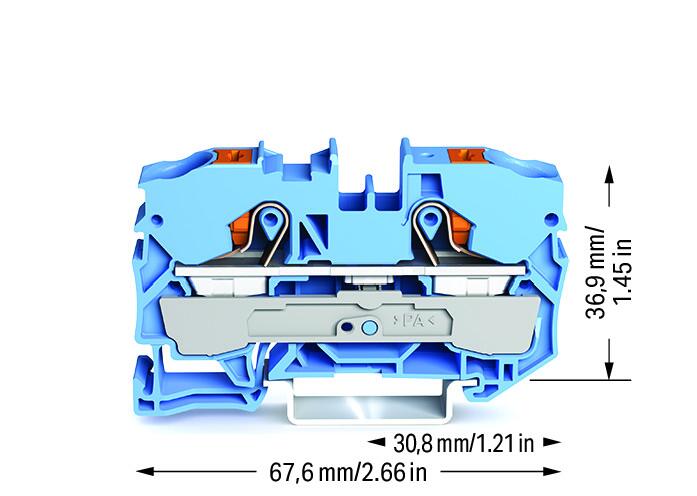

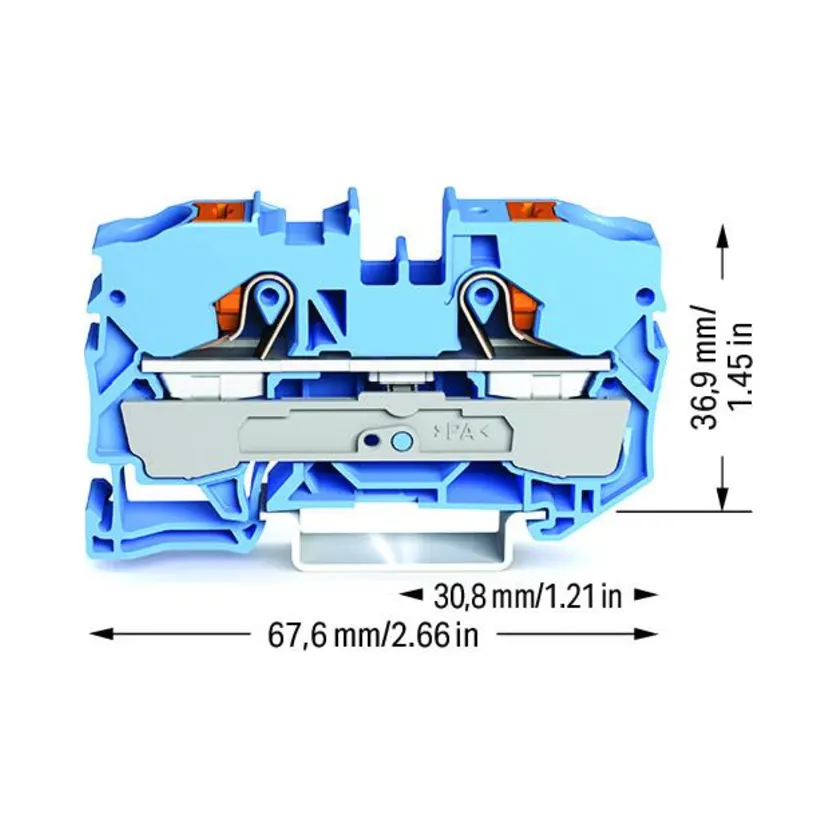

Physical Data
- Width: 10 mm
- Height: 67.6 mm
- Depth from Upper-Edge of DIN-Rail: 36.9 mm
Applications
The WAGO 2210-1204 2-Conductor Through Terminal Block is ideal for use in industrial control panels, automation systems, and high-power electrical distribution boards. Its push-button operation and Push-in CAGE CLAMP® technology make it an excellent choice for secure, tool-free wiring in high-demand environments.
Purchase from Electrical4Less
As an authorised WAGO distributor, Electrical4Less offers the WAGO 2210-1204 Terminal Block along with a comprehensive range of WAGO products. Contact us to inquire about project discounts and bulk order options.
FAQs – WAGO 2210-1204 2-Conductor Through Terminal Block
1. How does the push-button actuation improve installation?
The push-button feature allows for fast and secure wiring, enabling tool-free installation and disconnection with minimal effort.
2. What is Push-in CAGE CLAMP® technology?
Push-in CAGE CLAMP® provides tool-free connections, securing both solid and fine-stranded conductors for reliable electrical performance.
3. Is this terminal block compatible with DIN-rails?
Yes, the WAGO 2210-1204 is designed to mount on DIN-35 rails, making it suitable for most control panel and electrical system setups.
4. What types of conductors can this terminal block support?
The terminal block supports solid and fine-stranded copper conductors with a cross-section range of 0.5 mm² to 16 mm².
5. Can I get bulk discounts for larger orders?
Yes, Electrical4Less offers project-specific discounts for bulk purchases. Contact us to receive a customised quote for your project needs.
About WAGO
WAGO is a leading global provider of electrical interconnection solutions, known for their innovative CAGE CLAMP® technology. WAGO products are widely trusted for durability, reliability, and ease of use in industrial and commercial applications.
