Efficient Blue DIN-15 Rail Mount
221-539/000-006 – WAGO 221-Series Mounting Carrier with Strain Relief

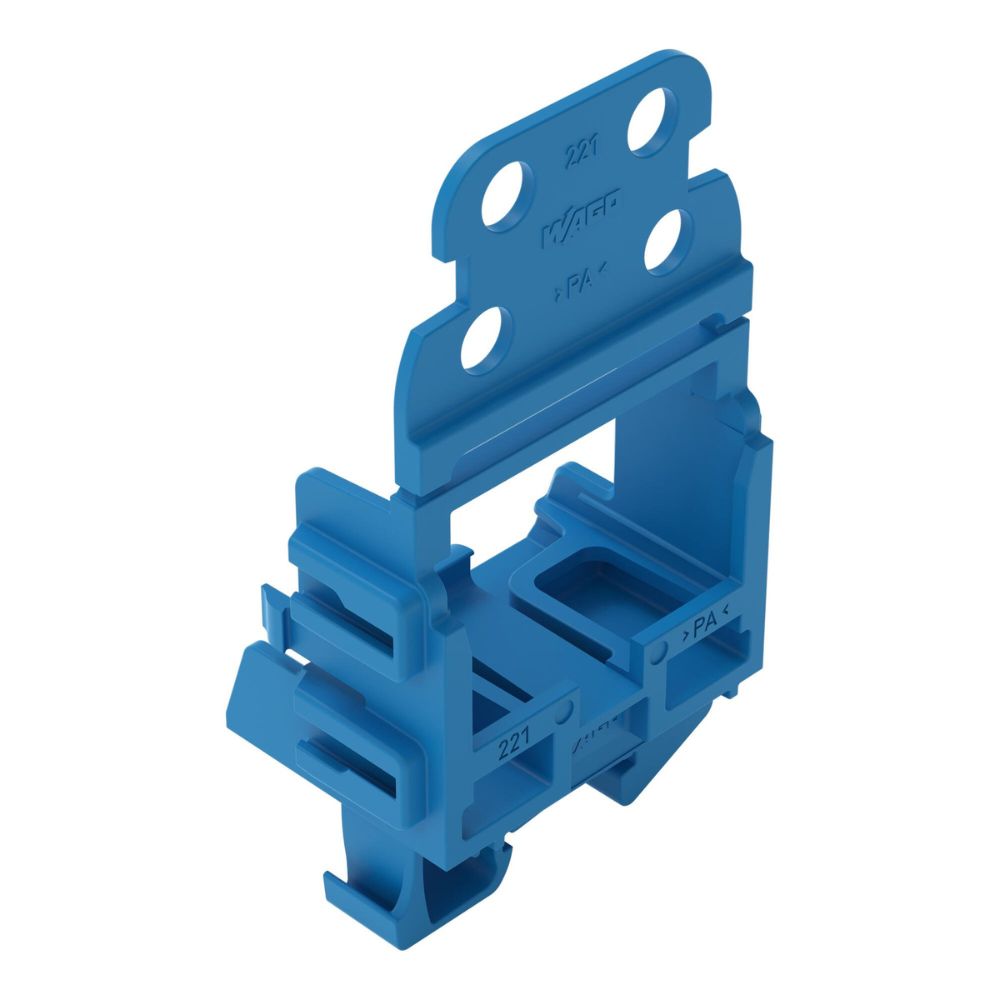

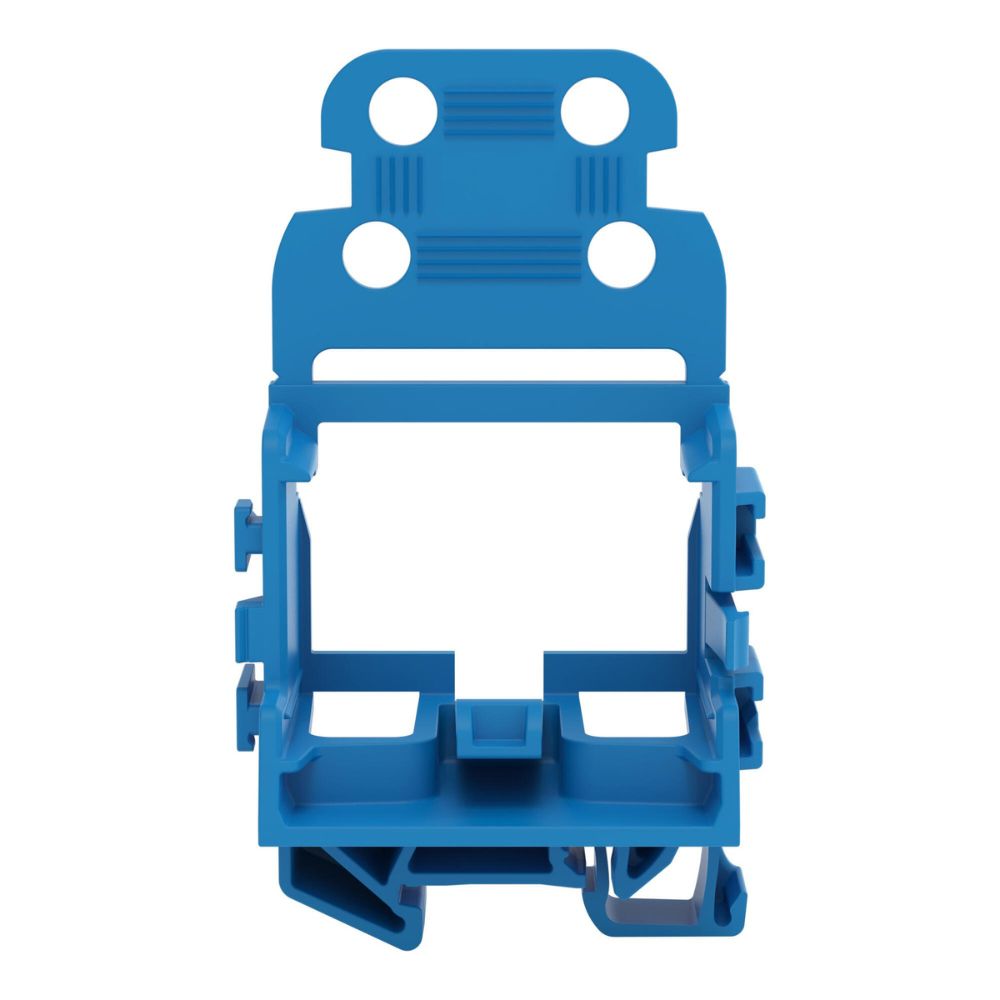

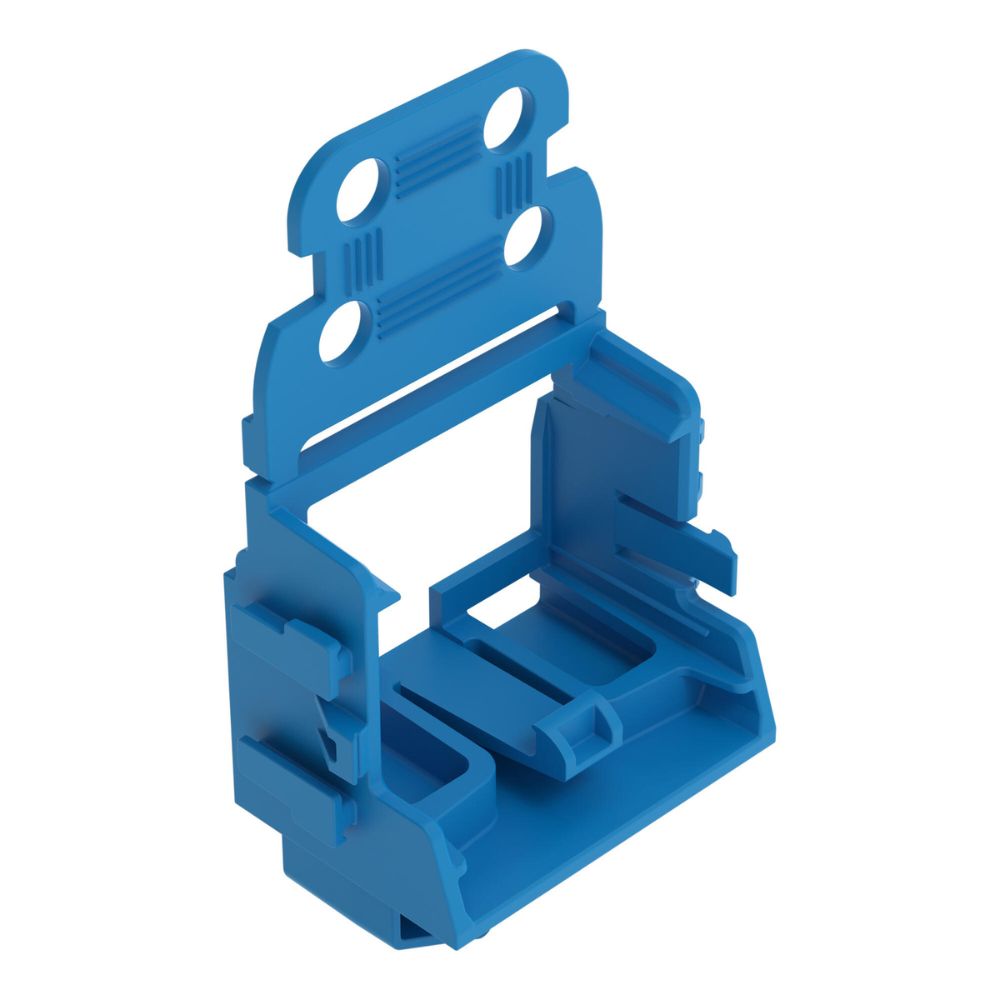

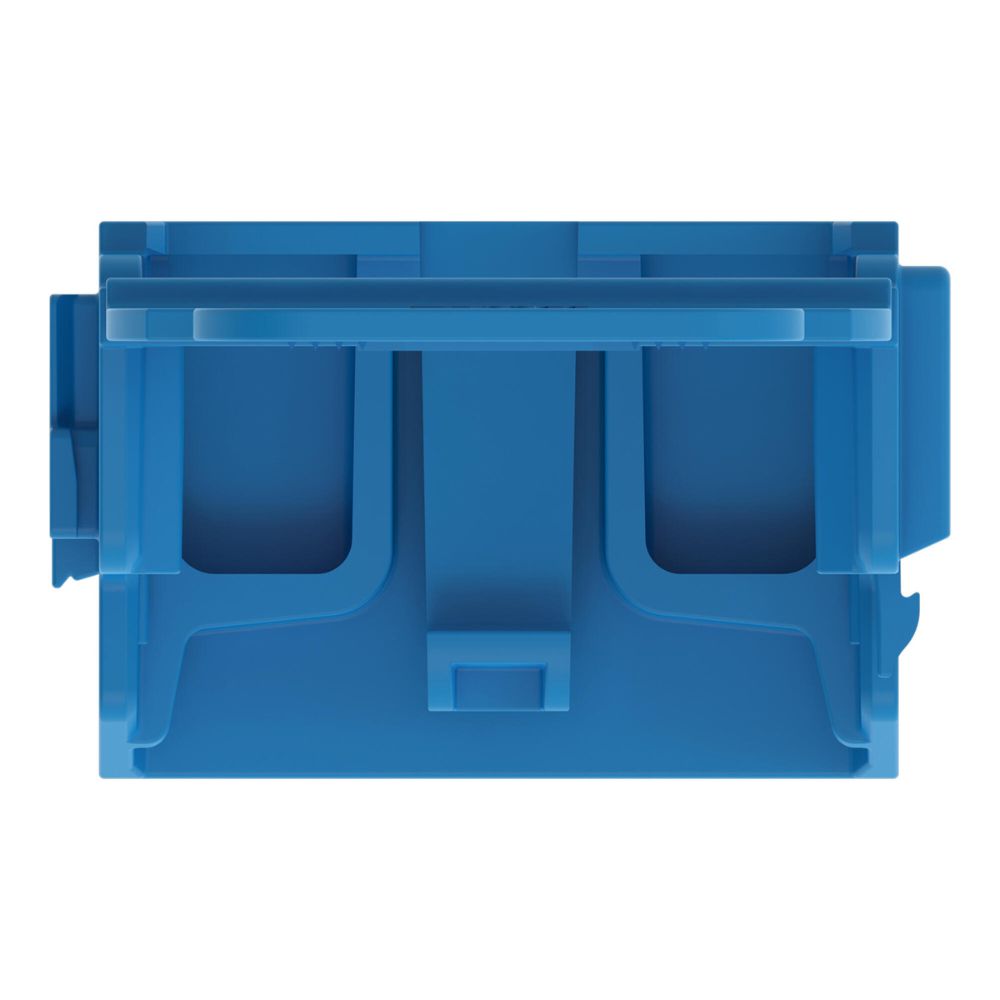

The WAGO 221-539/000-006 mounting carrier makes it easy to secure up to ten 4 mm² WAGO 221 connectors. It clips directly onto a DIN-15 rail without tools, so installation is quick. In addition, the built-in strain relief keeps cables firmly in place for a safe and tidy setup.
Use it in wiring harnesses, control cabinets, and high-density electrical layouts. Thanks to its compact size and reliable design, it helps you save space while keeping your work neat and organised.
✨ Key Features – WAGO 221-539/000-006 Mounting Carrier
- Holds 10 connectors (4 mm² each) in line
- Blue polyamide (PA66) housing with UL94 V-0 rating
- Snap-on mount for DIN-15 rail — quick and tool-free installation
- Integrated strain relief (via cable tie) ensures secure wiring
- Compact dimensions optimize layout efficiency
Technical Overview – WAGO 221-539/000-006
- Item number: 221-539/000-006
- Connector capacity: 10 × 4 mm² (WAGO 221-Series inline connectors)
- Width: 38.3 mm
- Height: 23.7 mm
- Depth from top of DIN-rail: 59.9 mm; total depth: 64.8 mm
- Material: Polyamide (PA66), UL94 V-0
- Weight: 7.4 g
- Mounting method: Snap-on DIN-15 rail with cable-tie strain relief
- Pack quantity: 10 pieces per box
- Compliance: RoHS
✅ Why Choose This Product?
If you’re organizing multiple WAGO 221 splicing connectors on standard DIN-15 rails, the 221-539/000-006 offers streamlined mounting with built-in strain relief, compact footprint, and tool-free installation—especially useful for high-density panel wiring.
About WAGO 221-Series Accessories
WAGO’s 221-Series accessories, including this 10-way carrier, are designed to complement lever-operated splicing connectors for fast, secure, and professional wiring. Accessories like mounting carriers ensure tidy layouts as well as reliable connections tailored for industrial and electrical installations.
️ Compliance & Documentation
The WAGO 221-539/000-006 meets strict safety and quality standards. Its flame-retardant PA66 body and RoHS compliance ensure both safe use and environmental responsibility. Full technical data and instructions are available from WAGO.
