Description

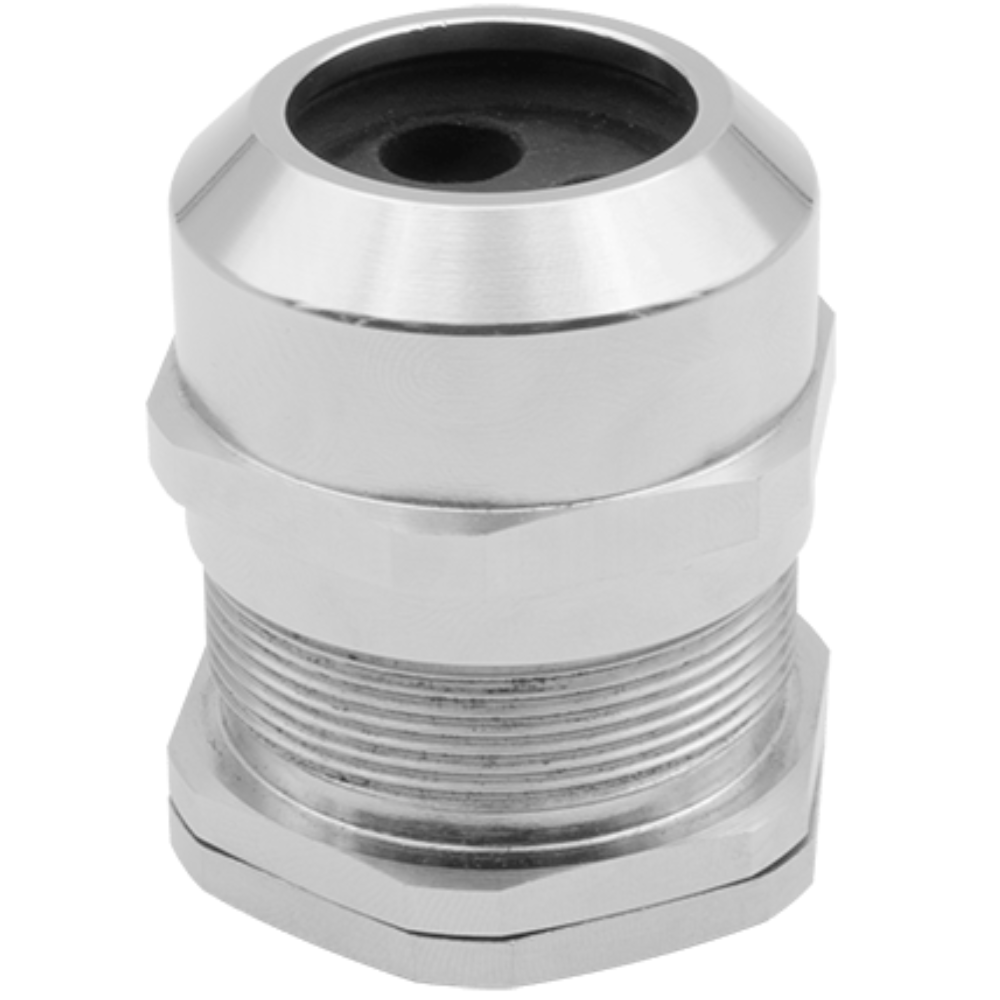

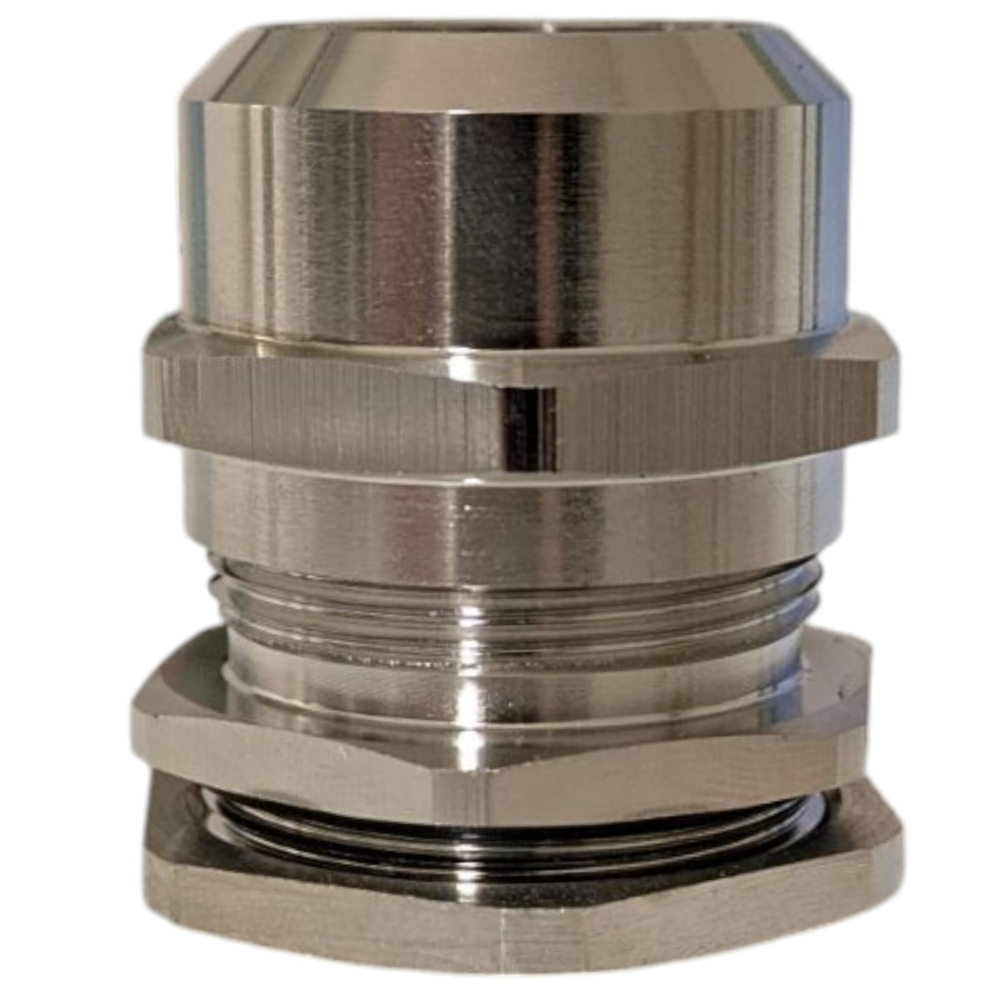

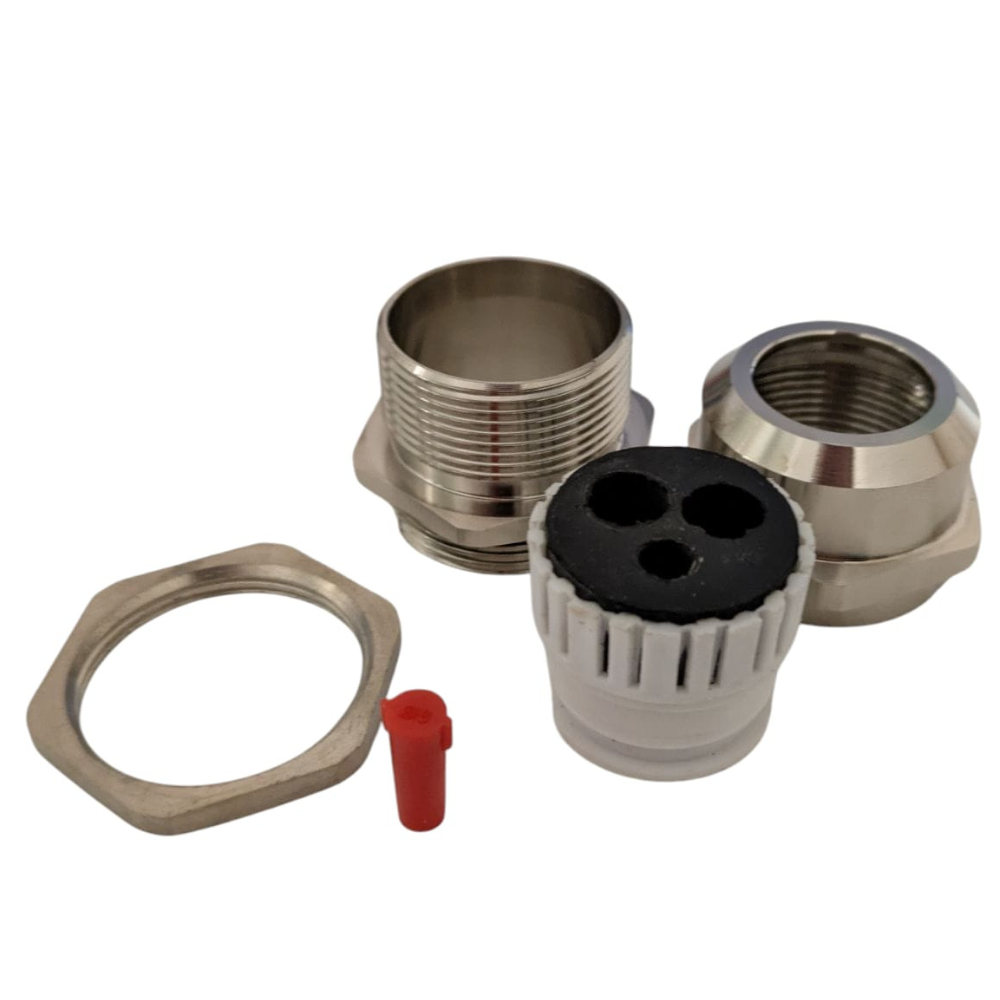

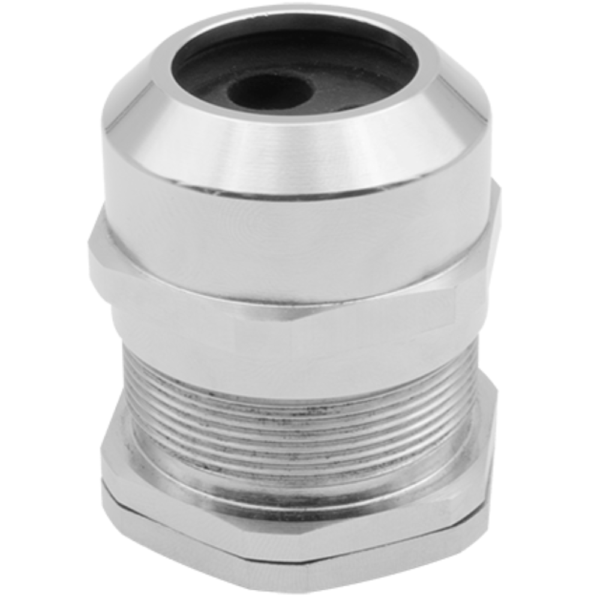

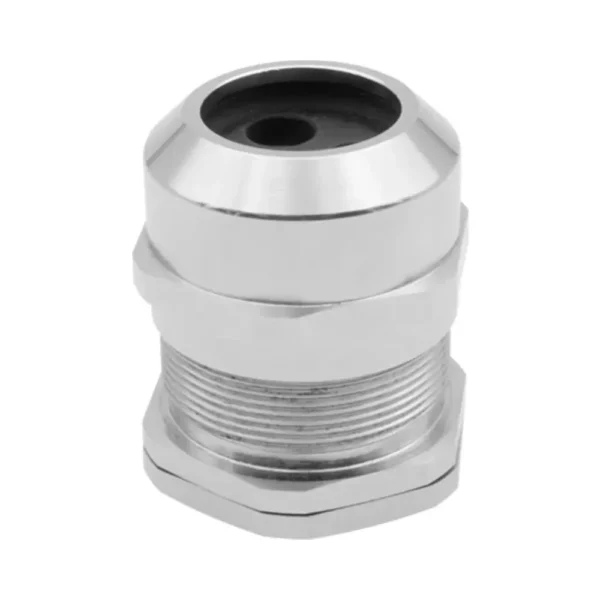

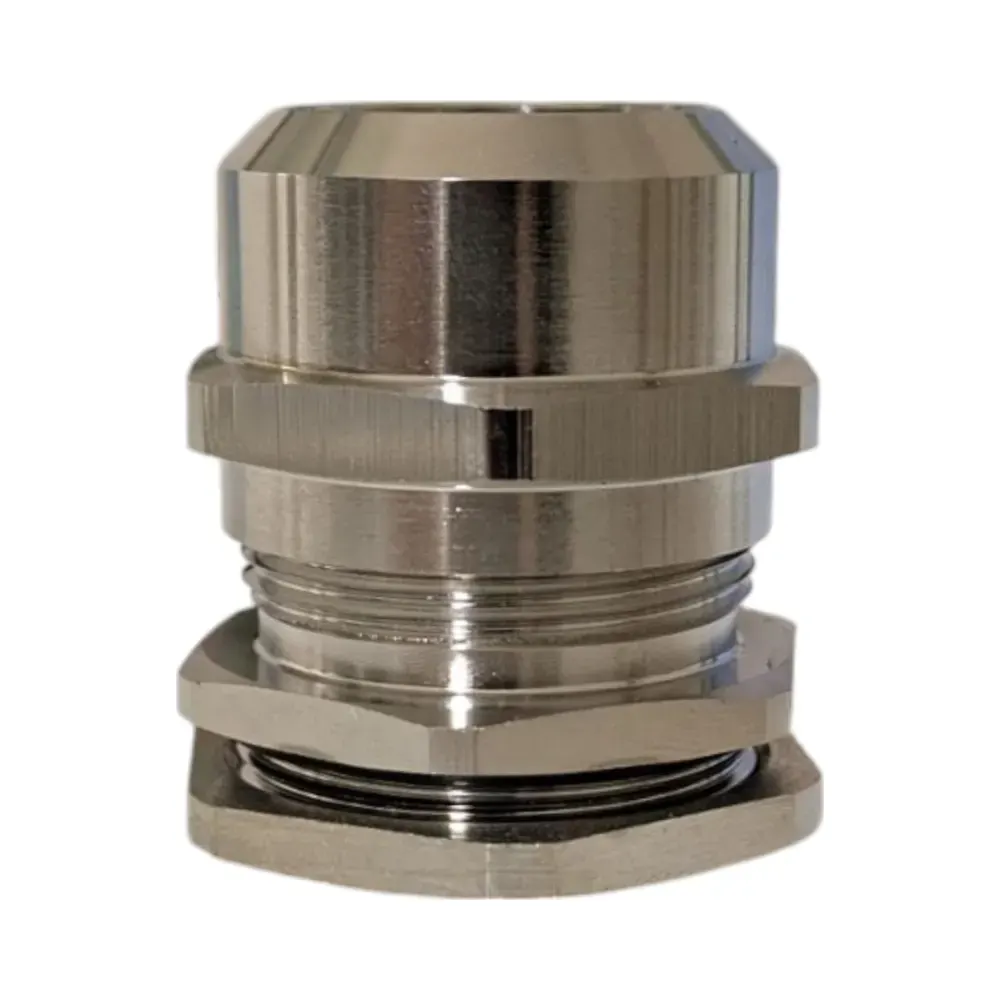

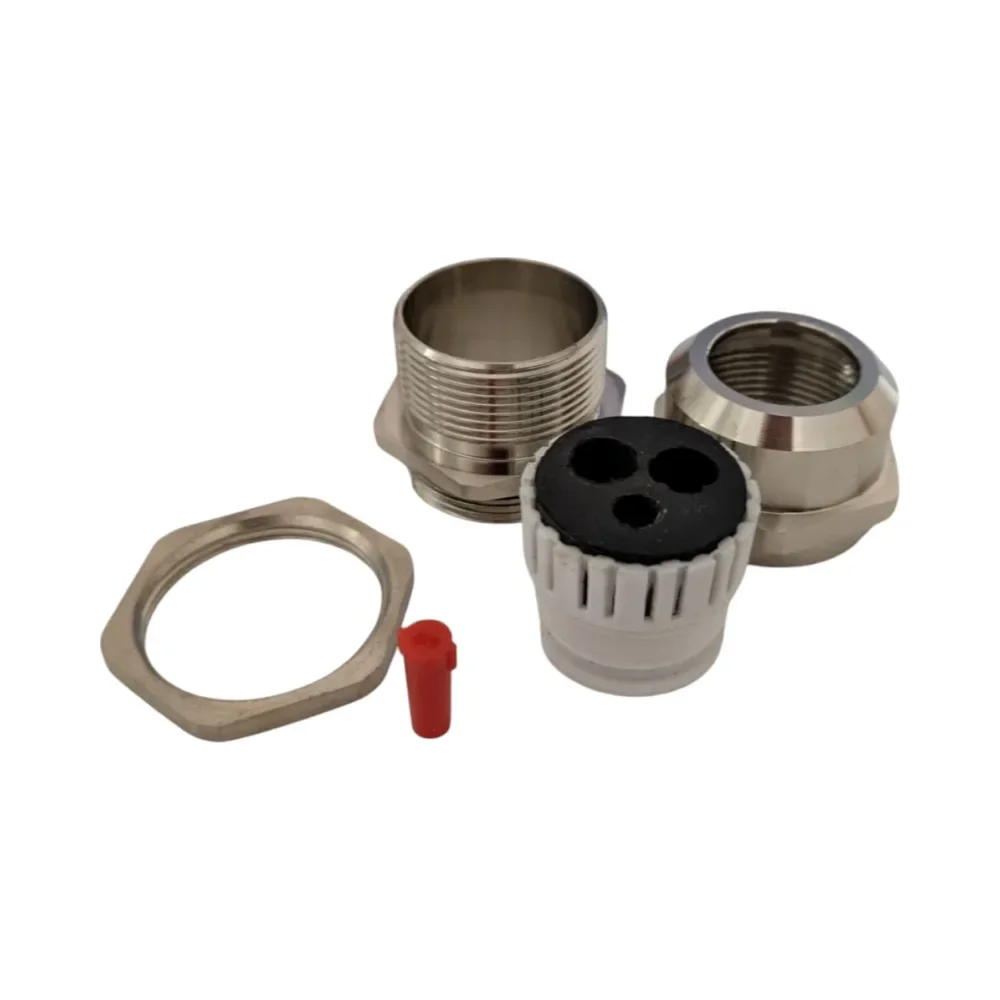

32mm Brass Meter Tail Gland with Plug – Nickel Plated
Unicrimp QBG32TP
Durable and Secure Cable Gland for Meter Tail Installations
The Unicrimp QBG32TP 32mm Brass Meter Tail Gland with Plug is designed for secure and professional cable terminations in electrical meter installations. Manufactured from high-quality nickel-plated brass, this gland provides exceptional durability, corrosion resistance, and a secure grip on meter tails, ensuring long-lasting performance in demanding environments.
With an IP68 ingress protection rating, it effectively prevents dust and moisture ingress, making it ideal for both indoor and outdoor installations. The gland is suitable for 16mm² line & neutral cables and 10mm² CPC, with an included blanking plug for installations where no CPC is required.
Key Features
- Size: 32mm gland with threaded diameter of 32mm
- Material: High-quality nickel-plated brass for corrosion resistance
- Ingress Protection: IP68 for superior dust and moisture protection
- Suitable Cable Sizes:
- Line & Neutral: 16mm²
- CPC: 10mm² (Plug provided if no CPC is used)
- Threaded Entry Length: 8mm
- Spanner Size: 36mm
- Impact Category: 4 – designed for high-impact environments
- Recommended Cap Tightening Torque Range: 18Nm
- Operational Temperature Range: -20°C to +100°C
Applications
- Electrical meter tails and consumer unit installations
- Commercial and industrial electrical enclosures
- Secure termination of large-diameter cables
- Environments requiring high ingress protection (IP68)
Why Choose This Product?
The Unicrimp QBG32TP Meter Tail Gland provides a secure, professional, and long-lasting solution for terminating meter tails. With its high-quality brass construction, IP68 rating, and included plug, this gland ensures maximum protection and performance in all electrical installations.
Standards & Compliance
- ANSI/UL 514B
- BS EN 60529: 1992 + A2: 2013
