Description
EV Consumer Unit IP2X with Type A RCBO & Type 2 SPD
Timeguard TX1928EV EV Consumer Unit

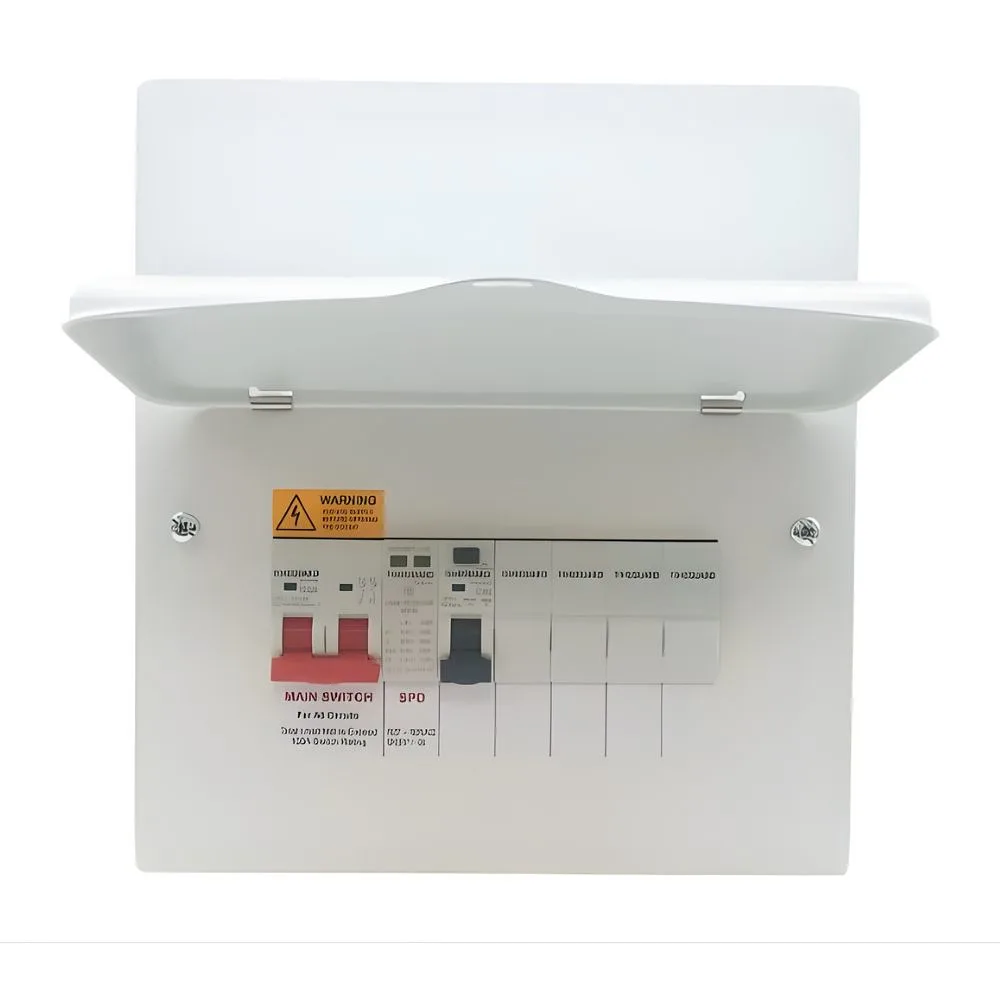

The Timeguard TX1928EV EV Consumer Unit is a populated consumer unit designed specifically for electric vehicle charging circuits in domestic installations. It forms part of Timeguard’s EV circuit protection range and is suitable for new-build properties and upgrades where a dedicated EV supply is required. The unit is supplied factory assembled with a 100A double-pole main switch, a single-module Type 2 surge protection device (SPD) and a 40A 30mA Type A RCBO with C curve, supporting compliance with current wiring regulations and EV charger manufacturer requirements.
This EV consumer unit is configured to provide a dedicated protected circuit for EV charging, with the pre-fitted 40A Type A RCBO C curve offering combined overload, short-circuit and residual current protection. The use of a Type A RCBO makes the unit suitable for EV chargers that incorporate DC fault detection, in line with current installation guidance.

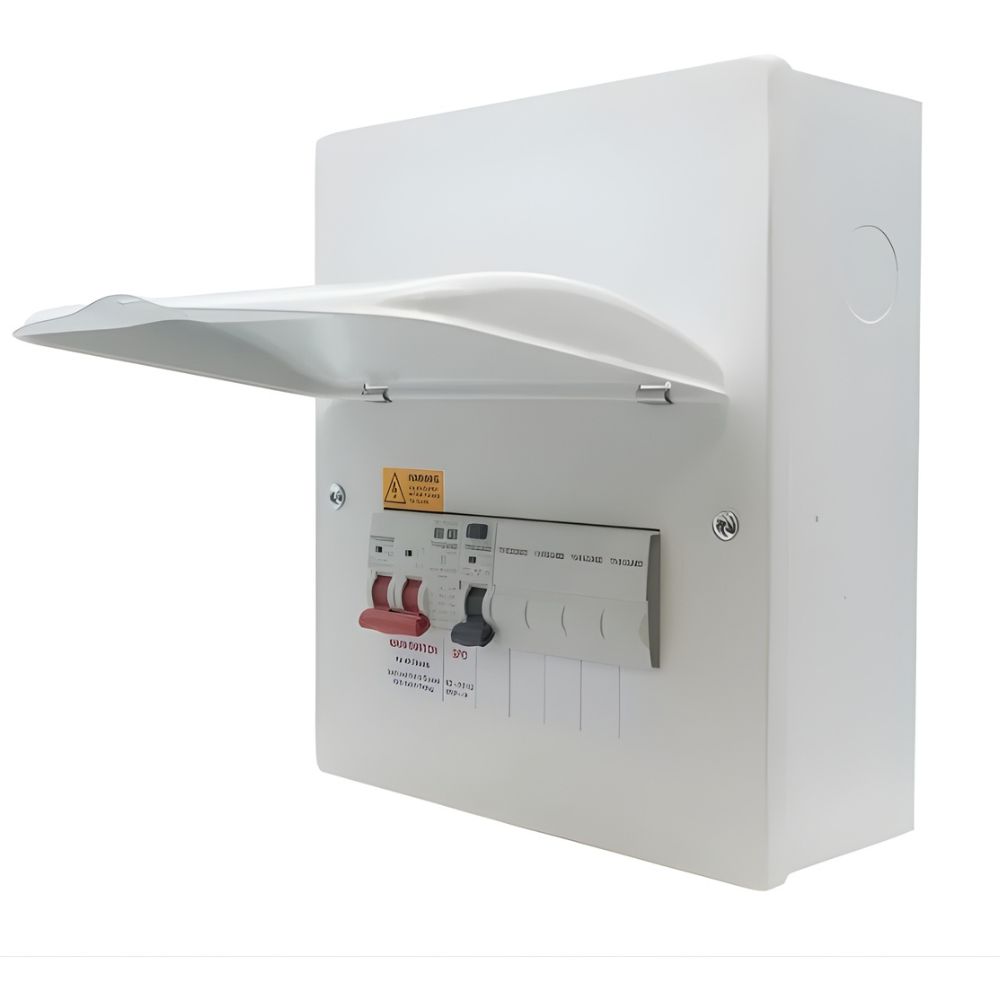

The 100A main switch is positioned on the left-hand side of the enclosure, following Timeguard’s standard layout and providing a familiar wiring orientation for installers.

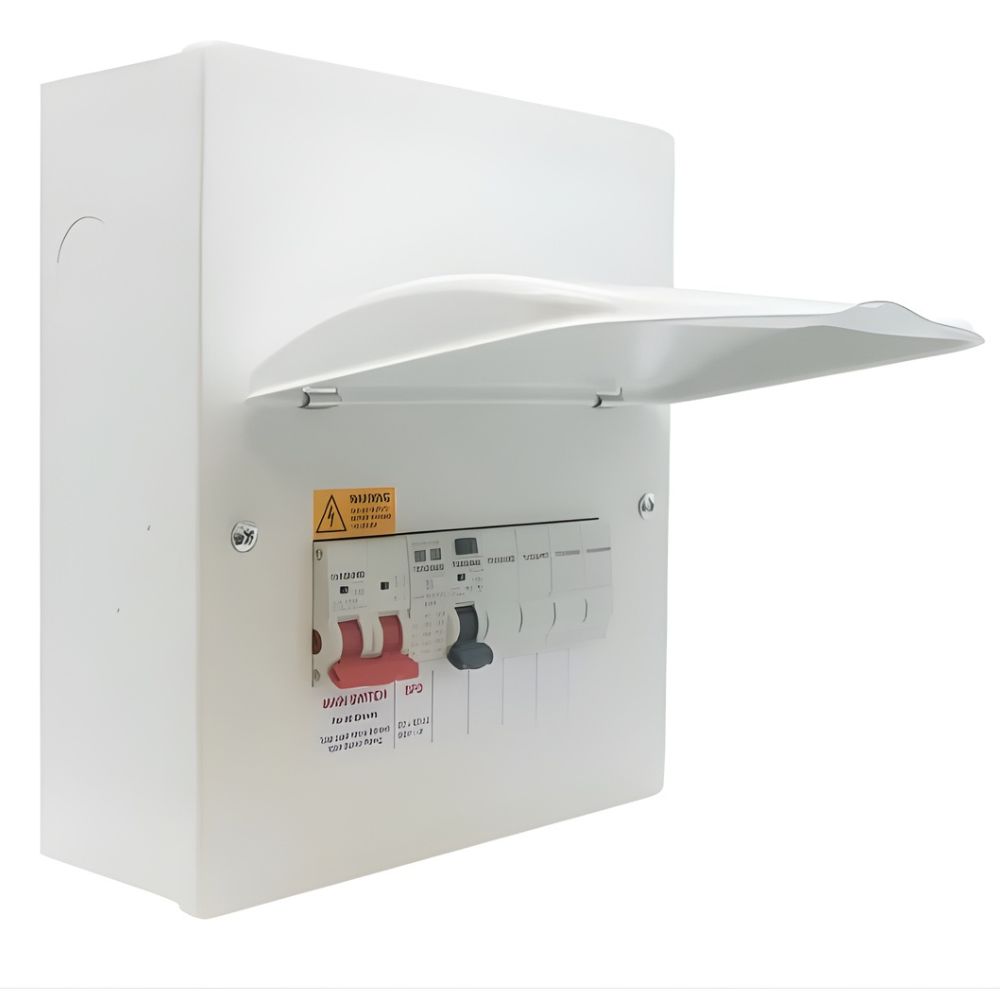

Housed in a robust surface-mounted steel enclosure with a curved, lockable visor, the unit features large rectangular rear cable entries supplied with grommets, along with conduit entry points on the top, bottom and sides. A raised removable DIN rail allows cables to pass underneath, while the floating busbar with pre-fitted cover improves installation flexibility and safety. The enclosure is compliant with BS 7671:2018+A3:2024 wiring regulations and is rated IP2X for indoor use.
Key Features – Timeguard TX1928EV EV Consumer Unit
- EV consumer unit for dedicated charging circuits
- IP2X rated for indoor installations
- Pre-fitted 100A double-pole main switch
- Pre-fitted single-module Type 2 SPD
- Pre-fitted 40A 30mA Type A RCBO, C curve
- Steel enclosure, surface mounted
- Curved, lockable visor (locking kit available separately)

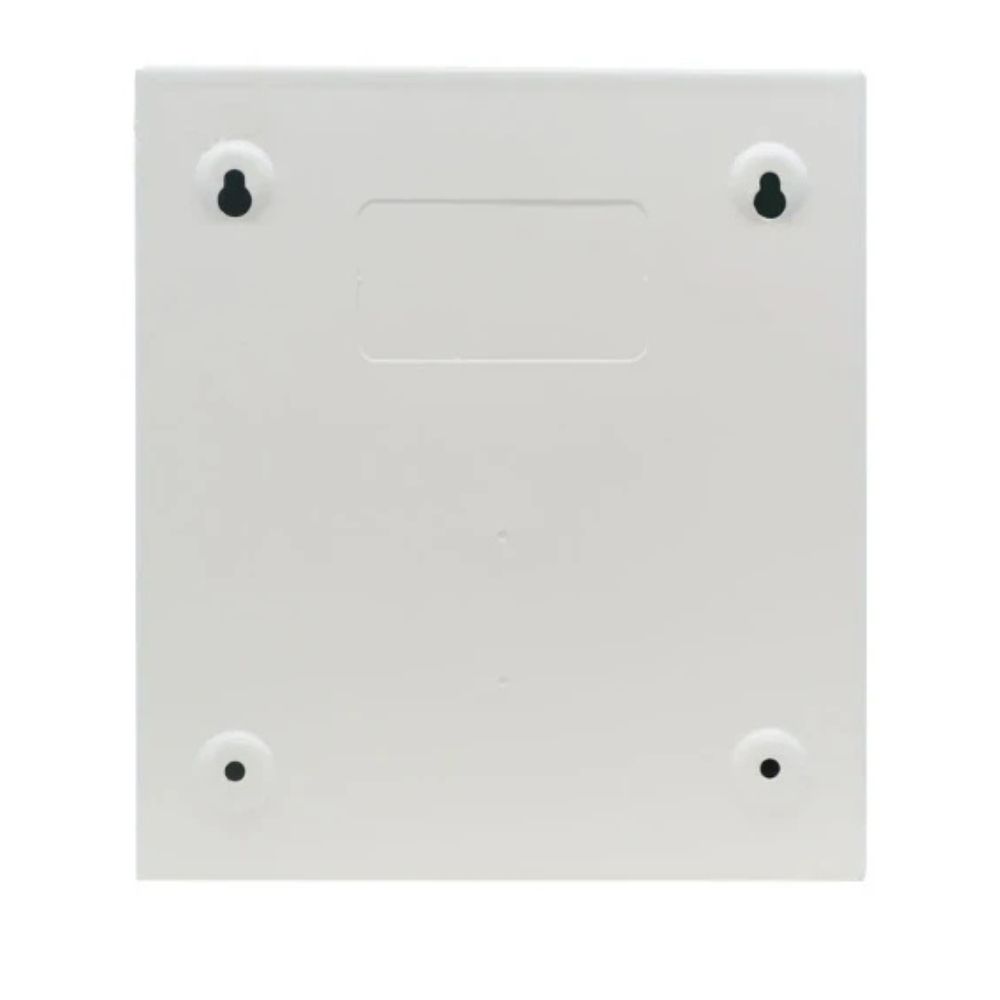

- Large rear cable entries with supplied grommets

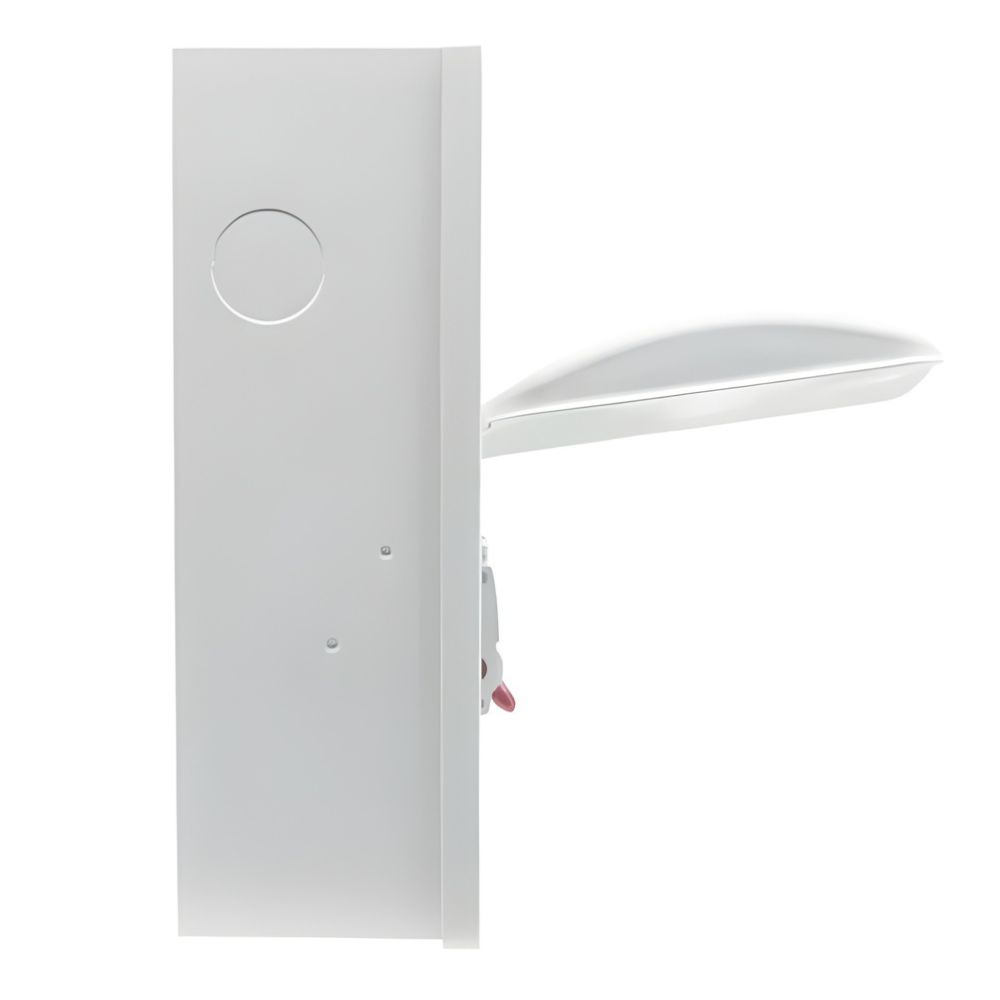

- Conduit entry points on top, bottom and sides
- Raised and removable DIN rail for improved cable routing
- Floating busbar with pre-fitted cover
- Supplied with circuit identification label shee
- 10-year enclosure guarantee
Technical Specification – Timeguard TX1928EV EV Consumer Unit
- Brand: Timeguard
- Product Code: TX1928EV
- Configuration: EV populated consumer unit
- Enclosure Rating: IP2X
- Number of Modules: 8
- Main Switch Rating: 100A DP
- Main Switch Position: Left-hand side
- SPD: Type 2 (single module, factory fitted)
- RCBO: 40A 30mA Type A, C curve (factory fitted)
- Rated Voltage: 240V AC
- Maximum Current: 100A
- Cable Terminal Capacity (E & N bars): 25mm² max
- Number of Neutral Bars: 1
- Mounting: Surface mounted
- Enclosure Material: Steel
- Standard: BS EN 61439-3
- Wiring Regulations: BS 7671:2018+A3:2024
Dimensions (H × W × D) – Timeguard TX1928EV EV Consumer Unit
- Back box: 259 × 232 × 87 mm
- Cover: 136 × 223 × 22 mm
About Timeguard
Timeguard is a UK manufacturer of electrical control, timing and circuit protection products, supplying reliable solutions for residential and commercial installations. Timeguard consumer units are designed to meet current UK wiring regulations, with a focus on installer safety, durability and ease of installation.
