Description
7 Way Main Consumer Unit with Type 2 SPD
Timeguard TX1110 7 Way SPD Consumer Unit
The Timeguard TX1110 7 Way SPD Consumer Unit forms part of Timeguard’s latest circuit protection range and provides a robust, installer-friendly solution for modern electrical installations. It is supplied factory assembled with a 100A double-pole main switch and a Type 2 surge protection device (SPD), supporting compliance with current wiring regulations and installation best practice.
This consumer unit provides 7 usable ways, calculated after allowing for the main switch and SPD, and is designed for RCBO or AFDD/RCBO protection on each outgoing circuit. This configuration allows each circuit to be protected individually, helping to reduce nuisance tripping, improve fault discrimination and simplify fault finding compared with traditional shared RCD arrangements.
The 100A main switch is positioned on the left-hand side of the enclosure, following Timeguard’s standard layout and providing a familiar wiring orientation for installers.

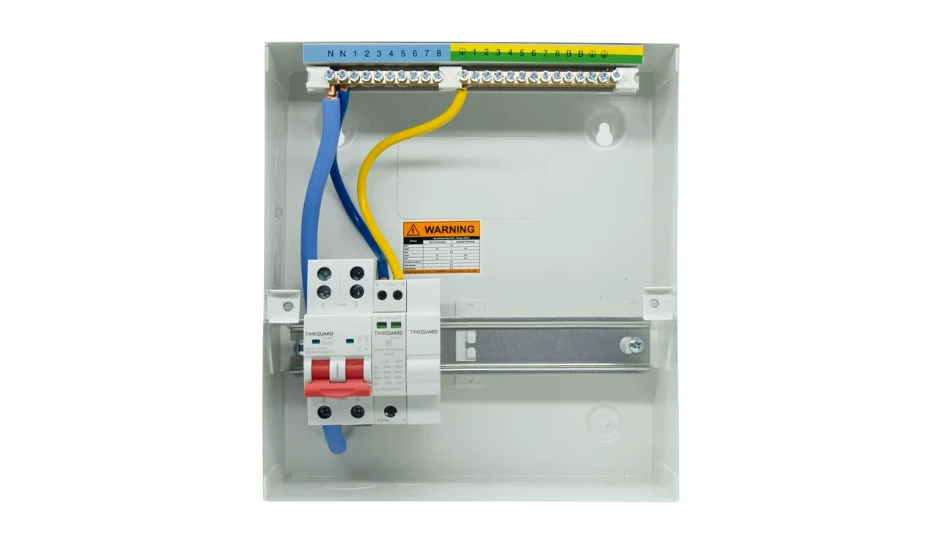

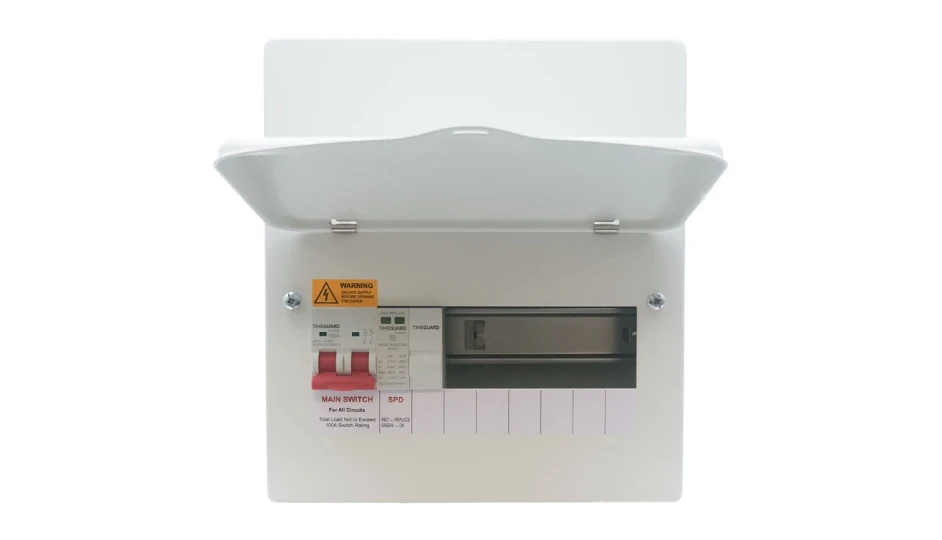

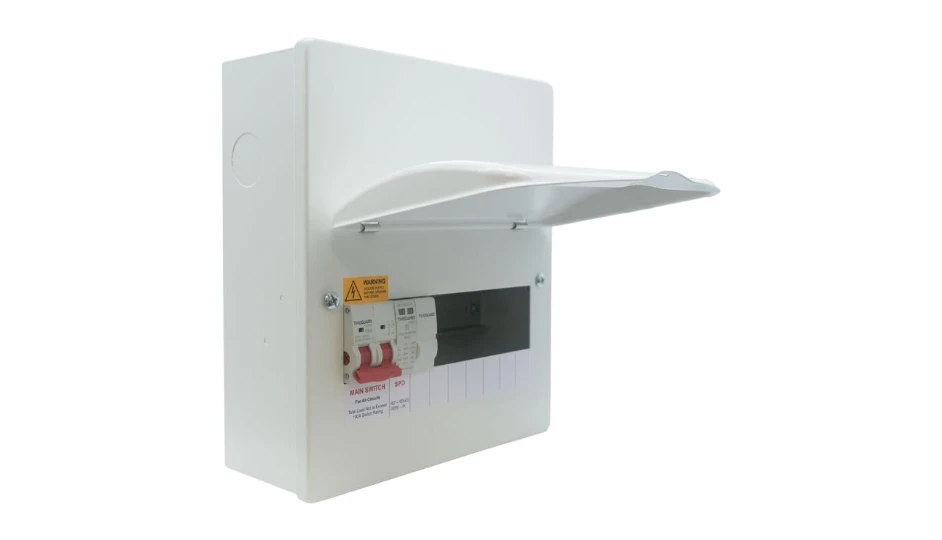

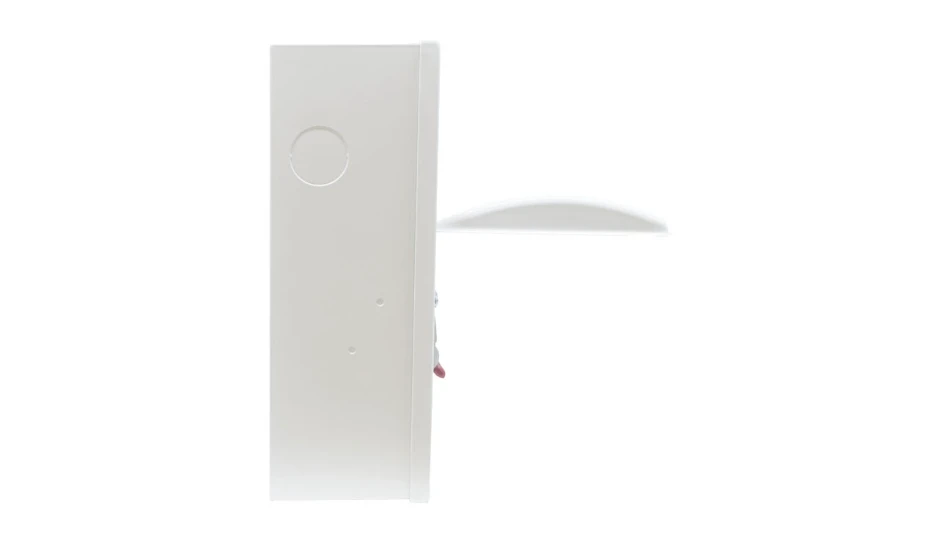

Housed in a robust surface-mounted steel enclosure with a curved, lockable visor, the unit features multiple cable entry knockouts on the top, bottom, sides and rear, with supplied grommets to protect incoming cables. A raised removable DIN rail allows cables to pass underneath, while the floating busbar and full-size blank modules improve installation flexibility and safety. The enclosure is fully compliant with BS 7671:2018+A3:2024 wiring regulations.
Key Features – Timeguard TX1110 7 Way SPD Consumer Unit
- 7 way main consumer unit
- Factory fitted Type 2 SPD
- Left-hand 100A double-pole main switch
- Steel enclosure, surface mounted
- Designed for RCBO or AFDD/RCBO circuit protection
- Curved, lockable visor
- Raised and removable DIN rail for improved cable routing
- Floating busbar for installation flexibility
- Supplied with blank modules and circuit identification labels
Technical Specification – Timeguard TX1110 7 Way SPD Consumer Unit
- Brand: Timeguard
- Product Code: TX1110
- Configuration: Main consumer unit
- Usable Ways: 7
- Number of Modules: 10
- Main Switch Rating: 100A
- Main Switch Position: Left-hand side
- SPD: Type 2 (factory fitted)
- Rated Voltage: 230–240V AC
- Mounting: Surface mounted
- Enclosure Material: Steel
- Standard: BS EN 61439-
- Wiring Regulations: BS 7671:2018+A3:2024
Dimensions (H × W × D) – Timeguard TX1110 7 Way SPD Consumer Unit
Back box: 259 × 232 × 87 mm
Cover: 136 × 223 × 22 mm
About Timeguard
Timeguard is a UK manufacturer of electrical control, timing and circuit protection products, supplying reliable solutions for residential and commercial installations. Timeguard consumer units are designed to meet current UK wiring regulations, with a focus on installer safety, durability and ease of installation.
