Description
Reliable Motion and Daylight-Controlled Lighting

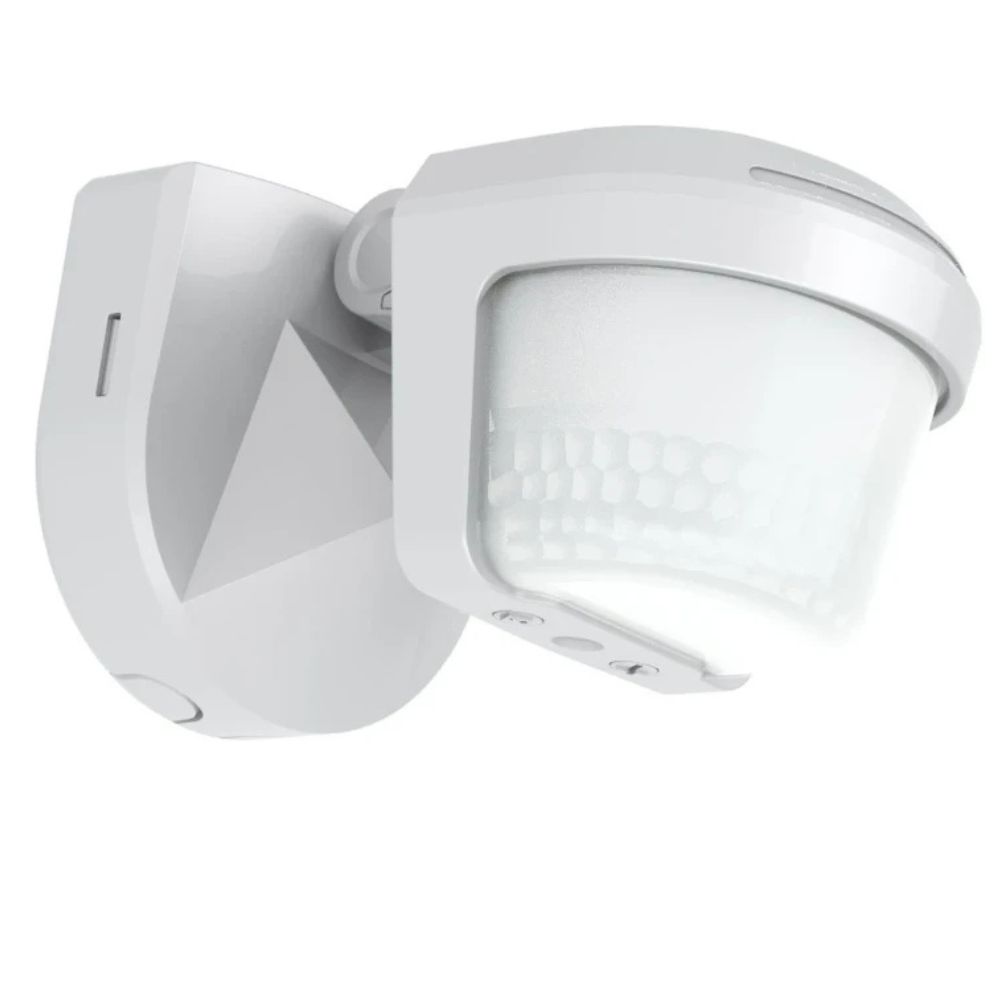

Timeguard SLW2301 PIR Photocell Sensor – White
The Timeguard SLW2301 PIR Photocell Sensor is a powerful and versatile motion detection solution designed for new and existing lighting installations. Combining PIR motion sensing with integrated photocell daylight control, it ensures lights operate only when movement is detected and ambient light levels are low.
Finished in white, this sensor is ideal for applications where a lighter or more discreet appearance is required, while still delivering reliable performance for outdoor and indoor lighting control.
Wide Detection Coverage and Adjustable Control
The SLW2301 offers a 180° detection angle with a detection range of up to 12 metres at a mounting height of 2.5m, providing effective coverage across wide areas. Adjustable time delay and light level (LUX) settings allow the sensor to be tailored precisely to suit site conditions and user requirements.
A built-in pan and tilt mechanism enables accurate positioning of the detection zone during installation, while manual override and adjustable sensitivity settings provide additional flexibility.
Durable Design for Outdoor Installations
With an IP65 weatherproof rating, the Timeguard SLW2301 is protected against dust and low-pressure water jets, making it suitable for exposed outdoor locations. Push-fit terminals allow quick and straightforward installation, and the robust housing ensures long-term reliability.
The sensor is suitable for switching up to 2kW halogen or 400W LED lighting, making it ideal for security lighting, floodlights, and automated outdoor lighting applications.
Key Features – Timeguard SLW2301 PIR Photocell Sensor
- Timeguard SLW2301 PIR Photocell Sensor – White
- Suitable for new and existing lighting installations
- 180° detection angle with up to 12m detection range (at 2.5m mounting height)
- Integrated PIR motion detection with photocell daylight control
- Adjustable light level (photocell): 2–1000 LUX
- Adjustable time delay: 2 seconds to 15 minutes
- Pan and tilt feature to accurately adjust the detection zone
- Manual override function
- Adjustable sensitivity settings
- Switching capacity: 2kW halogen or 400W LED lighting
- Push-fit terminals for fast and easy installation
- IP65 weatherproof rating suitable for outdoor use
- Clean white finish for discreet installations
