Description
SLW2300 2300W PIR Light Controller – White

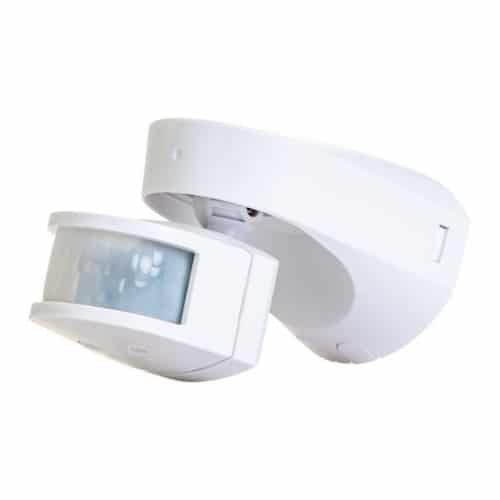

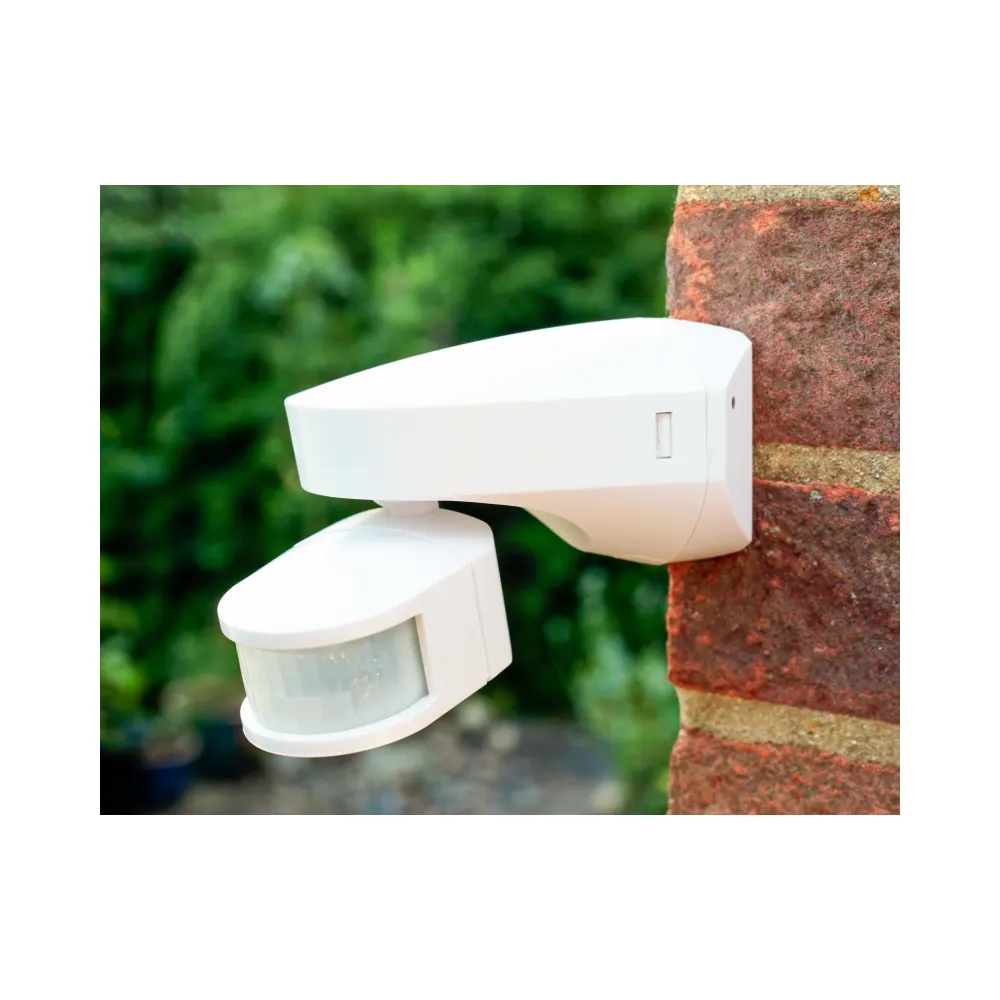

Timeguard SLW2300 PIR Light Controller
The SLW2300 2300W PIR Light Controller is a high-performance passive infrared controller designed for both new and existing lighting installations. Offering reliable motion detection and high switching capacity, it is ideal for security lighting and automated lighting control around residential and commercial properties.
With a 12 metre detection range and 180° detection angle, the SLW2300 provides wide area coverage. The adjustable pan and tilt sensor head allows precise positioning, while adjustable time and light level settings enable tailored operation to suit specific installation requirements.
Key Features – Timeguard SLW2300 PIR Light Controller
- PIR light controller rated at 2300W
- Suitable for new and retrofit installations
- Total PIR switching capacity:
- 2300W incandescent / halogen
- 500W fluorescent / low energy
- 250W LED lighting
- Detection range up to 12 metres
- 180° area of detection
- Adjustable pan and tilt sensor head
- Adjustable light ON time: 5 seconds to 15 minutes
- Adjustable LUX level: 2–1000 (Day to Night)
- Manual ON / OFF override
- IP55 weatherproof rating
- Quick-fit terminal block connectors
Dimensions
- Height: 93 mm
- Width: 78 mm
- Depth: 141 mm
