Description

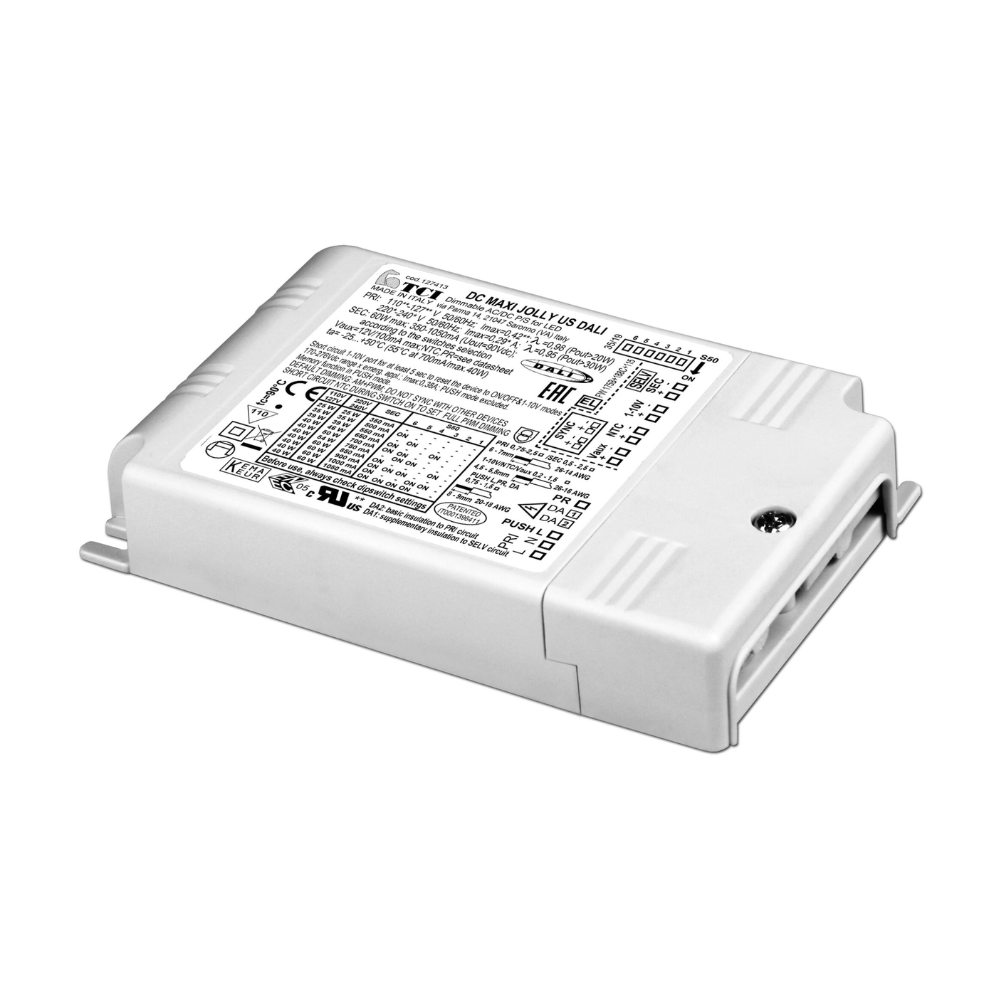

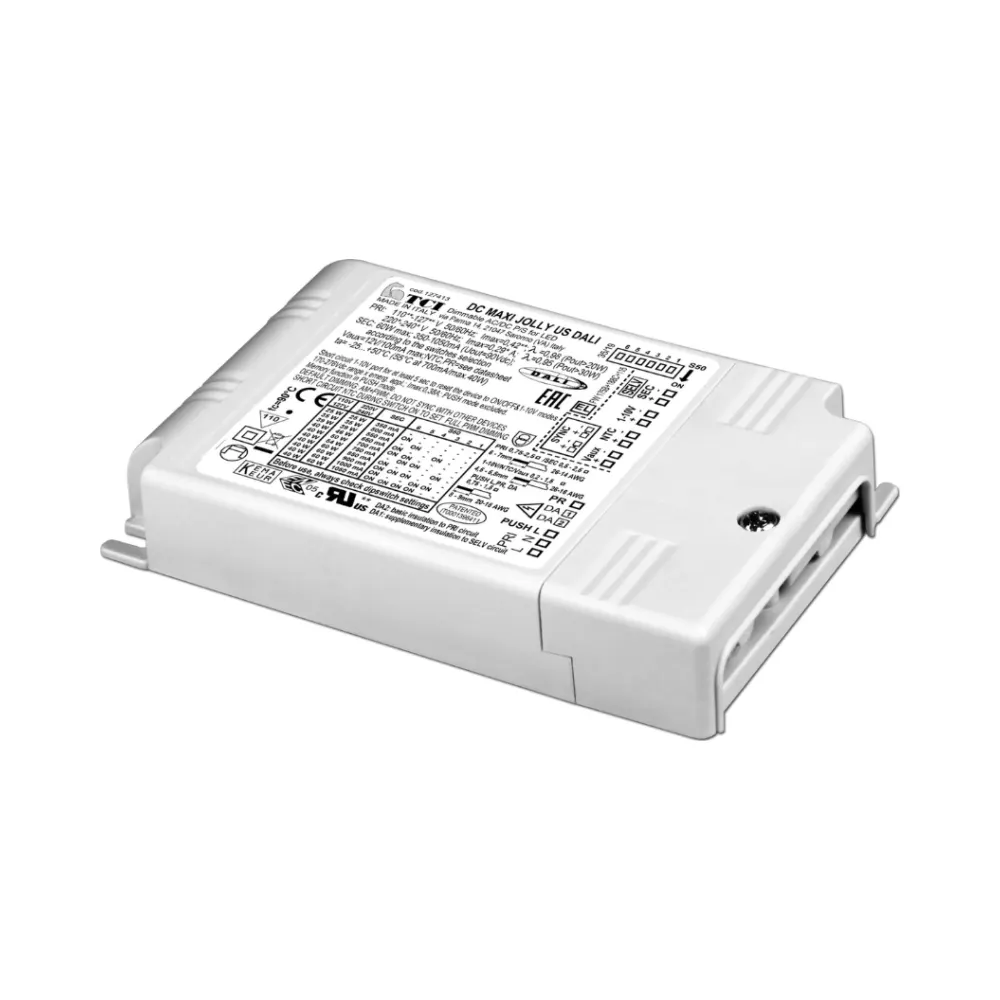

DC Maxi Jolly US DALI 1 & 2 / 1-10V 60W Dimmable LED Multi-Power Driver
TCI 151413 – Precision and Versatility
The TCI 151413 DC Maxi Jolly US DALI Multi-Power LED Driver offers industry-leading performance and adaptability for professional LED lighting systems. With dimming options that include DALI, 1-10V, and PUSH, this driver ensures seamless integration into modern lighting setups. Designed with a dip-switch for output current selection, it supports a wide range of applications, from residential to industrial, while offering exceptional reliability and safety features.
Key Features of TCI 151413 DC MAXI Jolly DALI Dimmable LED Multi Power Driver
- Multi-Power Functionality: Equipped with a dip-switch for precise output current selection, making it adaptable to a variety of LED configurations.
- Comprehensive Dimming Options: Supports DALI (1 & 2), 1-10V, and PUSH dimming for maximum flexibility.
- High Efficiency: Provides over 92% efficiency at full load with a power factor of 0.95.
- Ripple-Free Output: Ensures flicker-free illumination for enhanced visual comfort.
- Built-In Safety Protections: Includes safeguards against overheating, short circuits, mains voltage spikes, and overloads.
Technical Specifications
- Input Voltage: 110-127V AC / 220-240V AC
- Output Power: 1W to 60W
- Output Current Range: 350mA to 1,050mA (adjustable via dip-switch)
- Output Voltage Range: 2V to 70V DC
- Dimming: DALI (1 & 2), 1-10V, PUSH (0/1-100%)
- Current Regulation: ±5% (temperature variations included)
- Efficiency: >92%
- Ingress Protection: IP20 (indoor use only)
- Operating Temperature: -25°C to +50°C (ambient); max tc = 90°C
- Standards Compliance:
- EN 61347-1
- EN 61347-2-13
- EN 62384
- EN 62386-101, EN 62386-102, EN 62386-207
- UL 8750
Additional Features
- 12V Auxiliary Output: Provides up to 100mA for auxiliary devices.
- Thermal Protection: Equipped with C.5.a thermal safeguard for reliable operation.
- NTC Port: Supports connection to a thermal sensor for advanced temperature monitoring.
- Flexible Installation:
- Input and output terminal blocks on the same side for streamlined wiring.
- Clamping screws accommodate cables with diameters ranging from 3 mm to 8 mm.
- Synchronization: Supports up to 10 synchronized drivers (1 master + 9 slaves).
Applications
The DC Maxi Jolly US DALI is ideal for:
- Residential Lighting: Offers advanced dimming options for ambient and task lighting.
- Commercial Spaces: Perfect for offices, showrooms, and retail environments.
- Industrial Use: Robust enough for demanding professional setups.
Benefits
- Adaptability: Supports multiple dimming protocols for seamless integration into various systems.
- Precision Control: Dip-switch allows precise adjustment of output current.
- Enhanced Safety: Comprehensive protection features ensure long-lasting reliability.
- Energy Efficiency: Reduces energy consumption while maintaining high performance.
- Flicker-Free Lighting: Ripple-free output ensures consistent and comfortable illumination.
FAQs
Q: Can this driver support dimming?
A: Yes, it supports DALI, 1-10V, and PUSH dimming options for versatile control.
Q: How many drivers can be synchronized?
A: Up to 10 drivers can be synchronized (1 master and 9 slaves).
Q: Is this driver suitable for outdoor use?
A: No, the IP20 rating makes it suitable for indoor applications only.
Upgrade to TCI DC Maxi Jolly US DALI Driver
The TCI DC Maxi Jolly US DALI Driver combines cutting-edge dimming technology, reliable safety features, and versatile applications into a single compact unit. Whether for residential, commercial, or industrial installations, this driver ensures precision, efficiency, and dependability. Upgrade your lighting system today with the TCI Maxi Jolly US DALI Driver!
