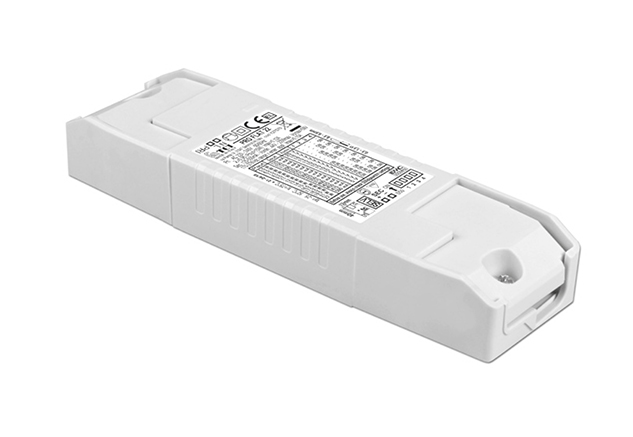

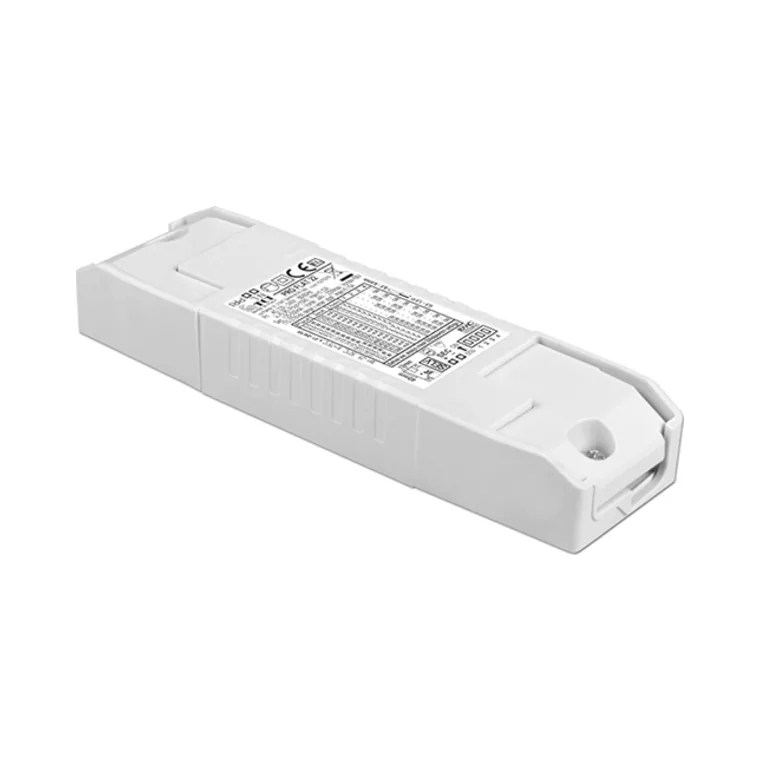

Pro Flat 22 Constant Current Multi-Power LED Driver
TCI 127570 – Compact and Reliable
The TCI 127570 Pro Flat 22 Multi-Power LED Driver offers a compact and efficient solution for LED lighting systems. Equipped with a dip-switch for output current selection, this driver is ideal for versatile applications requiring precise current regulation. Designed for built-in use, it ensures optimal safety and performance with robust protections against overheating, short circuits, and mains voltage spikes.
Key Features of TCI 127570 Pro Flat 22 Constant Current LED Multi Power Driver
- Multi-Power Functionality: Dip-switch for easy output current selection, offering flexibility for a variety of LED setups.
- Compact Design: Slim and lightweight, making it ideal for installations with space constraints.
- Active Power Factor Corrector: Ensures energy efficiency and stable performance with a power factor greater than 0.9.
- Ripple-Free Output: Provides flicker-free illumination for improved lighting quality and comfort.
- Reliable Safety Protections: Guards against overheating, short circuits, overloads, and voltage spikes.
- Wide Compatibility: Suitable for lighting equipment in protection class I and II.
Technical Specifications
- Input Voltage: 220-240V AC
- Operating Voltage Range: 198-264V AC
- Output Power: 5.5W to 22W
- Output Current Range: 125mA to 500mA (adjustable via dip-switch)
- Output Voltage Range: 5V to 44V DC
- Current Regulation: ±5%, accounting for temperature variations.
- Efficiency: Greater than 89% at full load.
- Ripple: ≤3%, ensuring flicker-free light output.
- Ingress Protection: IP20 (indoor use only).

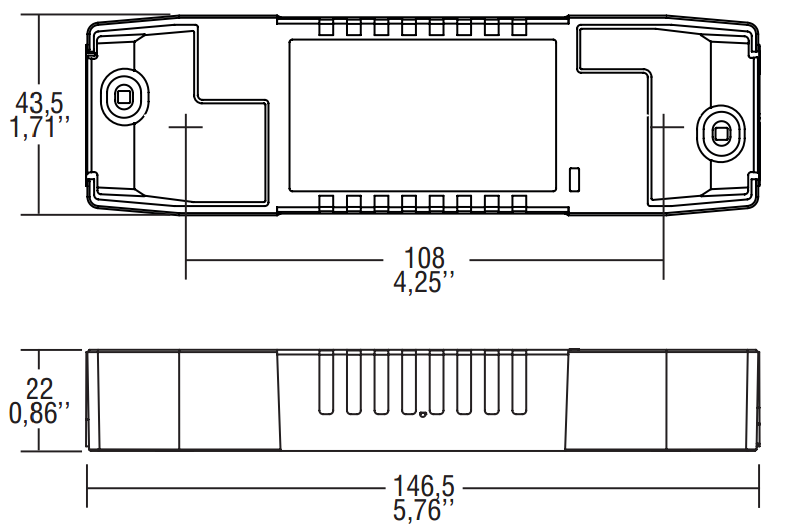

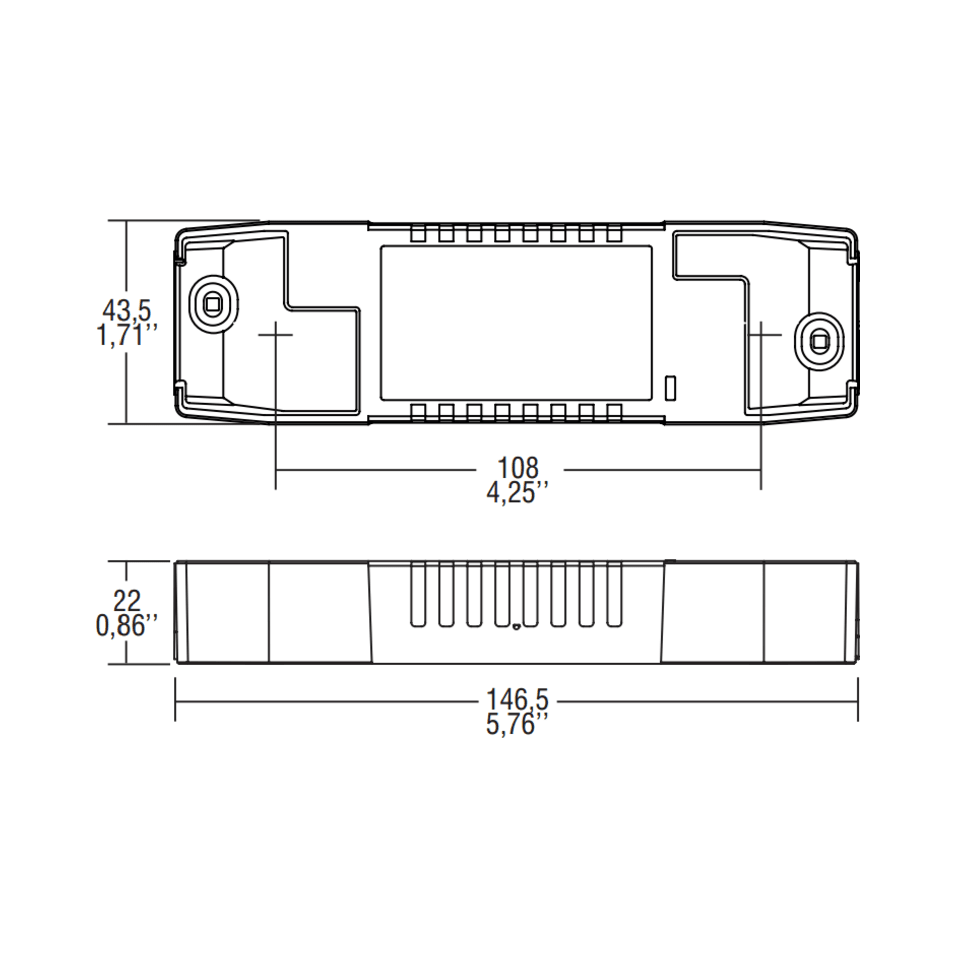

- Size: 146.5 x 22 x 43.5 mm
- Weight: 113 g (4 oz)
Certifications and Approvals
- Standards Compliance:
- EN 55015
- EN 61000-3-2
- EN 61000-3-3
- EN 61347-1
- EN 61347-2-13
- EN 61547
- EN 62384
- Approvals: KEMAKEUR, ENEC, CCC, RCM, CE, EAC, UKCA
Benefits
- Precise Current Control: The dip-switch enables accurate output current selection, ensuring compatibility with various LED systems.
- Space-Saving Design: The slim plastic case makes it perfect for installations in tight spaces.
- Enhanced Safety: Comprehensive protections offer peace of mind for professional and residential applications.
- Flicker-Free Lighting: Ripple-free output delivers high-quality illumination, ideal for task and ambient lighting.
- Easy Installation: Input and output terminals on opposite sides simplify wiring and integration.
Applications
The TCI 127570 Pro Flat 22 Driver is perfect for:
- Residential Lighting: Ideal for kitchens, living rooms, and office spaces requiring reliable LED drivers.
- Commercial Spaces: Suitable for retail shops, showrooms, and workspaces demanding efficient lighting.
- Industrial Use: Robust enough for professional setups needing precision and safety.
Additional Features
- Thermal Protection: Built-in C.5.a thermal safeguard to prevent overheating.
- Cable Compatibility: Clamping screws accommodate cables with diameters from 3 mm to 10 mm.
- Flexible Mounting: Includes slots for screws to secure the driver easily.
- Class II Safety: Designed for equipment with protection against electric shock for both direct and indirect contact.
FAQs
Q: Is the TCI 127570 Pro Flat 22 Driver dimmable?
A: No, this driver is not dimmable.
Q: Can it be used in outdoor settings?
A: No, the IP20 rating indicates it is designed for indoor use only.
Q: What is the maximum output current?
A: The maximum adjustable output current is 500mA.
Short Description
The TCI 127570 Pro Flat 22 Multi-Power LED Driver is a compact and reliable solution for indoor LED systems, offering adjustable current output, ripple-free performance, and advanced safety features.
Upgrade to the TCI 127570 Pro Flat 22 LED Driver
The TCI 127570 Pro Flat 22 Driver combines precision, safety, and efficiency in a compact form. Whether you need a driver for residential or commercial LED installations, this model delivers dependable performance. Experience hassle-free integration and superior lighting quality today!
