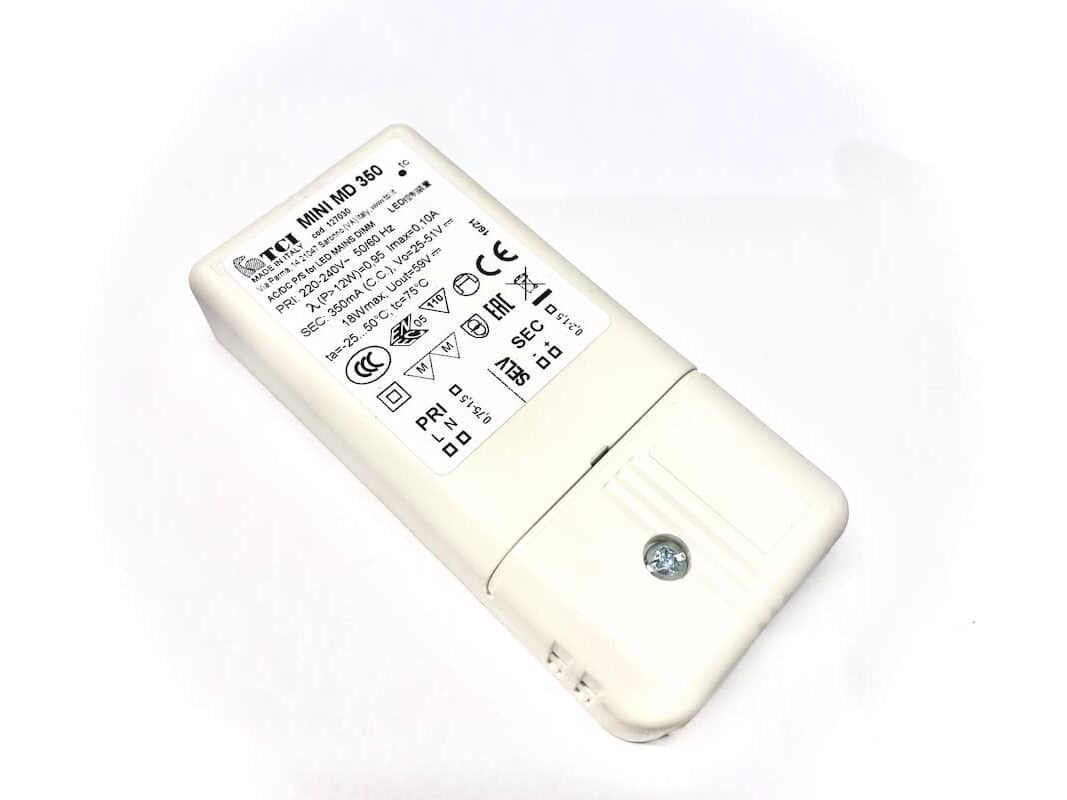

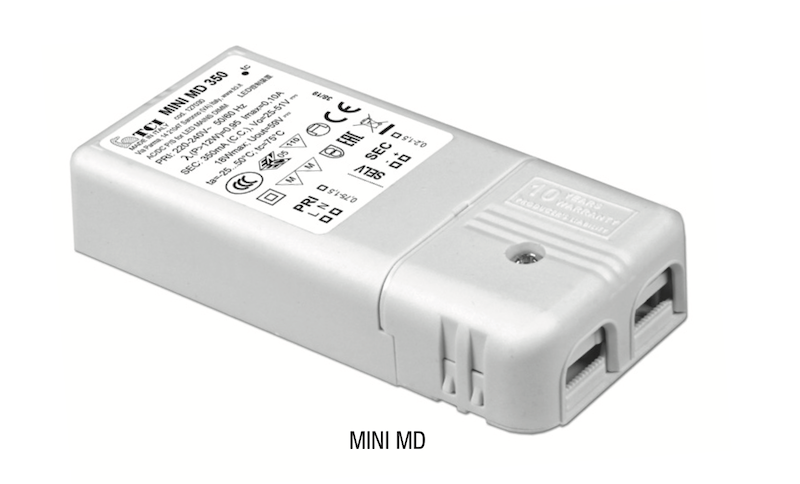

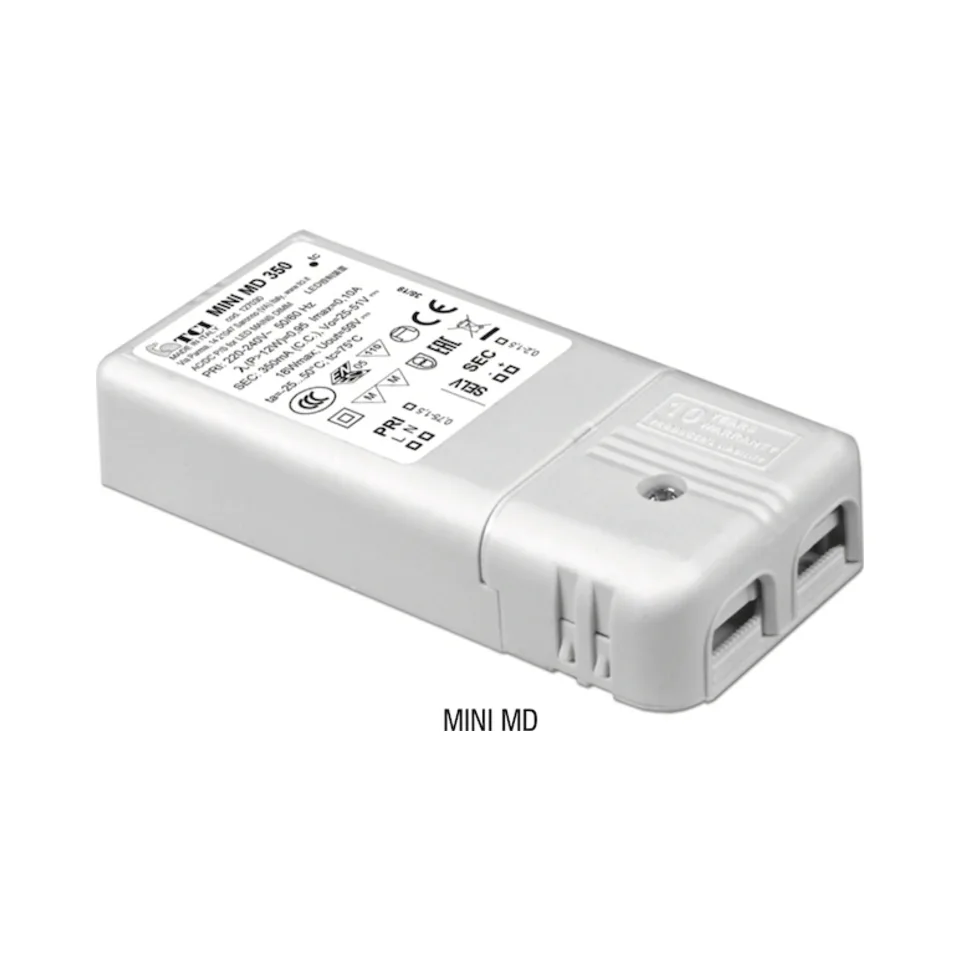

Mini MD 350 Dimmable 350mA Constant Current LED Driver
TCI 127030 – Compact and Reliable
The TCI 127030 Mini MD 350 LED Driver is a compact and high-performance solution for constant current LED systems. Designed for indoor use, this driver offers precise dimming capabilities, consistent 350mA output, and advanced safety features. Its small size and robust build make it ideal for applications with limited space, ensuring reliable and efficient performance for residential and professional lighting setups.
Key Features of TCI 127030 Mini MD 350 Dimmable 350mA LED Driver
- Constant Current Output: Provides a stable 350mA output for reliable LED performance.
- Dimmable Functionality: Enables smooth and precise dimming for customized lighting control.
- Compact Design: Small size (111 x 22 x 52 mm) and 55 mm minimum cut-out diameter for easy integration into tight spaces.
- Safety Compliance: Class II protection against electric shock for direct and indirect contact.
- Robust Protections: Safeguards against overheating, short circuits, and voltage spikes.
- Thermal Protection: Integrated C.5.a safeguard ensures safe operation under high temperatures.
- Active Power Factor Corrector: Maximizes energy efficiency and stability.
Technical Specifications
- Input Voltage: 220-240V AC (198-264V operating range)
- Output Current: 350mA
- Output Voltage Range: 6V to 42V DC
- Efficiency: Greater than 85%
- Ingress Protection: IP20 (indoor use only)
- Operating Temperature:
- Ambient (ta): -25°C to +50°C
- Maximum case temperature (tc): 80°C
- Terminal Blocks:
- Input and output on the same side for convenient wiring.
- Supports wire cross-sections up to 1.5 mm² (AWG15).
- Clamping Screws:
- Supports cable diameters from 3 mm to 8 mm.
Additional Features
- User-Friendly Design: Includes terminal covers and cable retainers for secure and organized installations.
- Secure Mounting: Features screw slots for stable mounting.
- Italian Craftsmanship: Designed by TCI, a global leader in LED driver technology with over 30 years of experience.
Applications
The Mini MD 350 Driver is perfect for:
- Residential Lighting: Ideal for LED strips and accent lighting in kitchens, bedrooms, and living rooms.
- Commercial Spaces: Suitable for retail displays, restaurants, and office lighting.
- Professional Installations: Compact size makes it ideal for installations with limited space.
Benefits
- Compact Form Factor: Easily fits into small spaces, making it versatile for various applications.
- Reliable Performance: Stable 350mA output ensures consistent lighting quality.
- Energy Efficiency: Reduces energy consumption with Active Power Factor Correction.
- Enhanced Safety: Comprehensive protections provide long-lasting reliability.
- Smooth Dimming: Customize lighting intensity for the perfect ambiance.
FAQs
Q: Can this driver be used outdoors?
A: No, the IP20 rating is designed for indoor use only.
Q: Is this driver compatible with all constant current LEDs?
A: It is suitable for LEDs requiring a 350mA constant current output. Check compatibility with specific LED modules.
Q: Does the driver support thermal protection?
A: Yes, the integrated C.5.a thermal safeguard ensures safe operation under high temperatures.
Upgrade Your LED System with the TCI Mini MD 350 Driver
The TCI 127030 Mini MD 350 LED Driver offers Italian-engineered quality, precision, and reliability in a small yet powerful package. Perfect for residential, commercial, or professional setups, this driver ensures consistent performance and efficient lighting. Enhance your LED installations today!
