Reliable Feed Through Terminal for DIN Rail Wiring

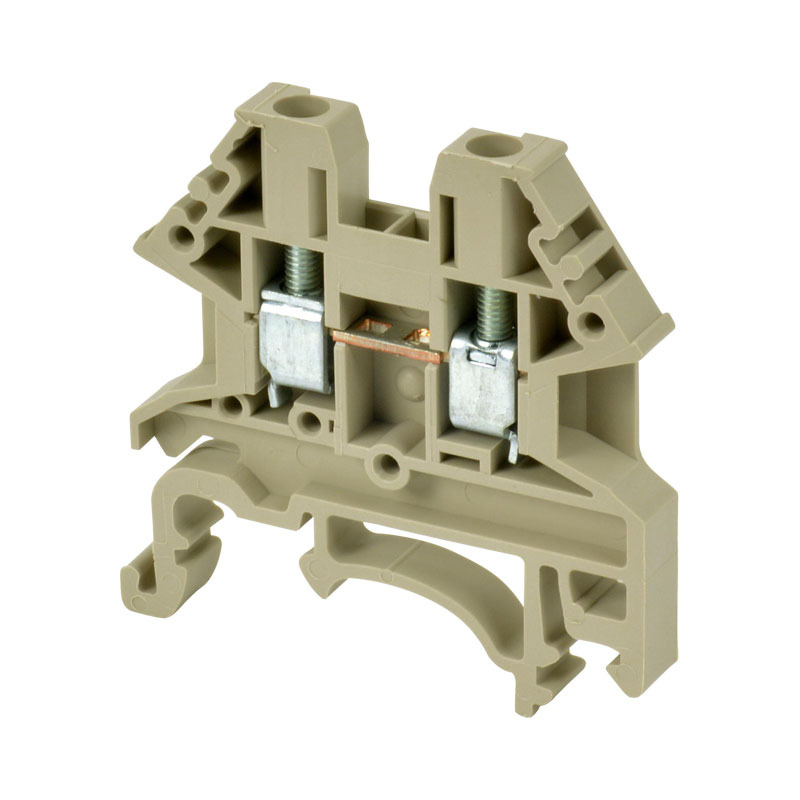

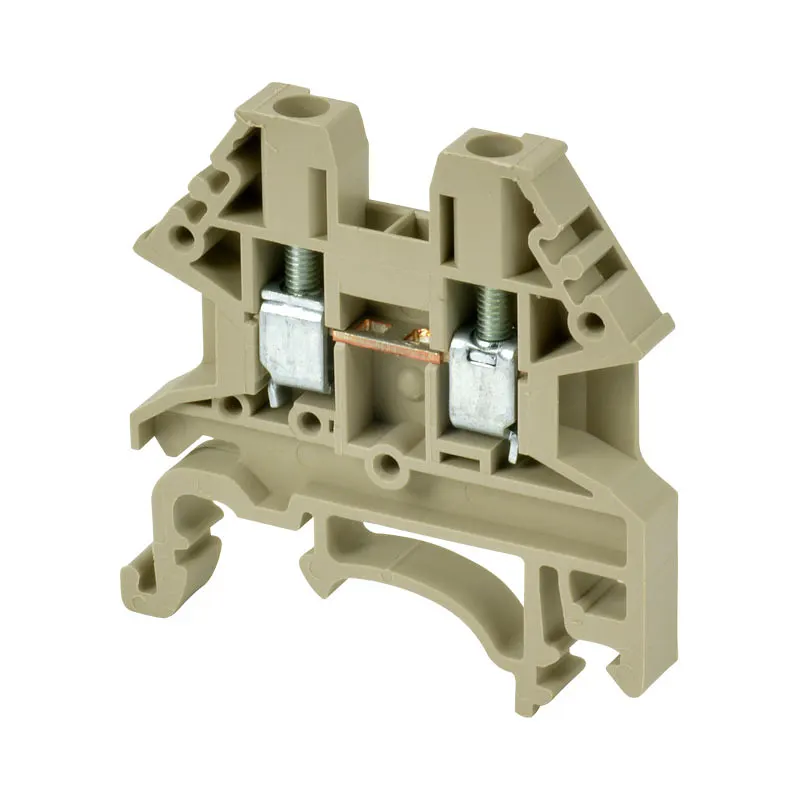

Switchtec DK2.5N Din Rail Terminal Grey 2.5mm
Keep panel wiring neat, secure, and easy to manage with the Switchtec DK2.5N Din Rail Terminal Grey 2.5mm. Designed for professional electrical installations, this feed through terminal block provides a dependable connection point for conductors from 0.34mm² to 2.5mm² in control panels, distribution boards, and industrial enclosures.
Its professional rising clamp terminal design helps deliver firm cable retention, while the IP20 touch proof captive screws improve safety during installation and maintenance. Moulded in UL94-V0 flame retardant PA, the DK2.5N is built for reliable performance in demanding commercial and industrial environments.
Compatible with both Top Hat (DIN 35) and G (DIN 32) DIN rail profiles, this grey terminal block offers installers a practical, trade-ready solution for organised wiring and efficient circuit termination.
Key Features – Switchtec DK2.5N Din Rail Terminal Grey 2.5mm
- 2.5mm² feed through DIN rail mount terminal block
- Moulded in UL94-V0 flame retardant PA
- Professional rising clamp style terminals
- IP20 touch proof captive screws
- Suitable for Top Hat (DIN 35) and G (DIN 32) style DIN rail profiles
Technical Overview – Switchtec DK2.5N Din Rail Terminal Grey 2.5mm
- Terminal type: Feed through DIN rail terminal
- Rated current: 24A
- Cable size: 0.34-2.5mm²
- Mounting compatibility: Top Hat (DIN 35) and G (DIN 32) rail profiles
- Material: Flame retardant PA
- Flammability rating: UL94-V0
- Protection: IP20 touch proof
- Colour: Grey
- Terminal style: Rising clamp with captive screws
Why Choose This Product?
Choose the DK2.5N for safe, tidy, and dependable DIN rail terminations. Its compact design, touch proof construction, and strong clamping performance make it a solid choice for professional panel builders and electricians.
About Switchtec
Switchtec supplies practical electrical connection and installation products designed for trade and industrial use. Their terminal accessories are built to support reliable panel wiring and efficient installation work.
Guarantee & Compliance
Manufactured from UL94-V0 flame retardant material for improved safety in electrical installations. Always install in accordance with current wiring regulations and manufacturer guidance.
