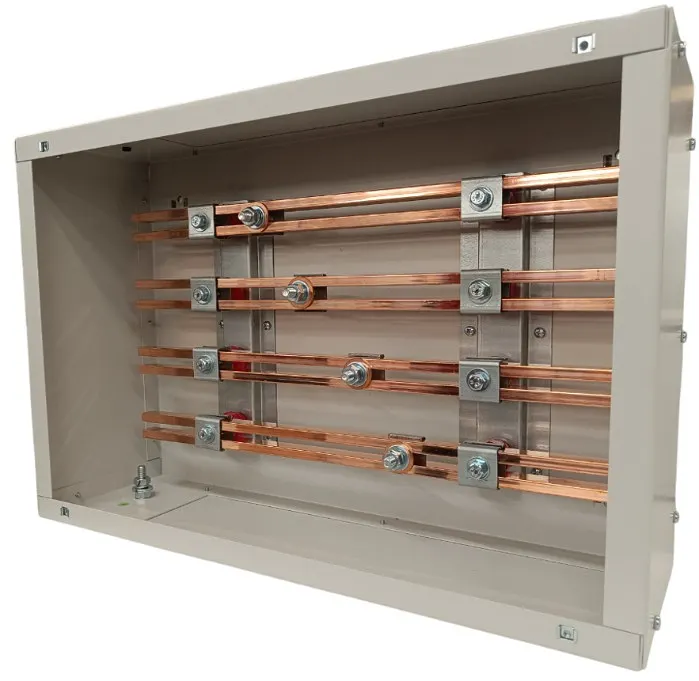

Switchtec 200A Busbar Chamber 600mm
The Switchtec CBB200A-600 200A Busbar Chamber is a four-pole distribution chamber designed for commercial and industrial electrical power distribution. Featuring a 600mm nominal chamber length, this 200A unit uses a 1.6mm mild steel enclosure with a matt grey RAL 7035 finish. It is rated IP3X for suitable indoor installations.
Rated at 230/400V AC with a 690V insulation voltage, this Switchtec busbar chamber is designed for professional switchgear and electrical distribution installations. Consult the manufacturer’s datasheet when selecting associated busbar clamps and connections.
Key Features – Switchtec 200A Busbar Chamber 600mm
- Manufacturer: Switchtec
- Product code: CBB200A-600
- Rated current: 200A
- Nominal length: 600mm
- Four-pole configuration
- IP3X enclosure protection
- 1.6mm mild steel enclosure, RAL 7035 matt grey
- Top and bottom gland plates for cable entry
- BS EN 61439-1
Technical Specifications – Switchtec 200A Busbar Chamber 600mm
- Rated operational voltage: 230/400V
- Rated insulation voltage: 690V
- Frequency: 50/60Hz
- Rated conditional short-circuit current: 36kA
- Pollution degree: 3
- Busbar connection: CBBB8-200A clamp (4 x M8 bolts)
- Earth connection: M10
- Ambient operating temperature: -5°C to +40°C
- Weight: 13.5kg
Installation and Product Information
Suitable for appropriately designed indoor power distribution assemblies. All electrical ratings and connection requirements should be checked against the installation design and manufacturer instructions. Busbar connection accessories should not be assumed to be included unless expressly stated.
View the Switchtec CBB200A-600 technical datasheet.
