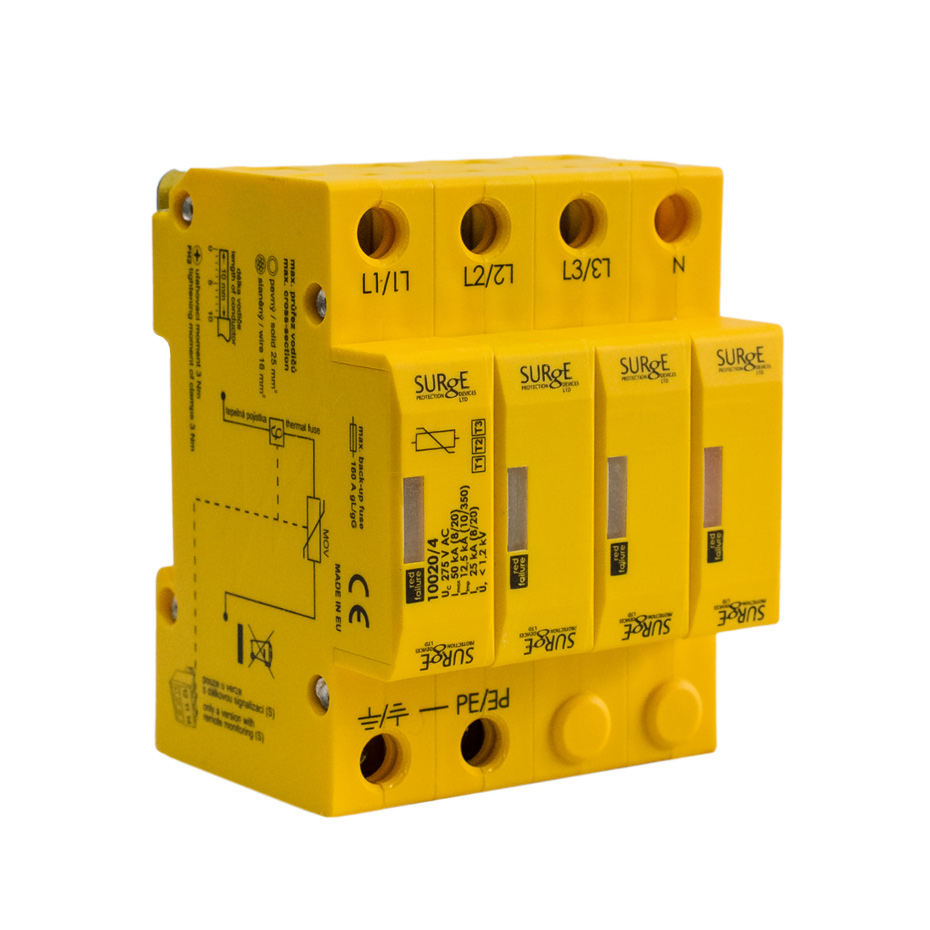

Surge Devices 10020/4 Surge Devices Type 1+2+3 50kA 3 Phase Lightning and Surge Arrester with Indication
Products may differ in size, colour and appearance to those shown. If you require further information please contact us directly.

Surge Devices Type 1+2+3 50kA 3 Phase Lightning and Surge Arrester with Indication

SKU: 10020/4
Delivery usually within 1-3 working days*
Confirm Availability

Lightning protection level 3, 50KA 10/350μs.

Fully compliant to BSEN62305, BS61643-11 & BS7671.

Low let through voltage <1.2kV.

Visual indication of status.

Remote changeover contacts can be linked to BMS, buzzer, light etc.

£369.00 + VAT

(incl. VAT £442.80)

Add to quote
Category: Tag: Surge Protection Devices Brand:

Description

Surge Devices Type 1+2+3 50kA 3 Phase Lightning and Surge Arrester with Indication

Surge Devices’ Type 1+2+3 50kA 3 Phase Lightning and Surge Arrester offers top-tier protection for your electrical systems. This robust device handles direct lightning strikes and provides reliable surge protection, making it essential for safeguarding sensitive electronic equipment.

Key Features:

  • Protection Level: Provides lightning protection level 3, handling up to 50kA 10/350μs surges.
  • Compliance: Fully complies with BSEN62305, BS61643-11, and BS7671 standards.
  • Combined Arrester: Type 1+2+3, capable of handling direct lightning strikes and protecting sensitive equipment.
  • Performance:
    • Low Let Through Voltage: Less than 1.2kV
    • Fast Response Time: Less than 25ns
  • Visual Status Indication: Allows for easy monitoring of operational status.
  • Remote Monitoring: Changeover contacts link to BMS, buzzer, light, etc.
  • Safety Feature: Extinguishes follow currents after activation.
  • Mounting: Easily mounts on a DIN rail.
  • Installation Requirements:
    • Minimum Backup Fuse / MCB: 63A
    • Recommended Cable Size: 25mm²

This SPD not only ensures robust protection but also offers ease of use, making it a vital component for three-phase electrical installations.

Downloads

View Product Data Sheet

Additional information

Brand

Surge Devices
No of Poles

4P
Type of SPD

1, 2 & 3
