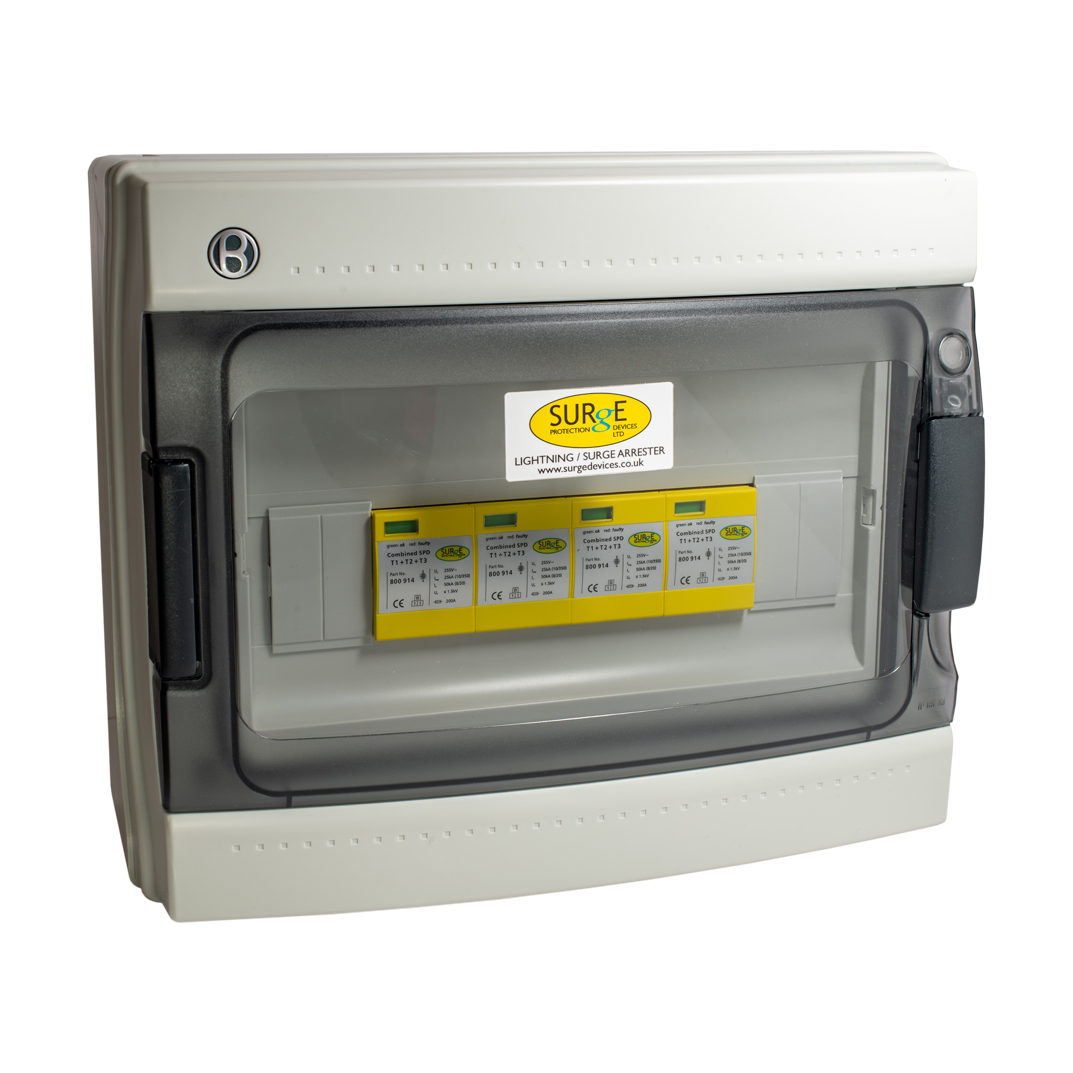

Surge Devices 800914ENC Surge Devices Type 1+2+3 100kA 3 Phase SPD with Window Indication and Pluggable Modules in IP65 Polycarbonate Enclosure
Products may differ in size, colour and appearance to those shown. If you require further information please contact us directly.

Surge Devices Type 1+2+3 100kA 3 Phase SPD with Window Indication and Pluggable Modules in IP65 Polycarbonate Enclosure

SKU: 800914ENC
Delivery usually within 1-3 working days*
Confirm Availability

Lightning protection Level 1, which is the highest protection level 100kA 10/350µs.

Enhanced protection to BSEN62305, BSEN61643-11 & BS7671.

Pluggable replacement modules.

Visual indication of status.

Supplied in a polycarbonate enclosure.

£553.50 + VAT

(incl. VAT £664.20)

Add to quote
Category: Brand:

Description

Surge Devices Type 1+2+3 100kA 3 Phase SPD with Window Indication and Pluggable Modules in IP65 Polycarbonate Enclosure

The Surge Devices Type 1+2+3 100kA 3 Phase SPD provides top-tier lightning and surge protection, ensuring the safety of your electrical systems. This device is housed in a robust IP65 polycarbonate enclosure, making it suitable for various environments.

Key Features:

  • Protection Levels: Type 1+2+3, capable of handling direct lightning strikes.
  • Performance:
    • Lightning Protection Level: 100kA, 10/350µs
    • Compliance: Meets BSEN62305, BSEN61643-11, and BS7671 standards.
  • Visual Status Indication: Easily monitor the operational status through a visual window.
  • Pluggable Modules: Features pluggable and replaceable modules for convenient maintenance.
  • Remote Monitoring: Changeover contacts can link to BMS, buzzer, light, etc.
  • Mounting: DIN rail mountable for easy installation.
  • Installation Requirements:
    • Minimum Backup Fuse / MCB: 63A
    • Recommended Cable Size: 25mm²
  • Enclosure: Supplied in an IP65 polycarbonate enclosure for robust environmental protection.

This SPD is designed to offer comprehensive protection and ease of use, making it a crucial component for safeguarding your electrical installations.

Downloads

View Product Data Sheet

Additional information

Brand

Surge Devices
Features

With Enclosure
No of Poles

4P
Type of SPD

1, 2 & 3
