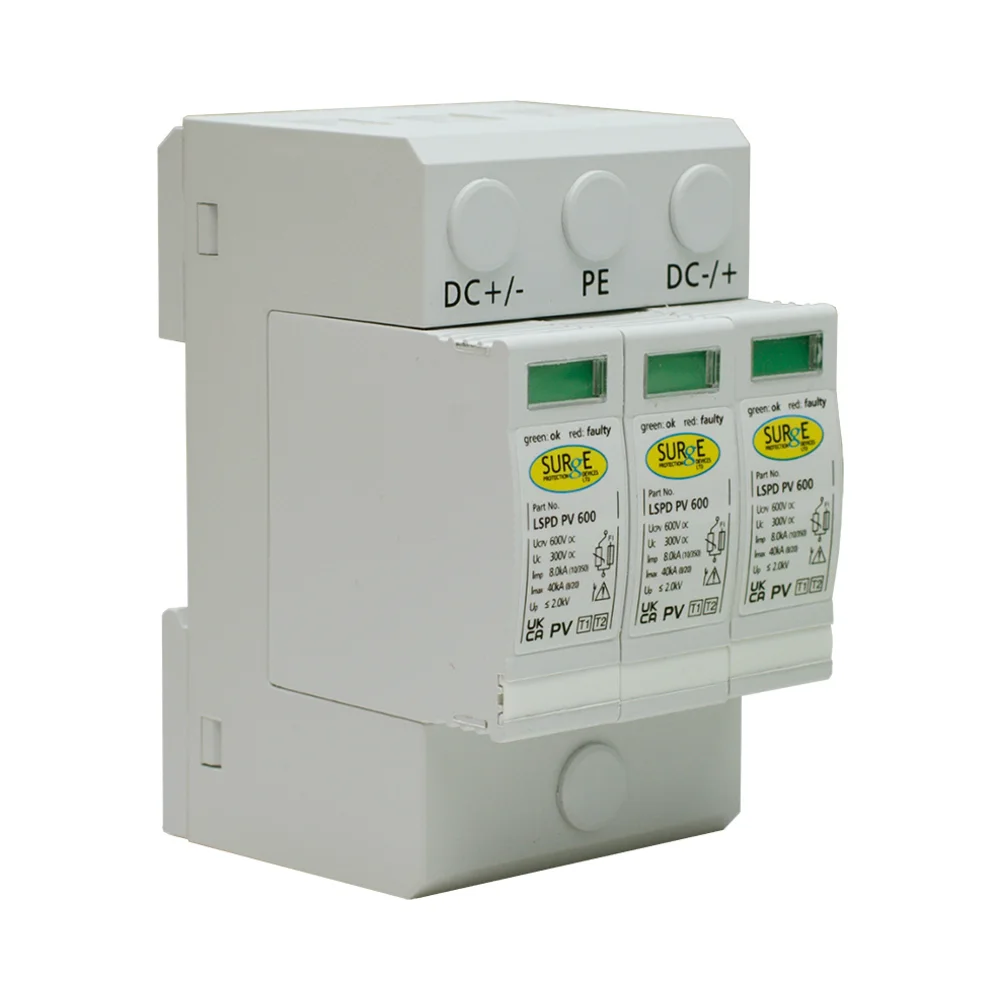

SPDPV600 Type 2 PV SPD – DC Surge Protection for Solar Installations up to 600V
Pluggable DIN Rail SPD for Photovoltaic Arrays – Window Indication & Remote Monitoring
The SPDPV600 is a Type 2 PV SPD for Solar Installation for the DC side of solar PV systems up to 600V. Designed to protect inverters and fixed installations, it features pluggable modules, remote contacts, and a visual status window.
Key Features – SPDPV600 PV SPD
- Type 2 DC SPD – 600V rated
- Compliant with BS EN 61643-31
- Pluggable surge protection modules
- Window status indicator for fast visual checks
- Remote changeover contact (alarm or BMS output)
- DIN rail mountable for easy installation
- Minimum recommended PE cable size: 6mm²
Technical Overview – SPDPV600
- Model: SPDPV600
- System Type: DC side of solar PV arrays
- Surge Protection Type: Type 2
- Max Voltage: 600V DC
- Status Indication: Visual (window)
- Remote Output: Changeover contact included
- Mounting: DIN rail
- Compliance: BS EN 61643-31
What’s Included – Type 2 PV SPD for Solar Installations
- SPDPV600 SPD module
- Window indication display
- Remote signal terminal
Why Choose This SPD?
The SPDPV600 is purpose-built to protect the inverter and connected equipment in solar PV systems. It’s compact, field-replaceable, and delivers visual and remote monitoring for peace of mind.
Guarantee & Compliance
- Manufactured in Europe
- BS EN 61643-31 compliant
- Durable design for long-term field operation
Summary – PV SPD for Solar Installations
The SPDPV600 is a DC surge protection device designed for the PV side of solar systems. Pluggable, monitorable, and fast to install — a vital component for 600V solar safety and inverter protection.
SPDPV600 – Type 2 SPD for 600V Solar Panels
The SPDPV600 is a Type 2 SPD for solar panels, rated at 600V DC. Ideal for standard PV installs, it offers pluggable modules, status indication, and optional remote contacts for safe and efficient system protection.
Need lightning-level protection? Choose LSPDPV600. For higher voltages, go to SPDPV1000 or LSPDPV1000.
