Surge Devices LSPDPV600 SPD Type 1 & 2 600V DC for Solar/PV Installations

Products may differ in size, colour and appearance to those shown. If you require further information please contact us directly.

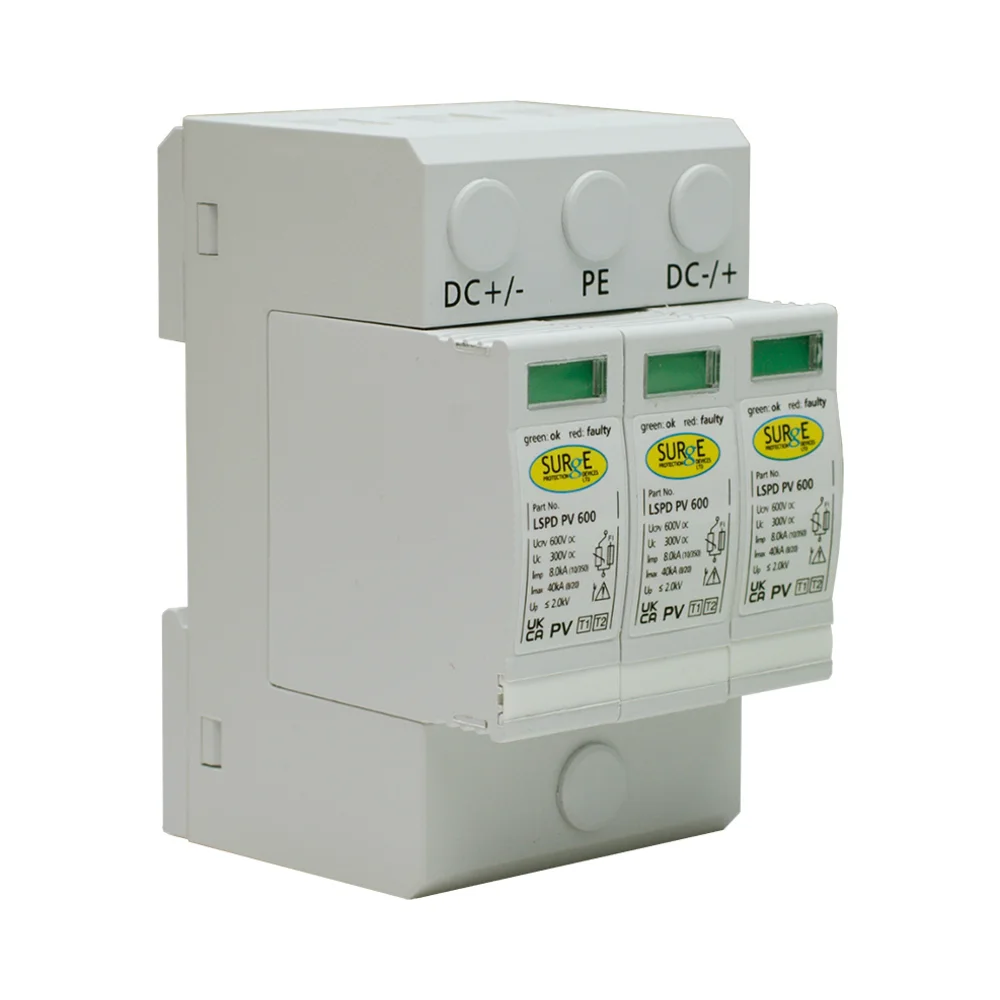

Surge Devices LSPDPV600 Type 1+2 PV SPD for 600V Solar Installations

SKU: LSPDPV600

Delivery usually within 1-3 working days

Confirm Availability

LSPDPV600 is a Type 1 SPD for solar installations, protecting 600V DC PV systems from lightning and surge damage. DIN rail mountable with visual status and optional remote output. A reliable solution for high-risk solar array installations.

£96.00 + VAT

(incl. VAT £115.20)

2 - 0

%

£94.08
3 - 0

%

£93.12

2	-	£94.08	£1.92	£96.00
3	-	£93.12	£2.88	£96.00

— OR —

Description

LSPDPV600 – Type 1 SPD for Solar Panels – 600V DC Lightning & Surge Protection Device

Combined Type 1+2 DC SPD for Photovoltaic Systems – DIN Rail Mountable Solar Surge Arrester

The LSPDPV600 is a Type 1 SPD for solar panels, built for 600V DC photovoltaic installations. This combined lightning and surge protection device safeguards solar inverters and cabling against both direct lightning strikes and transient overvoltages. Ideal for use in outdoor or rooftop PV systems exposed to atmospheric discharge risk.

Key Features – LSPDPV600 Type 1 SPD for Solar Panels

DC SPD rated for 600V – suitable for rooftop and ground-mounted PV arrays
Type 1+2 surge protection – handles lightning and switching surges
Visual window for clear status indication
Optional remote signal contact for alarm or BMS integration
DIN rail mountable in solar combiner boxes or inverter cabinets
Pluggable module design for fast field servicing
Compliant with BS EN 61643-31 and BS 7671 (18th Edition)

Technical Overview – LSPDPV600 Solar SPD

Model: LSPDPV600
System: DC side of solar PV arrays (single pole, 600V DC)
Surge Type: Type 1+2
Mounting: DIN rail
Status: Visual window
Remote Monitoring: Changeover contact (optional)
Application: Solar power systems with external lightning exposure

What’s Included

LSPDPV600 DC SPD module (Type 1+2)
Visual status window
Remote contact terminal (optional)
Solar safety label for panel identification

Why Choose This Solar SPD?

If your solar system is exposed to atmospheric or indirect lightning, you need a Type 1 SPD for solar panels. The LSPDPV600 delivers full lightning-class protection with remote monitoring options and a pluggable design for long-term maintenance ease.

Guarantee & Compliance

Manufactured in Europe
Complies with BS EN 61643-31 and BS 7671
Designed for long operational life with replaceable cartridges

Summary

The LSPDPV600 is a DIN rail mounted Type 1 SPD for solar panels, offering 600V DC surge protection for PV arrays. It’s ideal for lightning-prone zones, combining protection, serviceability, and system compatibility in one compact unit.

LSPDPV600 – Type 1+2 SPD for 600V Solar Panels

The LSPDPV600 provides Type 1+2 protection for solar PV arrays up to 600V. It handles direct lightning and surge events, with DIN rail mounting, window indication, and optional remote signal output.

Prefer basic surge protection? See SPDPV600. For larger PV systems, explore LSPDPV1000 or SPDPV1000.

Downloads

View Product Data Sheet Surge Devices Brochure

Additional information

Brand	Surge Devices
No of Poles	3P
Type of SPD	PV SPD for Solar Panels, 1, 1 & 2
Product	SPD – Surge Protection
