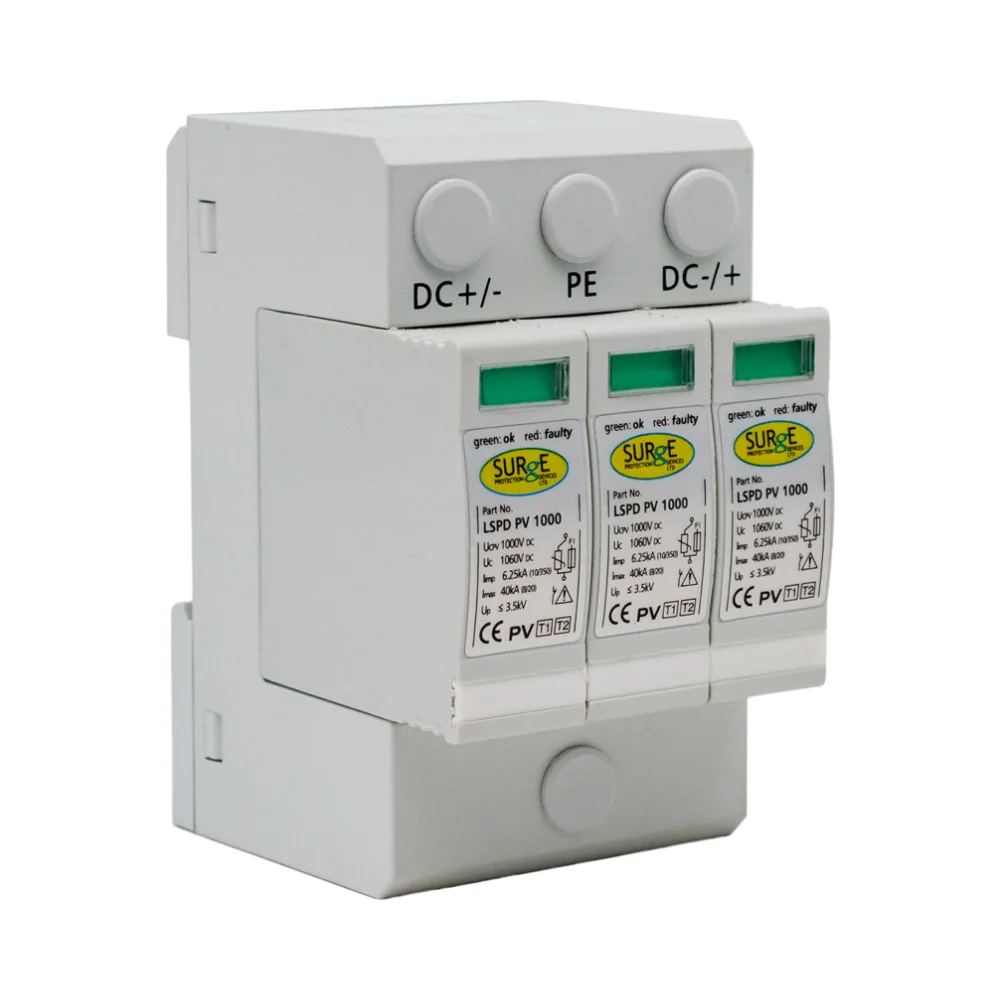

LSPDPV1000 – Type 1 SPD for Solar Panels – DC Surge Protection for 1000V PV Systems
High Voltage Type 1+2 DC SPD – DIN Rail Protection for Inverters & Solar Infrastructure
The LSPDPV1000 is a Type 1 and 2 SPD for Solars rated for 1000V DC photovoltaic systems. Designed for the DC side of solar arrays, it protects inverters and fixed installations from both lightning strikes and surge events. It features a pluggable design, status window, and integrated remote contact.
Key Features – LSPDPV1000 Type 1+2 PV SPD
- Rated for 1000V DC solar PV systems
- Type 1+2 protection – handles lightning and switching surges
- Compliant with BS EN 61643-31
- DIN rail mounted for clean installation
- Visual window indication for live status
- Pluggable replacement modules for fast servicing
- Remote signal contact standard (BMS/alarms)
- Recommended PE cable: min. 6mm²
Technical Overview – LSPDPV1000
- Model: LSPDPV1000
- Protection Type: Type 1+2
- Voltage: 1000V DC
- Application: DC side of PV systems (pre-inverter)
- Mounting: DIN rail
- Status Indication: Visual window
- Remote Output: Changeover contact (included)
What’s Included
- LSPDPV1000 SPD module (pluggable)
- Visual status window
- Remote output terminal
Why Choose This SPD?
With Type 1+2 SPD protection for solar panels and a 1000V rating, the LSPDPV1000 is ideal for lightning-prone sites or commercial solar systems. It provides visual and remote indication, long-term reliability, and full compliance for solar safety standards.
Guarantee & Compliance
- Manufactured in Europe
- Complies with BS EN 61643-31 & BS 7671
- Built for long-life solar infrastructure protection
Summary
The LSPDPV1000 is a pluggable, DIN-mounted Type 1 SPD for solar panels operating at 1000V DC. Ideal for systems with lightning protection requirements, it delivers full surge and lightning safety with field serviceability and monitoring features.
LSPDPV1000 – Type 1+2 SPD for 1000V Solar Panels
The LSPDPV1000 is a premium Type 1 SPD for solar panels with 1000V DC capacity. It protects against both lightning and surge events, with remote contact and a pluggable DIN rail format.
Need only Type 2 protection? Use SPDPV1000. For lower voltage arrays, choose LSPDPV600 or SPDPV600.
