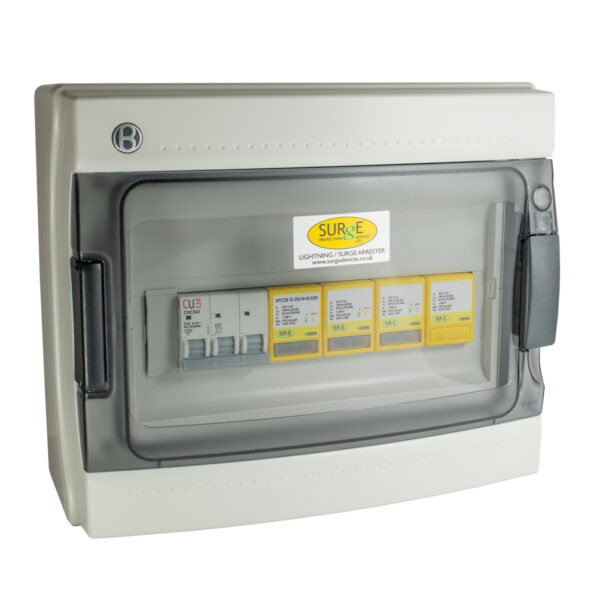

Surge Devices 10811/LEDENCM 3 Phase SPD Type 1+2+3 100kA with Full Mode Protection & LED Indication in IP65 Polycarbonate Enclosure

SKU: 10811/LEDENCM
Delivery usually within 1-3 working days*
Confirm Availability

Lightning protection Level 1, highest protection level 100kA, 10/350µs.

Enhanced protection to BSEN62305, BSEN61643-11 & BS7671.

Full mode protection, phase to earth, phase to neutral, phase to phase, neutral to earth.

Three way visual indication of status.

Complete in a polycarbonate enclosure with a 63A breaker.

£642.06 + VAT

(incl. VAT £770.47)

Description

Surge Devices 10811/LEDENCM 3 Phase SPD Type 1+2+3 100kA with Full Mode Protection & LED Indication in IP65 Polycarbonate Enclosure

The Surge Devices 3 Phase SPD Type 1+2+3 100kA provides the ultimate lightning and surge protection, featuring comprehensive full mode protection and convenient LED status indication. It is housed in a durable IP65 polycarbonate enclosure and includes a 63A MCB.

Key Features of Surge Devices 10811/LEDENCM 3 Phase SPD Type 1+2+3 100kA

  • Protection Levels: Type 1+2+3, capable of handling direct lightning strikes.
  • Performance:
    • Lightning Protection Level: 100kA, 10/350µs
    • Low Let Through Voltage: Less than 600V between all conductors
  • Compliance: Meets BSEN62305, BSEN61643-11, and BS7671 standards.
  • Full Mode Protection: Phase to earth, phase to neutral, phase to phase, and neutral to earth.
  • Status Indication: Three-way visual LED indication for easy monitoring.
  • Remote Monitoring: Changeover contacts link to BMS, buzzer, light, etc.
  • Safety Features:
    • Extinguishes follow currents after activation
    • Internal thermal disconnector
  • Mounting: DIN rail mountable for easy installation.
  • Enclosure: IP65 polycarbonate, providing robust environmental protection.
  • Included: 63A MCB
  • Installation:
    • Minimum Backup Fuse / MCB: 63A
    • Recommended Cable Size: 25mm²

This 3 Phase SPD Type 1+2+3 100kA offers enhanced protection and reliability for three-phase systems, making it an essential component for safeguarding your electrical installations.

Downloads

View Product Data Sheet

Additional information

Brand

Surge Devices

Features

With Enclosure

No of Poles

4P

Type of SPD

1, 2 & 3
