Description

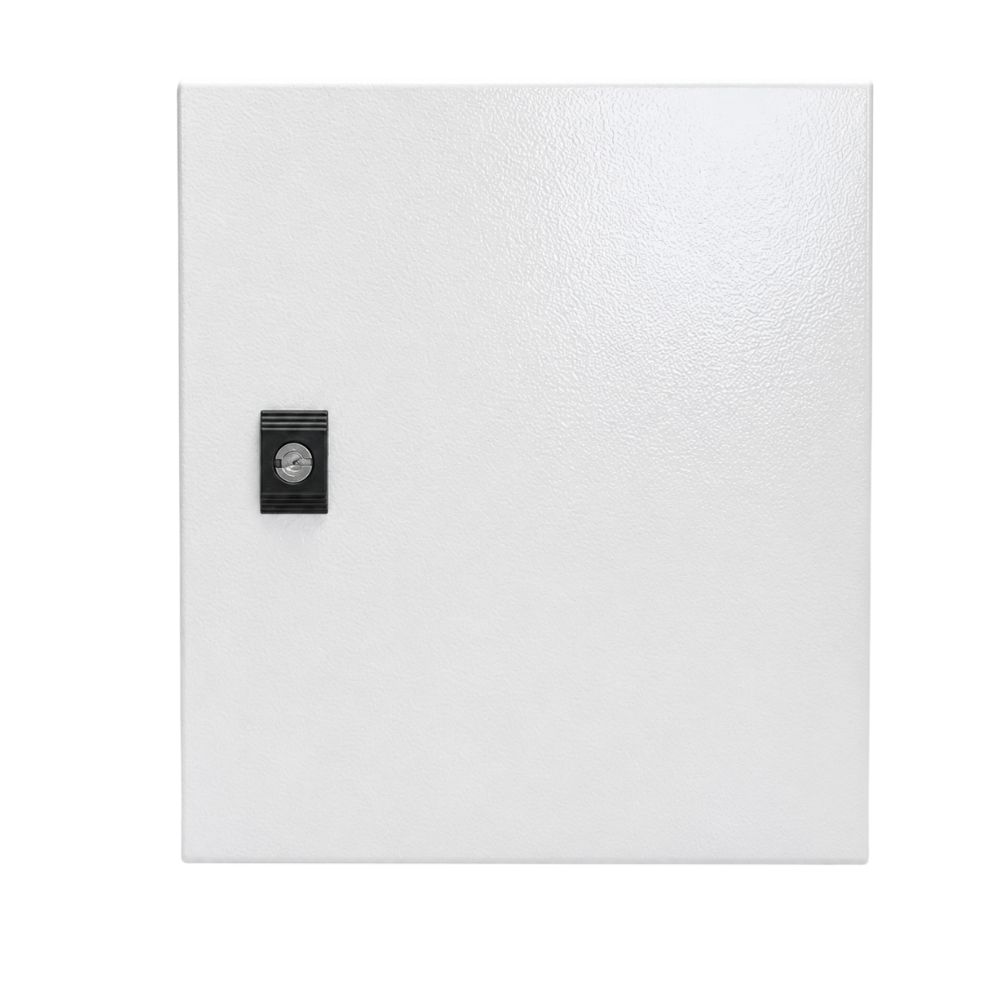

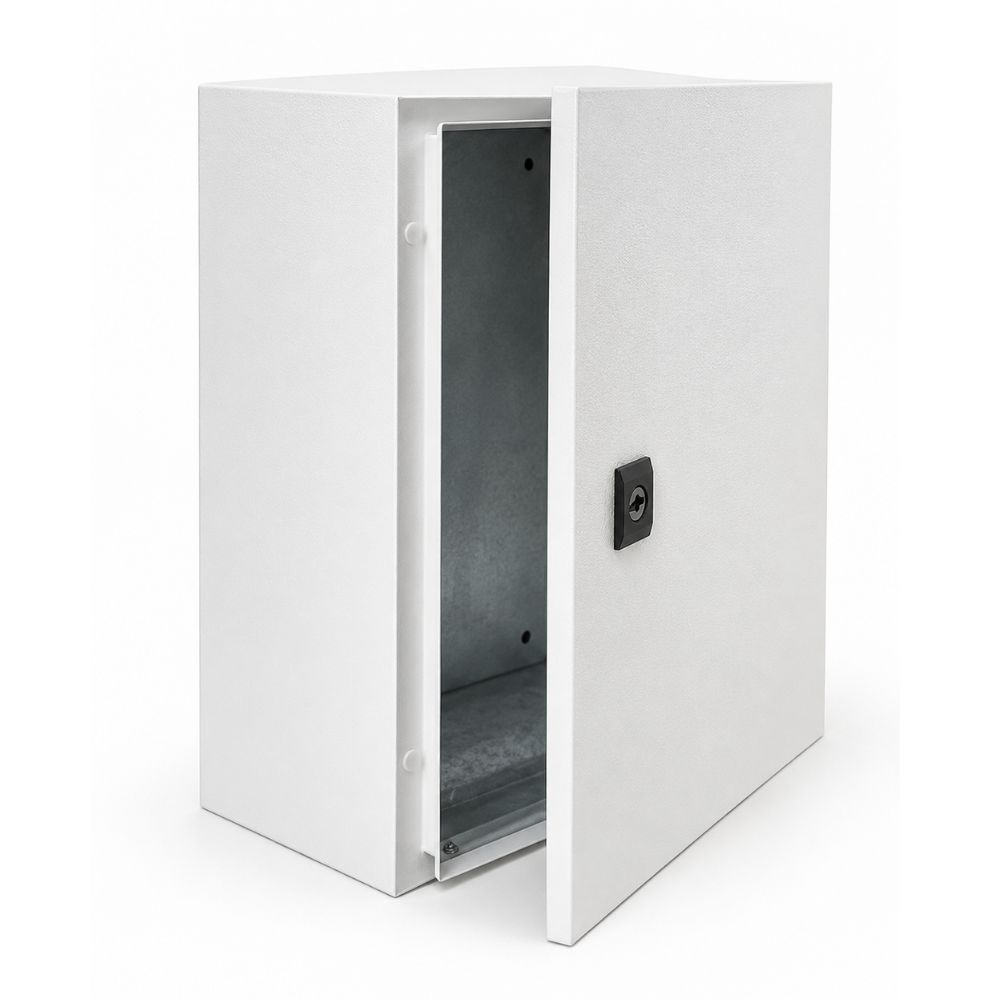

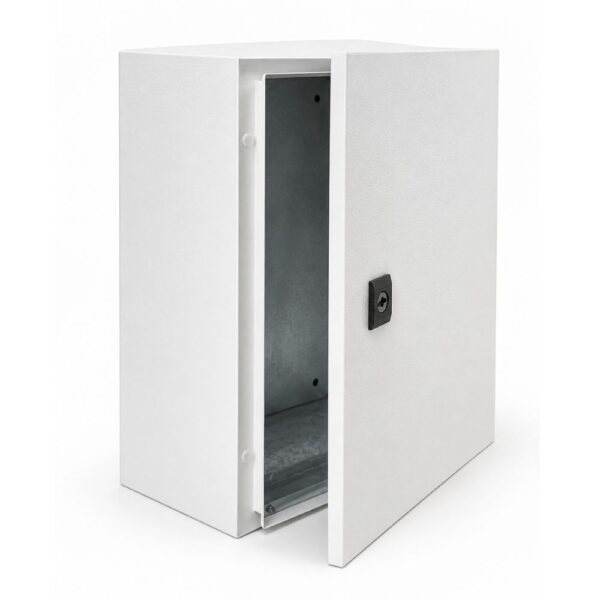

Deligo SBE403020 Epoxy Coated Steel Enclosure 400 x 300 x 200mm
Deligo SBE403020 epoxy coated steel enclosure is a durable IP65-rated steel enclosure designed for heavy-duty electrical installation work where strong protection, neat mounting and efficient fitting are required. Manufactured from 1.2mm thick steel and finished in RAL 7035, this enclosure is suitable for a wide range of demanding indoor applications.
The Deligo SBE403020 epoxy coated steel enclosure comes complete with earth studs, a galvanised backplate and a bottom gland plate, helping to reduce installation time and avoid the need to purchase these core components separately. When fully sealed, the enclosure is rated IP65, offering enhanced protection against dust and water ingress in suitable environments.
Please note: this enclosure is not recommended for outdoor use.
Key Features – Deligo SBE403020 Epoxy Coated Steel Enclosure
- Deligo SBE403020 epoxy coated steel enclosure for heavy-duty electrical applications
- Constructed from 1.2mm thick steel
- RAL 7035 grey finish
- IP65 rated when fully sealed
- Supplied with earth studs for improved safety and bonding
- Includes galvanised backplate for faster installation
- Bottom gland plate included
- Consistent performance across the Deligo SBE enclosure range
- Flexible mounting and installation options
- Cost-efficient design with key installation components included
Technical Specifications – Deligo SBE403020 Epoxy Coated Steel Enclosure
| Brand | Deligo |
| SKU | SBE403020 |
| Product Type | Epoxy Coated Steel Enclosure |
| Height | 400mm |
| Width | 300mm |
| Depth | 200mm |
| Steel Thickness | 1.2mm |
| Finish | RAL 7035 |
| IP Rating | IP65 when fully sealed |
| Fixing Hole Centres | 358 x 258mm |
| Internal Depth from Mounting Plate | 188mm |
| Gland Plate Size | 89mm |
| Mounting Plate Size | 218mm |
| Number of Locks | 1 |
| Number of Gland Plates | 1 |

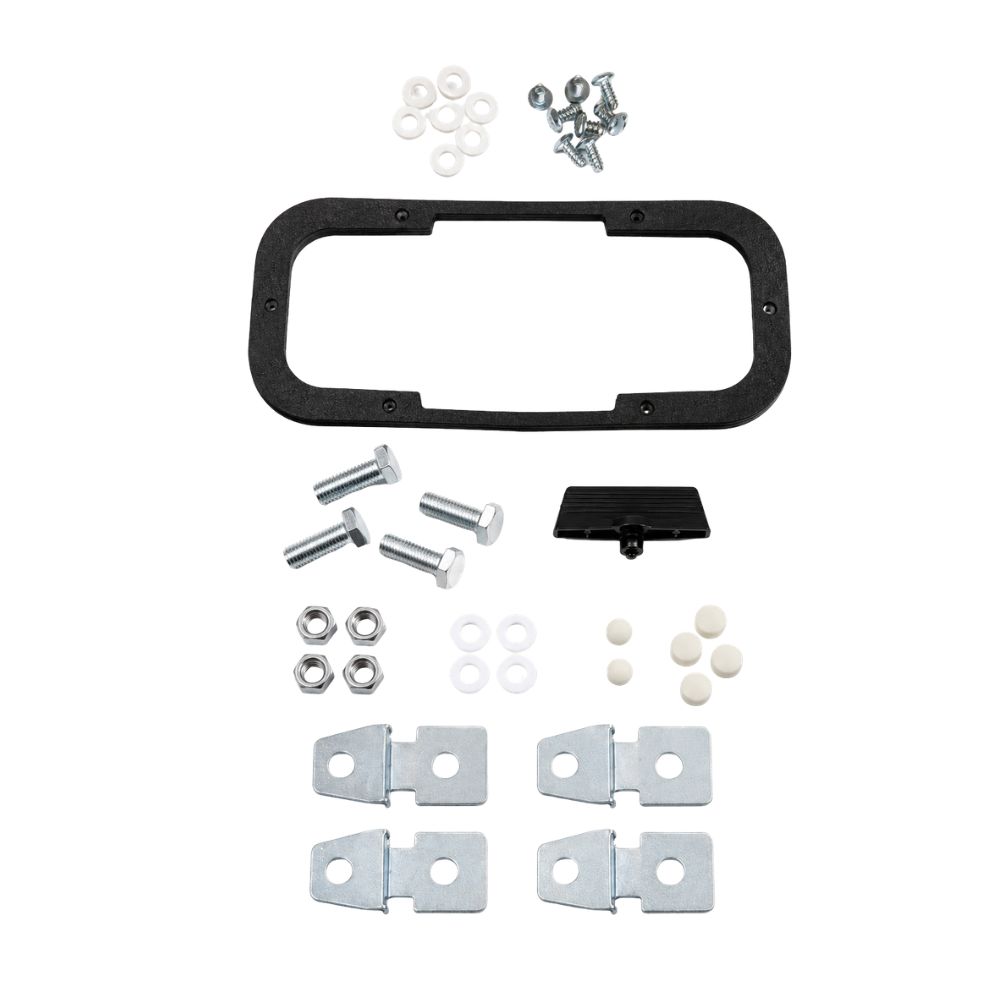

Included with the Deligo SBE403020 Epoxy Coated Steel Enclosure
- Earth cable fitted
- Standard key and lock fitted
- Mounting brackets x 4
- Screws and plugs

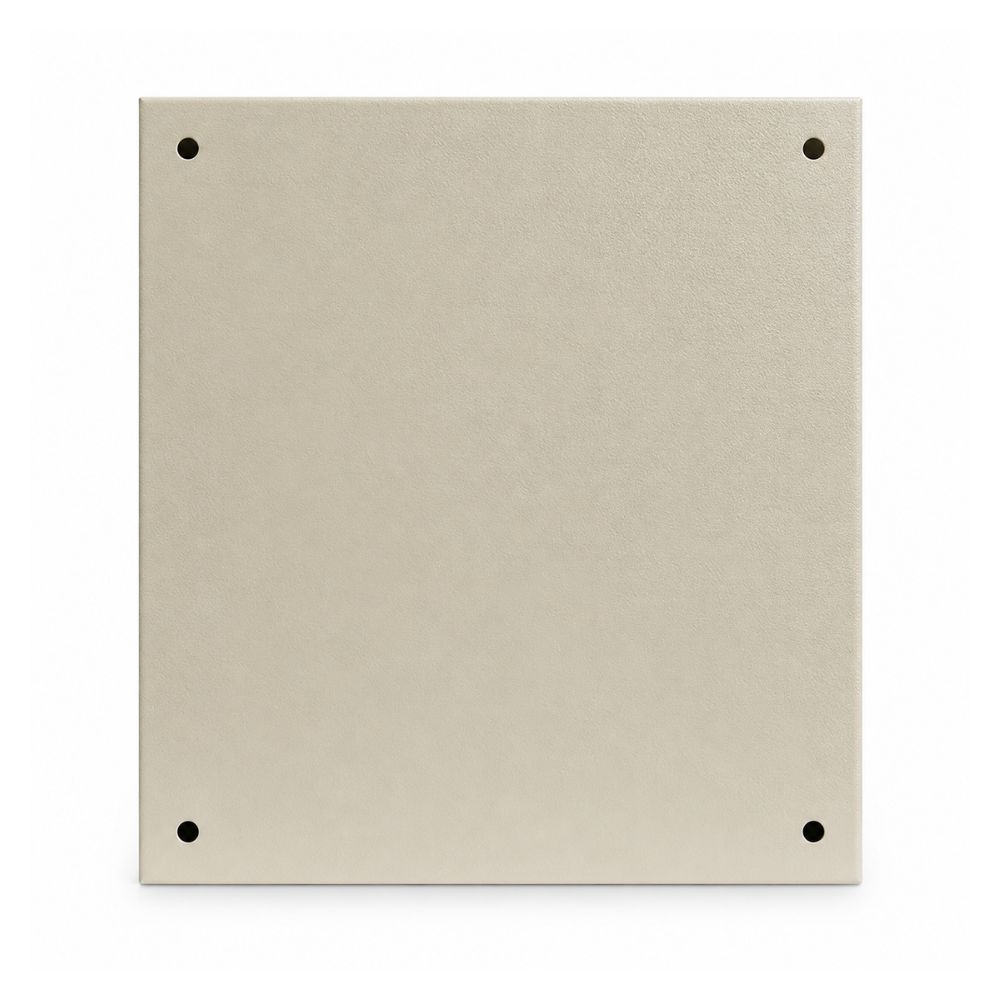

- Galvanised backplate
- Bottom gland plate
Applications
The Deligo SBE403020 epoxy coated steel enclosure is suitable for indoor electrical and control applications where a robust steel enclosure is required. Its integrated backplate, earth connection points and gland plate make it a practical choice for installers who need reliable protection, faster fitting and reduced additional component costs.
Why Choose This Deligo Steel Enclosure?
The Deligo SBE403020 epoxy coated steel enclosure offers a strong balance of protection, installation efficiency and value. The included backplate, earth studs and gland plate help save time on site, while the IP65 sealed rating provides dependable protection when installed correctly in a suitable indoor environment.
