Securiflex Outdoor Cat6 UTP Cable 100m Black
The Securiflex Outdoor Cat6 UTP Cable 100m Black is a solid copper Category 6 network cable designed for external data, LAN and telecommunications installations. Supplied as a 100m reel, the SFX/C6-UTP-PE-BLK-100 features a durable black UV-resistant polyethylene (PE) outer jacket for outdoor use above ground or below ground when installed inside suitable ducting.
Offering performance up to 250MHz and data transfer speeds of up to 1000Mbps at a maximum distance of 90 metres, this 4-pair unscreened Cat6 cable provides a dependable solution for professional network installations. It is also HDBaseT certified for compatible data and AV applications.
Solid Copper Outdoor Cat6 Cable
Unlike stranded patch cable, the Securiflex Outdoor Cat6 UTP Cable 100m Black uses solid bare copper conductors. Each conductor has a nominal diameter of 0.53mm, providing a robust permanent cabling solution for structured network installations.

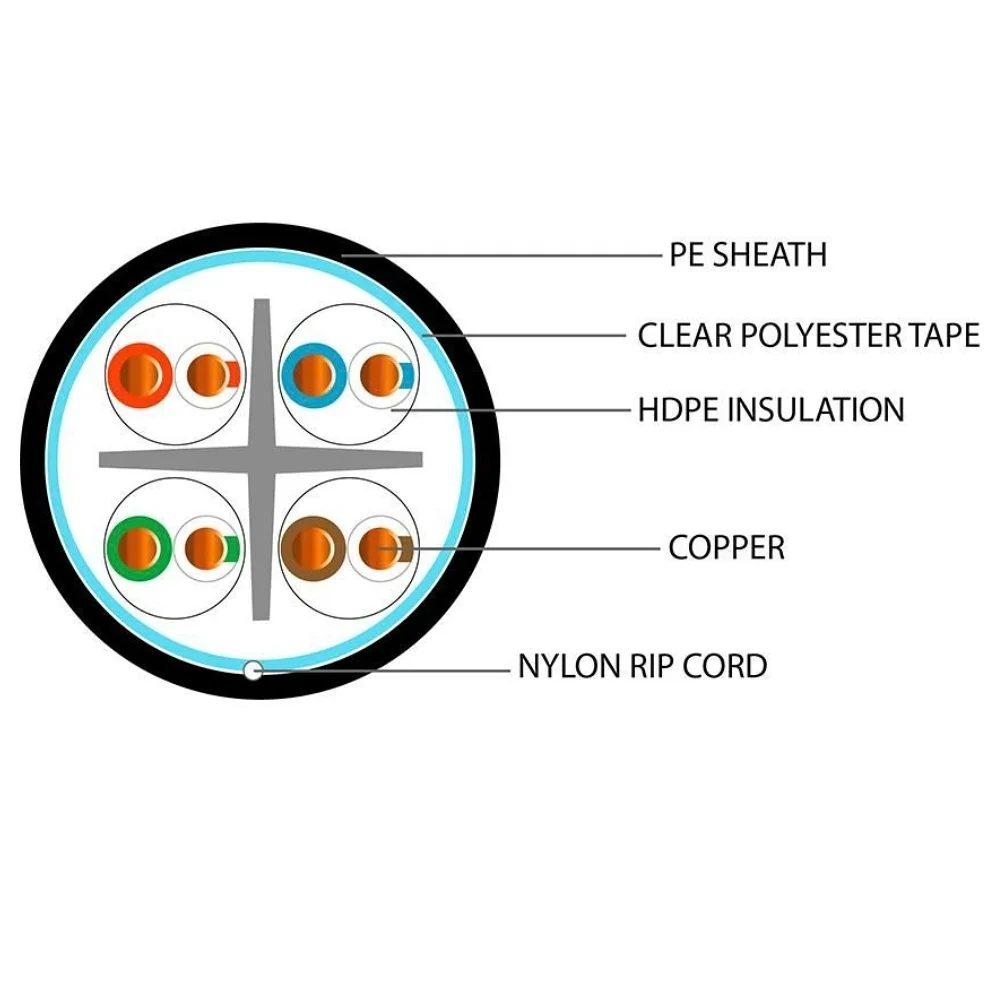

The four twisted pairs are insulated with HDPE and protected by a black PE outer sheath. The UV-resistant construction makes the cable particularly suitable for outdoor runs where standard indoor PVC network cable would not be appropriate.
Key Features
- Category 6 4-pair UTP network cable
- 100m reel
- Solid bare copper conductors
- 0.53mm conductor diameter
- 250MHz frequency performance
- Up to 1000Mbps data transfer speed at a maximum distance of 90m
- HDBaseT certified
- Black UV-resistant PE outer jacket
- Suitable for external above-ground installations
- Suitable for below-ground installation when protected inside ducting
- HDPE conductor insulation
- Nylon rip cord for easier jacket stripping
- CPR classification: Fca
Technical Specification
| Brand | Securiflex |
| Product Code | SFX/C6-UTP-PE-BLK-100 |
| Cable Category | Cat6 |
| Construction | 4 Pair UTP |
| Screening | Unscreened |
| Conductor | Solid Bare Copper |
| Conductor Diameter | 0.53 ±0.01mm |
| Frequency | 250MHz |
| Data Performance | Up to 1000Mbps at maximum 90m |
| Outer Jacket | PE, UV Resistant |
| Colour | Black RAL 9005 |
| Overall Diameter | 6.10 ±0.03mm |
| Jacket Thickness | 0.55 ±0.03mm |
| Insulation | HDPE |
| CPR Classification | Fca |
| Operating Temperature | -20°C to +80°C |
| Certification | HDBaseT Certified |
| Length | 100m |
Outdoor Network Installations
This outdoor Cat6 cable is designed for network installations where additional protection against UV exposure and external environmental conditions is required. The PE jacket makes it suitable for routing externally between buildings, along outdoor containment or below ground inside suitable cable ducting.
The Securiflex Outdoor Cat6 UTP Cable 100m Black combines solid copper construction, Cat6 network performance and an outdoor-rated UV-resistant jacket in a practical 100m reel for professional installations.
