Saxby | 61653 | Luik CCT Emergency LED Gear Tray | 9W/14W/18W | 3 Hour

SKU: 61653
Available to Order
Estimated Lead Time:
Usually 1 - 2 Working Days
Read More

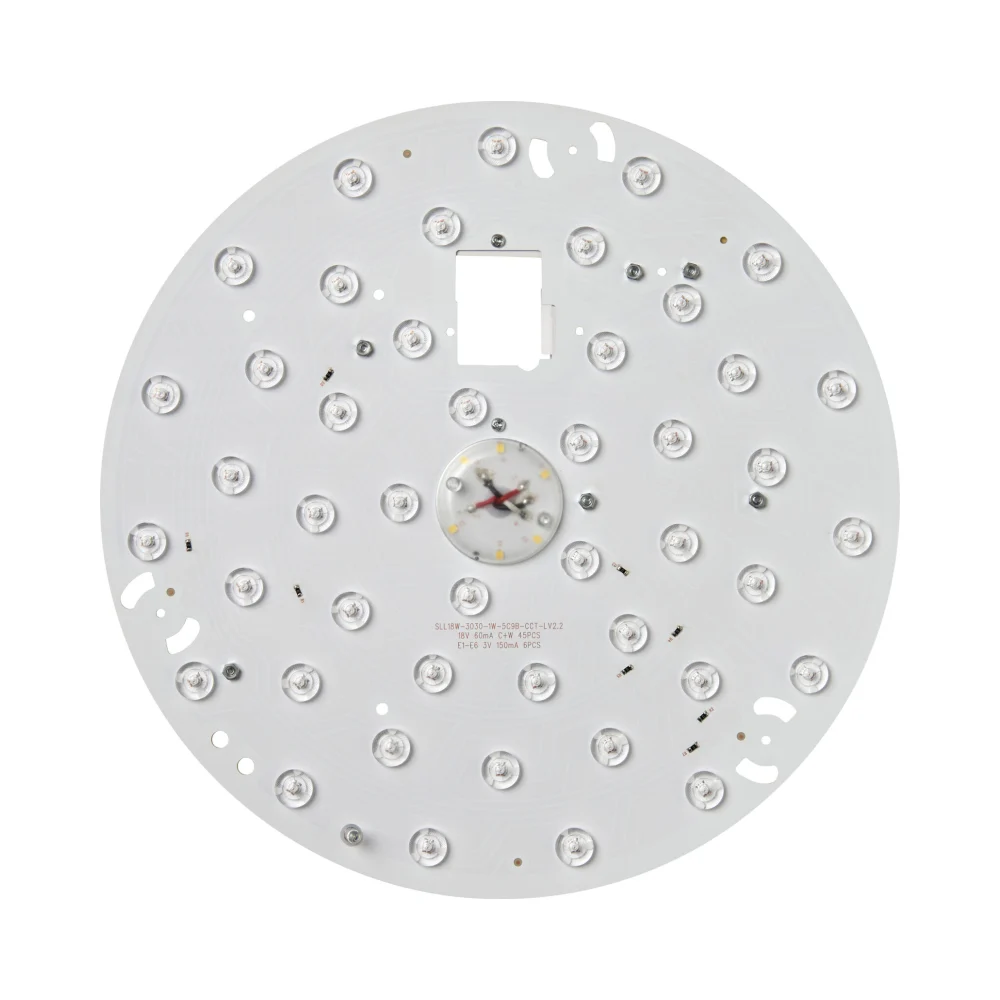

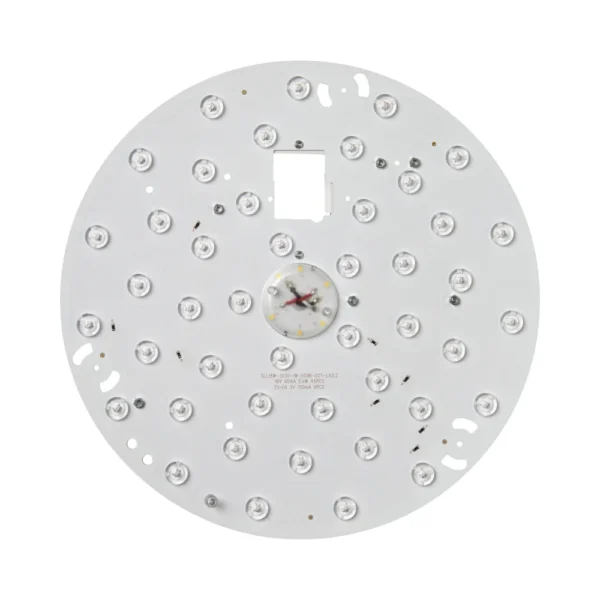

The Saxby Luik CCT Emergency Gear Tray 61653 is a slimline LED replacement gear tray for compatible Luik bulkhead casings. Featuring selectable 9W, 14W or 18W output, adjustable 3000K, 4000K or 6000K colour temperature and 3-hour emergency operation, it supports maintained, non-maintained and switched-maintained configurations. Supplied with an LED driver and LiFePO4 emergency battery. Bulkhead casing sold separately.

Saxby Luik Emergency Gear Tray EM 18W – 61653

The Saxby Luik emergency gear tray EM 18W (61653) is a slimline, colour-selectable LED emergency module designed for use with the Saxby Luik bulkhead range. Offering selectable 9W, 14W and 18W power settings and a built-in 3-hour emergency lighting system, this gear tray provides a practical solution for new installations and replacement of compatible Luik lighting components.

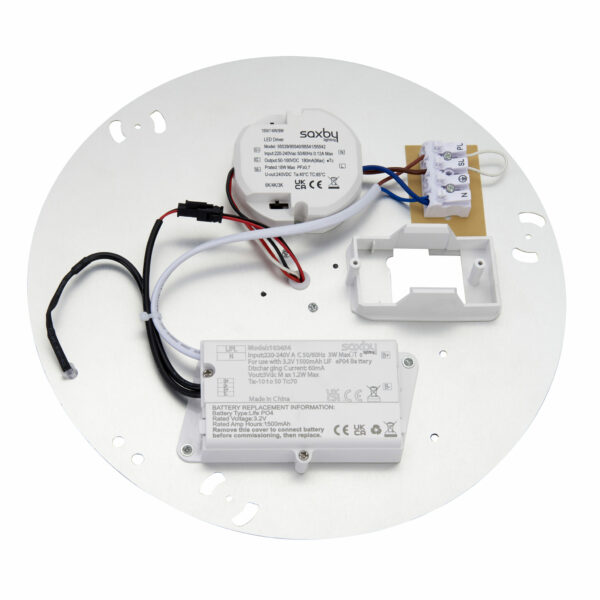

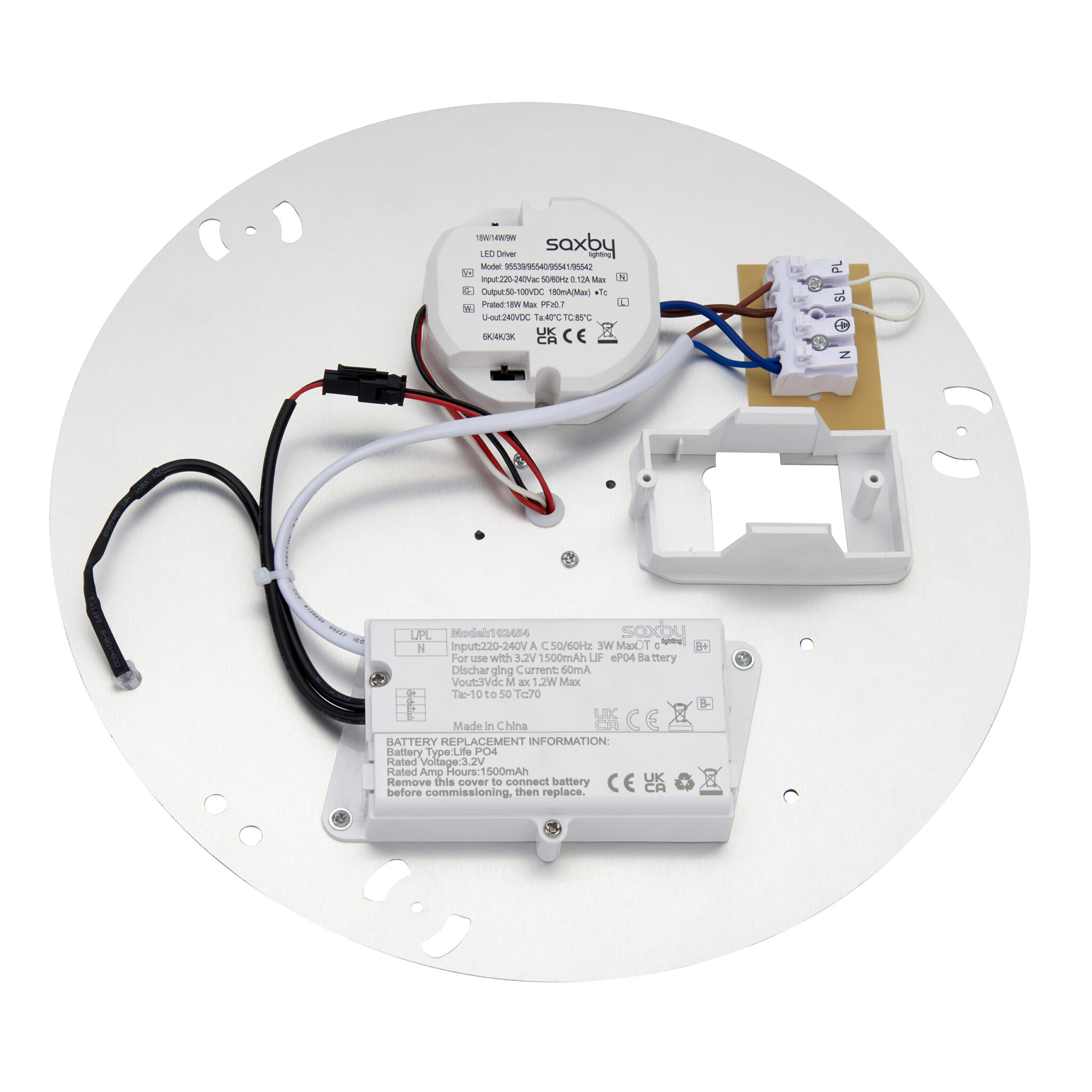

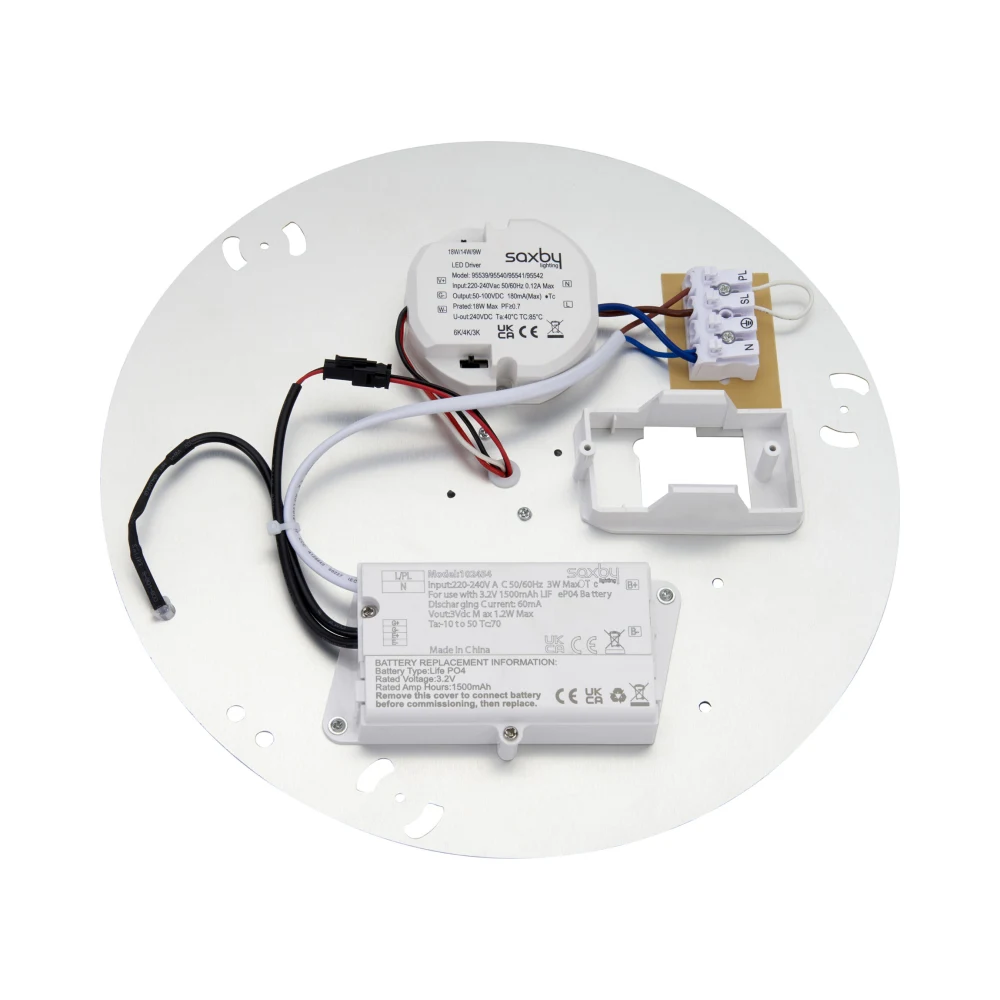

Unlike older fixed-output specifications, the 61653 features adjustable colour temperature settings of 3000K, 4000K and 6000K, allowing installers to select the required lighting appearance before installation. The unit includes an LED driver, rechargeable emergency battery and fast-fix connection terminal.

Key Features and Benefits

  • 3-hour emergency operation: Provides emergency illumination for up to 180 minutes following mains power failure.
  • Selectable wattage: Choose between 9W, 14W and 18W to suit the installation.
  • Three colour temperatures: Select 3000K warm white, 4000K cool white or 6000K daylight.
  • Flexible emergency wiring: Supports maintained, non-maintained and switched-maintained configurations.
  • LiFePO4 battery: Integrated 3.2V 1500mAh rechargeable emergency battery.
  • Slimline design: 282mm diameter with a 28.5mm profile.

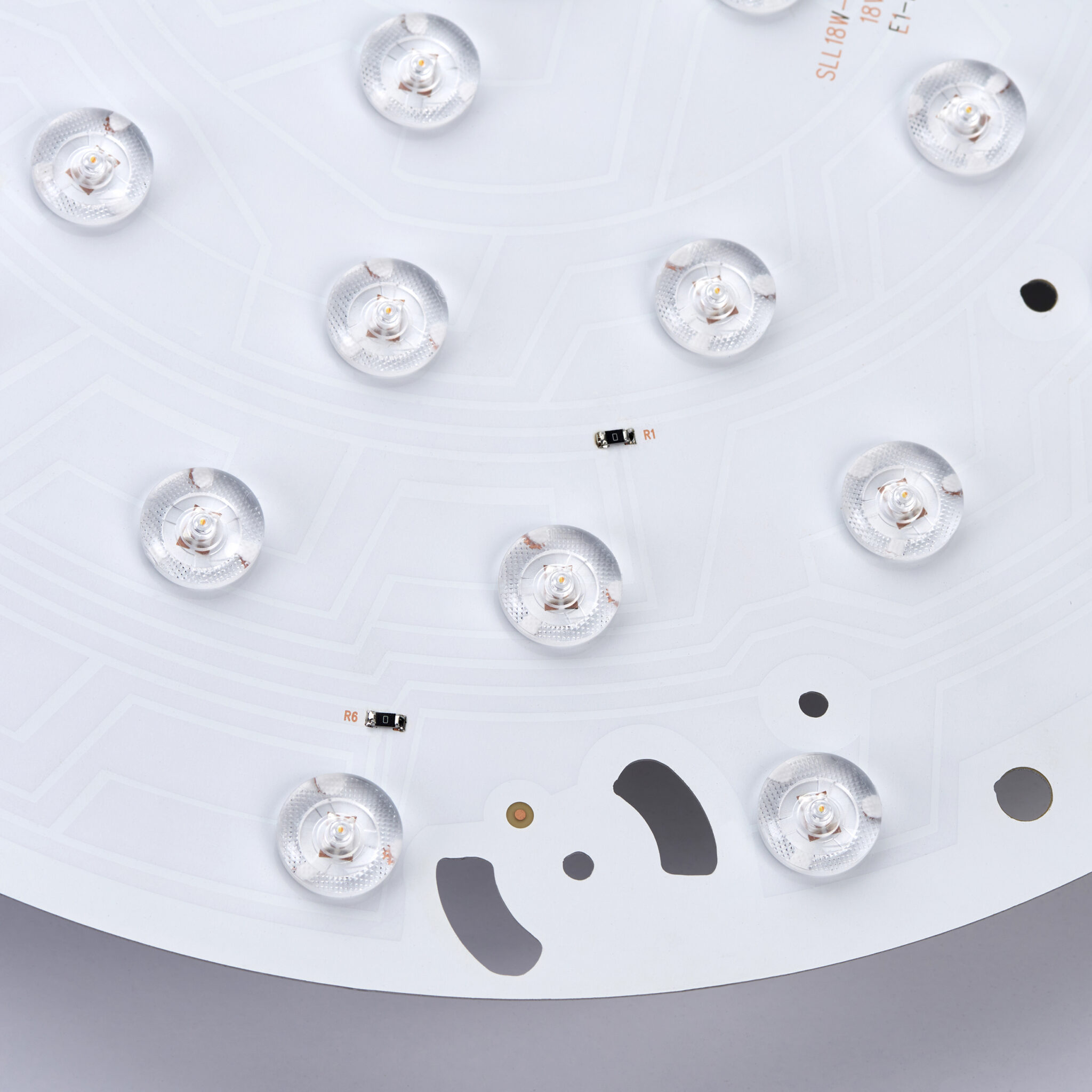

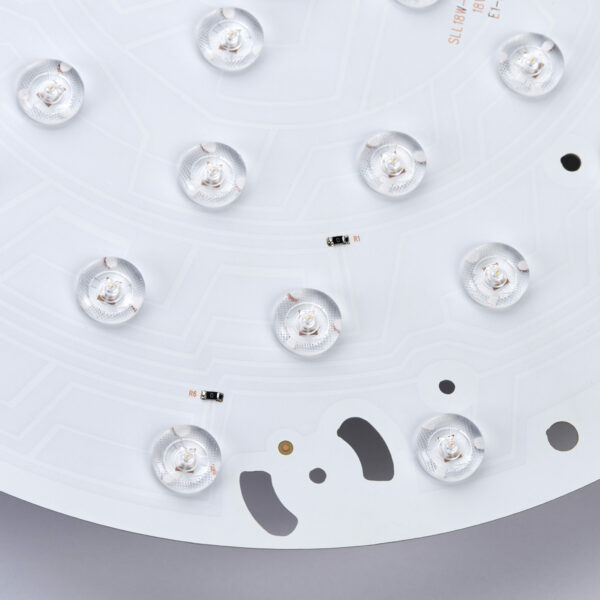

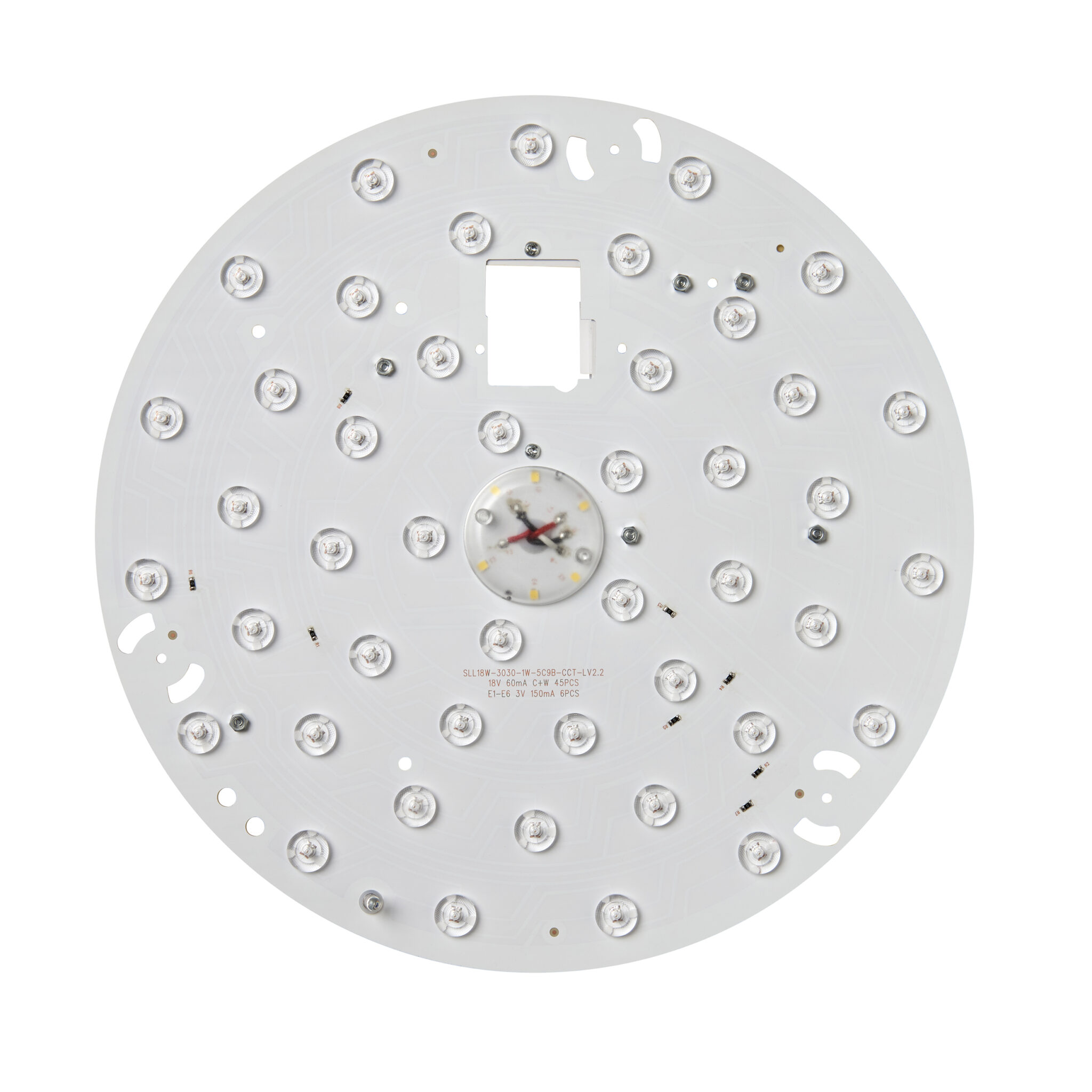

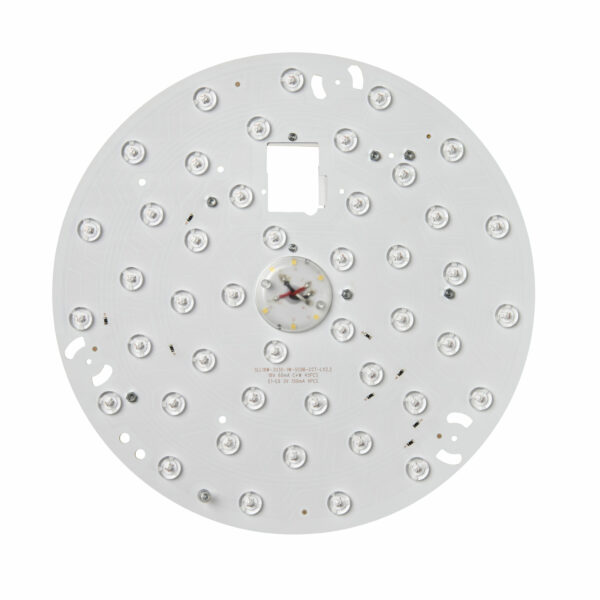

  • 120° beam angle: Wide light distribution for compatible bulkhead assemblies.
  • Long service life: Manufacturer-rated LED lifetime of 50,000 hours.
  • Non-dimmable: Designed for standard on/off lighting control.
  • Manufacturer warranty: 5-year extended warranty (2 + 3 years), subject to Saxby terms.

Selectable 9W, 14W and 18W LED Output

The Saxby 61653 Luik emergency gear tray offers three selectable power settings, giving installers flexibility when configuring the lighting installation.

  • 9W – Lower power setting
  • 14W – Intermediate power setting
  • 18W – Maximum selectable power setting

The manufacturer’s datasheet lists a lumen output of 2500lm and an efficacy of 138lm/W. These figures are manufacturer-stated values and should not be interpreted as applying identically to every selectable power and colour temperature setting.

Adjustable CCT – Warm White, Cool White and Daylight

The integrated CCT switch allows the colour temperature to be selected before fitting the gear tray into the bulkhead casing.

  • 3000K Warm White: A warmer lighting appearance for suitable internal environments.
  • 4000K Cool White: Neutral white illumination for corridors, communal areas and general circulation spaces.
  • 6000K Daylight: A cooler white appearance for installations requiring this colour temperature.

Wattage and CCT selections must be made with the electrical supply isolated, following the manufacturer’s installation instructions.

3-Hour Emergency Lighting with LiFePO4 Battery

The Luik 61653 incorporates a rechargeable LiFePO4 emergency battery designed to provide up to 3 hours of emergency lighting following interruption of the normal mains supply.

The manufacturer’s emergency output figures depend on the compatible casing selected:

  • Plain casing – 220lm emergency output
  • Eyelid casing – 158lm emergency output
  • Grill casing – 196lm emergency output

The emergency system operates at a stated 2W output. The fitting includes a green battery charging indicator and requires an initial charging period of at least 24 hours.

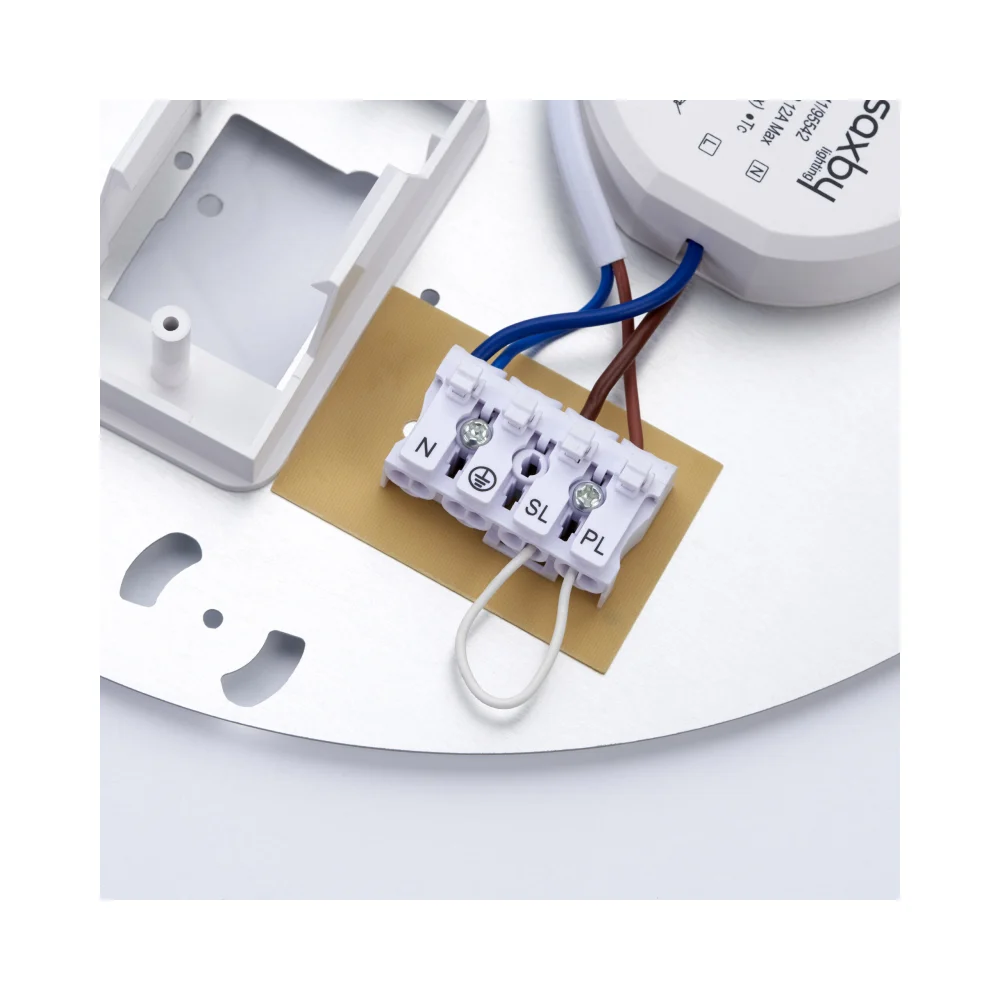

Maintained, Non-Maintained and Switched-Maintained Operation

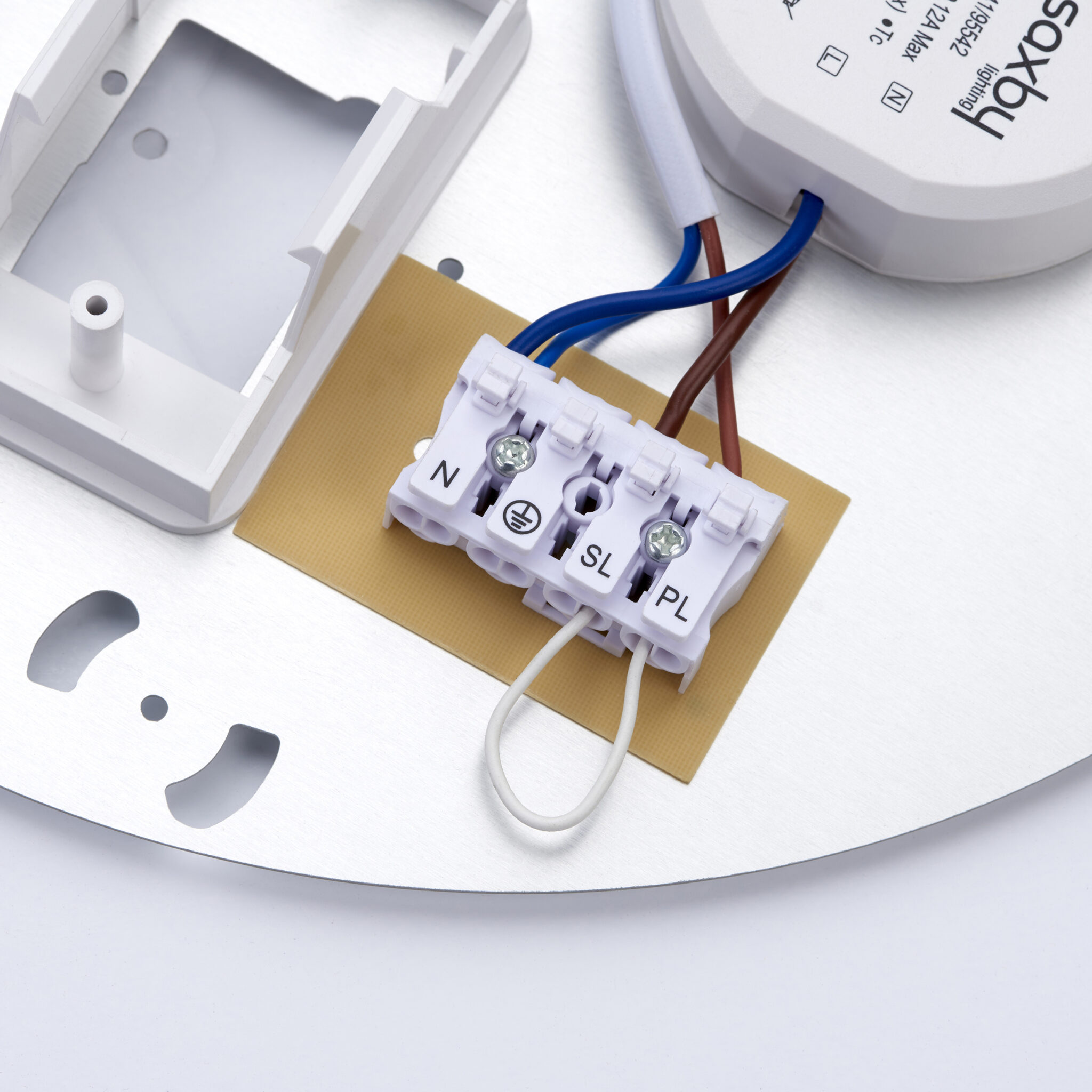

The Saxby 61653 can be configured for different emergency lighting operating arrangements using the manufacturer’s specified terminal connections.

  • Maintained: The LED lighting operates during normal supply conditions and provides emergency illumination when mains power is interrupted.
  • Non-maintained: Emergency lighting operates when the normal mains supply fails.
  • Switched-maintained: The normal lighting can be controlled using a switched live while a permanent supply maintains the emergency battery charging circuit.

All wiring arrangements must follow the Saxby installation manual and applicable electrical installation requirements.

Compatible Saxby Luik Bulkhead Casings

This product is supplied as an emergency LED gear tray, not a complete bulkhead fitting. The gear tray is designed for use with the compatible Saxby Luik casing range.

  • Plain: 61646 Black, 61647 Grey, 69231 White
  • Eyelid: 61648 Black, 61649 Grey, 69232 White
  • Grill: 61650 Black, 61651 Grey, 69233 White

Important: The bulkhead casing, diffuser and decorative bezel are not included. A compatible casing must be purchased separately to complete the fitting.

Other Saxby Luik Gear Tray Options

The Luik range also includes alternative gear trays for installations where emergency lighting or automatic microwave switching is not required.

  • 61652: Standard LED gear tray without emergency lighting or microwave sensor.
  • 61653: Emergency LED gear tray without microwave sensor.
  • 72180: Microwave sensor LED gear tray.
  • 72181: Combined microwave sensor and emergency LED gear tray.

Check the required switching and emergency lighting functions before selecting the appropriate gear tray.

Technical Specifications – Saxby 61653

Manufacturer Saxby Lighting
Product Code 61653
Product Range Luik Slimline
Product Type CCT Emergency LED Gear Tray
Selectable Wattage 9W / 14W / 18W
Colour Temperature 3000K / 4000K / 6000K
Manufacturer-Stated Light Output 2500lm
Beam Angle 120°
CRI >80
Dimmable No
Emergency Duration 3 Hours / 180 Minutes
Emergency Power 2W
Emergency Output – Plain Casing 220lm
Emergency Output – Eyelid Casing 158lm
Emergency Output – Grill Casing 196lm
Battery LiFePO4 3.2V 1500mAh
Initial Battery Charging Time 24 Hours
Voltage 220–240V AC
Frequency 50/60Hz
Power Factor >0.7
LED Driver Constant Current 180mA
LED Lifetime 50,000 Hours
Energy Class D
IP Rating IP20 (Gear Tray)
Electrical Class Class I
Diameter 282mm
Depth 28.5mm
Weight 0.4kg
Microwave Sensor No
Casing Included No

Installation and Emergency Testing

The Saxby Luik emergency gear tray must be installed by a competent electrician in accordance with the manufacturer’s instructions and applicable UK wiring requirements.

Allow at least 24 hours for initial battery charging before emergency operation testing. The manufacturer’s instructions specify regular battery charging checks and six-monthly emergency duration checks.

The emergency battery operating temperature range is 0°C to 45°C. Suitability for a particular emergency lighting installation should be assessed as part of the lighting design and applicable testing requirements.

Frequently Asked Questions

Is the Saxby Luik emergency gear tray EM 18W adjustable?

Yes. Saxby 61653 supports selectable 9W, 14W and 18W power settings, together with 3000K, 4000K and 6000K colour temperature options.

Does Saxby 61653 include the white bulkhead casing?

No. The 61653 is an emergency gear tray only. Compatible black, grey and white Luik bulkhead casings are available separately.

How long does the emergency battery last?

The built-in LiFePO4 battery provides a rated emergency lighting duration of 3 hours when correctly charged, installed and maintained.

Can the 61653 be used as non-maintained emergency lighting?

Yes. The unit supports non-maintained, maintained and switched-maintained wiring configurations as detailed in the Saxby installation manual.

Does the Saxby 61653 include a microwave motion sensor?

No. This is the emergency-only model. The Saxby 72181 provides combined microwave sensor and emergency operation.

Is the Saxby Luik 61653 dimmable?

No. The LED driver is non-dimmable, although the maximum wattage can be selected during installation.
