Saxby | 77916 | Lucca Mini Photocell IP65 15W Wall Light | Black

SKU: 77916
Available to Order
Estimated Lead Time:
Usually 1 - 2 Working Days
Read More

The Saxby 77916 Lucca Mini Photocell IP65 15W Wall Light delivers 1500 lumens of 4000K cool white illumination with built-in dusk-to-dawn photocell control. Featuring a black polycarbonate housing, IK08 impact resistance, a 120° beam angle and an integrated LED driver, this compact exterior bulkhead is suitable for building entrances, external walkways and commercial wall lighting.

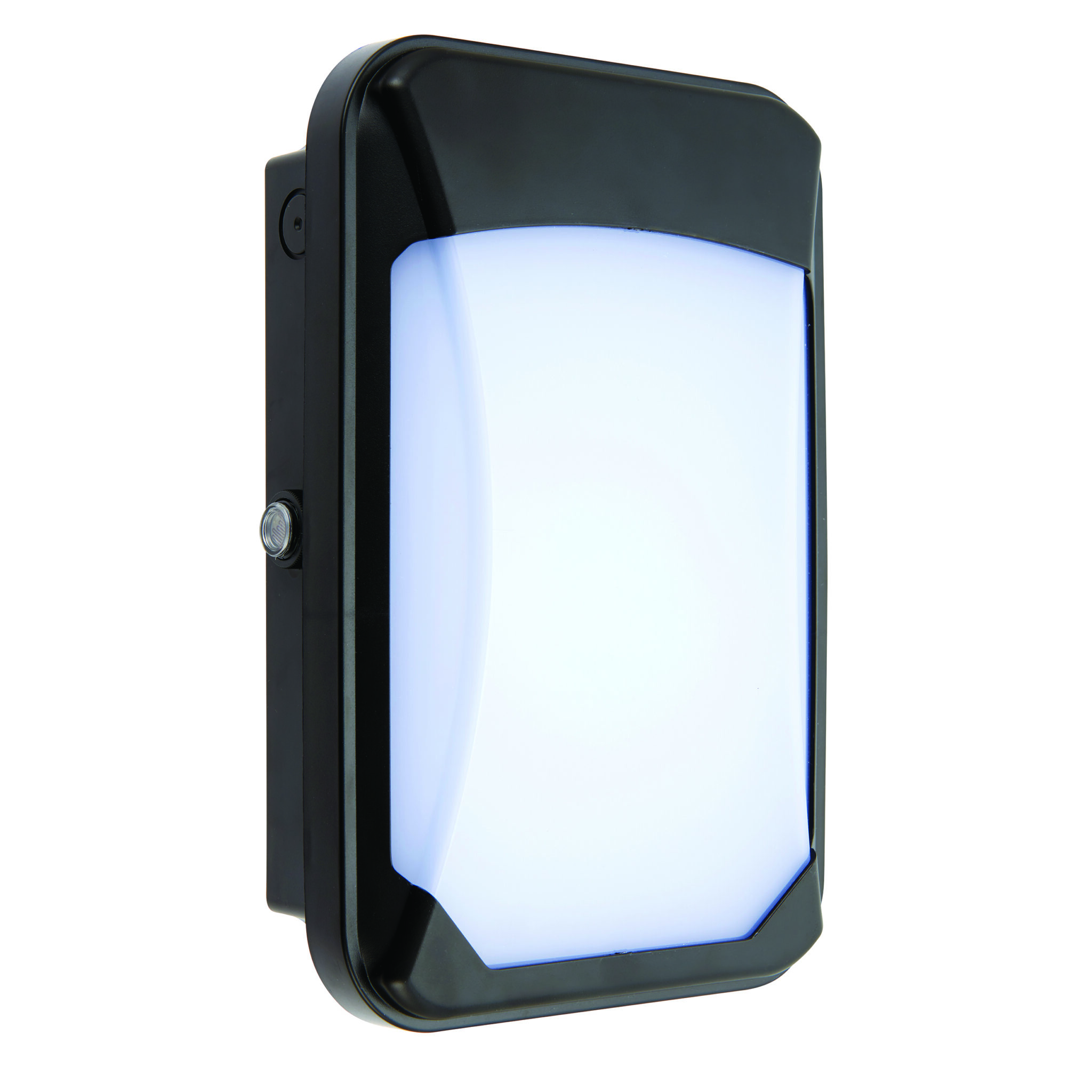

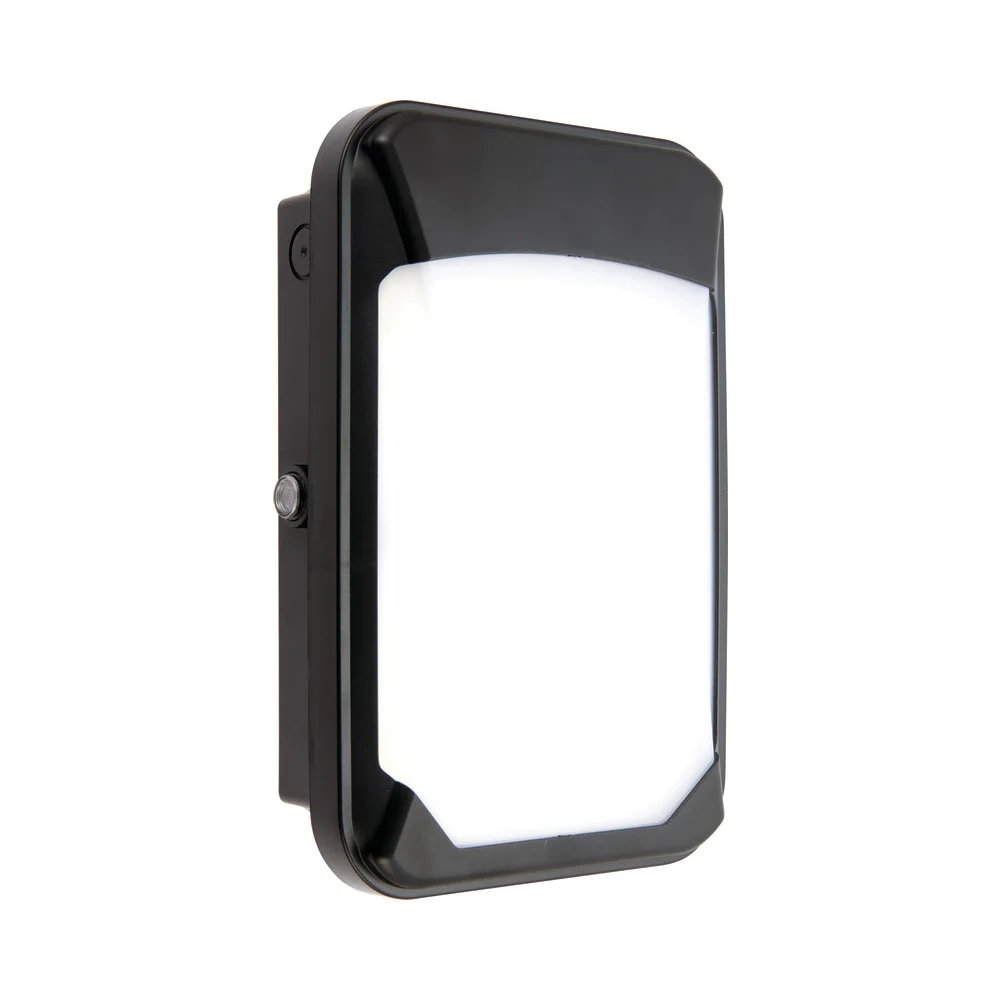

Saxby 77916 Lucca Mini Photocell IP65 15W Wall Light

Compact Outdoor LED Bulkhead with Automatic Photocell Control

The Saxby 77916 Lucca Mini Photocell IP65 15W Wall Light is a compact exterior LED bulkhead designed for automatic lighting around building entrances, communal walkways, garages and commercial premises. Featuring a built-in photocell, the fitting responds to ambient daylight levels to provide convenient dusk-to-dawn illumination without manual switching.

Delivering 1500 lumens of 4000K cool white light from its 15W integrated LED module, the Lucca Mini combines efficient performance with durable black polycarbonate construction. Its IP65 ingress protection, IK08 impact resistance and slim 73mm projection make it a practical choice for exposed wall-mounted applications.

Key Features and Benefits

  • Built-in photocell: Automatically controls lighting according to ambient daylight levels.
  • 15W integrated LED: Provides 1500 lumens of cool white illumination.
  • 4000K colour temperature: Suitable for outdoor access and general security lighting.
  • 100lm/W efficacy: Efficient LED performance for exterior installations.
  • IP65 protection: Dust-tight housing with protection against water jets.
  • IK08 impact resistance: Durable construction for everyday commercial use.
  • 120° beam angle: Wide distribution for entrances and circulation areas.
  • Black polycarbonate housing: Robust, compact exterior wall pack design.
  • Integrated LED driver: Supplied complete with the LED module and driver.
  • Class II: Double-insulated electrical construction.
  • Compact profile: Projects just 73mm from the mounting surface.

How Does the Lucca Mini Photocell Work?

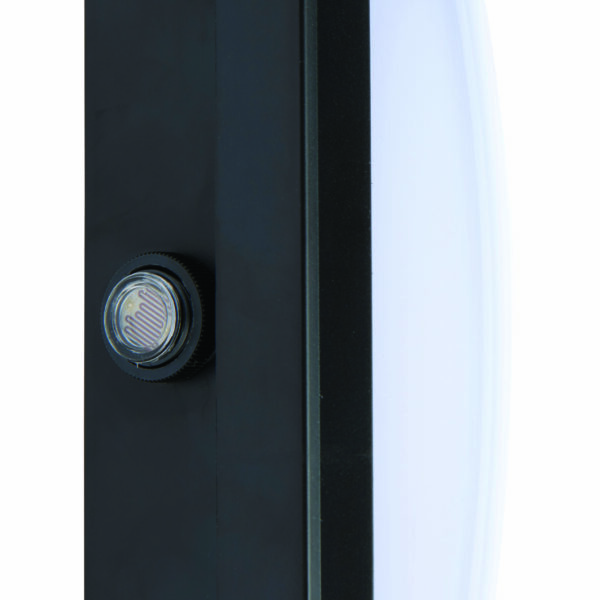

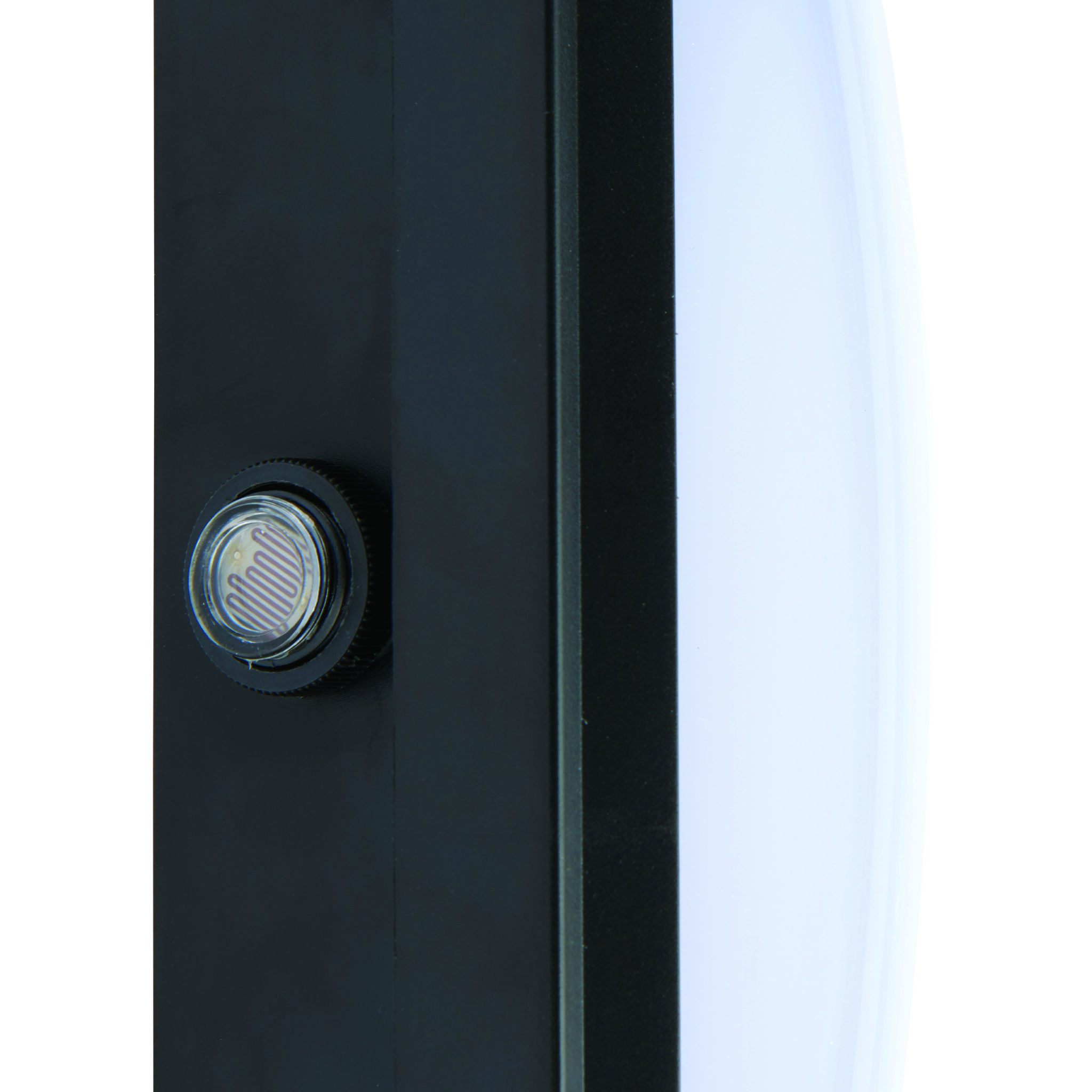

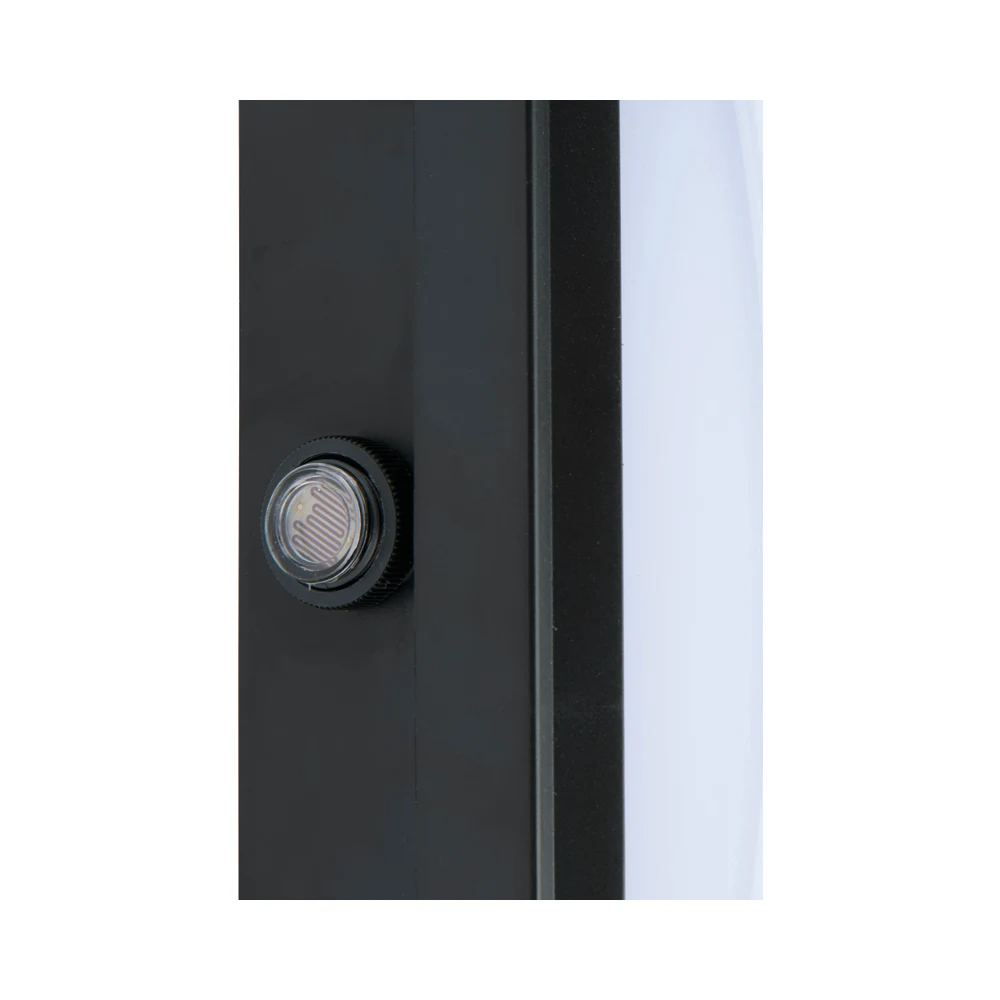

The integrated photocell monitors natural daylight levels and controls the LED fitting automatically. When ambient illumination falls below the selected switching threshold, the light switches on. When daylight increases sufficiently, the fitting switches off.

The photocell provides light-level-based control rather than movement detection, making it particularly suitable for locations where illumination is required throughout darker periods.

Saxby’s current product specifications list selectable photocell on/off thresholds, including 5/25 lux, 10/50 lux, 25/75 lux, 50/100 lux, 100/200 lux, 150/300 lux and 200/400 lux, together with a disable setting. Confirm the available settings against the instructions supplied with the fitting.

IP65 and IK08 Protection for Outdoor Lighting

The Lucca Mini is constructed from black polycarbonate and designed for environments where weather resistance and durability are important.

Its IP65 rating provides protection against dust ingress and water jets, while the IK08 impact rating offers resistance to mechanical impact. The fitting should be mounted and sealed according to Saxby’s installation instructions to maintain the specified protection.

Typical Applications

  • Commercial building entrances and exits
  • Apartment blocks and communal access areas
  • Outdoor walkways and external corridors
  • Garage entrances and service areas
  • External walls and residential access routes
  • Security and general exterior lighting

Technical Specifications

Manufacturer Saxby Lighting
Product range Lucca Mini
Product code 77916
Product type LED wall pack with integrated photocell
Power 15W
Luminous flux 1500lm
Colour temperature 4000K Cool White
Luminous efficacy 100lm/W
Beam angle 120°
Light source Integrated SMD 2835 LED module
Photocell Built-in daylight sensor
IP rating IP65
Impact rating IK08
Electrical class Class II – Double Insulated
Operating voltage 220–240V AC
Material Polycarbonate
Finish Black
Driver Included
Dimmable No
Height 275mm
Width 185mm
Projection 73mm
GTIN / EAN 5017588779162

Photocell LED Bulkheads and Related Lighting

Explore our Photocell LED Bulkheads category for more outdoor bulkhead lights offering automatic daylight-controlled operation.

For additional Saxby lighting options, including standard bulkheads, emergency fittings and movement sensor models, browse our Saxby LED Bulkheads range.

Alternatively, discover the full LED Bulkheads collection for commercial, domestic and modular lighting installations.

Frequently Asked Questions

Does the Saxby 77916 include a photocell?

Yes. The Lucca Mini 77916 has an integrated photocell for automatic light-level-controlled operation, allowing the fitting to switch on during darker conditions and off when daylight increases.

Is the Saxby Lucca Mini suitable for outdoor installation?

Yes. The fitting is rated IP65 for dust and water resistance and IK08 for impact protection. It must be installed according to the manufacturer’s instructions.

Does this model include a microwave movement sensor?

No. SKU 77916 is the photocell version. The Lucca Mini microwave sensor model is a separate product, SKU 77915.

Is the Saxby 77916 dimmable?

No. This model uses a non-dimmable integrated LED driver.

What light output does the Lucca Mini provide?

The integrated 15W LED module produces 1500 lumens of 4000K cool white illumination.

Does the fitting require a separate LED driver?

No. The Lucca Mini 77916 is supplied with its LED module and driver included.
